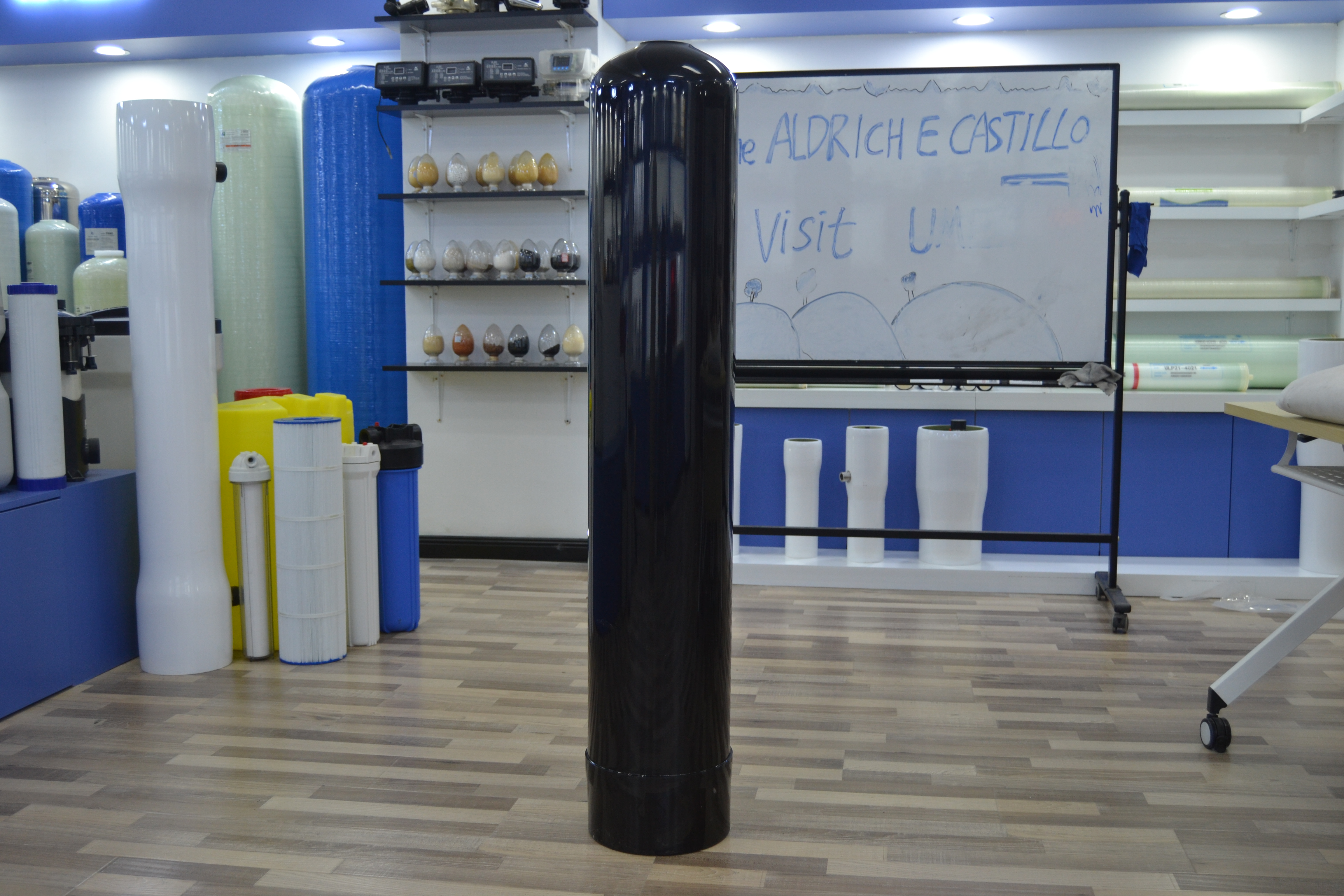

High-Quality NSF 150 Pressure 1054 Black Fiberglass Tank for America
Product Description
FEATURES AND BENEFITS
Our high-quality NSF 150 pressure 1054 black fiberglass tank is specifically designed to meet the water filtration needs of households in America. This durable and efficient tank is built to NSF standards and provides reliable water treatment solutions for various applications.
AMANDA-H TANK SPECIFICATION
Model | Vessel Size | Vol | Opening | Dimension/mm | Base | |||||
Inch | mm | L | Top | Bot. | LA | LB | LC | D | ||
H2162/4T-R | 21x62 | 550x 1650 | 326 | 4"-8UN | / | 1650 | 1600 | / | 550 | FRP Round |
H2162/4T | 21x62 | 550x1910 | 326 | 4"-8UN | / | 1910 | 1600 | / | 550 | FRP Tripod |
H2162/4T4B | 21x62 | 550x1910 | 326 | 4"-8UN | 4"-8UN | 1910 | 1590 | 320 | 550 | FRP Tripod |
H2472/4T-R | 24x72 | 615x1890 | 471 | 4"-8UN | / | 1890 | 1839 | / | 615 | FRP Round |
H2472/4T | 24x72 | 615x2150 | 471 | 4"-8UN | / | 2150 | 1839 | / | 615 | FRP Tripod |
H2472/4T4B | 24x72 | 615x2150 | 471 | 4"-8UN | 4"-8UN | 2150 | 1830 | 320 | 615 | FRP Tripod |
H3072/4T-R | 30x72 | 780x 1860 | 758 | 4"-8UN | / | 1860 | 1839 | / | 780 | FRP Round |
H3072/4T | 30x72 | 780x2150 | 758 | 4"-8UN | / | 2150 | 1830 | / | 780 | FRP Tripod |
H3072/4T4B | 30x72 | 780x2150 | 758 | 4"-8UN | 4"-8UN | 2150 | 1830 | 320 | 780 | FRP Tripod |
H3672/4T4B | 36x72 | 918x2150 | 1023 | 4"-8UN | 4"-8UN | 2150 | 1830 | 320 | 918 | FRP Tripod |
H3672/6T6B | 36x72 | 918x2260 | 1023 | 6"-flane | 6"-flange | 2260 | 1940 | 320 | 918 | FRP Tripod |
H4272/6T6B | 42x72 | 1088x2270 | 1389 | 6"-flane | 6"-flange | 2270 | 1950 | 320 | 1088 | FRP Tripod |
H4872/6T6B | 48x72 | 1218x2270 | 1743 | 6"-flane | 6"-flange | 2270 | 1950 | 320 | 1218 | FRP Tripod |
H6370/6T6B | 63x70 | 1620x1780 | 2580 | 6"-flane | 6"-flange | 2100 | 1780 | 320 | 1620 | FRP Tripod |
H6383/6T6B | 63x83 | 1620x 2080 | 3150 | 6"-flane | 6"-flange | 2400 | 2080 | 320 | 1620 | FRP Tripod |
*The actual dimmension may have ±1.2% error due to PE materlats contraction coefficient
Key Features
Product advantage:
NSF Certified: This fiberglass tank meets NSF standards for quality and performance, ensuring that it delivers safe and clean water for your home.
High Pressure Rating: With a pressure rating of 150 psi, this tank is capable of handling high-pressure water filtration systems with ease.
Large Capacity: The 1054 size of the tank provides ample capacity for storing filtered water, making it suitable for residential use.
Black Color Design: The sleek black color design of the tank not only adds a modern touch to your water filtration system but also helps prevent algae growth inside the tank.
Applications
This NSF 150 pressure 1054 black fiberglass tank is ideal for residential homes, commercial buildings, and other applications in America. It can be used for water softening, iron removal, sediment filtration, and various other water treatment processes, providing you with clean and safe water for drinking and other household uses.
PRODUCTION PROCESS
PACKAGE AND SHIPPING
1. Client's Requirements are in the first :
We are gald to customized package as per clients's demands, including logo and colors design , importantly the fiber reinforced polymer tanks also can do client's brand insteading of our manufacturer's .
2. Normally Amanda Company package is by waterproof plastic bag with carton box.
Kindly supply pictures for your reference .
Exhibition
Our Advantage
Our Factory
Advanced production equipment | Professional and technical personnel |
Adequate product inventory | Rich industry experience |
