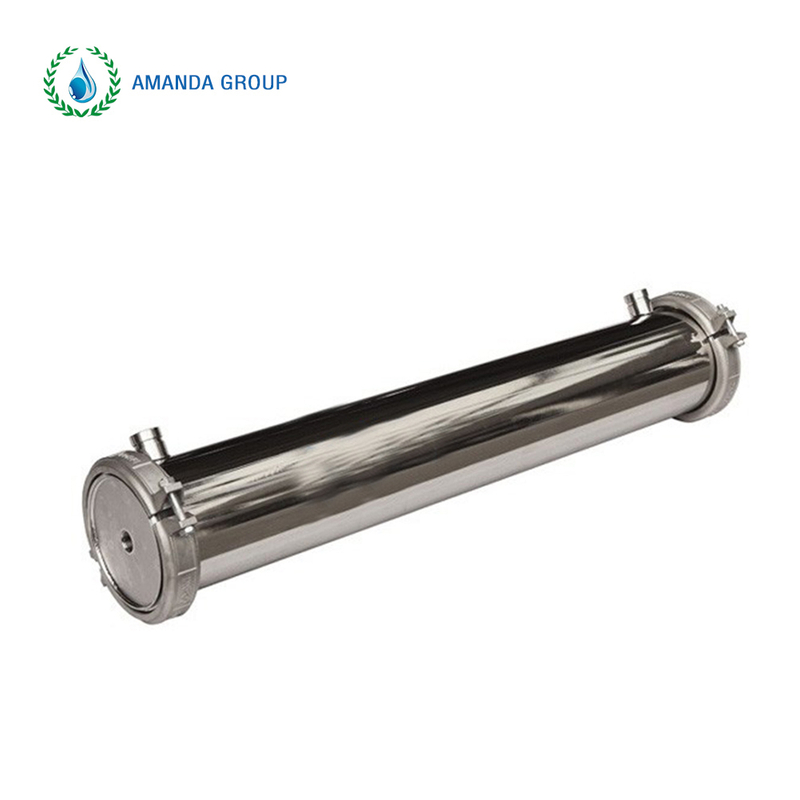

4040 4021 Ro Pressure Vessel Manufacturer Membrane Housing
MAIN TECHNICAL FEATURE
Product Name: | 4040 4021 Ro Pressure Vessel Manufacturer Membrane Housing |
Material: | 304/316 Stainless steel |
Material of end cap: | ABS;SUS304;SUS316L |
Max working pressure: | 250Psi |
Connection: | End port or side port |
Let's begin to communicate Contact us |
4040 4021 Ro Pressure Vessel Manufacturer Membrane Housing Features
Stainless Steel Construction
Screws, vessel, and clamp are all Stainless Steel
End Entry Connections
High Resistance to Climate Conditions
Double O-Rings for Sealing Integrity
Accommodate All Standard Sized Membrane Elements
Hardware included.
Product parameters
Model | Size (inch*inch) | Length (mm) | Length between side opening(mm) | Inlet dia | Outlet dia (inch) |
AMD-4021E | 4'' ×21'' | 600 | / | 1/2'' | 1/2'' |
AMD-4040E | 4'' ×40'' | 1087 | / | 3/4'' | 3/4'' |
AMD-4080E | 4'' ×80'' | 2103 | / | 3/4'' | 3/4'' |
AMD-40120E | 4'' ×120'' | 3119 | / | 3/4'' | 3/4'' |
AMD-40160E | 4'' ×160'' | 4135 | / | 3/4'' | 3/4'' |
AMD-40200E | 4'' ×200'' | 5151 | / | 3/4'' | 3/4'' |
AMD-4040S | 4'' ×40'' | 1150 | 1010 | 3/4'' | 1/2'' |
AMD-4080S | 4'' ×80'' | 2116 | 2026 | 3/4'' | 1/2'' |
AMD-40120S | 4'' ×120'' | 3182 | 3042 | 3/4'' | 3/4'' |
AMD-80160S | 4'' ×160'' | 4198 | 4058 | 3/4'' | 3/4'' |
Model | Size (inch*inch) | Length (mm) | Length between side opening(mm) | Inlet dia | Outlet dia (inch) |
AMD-8040E | 8'' ×40'' | 1174 | / | 1'' | 1.5'' |
AMD-8080E | 8'' ×80'' | 2190 | / | 1'' | 1.5'' |
AMD-80120E | 8'' ×120'' | 3206 | / | 1'' | 1.5'' |
AMD-80160E | 8'' ×160'' | 4222 | / | 1'' | 1.5'' |
AMD-80200E | 8'' ×200'' | 5238 | / | 1'' | 1.5'' |
AMD-80240E | 8'' ×240'' | 6254 | / | 1'' | 1.5'' |
AMD-8040S | 8'' ×40'' | 1308 | 1094 | 1'' | 1.5'' |
AMD-8080S | 8'' ×80'' | 2324 | 2110 | 1'' | 1.5'' |
AMD-80120S | 8'' ×120'' | 3340 | 3216 | 1'' | 1.5'' |
AMD-80160S | 8'' ×160'' | 4356 | 4142 | 1'' | 1.5'' |
AMD-80200S | 8'' ×200'' | 5372 | 5158 | 1'' | 1.5'' |
AMD-80240S | 8'' ×240'' | 6387 | 6174 | 1'' | 1.5'' |
Application of membrane housing
Designed for industrial water treatment, wastewater treatment, fluid separation process and can work under the high pressure
Exhibition
Our Advantage
Our Factory
Advanced production equipment | Professional and technical personnel |
Adequate product inventory | Rich industry experience |
