SS/UPVC Cartridge Filter Housing
You are here: Home » Products » SS/UPVC Filter Cartridge Housing » SS/UPVC Cartridge Filter Housing

PRODUCT DETAIL

SS/UPVC Cartridge Filter Housing

The main products are: Industry and Household RO system ,FRP tank,RO membrane,RO membrane vessel,RUNXIN valve, Household water purifier, water filter cartridge,water filter housing ,UV sterilizer, ozone generator.

  • AMD-SS/UPVC
  • Amanda

  Product Images

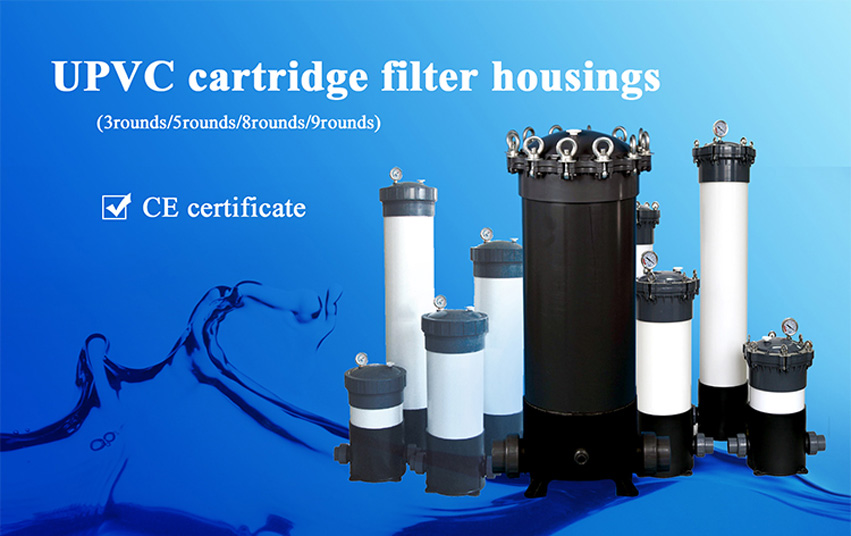

SS, UPVC Cartridge Filter Housing

Cartridge Filters (3 or 5 rounds)

HPCF cartridge filter is a filter system with high precision. It consists of the housing and cartridge elements, mainlly used in pretreatment. It can be widelly used in electronic industry, sewage treatment, beverage, foods, pure water treatment, also it can acts as home water purification equipment.

SS, UPVC Cartridge Filter Housing

SS, UPVC Cartridge Filter Housing

Type Material Size Cartridges Cartridges Size In/Out Max Pressure
HPCF-5DC1 HPCF-3DC1 UPVC φ225-H465 5/3 10" DN40/ANSI 1.5"(w=365)
DN50/ANSI 1.2"(w=437)
A=0.4MPA
HPCF-5DC2 HPCF-3DC2 φ225-H715 20"
HPCF-5DC3 HPCF-3DC3 φ225-H965 30" B=0.6MPA
HPCF-5DC4 HPCF-3DC4 φ225-H1215 40"

It can install all material; all precision's cartridge 5 PCS or 3 PCS, which l.D. is 28-30mm, O.D. is 65-70mm. The highest working temperature is 45。C, The size of the two holes in the lid of the filter is G1/4". If the thread of the pressure gauage is metric standard, should add an adaptor.

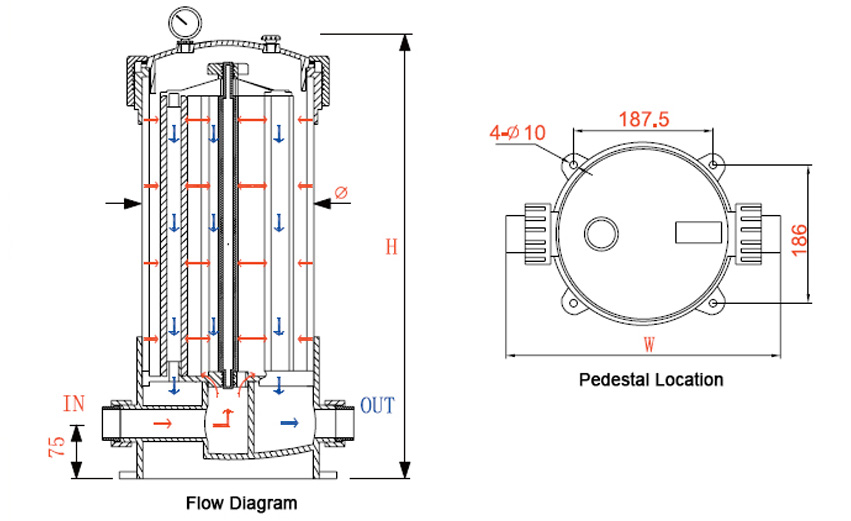

SS, UPVC Cartridge Filter Housing (4)

Product Merits

1.All the parts of this series fiters are made of UPVC material.

2.The inlet and outlet are in the same line, which connected with the pipe is adopta 1.5* or a 2" union.

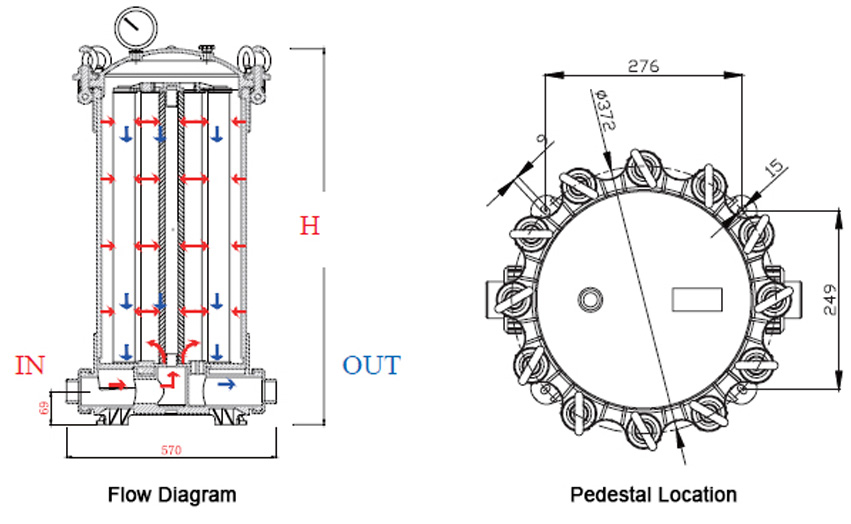

3.The distribution system of HPCF fiters is distributed from bottom to top.Water is well-proportioned with small strike to cartridges and air is easy to be discharged.

4.The bottom system of HPCF fiter is designed together as a whole with the top localizer & closure system. Cartridges are easy to be installed, push down and closed, preventing leaking inside.

5.

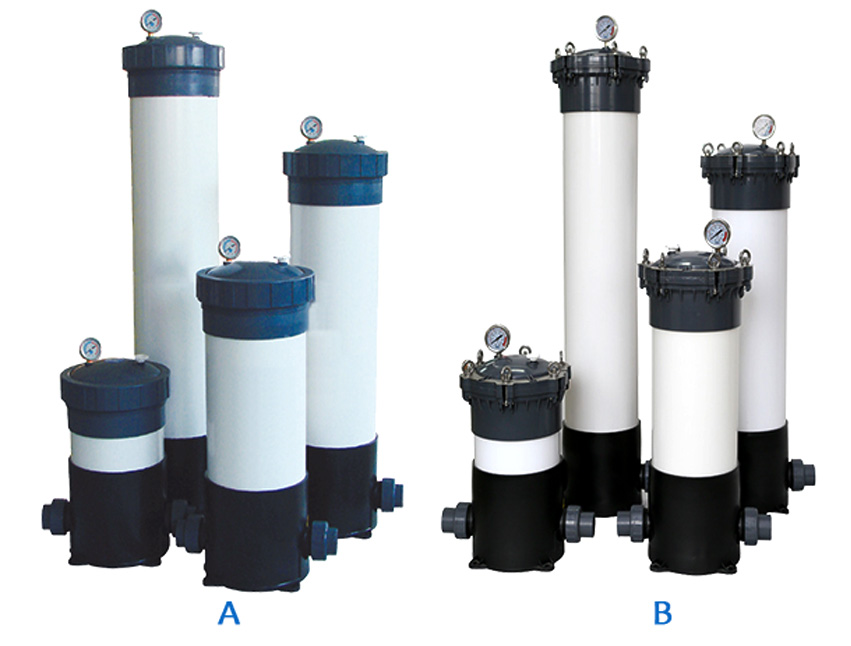

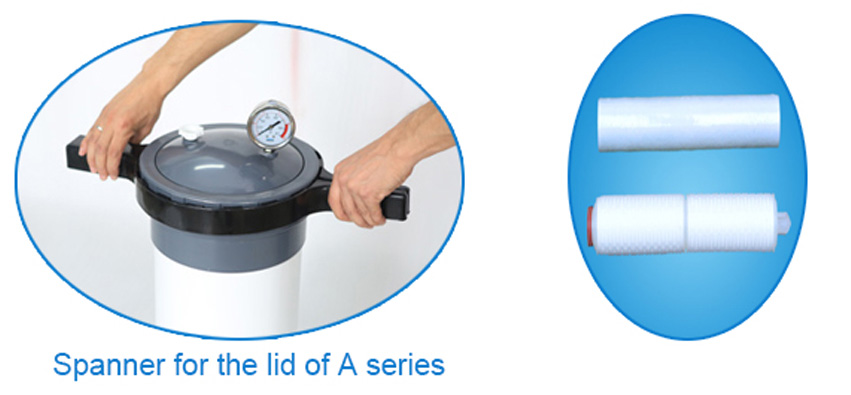

A series: The lid and the body are connected by a nut. Ensure a good seal performance.

B series: The lid and the body are connected using eyebolts flange method, ensure the filter can stand higher

6.HPCF filter is corrosion resistant, It can be used in SS-none-replace field.

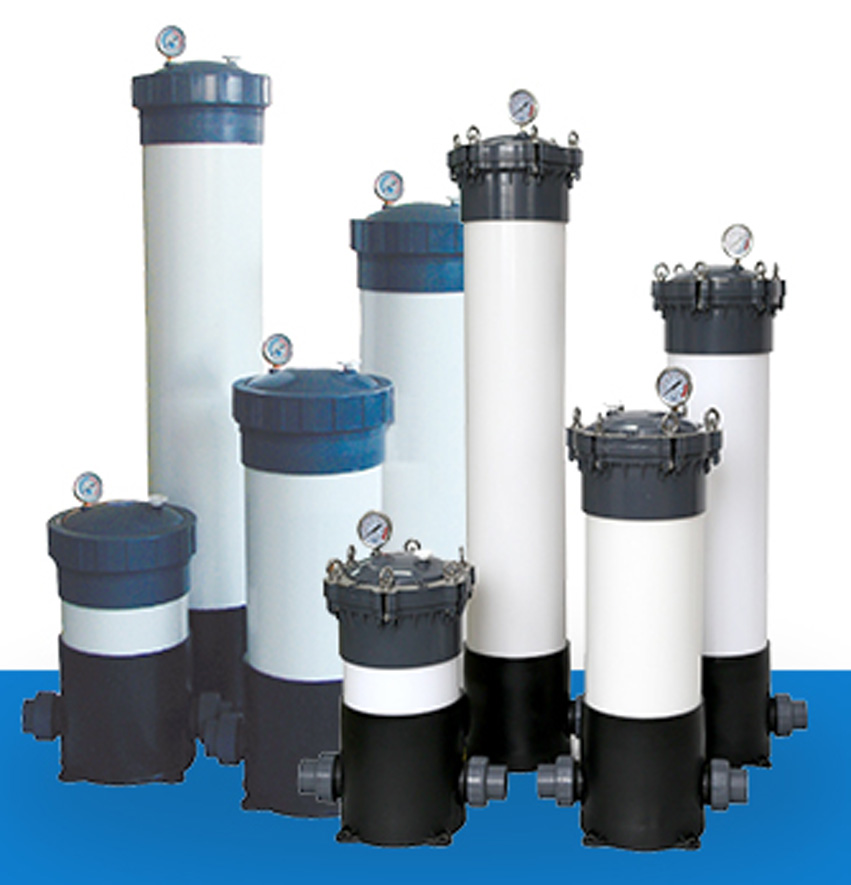

SS, UPVC Cartridge Filter Housing (5)

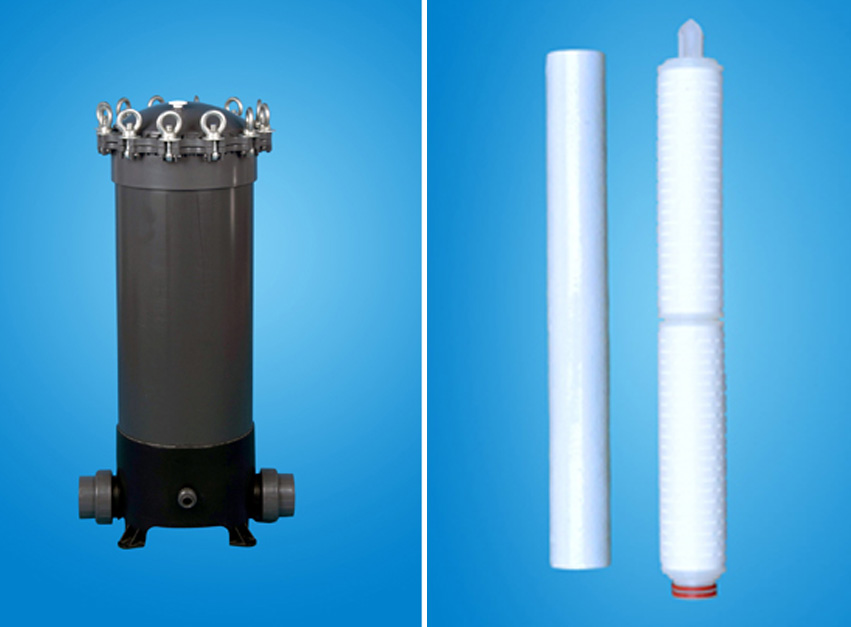

Cartridge Filters (8 or 9 rounds)

SS, UPVC Cartridge Filter Housing (6)

SS, UPVC Cartridge Filter Housing


Type Material Size Cartridges Cartridges Size In/Out Max Pressure
HPCF-9DC2 HPCF-8DC2 UPVC φ315-H745 1.13 20" DINI1/2"
or
ANSI1/2"
B=0.6MPA
HPCF-9DC3 HPCF-8DC3 φ315-H995 30"
HPCF-9DC4 HPCF-8DC4 φ315-H1245 40"

It can install all material; all precision's cartridge 9 PCS or 8 PCS, which 1.D. is 28-30mm, O.D. is 65-70mm.


The highest working temperature is 45。C, The size of the two holes in the lid of the filter is G1/4". If the thread of the pressure gauage is metric standard, should add an adaptor.

SS, UPVC Cartridge Filter Housing

Product Merits

1.All the parts of this series filters are made of UPVC material.

2.The inlet and outlet are in the same line, which connected with the pipe is adopt a 3" union.

3.The distribution system of HPCF fiters is distributed from bottom to top.Water is well-proportioned with small strike to cartridges and air is easy to be discharged.

4.The bottom system of HPCF fiter is designed together as a whole with the top localizer & closure system. Cartidges are easy to be installed, push down and closed, preventing leaking inside.

5.The lid and the body are connected using eyebolts fiange method, Ensure a good seal performance. and ensure the fiter can stand higher pressure.

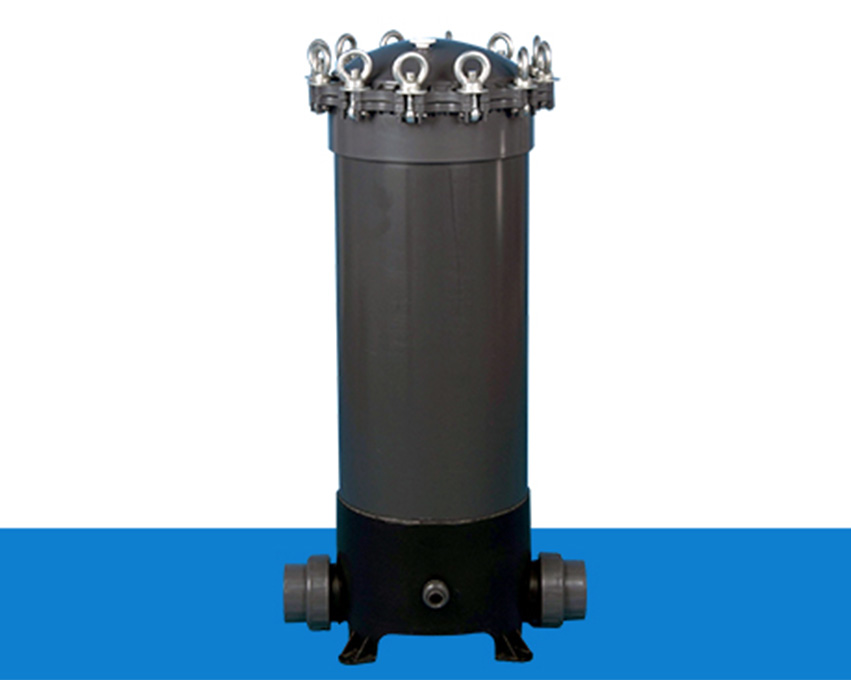

SS, UPVC Cartridge Filter Housing (8)

In 2005, it has got the utility model patent, which is issued by the state intellectual property office of the P.R.C.

The patent NO is: ZL 2005 2 0100822.3.

In 2009, it has got the patent of invention.

The patent NO is: 200510049495.X

It has achieved 0-0.6 MPa 100,000 times recycle fatigue test successfully.


  Exhibition

展会

客户

  Our Advantage

公司介绍

Our Factory

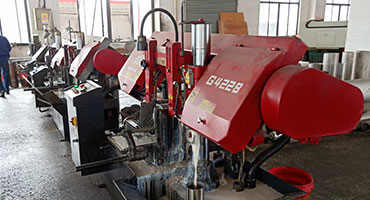

设备1

Advanced production equipment

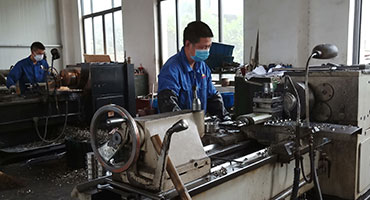

技术3
