Common Configurations, Models and Selection Guide for Water Softeners in the US

Standard Hardware Configuration

A standard US whole-house water softener includes the following core hardware, which also serves as a checklist for purchasing spare parts.

In the US market, "best-selling" generally refers to two types of products: one is the "star model" for the DIY (Do-It-Yourself) market (e.g., Fleck 5600SXT), and the other is for the professional installation market. Due to the huge variation in water hardness across the US (ranging from 5 GPG to over 100 GPG), there is no one-size-fits-all universal model; configurations are tailored to household size and water hardness. In the US, the size of a water softener is measured by resin volume (Cubic Feet, cu.ft) and total grain capacity, rather than "tons per hour". 1 cubic foot (cu.ft) of resin ≈ 30,000 Grains of treatment capacity.

US Calculation Formula: Resin Volume (cu.ft) = (Daily Water Usage in Gal × Hardness in GPG × Regeneration Interval in Days) / 24,000

Data and Configuration Analysis of the Best-selling US Water Softeners (2025-2026)

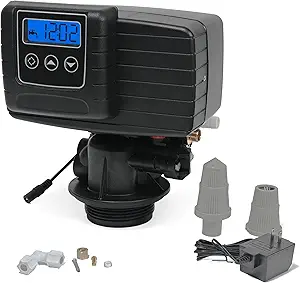

Common Control Valves for US Water Softeners

The US best-selling water softener market is dominated by two brands, Pentair (Fleck) and Clack, which account for more than 90% of the DIY and professional installation markets. The following is an in-depth comparison of the most commonly used models of these two brands, specifically for living scenarios in the US.

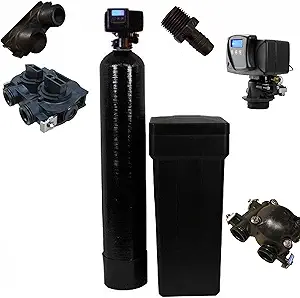

① Fleck 5600SXT: King of DIY

This is the most seen model on Amazon, eBay and Home Depot, and also the core of internet-famous whole-unit brands such as SpringWell and AFW Filters.

• Widely available spare parts: In the US, websites such as SoftenerParts.com and Discount Water Softeners specialize in selling its piston kits and gear motors. You can even buy emergency sealing rings at Walmart or Ace Hardware. No need to panic if it breaks—repairs can be done in 20 minutes by driving to a local store.

• Zero threshold for maintenance: The valve body features an "Upflow/Downflow" vertical piston structure. There are a large number of YouTube videos (e.g., "Word of Advice TV") in the US teaching step-by-step disassembly; only a screwdriver and pipe wrench are needed, no professional plumber required.

• Salt efficiency: It does not pursue extreme salt saving (e.g., 3 lbs/cu.ft), with a default setting of 6-8 lbs/cu.ft, which is completely reasonable in the US (salt is cheap, $6-$8 per bag). This setting instead enables more thorough regeneration, producing water with extremely low hardness (0-1 GPG), very suitable for the ultra-high hardness water in the US Midwest (e.g., Arizona, Texas).

• Relatively noisy: The "clicking" sound of the gear motor and piston movement are obvious during regeneration; it may be heard if installed on the wall between the garage and the bedroom.

• Plastic gear lifespan: The internal timing gears are plastic and may wear out after 10-15 years of use, leading to program errors (but a motor assembly replacement only costs $80-$120).

② Clack WS1: First Choice for Most Professionals

This is the most recommended valve by local water treatment companies (e.g., Culligan dealers) and professional plumbers. It is not sold in large quantities directly on Amazon and is usually purchased at local industrial supply supermarkets such as Ferguson or Grainger.

• Absolutely quiet: Adopts rotating disc technology with no gear meshing noise. It is the only choice if the unit is to be installed indoors (e.g., next to a basement entertainment area) or in a laundry room adjacent to the master bedroom.

• Tool-free disassembly: No tools are needed to clean the valve body; the disc set can be taken out for flushing by unscrewing the top cover by hand. This is very friendly for dealing with rust and manganese blockages common in US water quality.

• Ultra-high flow: The WS1 features an excellent flow channel design with low pressure loss, a nominal flow rate of up to 27 GPM, and can easily supply water to multiple bathrooms in a large mansion at the same time.

• Disadvantages: A small grain of sand stuck between the precision discs can cause internal leakage.Installing a sediment filter in front of a Clack valve is a mandatory requirement in the US and cannot be omitted.

• Complex programming: The key logic uses combination keys (e.g., Hold + a certain key), unlike Fleck where you just press the "Regen" button. It is best to ask the seller to complete the first setup.

• OEM locking: The circuit boards and shells of WS1 valves from different dealers (e.g., EcoWater vs. a local company) may be custom versions, and replacement parts are not necessarily fully universal—you may have to buy parts from the original dealer.

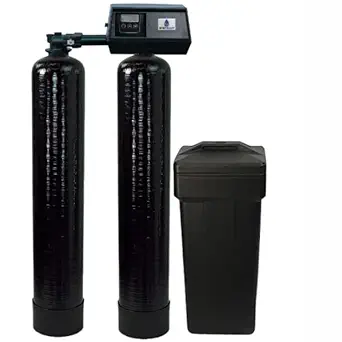

③ Fleck 9100SXT: The Twin Tank System

An upgraded version of the 5600 for twin-tank alternating systems. One valve controls two resin tanks, with one in use and the other on standby or in regeneration.

• Applicable scenario: Choose this if you have a large household of more than 6 people in the US, or if you cannot stand reduced water pressure when taking a shower during regeneration at 2 a.m. (many old houses in the US already have insufficient water pressure).

• In the US, twin-tank systems are installed in large garages, and they can utilize 100% of the resin capacity, saving more salt than single-tank systems.

④ Runxin Valve

• Purchase price: Approximately 1/3–1/2 of Fleck 5600SXT/Clack WS1 for the same specification (1" flow type).

• Easy installation and maintenance: Quick-connect unions and integral extractable valve cores, DIY-friendly with no professional tools required.

• Quiet operation: If you need to install the water softener next to a basement entertainment room, a laundry room adjacent to the bedroom, or under kitchen cabinets, the quiet performance of the Runxin valve far surpasses the Fleck 5600. Clack is also quiet but twice as expensive.

• Simple structure with a long theoretical lifespan: Ceramic discs have high hardness and minimal wear. The core mechanical components can indeed last 10-15 years without damage under conditions of excellent water quality (e.g., municipal water with pre-filtration) and no hard object impact.

• No pressure relief required: The Runxin valve can directly switch working positions (e.g., from operation to backwash) under pressure, while old Fleck mechanical valves require closing the water inlet valve first to relieve pressure, which is more convenient for DIY installation.

Applicable Scenarios:

• DIY self-installation with a limited budget: Small households of 1–3 people, regeneration scheduled for late night/unoccupied hours.

• Intermittent water use in industrial/commercial settings: Boilers, washing, swimming pools, where water shutdown is allowed.

• Twin-tank non-stop water supply systems: F73/F98 twin tanks, costing over 50% less than Fleck 9100.

Models such as F63/F65/F68 and F73/F98 (twin tanks) have passed NSF/ANSI 44 certification and are legal and safe for use in the US.

Must-buy Accessories (purchasable on Amazon or SupplyHouse.com in the US):

• BSP to NPT Adapters: Two each of 1-inch and 3/8-inch.

• Sediment Filter: Must be installed at the front! A 20-inch filter housing with a 5-micron filter element is recommended to protect the delicate ceramic discs.

Common Tank Materials, Models and Matching for US Water Softeners

Mainstream Tank Materials

① Fiberglass Composite Tank (Universal for Household/Commercial Use)

• Structure: Food-grade PE inner liner + outer glass fiber winding + epoxy resin curing

• Advantages: Corrosion-resistant, pressure-resistant (100–150 psi), lightweight, 10–15 year lifespan, NSF/ANSI 44 certified

• Brands: Pentair Structural, Clack, US Water, Wave Cyber

• Applicable to: All series of Fleck, Aquasure, Kenmore, Whirlpool, Pentair, etc.

② Stainless Steel Tank (High-end/Commercial/Special Scenarios)

• Material: 304/316L stainless steel

• Advantages: Extremely durable, high temperature resistant, impact resistant

• Disadvantages: Heavy, expensive, prone to scaling, not DIY-friendly

• Applicable to: Industry, commerce, extreme water quality, high-end customization with no corrosion requirements

③ Plastic/PE Tank (Entry-level/Small/Brine Tank)

• Material: High-density polyethylene (HDPE)

• Advantages: Ultra-light, affordable, acid and alkali resistant

• Disadvantages: Low pressure resistance, easy to deform, short lifespan (5–8 years)

• Applicable to: Small under-sink units, brine tanks, temporary/rental equipment

In the US water softener market, "tank size" usually refers to the diameter and height of the resin tank, which are the core physical indicators determining the treatment capacity and household applicability of the water softener. US industry standards use inches as the unit, and the combination of diameter × height directly corresponds to the resin filling volume (Cubic Feet, cu.ft).

Twin-tank non-stop water supply: Parallel connection of two 10×54 or 12×52 tanks; total capacity 80,000–96,000 Grains; flow rate 15–20 GPM.

Tank Size and Selection

10" × 54" (1.5 cu.ft)

This is the best-selling size in both the US DIY and professional installation markets.

• Space efficiency: A 10-inch diameter (about 25.4cm) is the standard threshold; it is sturdier than a 9-inch tank and can hold more resin, but does not take up as much installation space as a 12-inch tank.

• Capacity matching: 1.5 cubic feet of resin can provide approximately 48,000 Grains of treatment capacity under standard settings. It is the standard configuration for Fleck 5600SXT kits with the highest space utilization, and its treatment capacity can cover 90% of water hardness across the US. The regeneration cycle is usually controlled at 7-10 days, which not only avoids bacterial growth from long-term resin immersion but also prevents water waste from frequent regeneration.

• Disadvantage: Usually a two-piece set (Tank + Brine Tank separate), looks like industrial equipment and is not very "exquisite".

• Advantage: Large performance redundancy. 1.5 cu.ft of resin can support 7-10 days of regeneration with medium hardness, more in line with the "high efficiency" concept of water and salt saving.

9" × 48" (1.0 cu.ft)

The standard for retail all-in-one units. Almost all integrated water softeners in building material supermarkets such as Whirlpool, GE, Kenmore, Home Depot and Lowe's adopt this size. For example, best-selling models such as Whirlpool WHES30 and GE GXSH40V all use this size.

• Features: The resin tank is hidden in a white plastic shell with a neat appearance, suitable for installation in garages or laundry rooms.

• Disadvantage: Small resin volume; in areas with hardness >15 GPG (e.g., Arizona, Texas), regeneration may be required every 3-5 days, wasting water and electricity, and "hardness breakthrough" is easy during peak hours.

• Advantage: The cabinet design looks like a small refrigerator, extremely aesthetic when placed in a garage or laundry room, meeting the US household demand for "home appliance-style" products.

Large-flow size: 12" × 52" (2.0 cu.ft)

Mainly used for large household models of high-end brands such as SpringWell and EcoWater. A 12-inch diameter tank provides a larger cross-sectional area with low water flow resistance, thus achieving an extremely high service flow rate (up to 20 GPM or more), suitable for households with multiple bathrooms using water at the same time or equipped with high-flow shower heads.

If you hire someone to install it at Home Depot, you will most likely get a 9x48 unit; if you purchase and install it on Amazon or professional water softener sales websites, it is highly recommended to choose 10x54 for a longer lifespan and better experience.

Brine Tank / Water Softener Salt

- Material: Plastic (cylindrical/square), equipped with a safety float and air check valve.

Water softener salt in the US is usually large-grain Solar Salt or Pellet Salt in 40lb or 80lb bags.

Why 18" diameter?

• Physical adaptability: The size of bagged salt and human arm length determine that an opening smaller than 16 inches makes salt pouring difficult, while an opening larger than 20 inches takes up too much space. 18 inches is the most suitable size for reaching in to clean salt bridges.

• Universal accessories: The specifications of brine float assemblies and salt wells are all designed for 18-inch tanks. Maintenance kits available at Ace Hardware are also compatible with this size.

Height Selection

• 33": Standard height. Can hold 6-7 bags of 40lb salt, enough for 1-2 months of use. This is the most commonly used size.

• 40": Choose the taller one if your home is far from Costco or Home Depot and you do not want to make a trip every month, or if water usage is huge (e.g., swimming pool water replenishment). Note the garage door height—a 40-inch tank plus the valve head may exceed 6 feet (1.8 meters).

Selection Recommendations

Selection Logic: Calculate "Capacity" First, Then Choose "Brand"

When choosing a water softener in the US, resin volume (Grain Capacity) is the primary indicator determining price and model. Do not only focus on "flow rate (GPM)"; a unit with a large flow rate but small resin volume will quickly fail in hard water areas.

Formula for Calculating Your "Hardness Requirement" (Grain Capacity)

Required Capacity (Grains) = Daily Water Usage (Gallons) × Water Hardness (GPG) × Regeneration Interval (Days)

Water Hardness: A Must-Check Item!

Search for the "Water Quality Report" on the official website of the local water authority or buy test strips. Reference values (US Standard):

• 0-3 GPG (Soft water, no need for installation)

• 3-7 GPG (Medium hardness, installation recommended)

• 7+ GPG (Hard water, installation mandatory)

• 15+ GPG (Extremely hard water, large-capacity unit required)

Daily Water Usage (GPD): Estimated at 75-100 gallons per person per day.

• 2-person household: 150-200 GPD

• 4-person household: 300-400 GPD

• 6-person household: 450-600 GPD

Regeneration Interval: How often you want the unit to clean (regenerate) automatically? 7-10 days is recommended. Too short (3 days) wastes salt and water; too long (14 days) causes easy resin hardening.

Example (Typical Hard Water Areas in California/Texas)

• Household: 4 people (400 GPD)

• Water quality: 12 GPG hardness (hard water)

• Interval: 8 days of regeneration expected

• Calculation: 400 × 12 × 8 = 38,400 Grains

• Selection Recommendation: Purchase a 40,000 Grain or 48,000 Grain model.

Key Configuration Points to Focus on When Screening on Websites

1. Regeneration Method: Choose Upflow, which saves more than 30% salt compared to Downflow.

2. Control Type: Choose Metered, which regenerates based on actual water usage to avoid waste.

3. Bypass Valve: Choose Integrated for easy maintenance.

4. Brine Tank: Square is preferred to avoid salt accumulation in the corners of cylindrical tanks.

5. Resin: Look for the "10% Crosslink" mark for a longer lifespan.
