Many users assume that water softeners are "plug-and-play appliances with no maintenance required". As a water-related household appliance, a water softener not only needs professional and standardized installation in the early stage but also requires regular inspections, consumable replenishment, and equipment maintenance during long-term use to ensure its operating performance and service life. The core water purification component of a water softener is the cation exchange resin, which adsorbs calcium and magnesium ions in water to soften water quality and remove scale. However, the adsorption capacity of the resin is limited; once it becomes saturated, the softening effect will be completely lost.
The regeneration process is the core procedure that restores the adsorption activity of saturated resin through chemical displacement + layered water flow cleaning for water softeners. It is also the key to ensuring stable long-term water output, low energy consumption, and efficient operation of the equipment. This article comprehensively dissects the regeneration mechanism of water softeners from the perspectives of working principle, complete process steps, core details, control logic, and operation and maintenance points.
The operation and regeneration of a water softener involve a set of reversible ion exchange reactions. During daily water use, the resin adsorbs hard water ions; after saturation, the resin is restored to activity through brine displacement, and the cycle repeats for continuous operation.

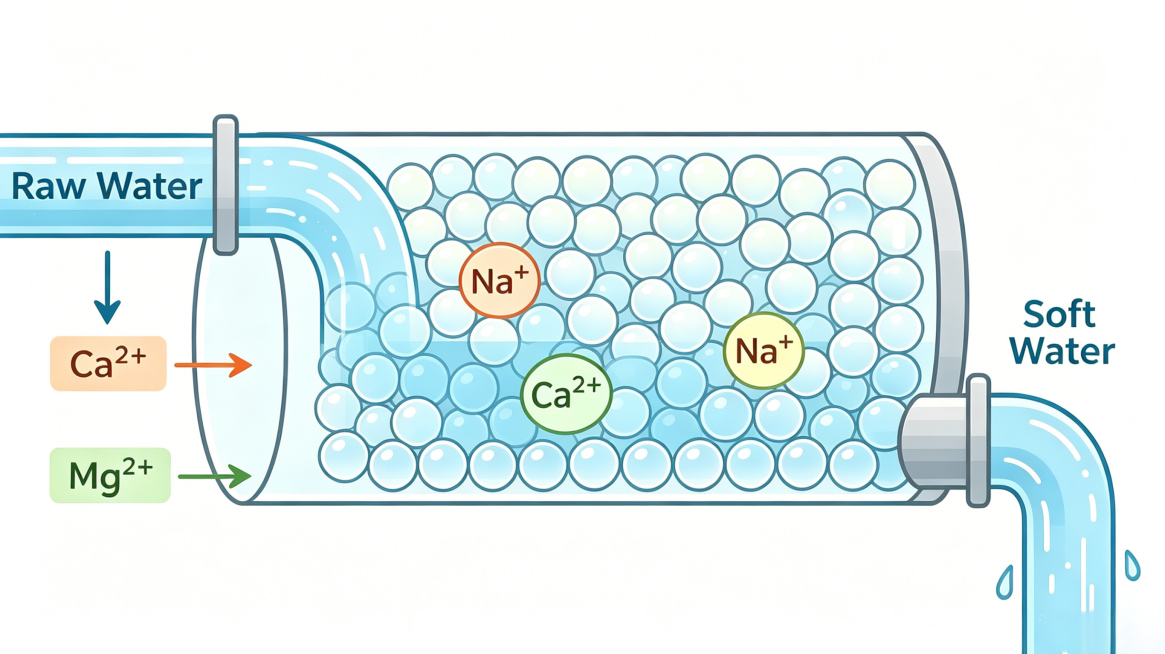

Resin particles are loaded with exchangeable sodium ions (Na⁺) on their surfaces. When raw water flows through the resin tank, calcium and magnesium hard ions (Ca²⁺, Mg²⁺) that cause scale in the water actively displace the sodium ions on the resin, thereby removing water hardness and producing clean soft water.
Chemical reaction formula: 2R-Na + Ca²⁺(Mg²⁺) → R₂-Ca(Mg) + 2Na⁺
As water use continues, the sodium ions on the resin surface are continuously replaced and eventually fully occupied by calcium and magnesium ions. The resin reaches a saturated state and completely loses its softening capacity, at which point the regeneration process must be initiated.
The core logic of regeneration is to reversely drive the ion exchange reaction using the concentration difference of high-concentration saturated brine. High-concentration sodium ions forcibly displace the calcium and magnesium ions adsorbed on the resin, allowing the resin to reabsorb sodium ions and restore its initial softening activity.
Chemical reaction formula: R₂-Ca(Mg) + 2NaCl → 2R-Na + CaCl₂(MgCl₂)
The displaced calcium and magnesium impurities are discharged from the equipment with waste water, completing the purification and regeneration of the resin. The industrial standard for saturated brine concentration is 26%, which is the optimal ratio balancing displacement efficiency and energy consumption.
At present, both household and commercial water softeners adopt the counter-current regeneration process (the flow direction of the regeneration liquid is opposite to that of normal water production). Compared with the old co-current regeneration, it saves more salt and water, achieves more thorough regeneration, and delivers more stable water output. The entire regeneration process takes 60-90 minutes; the equipment stops supplying qualified soft water during regeneration, and the pipeline water output is cleaning waste water.
Water flow direction: Raw water flushes the resin layer from bottom to top (opposite to the normal water production direction)
After long-term operation, the resin layer will be compacted by water flow and trap impurities such as sediment, rust, and suspended solids in the water. In the backwash stage, reverse water impact loosens the compacted resin layer, expanding the resin by 30%-50%, effectively avoiding problems such as resin caking, water flow bias, and local water circuit short-circuiting.
Meanwhile, water flow thoroughly flushes out all impurities trapped by the resin, dredges resin pores, reduces water flow resistance, and lays a foundation for uniform brine displacement in the subsequent stage.
Operating notes: Water is drained throughout this stage; domestic water use is prohibited. A stable water pressure of 0.15-0.4MPa must be maintained; insufficient pressure will result in incomplete cleaning.
Brine suction and regeneration is the core step of the entire regeneration process, which directly determines the resin restoration effect and subsequent soft water quality.

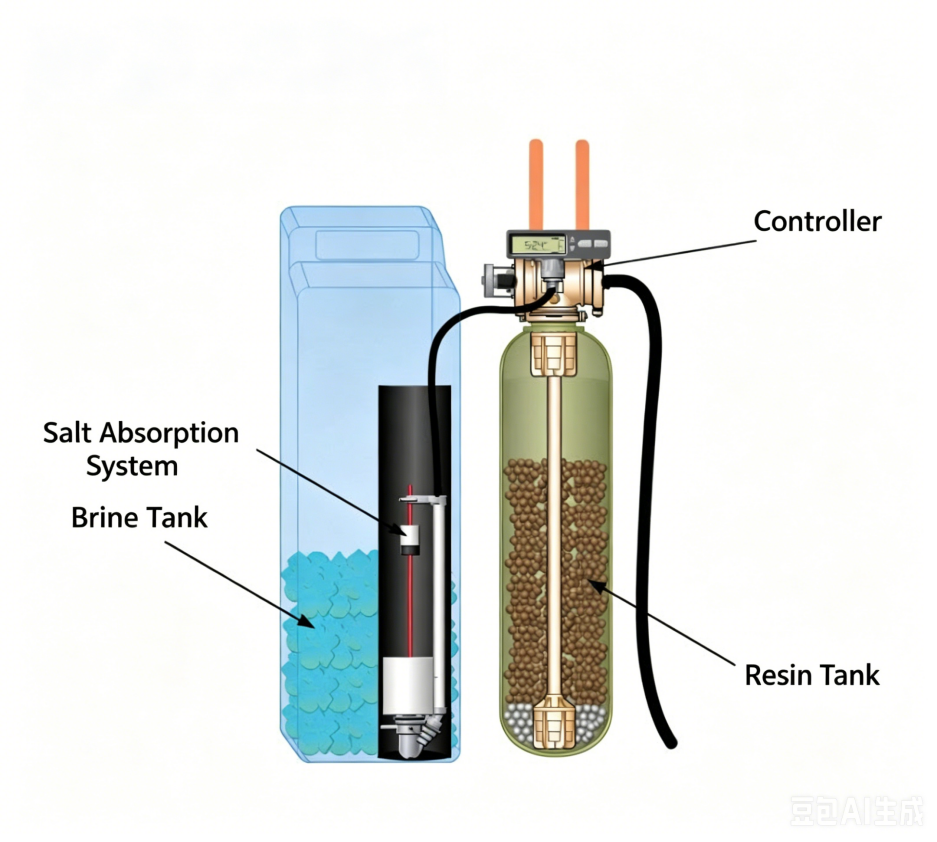

Operating principle: The equipment control valve switches the water circuit, automatically extracts 26% saturated concentrated brine from the brine tank using negative pressure formed by a Venturi injector, mixes it with raw water for dilution, and flows through the resin layer from top to bottom at a low speed. High-concentration sodium ions continuously displace the calcium and magnesium ions adsorbed on the resin to completely restore resin activity, and the waste liquid produced by displacement is discharged through the sewage pipeline.
Core process requirements:
Low-speed liquid inflow is mandatory: Slow water flow ensures full contact between brine and every resin particle; excessive flow rate directly leads to incomplete regeneration.

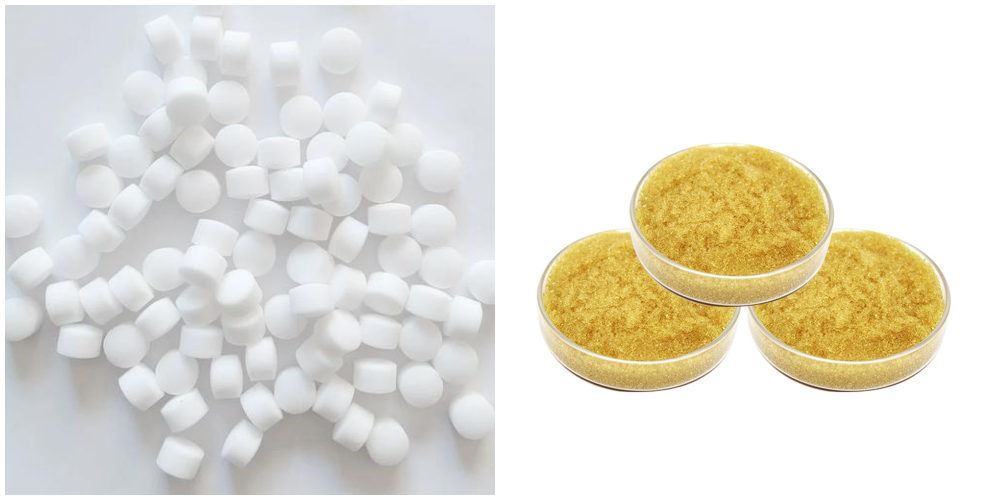

Use special salt consumables: Only high-purity iodine-free water softener salt is allowed; iodized salt, crude salt, and industrial mixed salt will cause permanent poisoning and failure of the resin.
Sufficient salt level in the brine tank: The salt layer must be higher than the water level throughout the process to ensure a continuous supply of saturated brine.
Water flow state: Stop brine suction and maintain the same low-speed, top-to-bottom flow direction as the brine suction stage.
After brine suction, some concentrated brine and incompletely displaced calcium and magnesium impurities still remain in the gaps and deep structure of the resin layer. In the slow rinse stage, raw water continuously flushes at a low speed to penetrate the residual brine into all dead corners of the resin, completing deep secondary displacement, effectively solving the problem of incomplete local resin regeneration, and greatly improving the overall regeneration qualification rate.
Operating notes: It is strictly prohibited to increase the water flow speed; excessive flushing will take away the concentrated brine in advance and damage the deep regeneration effect.
Water flow direction: Restore the normal water production flow direction (top to bottom), and the water flow speed increases significantly.
After deep regeneration, a small amount of salt, displacement waste liquid, and fine resin debris remain in the resin tank. In the fast rinse stage, the resin layer is quickly flushed with a large flow of clean water to completely remove residual impurities in the tank until the drained water is clear, tasteless, and the water hardness approaches 0.
The main function of this step is to eliminate salty water output and pipeline salt residue corrosion, ensuring the taste of subsequent daily water and the safety of equipment pipelines.
After flushing, the equipment enters the standby and material preparation state, and the controller automatically refills a fixed amount of water into the brine tank. Tap water is added to the brine tank to dissolve solid water softener salt and re-prepare standard saturated brine, reserving raw materials for the next regeneration in advance.
The equipment accurately controls the water replenishment volume through a liquid level valve: excessively high water level dilutes the brine and causes overflow; excessively low water level fails to form saturated brine, directly leading to failure of the next regeneration.
After water replenishment is completed, the equipment automatically switches back to the normal softening and water production mode, and the entire regeneration process is successfully completed.
Brine suction and regeneration is the top priority determining the operating efficiency of water softeners. Many problems such as excessively hard water output, invalid regeneration, and unstable water quality of equipment stem from abnormalities in the brine suction stage. The complete refined operation process of this stage is as follows:
The backwash process is successfully completed, the resin is loose and impurities are drained; the equipment water pressure is stable at 0.15-0.4MPa; the brine tank has a high salt level above the water level, forming standard saturated brine; the multi-port valve switches to the special brine suction station, closes the water production channel, and connects the complete water circuit for water inflow, brine suction, and sewage discharge.
Raw water flows through the narrow neck of the Venturi injector at high speed, forming negative pressure vacuum based on fluid mechanics principles. Saturated concentrated brine at the bottom of the brine tank is extracted through the brine suction pipe, and the brine mixes with raw water to form a regeneration liquid with an optimal concentration of 8%-12%.
The mixed regeneration liquid enters the top of the resin tank at a constant low speed, evenly covering and penetrating the entire resin layer to ensure that every resin particle can fully contact the brine, providing sufficient reaction time for ion exchange.
High-concentration sodium ions continuously displace the calcium and magnesium hard ions bound to the resin. Calcium and magnesium impurities detach from the resin and dissolve in water, and the resin rebinds sodium ions to fully restore its softening and adsorption capacity.
Waste brine containing a large amount of calcium and magnesium impurities flows out from the bottom of the resin tank, and is uniformly discharged through the sewage channel of the multi-port valve. The water flow in the tank is dynamically balanced without water accumulation or residue.
Most household models adopt timed control, automatically cutting off the brine suction pipeline after 25-35 minutes; high-end commercial and industrial models adopt quantitative brine suction, stopping operation when the preset brine dosage is reached for precise consumption control.
After brine suction stops, raw water briefly flushes the brine suction pipeline to remove residual concentrated brine, avoiding brine retention, crystallization, and pipeline blockage.
Raw water inflow → Venturi injector (generates negative pressure) → mixes with saturated brine from the brine tank → regeneration liquid enters the top of the resin tank → flows through the resin layer from top to bottom → calcium and magnesium-containing waste liquid discharged from the tank bottom → multi-port valve → discharged through the sewage pipe.
No brine suction/slow brine suction: Insufficient water pressure, blocked Venturi nozzle, or air leakage in the brine suction pipe, leading to incomplete regeneration and high water hardness output.
Intermittent brine suction: Air leakage in the pipeline, excessively low salt level, or large water pressure fluctuations, resulting in uneven displacement effect.
No drop in brine tank water level: Complete blockage of the brine suction pipeline, no brine participating in regeneration, and complete failure of the water softener.
Salty water output: Excessive brine suction volume or insufficient subsequent flushing time, causing salt residue in the tank.
To adapt to different water use scenarios, fully automatic water softeners are equipped with three regeneration trigger logics, balancing practicality and energy saving:
Flow-based regeneration: Triggered by actual water consumption, e.g., automatic startup after cumulative water use of 10 tons. It can be accurately adapted to households and shops with regular water use, saving salt and water with the lowest energy consumption.
Time-based regeneration: Preset fixed time for automatic regeneration, mostly set in the early morning when no water is used. It is suitable for scenarios with large water use fluctuations and water outages at night, avoiding water supply interruption during regeneration.
Manual forced regeneration: Applicable to scenarios such as restart after long-term shutdown, abnormal water quality, and excessively hard water output. Manual startup of regeneration quickly restores equipment performance.
Use high-purity iodine-free water softener salt throughout, and prohibit crude salt and iodized salt. Install a pre-filter if raw water has excessive iron and manganese to prevent heavy metal poisoning of the resin and irreversible damage. Maintain the salt level above the water level daily to reserve saturated brine at all times.
The equipment operating water pressure is stable at 0.15-0.4MPa; insufficient water pressure leads to weak brine suction and backwash, while excessively high pressure easily scours and damages the resin. The operating environment temperature is maintained at 5-40°C; low temperature reduces brine fluidity and slows down the displacement reaction speed.
The regeneration cycle should not be too long to avoid excessive saturation and accelerated resin loss; nor should it be too short to cause waste of salt, water, and electricity. The brine suction duration, salt dosage, and flushing water volume must match the resin filling volume for on-demand adaptation.
When the equipment is idle for a long time, drain the accumulated water in the brine tank and manually start regeneration once every 1-2 months to prevent resin caking and bacterial growth, extending the service life of the resin.
The stable operation of a water softener relies on the five-step closed-loop regeneration mechanism: backwash → brine suction and regeneration → slow rinse → fast rinse → brine tank refilling. Brine displacement is the core, layered flushing is the guarantee, and precise water replenishment is the foundation for long-term effectiveness. Only a complete and standard regeneration process can keep the resin continuously highly active, maintain the equipment in a long-term efficient, low-consumption, and stable operating state, fundamentally solve the scale problem, and ensure the quality of whole-house water use.
