In household water quality optimization, choosing the right water softening equipment is a core challenge for most consumers. Especially in areas with hard water, problems caused by hard water such as pipe scaling, appliance wear and tear, and dry skin make people eager to find a suitable softening solution. Among many water softening technologies, salt-based softening and salt-free softening have always occupied the mainstream. Although both seem to solve hard water problems, their core logics are completely different, and consumers can easily fall into selection misunderstandings. In fact, salt-based softening focuses on completely removing calcium and magnesium ions from water to achieve radical hardness removal; salt-free softening focuses on changing the form of calcium and magnesium ions to achieve protective scale inhibition. Neither has absolute advantages or disadvantages, and the key lies in adapting to the household water quality, usage needs, and budget level.
Before selection, it is first necessary to clarify the classification standards for hard water and soft water, which is the basis for accurate selection. Usually, it is based on the total content of calcium and magnesium ions in water (unit: mg/L, calculated as CaCO₃). The specific classification is as follows: <60 mg/L is soft water, 60-120 mg/L is moderately soft water, 120-180 mg/L is moderately hard water, 180-240 mg/L is hard water, and >240 mg/L is ultra-hard water. Water of different hardness has significantly different impacts on family life and equipment: long-term use of ultra-hard water will cause scaling on the inner wall of pipes, reduced thermal efficiency of water heaters, clogged shower heads, stubborn scale on faucets, dry skin, frizzy hair, stiff clothes after washing, a sharp increase in detergent usage, and even shorten the service life of household appliances; soft water can effectively avoid the above problems, which not only improves daily living comfort but also extends the service life of household appliances and reduces maintenance costs. Only by clarifying the household water hardness can you select the softening technology and equipment in a targeted manner.
The core of salt-based softening is ion exchange technology. As the most widely used and technically mature water softening solution in the world, it has formed a complete product system and standardized operation and maintenance process after decades of iteration since its application in the household field in the mid-20th century. It is widely used in hard water areas such as North America and Europe, as well as commercial scenarios such as hotels and food processing factories. Its core logic is to fundamentally remove calcium and magnesium hardness-causing ions in water through ion replacement, converting hard water into real soft water. It has prominent advantages and disadvantages, and is suitable for families with high requirements for soft water effects and acceptable certain operation and maintenance costs.

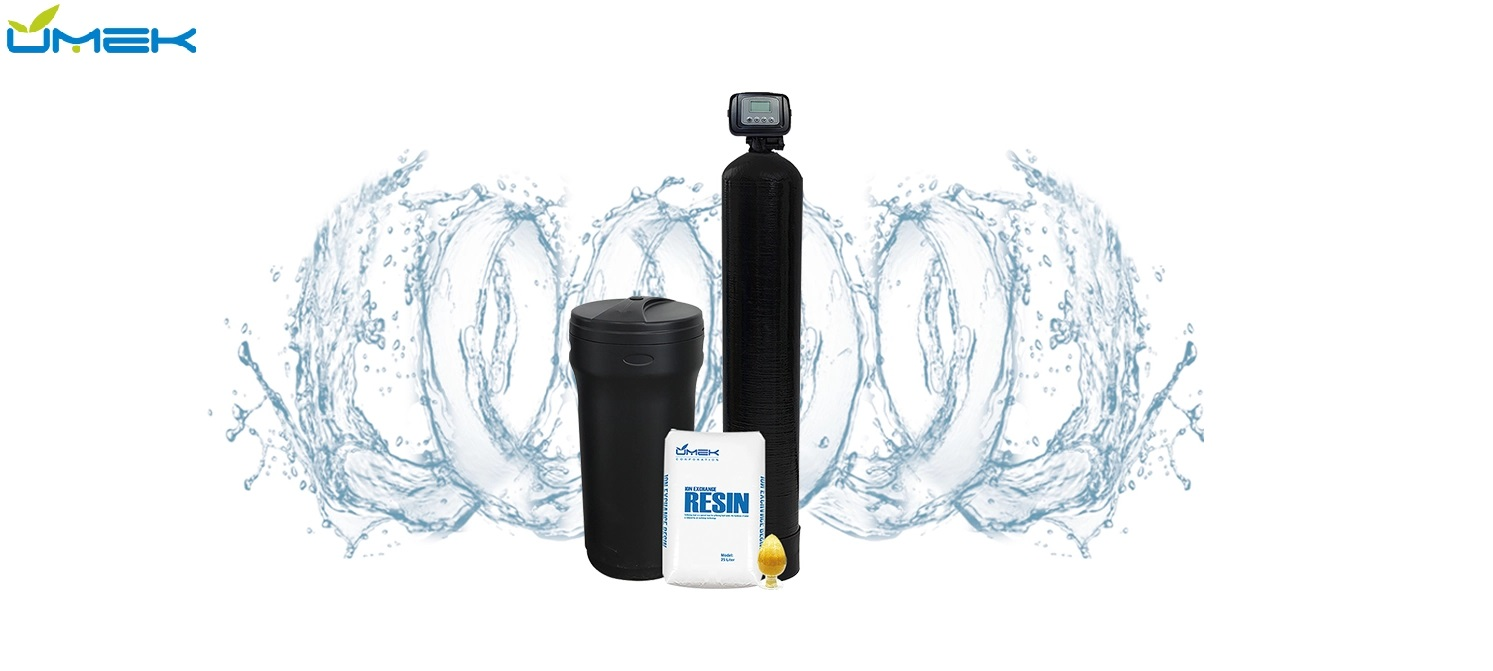

The core components of salt-based softening equipment include sodium-type cation exchange resin, resin tank, brine tank, and control valve (divided into manual and automatic types). Some high-end models are equipped with pre-filters and post-activated carbon filters to improve influent water quality, avoid impurity clogging of resin, and ensure softening effect. Its complete working process is divided into two core links: adsorption and replacement and resin regeneration, which circulate to achieve continuous and stable water supply. The specific breakdown is as follows:

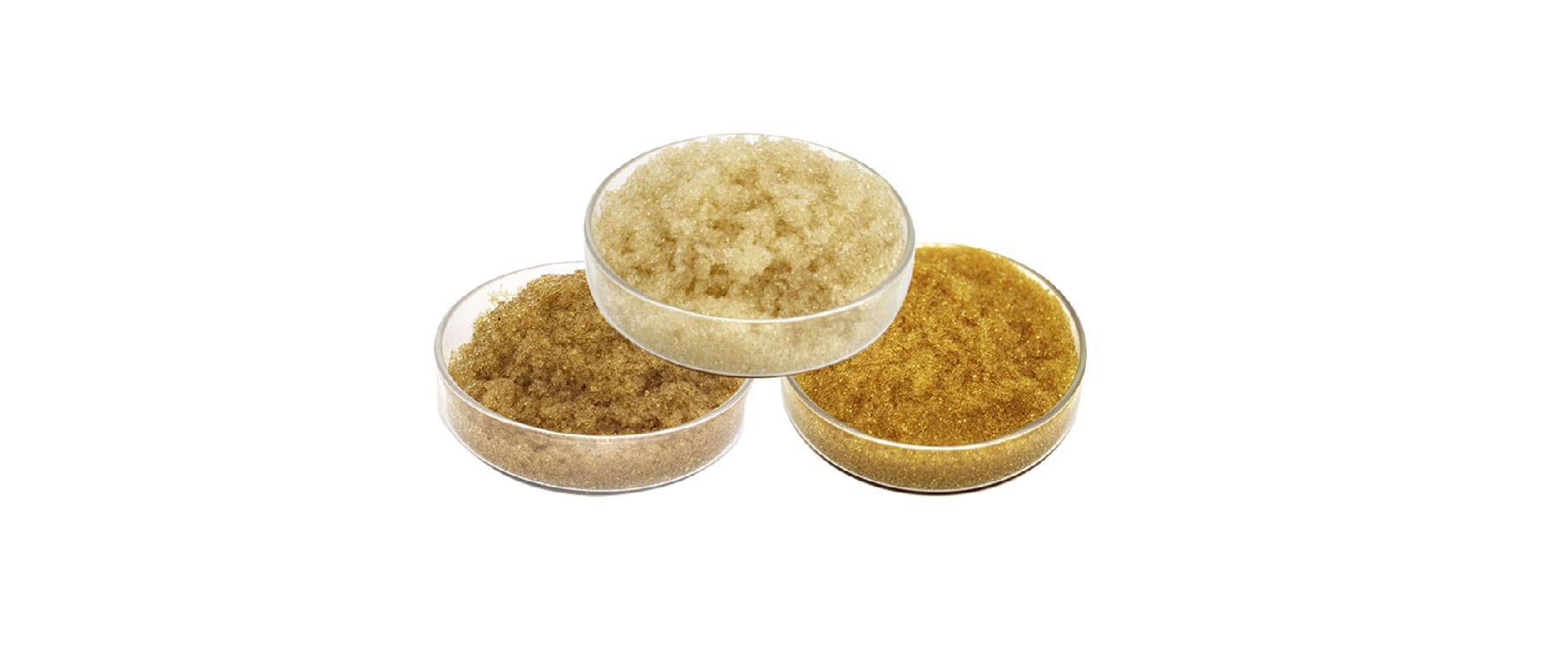

Adsorption and replacement link: This is the key step to achieve hardness removal. When hard water flows through the sodium-type cation exchange resin layer in the resin tank, resin particles will actively adsorb hardness-causing ions such as calcium (Ca²⁺) and magnesium (Mg²⁺) in water. The core characteristic of sodium-type resin is ion selectivity, which has a much stronger adsorption capacity for calcium and magnesium ions than sodium ions (Na⁺). Therefore, it will preferentially adsorb calcium and magnesium ions and release the sodium ions it carries to complete ion replacement. This process can be simplified into chemical reaction formulas: 2RNa + Ca²⁺ = R₂Ca + 2Na⁺, 2RNa + Mg²⁺ = R₂Mg + 2Na⁺ (where RNa represents sodium-type resin). After replacement, a large number of hardness-causing ions in water are removed, and the effluent hardness is close to 0 mg/L, which can completely eliminate scale formation.
It should be noted that the adsorption capacity of sodium-type resin is limited. The adsorption capacity of household-grade resin is usually 40-60 g/L (calculated as CaCO₃), and the adsorption capacity directly determines the working cycle of the equipment—the larger the household water consumption and the harder the water quality, the faster the resin saturation speed and the higher the regeneration frequency. For example, for a family of three with hard water (180-240 mg/L) and daily water consumption of about 100L, equipment equipped with 10L resin has a working cycle of about 4-6 days, after which resin regeneration is required.

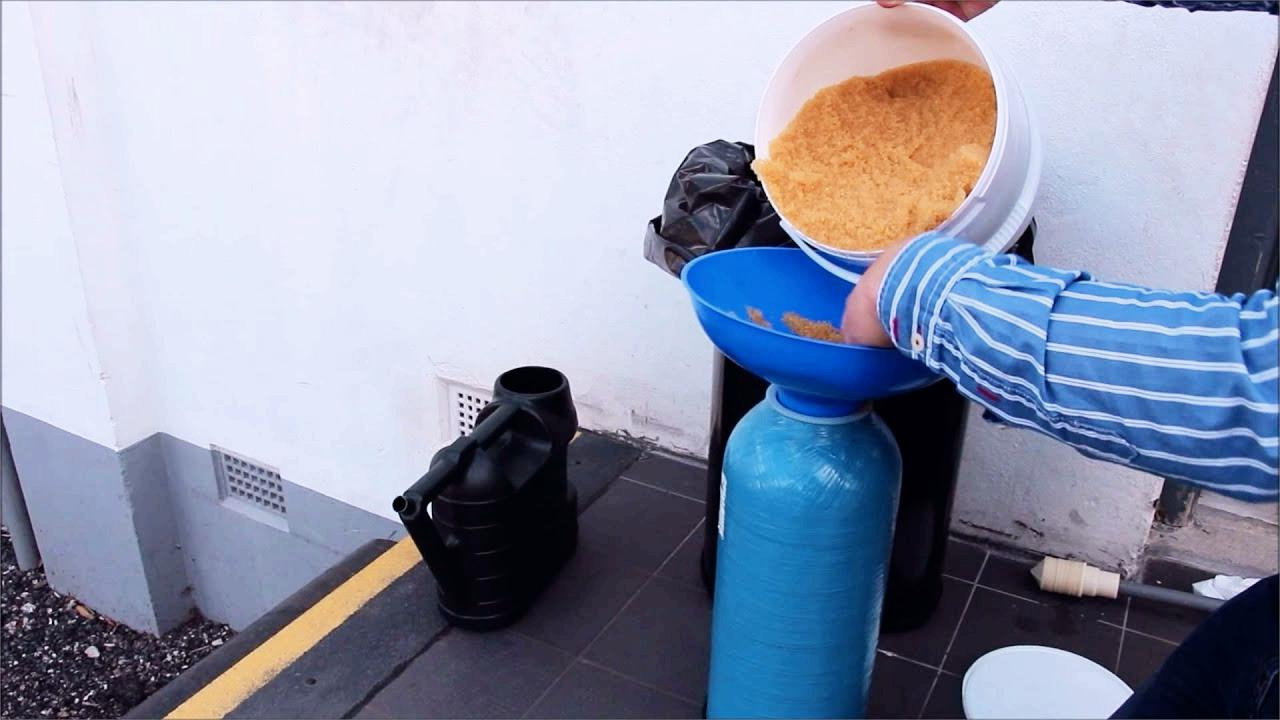

Resin regeneration link: When the calcium and magnesium ions adsorbed by the resin reach saturation, the adsorption capacity will be completely lost, and regeneration is required to restore the function, which is the key to the continuous operation of salt-based softening equipment. The core of regeneration is reverse replacement: the control valve pumps 10%-15% high-concentration soft water salt solution in the brine tank into the resin tank. High-concentration sodium ions undergo reverse replacement with calcium and magnesium ions on the resin, eluting calcium and magnesium ions, which are discharged with waste water; the resin re-adsorbs sodium ions to restore the ability to adsorb hardness-causing ions.
The regeneration time of household equipment is usually 30-60 minutes, with 2-5 kg of salt consumed each time. The salt consumption increases with the resin capacity and water hardness; the regeneration process produces waste water, and the ratio of waste water to softened water is about 1:3. High-salt waste water needs to be discharged through a special pipeline. At present, mainstream household models are equipped with automatic control valves, which can automatically set the regeneration time (such as night regeneration) according to water consumption and water hardness without manual operation, avoiding the decline of softening effect caused by forgetting regeneration. In addition, there are two ways to set the regeneration cycle: flow rate type (automatic regeneration when the cumulative water production reaches the standard), which is suitable for families with large fluctuations in water consumption and is more energy-saving and salt-saving; time type (fixed cycle regeneration), which is suitable for families with regular water use and is simpler to operate.
The core reason why salt-based softening has become a global mainstream solution lies in its outstanding advantages, especially in softening effect and user experience, which is the best among all current water softening technologies. The details are as follows:
Thorough and stable softening effect: Different from salt-free softening "inhibiting scaling", salt-based softening completely removes calcium and magnesium ions through ion replacement, and the effluent hardness is close to 0 mg/L, which is real soft water. No scale will adhere to household pipes, water heaters, wall-hung boilers and other household appliances, as well as glass, faucets and other home surfaces, fundamentally solving hard water problems. At the same time, the softening effect is not affected by water temperature, water flow speed, or water quality fluctuations. Even in ultra-hard water (>240 mg/L) scenarios, it can remain stable without capacity attenuation.
Improve living experience: Softened water has a smooth taste and comprehensively improves daily living experience. Detergent usage can be reduced by 30%-50% during washing, saving expenses and reducing residues. Clothes are soft and fluffy after washing without hard stains, suitable for delicate fabrics such as pure cotton and wool; bathing can relieve dry and itchy skin, suitable for sensitive skin and infants, while making hair smoother and reducing dry split ends; when cleaning, countertops and glass have no water marks after drying, no need for repeated wiping, reducing cleaning burden; when used for soup cooking and rice cooking, it can avoid calcium and magnesium ions affecting food taste, making soup more fragrant and rice softer.
Wide adaptation range: It can adapt to all kinds of hard water quality, whether medium and low hardness (60-180 mg/L) or high hardness, ultra-high hardness (>180 mg/L), it can meet softening needs. Rich product models, from small household (1-2 people, water production 1-2 tons/hour) to large and medium commercial (water production more than 10 tons/hour), can be adapted. In addition, it can be matched with the whole-house water purification system to form a complete scheme of "pre-filtration-central softening-post-direct drinking", taking into account soft water needs and drinking water health.
Mature technology and convenient maintenance: Ion exchange technology has been applied for decades, with a perfect technical system and low failure rate. The core components have a long service life—resin can be used for 3-5 years (high-quality resin can reach 5-8 years), automatic control valve can reach 8-10 years, brine tank (food-grade PE material) can reach more than 10 years. The maintenance process is simple, only requiring regular addition of soft water salt, inspection of resin every 1-2 years, and cleaning of brine tank every 6 months, which can be completed by ordinary consumers without professional on-site service.
High degree of customization: It can be customized according to household water consumption, water hardness, and installation space to adapt to different needs. Small apartments can choose wall-mounted equipment to save space; large apartments and multiple bathrooms can choose large-flow models (3-5 tons/hour) to meet simultaneous water use in multiple channels; families with large water quality fluctuations can choose intelligent models with water quality monitoring to automatically adjust the regeneration cycle and ensure softening effect.
Affected by technical principles and product characteristics, salt-based softening also has obvious disadvantages, which is the core reason why many consumers turn to salt-free softening:
High operation and maintenance costs: Long-term cumulative expenditure is considerable, mainly including three parts: soft water salt (added every 1-2 months, 2-5 kg each time, high-quality salt 0.8-1.2 US dollars/kg, annual expenditure 40-70 US dollars); resin replacement (once every 3-5 years, 70-140 US dollars each time, high-quality resin is more expensive, professional replacement requires additional labor costs); waste water fee (the ratio of regeneration waste water to softened water is 1:3, long-term increase in water fee). The annual operation and maintenance cost of a family of three is about 80-150 US dollars, and the 10-year cumulative total is 800-1500 US dollars, much higher than salt-free softening.
Potential health risks: A large amount of sodium ions are released by the resin during ion replacement. The sodium ion content per liter of softened water increases by 20-50 mg, and the harder the water quality, the more the increase. Long-term drinking of high-sodium water will increase the burden on the kidneys, which is not friendly to patients with hypertension, kidney disease and infants. Therefore, it is necessary to reserve unsoftened tap water separately for drinking and cooking, increasing the difficulty and cost of pipeline transformation, and the transformation of decorated houses is more troublesome.
Great environmental pressure: Regenerated waste water has a salt content of 10%-15%. Direct discharge will lead to soil salinization, affect the survival of aquatic organisms, and damage the ecological environment. At present, some areas in Europe and North America have clear restrictions on the discharge of high-salt waste water, which requires additional treatment equipment, increasing use costs and operational difficulty.
High installation requirements: The equipment is large in size (60cm×40cm×80cm space needs to be reserved), which may not be installed in small apartments or families with limited installation space. At the same time, it needs to be connected to water inlet, outlet and drainage pipes, requiring a drainage outlet and power supply (automatic control valve uses electricity). The pipelines of decorated houses are fixed, and transformation may damage walls and floors, affecting aesthetics and increasing costs.
Prone to "salt bridge": Excessive addition of soft water salt in the brine tank, insufficient moisture or insufficient salt purity will cause salt agglomeration to form a "salt bridge", making the salt solution unable to enter the resin tank during regeneration, the resin cannot be effectively regenerated, affecting the softening effect, and even causing equipment failure in severe cases. It is necessary to regularly check the brine tank, clean agglomerates, and choose high-purity special soft water salt, avoiding the use of ordinary edible salt (containing impurities, shortening resin life).
The core of salt-free softening is physical scale inhibition technology. Different from the logic of salt-based softening "completely removing hardness", it does not remove calcium and magnesium ions in water, but changes their form through physical means to make them lose scaling ability and avoid adhering to the inner walls of pipes and household appliances. It is a protective solution of "treating the symptoms but not the root cause". The hardness of water remains unchanged and the total amount of calcium and magnesium ions is not reduced, but it can effectively reduce scale problems, meeting the needs of modern families for "health, environmental protection and convenience". At present, there are 3 mainstream household types, each with adapted scenarios and advantages and disadvantages.
These three mainstream technologies are Template Assisted Crystallization (TAC) technology, Ion Polarization System (IPS) technology, and Siliphos technology, all of which have been verified by the market for a long time, with mature and reliable technology, adapting to families with different needs and budgets. The following detailed analysis will help consumers accurately match.
Template Assisted Crystallization (TAC) technology, originating from Europe, has been popularized in many regions around the world. With the core advantages of "salt-free, no waste water, drinkable directly, stable scale inhibition", it has become the first choice for salt-free softening, especially suitable for families with medium and low hardness water quality. Its technical core is related to the characteristics of nanomaterials. After years of iteration, the product system is perfect and adapts to the needs of most families.
Core principle: The core component is nanocrystal filter material, which is made of natural minerals such as calcium carbonate and silicon dioxide through high-temperature sintering and nanoscale processing, with a large number of catalytic active sites on the surface. It does not need electricity or chemical additives, and achieves scale inhibition through physical catalysis. When hard water flows through the filter material layer, the active sites adsorb calcium and magnesium ions, break their crystallization rules, and convert calcium and magnesium ions that are easy to form hard scale into loose nanoscale crystals. These crystals cannot adhere to the inner walls of pipes and household appliances and will be discharged naturally with the water flow. The whole process does not change the mineral content of water quality, no waste water is generated, the filter material has a service life of 3-5 years, no frequent replacement is required, and the effluent can be directly drunk without reserving tap water pipelines.
Main advantages: Salt-free and no waste water, environmental protection and no pollution, no soil and water burden; effluent can be directly drunk, no need to install additional direct drinking equipment, saving costs, no complex pipeline transformation; moderate size, mostly wall-mounted or small vertical type, flexible installation, adaptable to new and old houses, not occupying too much space; stable scale inhibition under medium and low hardness (60-300 mg/L), scaling speed reduced by 60%-80%, which can effectively protect household appliances and extend service life; no energy consumption, no electricity required, 10-year maintenance cost is only 40-80 US dollars, much lower than salt-based softening; filter material replacement is simple, consumers can operate by themselves without professional on-site service.
Main disadvantages: Filter material is a consumable and needs to be replaced regularly with certain consumable costs; catalytic effect is significantly attenuated when water temperature exceeds 65℃, not suitable for high-temperature household appliances such as steam boilers and high-temperature water use scenarios; scale inhibition effect is greatly reduced under high hardness (>300 mg/L) water quality, unable to effectively inhibit scale; if the equipment is idle for a long time (more than 1 month), the active sites of the filter material will fail, and flushing is required for reuse; the quality of market products is uneven, inferior filter materials have poor catalytic effect and short service life, careful screening is required for purchase.
Ion Polarization System (IPS) technology, originating from Asia, has a very high cost performance. Its core advantages are no electricity, no salt, no consumables, zero later maintenance, low price, suitable for low-hardness water quality families with limited budget, frequent business trips or simple water use needs, and also the first choice for tenants and small apartments. The equipment has a simple structure and outstanding convenience.

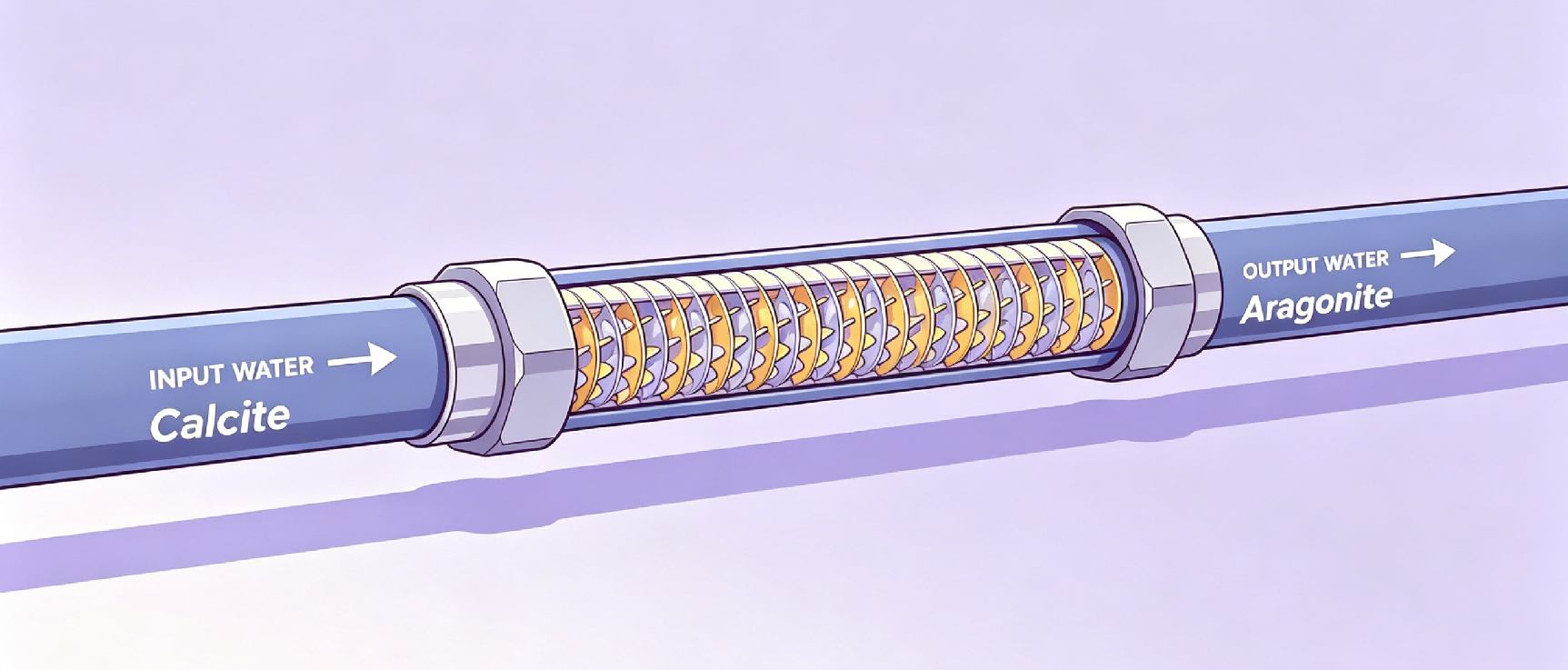

Core principle: The core component is a special composite alloy core, forged from copper, zinc, nickel and other metals through a special process, with self-generating characteristics, no external power supply required, and can generate a weak micro-electric field in water. When hard water flows through the alloy core, the micro-electric field makes calcium and magnesium ions carry the same charge. According to the principle of "like charges repel", calcium and magnesium ions repel each other, cannot gather to form hard scale, and can only be discharged with the water flow in a dispersed ionic state to achieve scale inhibition. The alloy core has a service life of 8-10 years, no replacement is required, truly realizing zero consumable maintenance.
Main advantages: Low price, household equipment is only 30-80 US dollars, much lower than nanocrystal TAC and salt-based softening equipment; no electricity, no salt, no consumables, 10-year maintenance cost is almost 0, no regular addition of consumables or replacement of filter materials, worry-free use; not afraid of long-term idleness, can work normally after 1-2 months of business trips without additional treatment; strong anti-interference ability, not affected by impurities such as sediment and rust, no pre-filter required; small size, mostly sleeve-type design, easy installation, suitable for small apartments; durable alloy core, no frequent equipment replacement required for 8-10 years.
Main disadvantages: Weak scale inhibition ability, only suitable for low hardness (≤200 mg/L) water quality, ineffective under medium and high hardness, unable to effectively inhibit scale; when water temperature exceeds 55℃, micro-electric field intensity decreases, scale inhibition effect drops sharply, not suitable for high-temperature household appliances such as water heaters and wall-hung boilers; installation requires pipe cutting, cutting the original water pipe, difficult transformation of decorated houses, may damage pipelines and affect aesthetics; not suitable for large-flow scenarios (>2 tons/hour), scale inhibition effect will decrease when large families use water in multiple channels at the same time.
Siliphos technology, full name "polyphosphate scale inhibition technology", originating from Europe, has core advantages of low price, fast scale inhibition, high temperature resistance, belonging to salt-free chemical scale inhibition, suitable for families with extremely low budget and only needing to protect single-point high-temperature household appliances, mainly used for single-point protection of equipment such as water heaters and wall-hung boilers, unable to achieve whole-house scale inhibition.

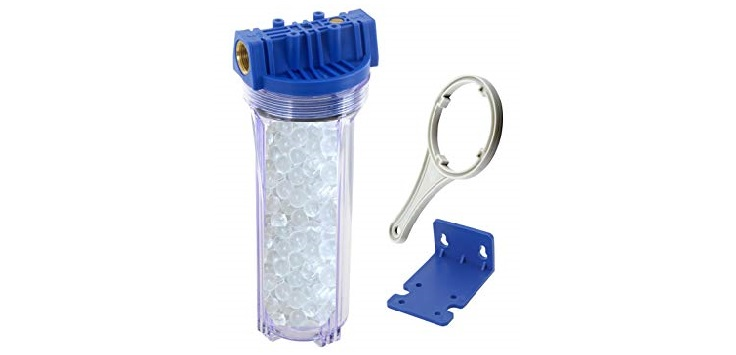

Core principle: The core component is siliphos filter material, which slowly dissolves and releases phosphate to form soluble complexes with calcium and magnesium ions in water, preventing them from gathering to form hard scale, and can dissolve slight scale on the inner walls of pipes and household appliances at the same time, achieving dual effects of scale inhibition and scale removal. The whole process does not need electricity, the filter material dissolves slowly, needs to be supplemented regularly, belongs to salt-free chemical scale inhibition, does not change the total amount of calcium and magnesium ions in water, but the effluent is not suitable for direct drinking.
Main advantages: Extremely low price, household equipment 30-70 US dollars, 10-year maintenance cost 140-280 US dollars, suitable for families with limited budget; simple installation, no complex transformation, can be directly installed at the water inlet of water heaters and wall-hung boilers to achieve single-point protection; fast scale inhibition, can quickly inhibit scale formation, and can dissolve slight scale at the same time, improve equipment operation efficiency; high temperature resistance, can maintain stable scale inhibition effect when water temperature exceeds 70℃, adapt to high-temperature household appliances.
Main disadvantages: Risk of phosphorus precipitation, long-term use may lead to excessive phosphorus content in water, not suitable for direct drinking, nor for whole-house softening, only single-point protection; filter material needs to be supplemented every 3-6 months, failure immediately if forgetting to supplement, extra attention required for maintenance; only suitable for single-point protection, unable to protect whole-house pipes and appliances; not suitable for closed circulation systems, may affect normal operation of equipment; inferior siliphos may contain impurities, which will pollute water quality, regular products need to be selected for purchase.
Combined with the above analysis, compare salt-based softening and three mainstream salt-free softening technologies from three key dimensions: core advantages, core disadvantages, and applicable scenarios, to help consumers quickly locate the suitable scheme and avoid selection misunderstandings.
Softening Type | Core Advantages | Core Disadvantages | Applicable Scenarios |
|---|---|---|---|
Salt-Based Softening (Ion Exchange) | Thorough and stable softening effect, good user experience; adaptable to all hardness water quality; mature technology, customizable; suitable for household and commercial use | High operation and maintenance costs; effluent not suitable for direct drinking; great environmental pressure; high installation requirements; prone to salt bridge formation | High/ultra-hard water quality; high requirements for soft water experience; whole-house softening and industrial/commercial scenarios |
Salt-Free - Nanocrystal TAC | Salt-free, no waste water, drinkable directly; stable scale inhibition; convenient installation; low maintenance cost; no energy consumption | Need regular filter material replacement; afraid of high temperature and high hardness water; easy to fail after long-term idleness; many inferior products | Medium and low hardness water quality; new/old houses; pursuit of healthy direct drinking; whole-house scale inhibition needs |
Salt-Free - IPS Ion Polarization | Lowest price; no electricity, no consumables; not afraid of idleness; small size; strong durability; good anti-interference | Weak scale inhibition ability; afraid of high temperature and high hardness water; pipe cutting required for installation; not suitable for large flow | Low hardness water quality; limited budget; small apartments; frequent business trips; new house decoration |
Salt-Free - Siliphos | Low price; simple installation; fast scale inhibition; high temperature resistance; can dissolve slight scale | Risk of phosphorus precipitation; need regular material supplementation; only single-point protection; not suitable for direct drinking; not suitable for closed systems | Single-point protection of water heaters/wall-hung boilers; extremely low budget; need to quickly relieve slight scale |
Finally, it should be emphasized that there is no absolute advantage or disadvantage between salt-based softening and salt-free softening, and the core lies in adaptation. When selecting, it is necessary to comprehensively judge based on three core factors: first, water hardness—prioritize salt-based softening for high/ultra-hard water quality, and salt-free softening for medium and low hardness; second, usage needs—choose salt-based softening for pursuit of complete hardness removal and whole-house adaptation; choose nanocrystal TAC for pursuit of healthy direct drinking and convenience; choose IPS ion polarization or siliphos for limited budget and single-point protection; third, installation conditions—choose compact salt-free equipment (nanocrystal TAC, IPS) for decorated houses and limited space, and salt-based softening for new house decoration or sufficient space.
In addition, no matter which scheme is chosen, you should choose products from regular brands with test reports to avoid buying inferior products—inferior salt-based equipment may use low-purity resin with poor softening effect and short service life; inferior salt-free equipment may have problems such as filter material failure and water pollution, affecting use effect and family health. At the same time, regular equipment maintenance can ensure its long-term stable operation, truly solve hard water problems and improve the quality of family life.
