FRP WaTER PRESSURE TANK
MAIN TECHNICAL FEATURE
Characters
Fully Rustproof and corrosion resistant
High strength Light weight
Easy transporting and istllation
Nice appearance
Structure & Materials
Liner material: Rotation molding or Blowing One-piece seamless PE inner liner
Outer Winding: Hight Performance resin with Fiber glass threedimensional winding
Opening: 2.5" and 4" reinforced plastic thread,6" alloy flange
Bass Materials: FRP or reinforced PP
Application Conditions
Working Pressure:150psi (10.5bar)
Working Temperature:1-49*C (34-121*F)
Max.Vacuum:127mm Hg
Lowest Environment Temperature: -27*C (-17*F)
Design Parameter
Burst Pressure: 42bar (4 times)
Fatigue Cycle: 100, 000
Color
In UMK fiber reinforced polymer tanks, there are five colors for your choose : Nature,
Blue, Black, Gray, Yellow. ( Other colors are customied )
Specification
AMANDA-D TANK SPECIFICATION
| Model | Vessel Size | Vol | Opening | Dimension/mm | Base |
| Inch | mm | L | Top | Bot. | Dis. | LA | LB | LC | D |
4272/6T6B4D | 42x72 | 1088x1850 | 1100 | 6"-flange | 6"-flange | 4"-flange | 1850 | 1615 | 235 | 1088 | FRP Tripod
|
| 4289/6T6B4D | 42x89 | 1088x2270 | 1389 | 6"-flange | 6"-flange | 4"-flange | 2270 | 1950 | 320 | 1088 | FRP Tripod |
| 4872/6T6B4D | 48x72 | 1218x1850 | 1308 | 6"-flange | 6"-flange | 4"-flange | 1850 | 1565 | 285 | 1218 | FRP Tripod |
| 4889/6T6B4D | 48x89 | 1218x2270 | 1743 | 6"-flange | 6"-flange | 4"-flange | 2270 | 1950 | 320 | 1218 | FRP Tripod |
| 4894/6T6B4D | 48x94 | 1218x2400 | 1909 | 6"-flange | 6"-flange | 4"-flange | 2400 | 2110 | 290 | 1218 | FRP Tripod |
| 48110/6T6B4D | 48x110 | 1218x 2800 | 2360 | 6"-flange | 6"-flange | 4"-flange | 2800 | 2510 | 290 | 1218 | FRP Tripod |
| 6094/6T6B4D | 60x94 | 1530x2400 | 2688 | 6"-flange | 6"-flange | 4"-flange | 2400 | 2110 | 290 | 1530 | FRP Tripod |
| 60110/6T6B4D | 60x110 | 1530x2800 | 3392 | 6"-flange | 6"-flange | 4"-flange | 2800 | 2510 | 290 | 1530 | FRP Tripod |
| 6383/6T6B4D | 63x83 | 1620x2100 | 2580 | 6"-flange | 6"-flange | 4"-flange | 2100 | 1780 | 320 | 1620 | FRP Tripod |
| 6394/6T6B4D | 63x94 | 1620x2400 | 3150 | 6"-flange | 6"-flange | 4"-flange | 2400 | 2080 | 320 | 1620 | FRP Tripod |
★7294/6T6B4D | ★72x94 | 1836x2400 | 3561 | 6"-flange | 6"-flange | 6"-flange | 2400 | 2045 | 355 | 1836 | FRP Tripod |
H4272/6T6B4D | 42x72 | 1088x2270 | 1389 | 6"-flange | 6"-flange | 4"-flange | 2270 | 1950 | 320 | 1088 | FRP Tripod |
| H4872/6T6B4D | 48x72 | 1218x2270 | 1743 | 6"-flange | 6"-flange | 4"-flange | 2270 | 1950 | 320 | 1218 | FRP Tripod |
| H6370/6T6B4D | 63x70 | 1620x1780 | 2580 | 6"-flange | 6"-flange | 4"-flange | 2100 | 1780 | 320 | 1620 | FRP Tripod |
| H6382/6T6B4D | 63x82 | 1620x2080 | 3150 | 6"-flange | 6"-flange | 4"-flange | 2400 | 2080 | 320 | 1620 | FRP Tripod |
*The actual dimmension may have ±1.2% error due to PE materlats contraction coefficient

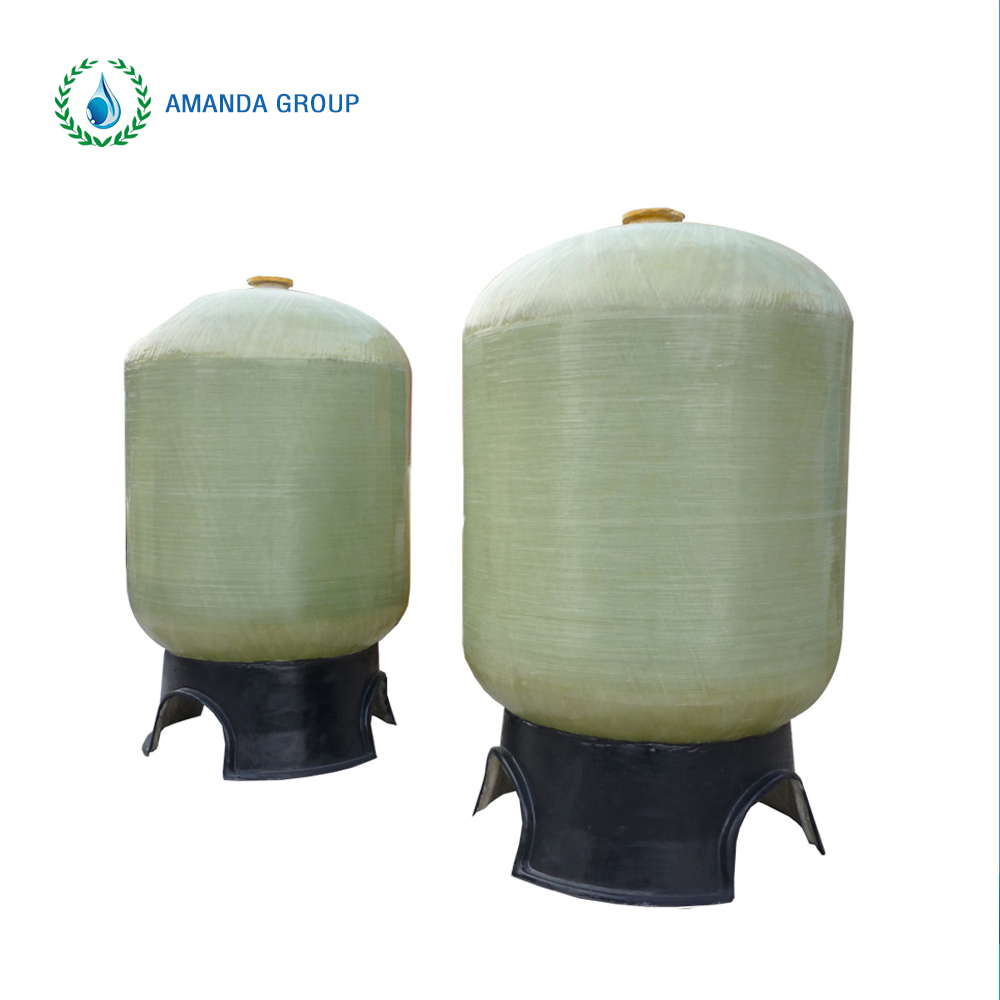

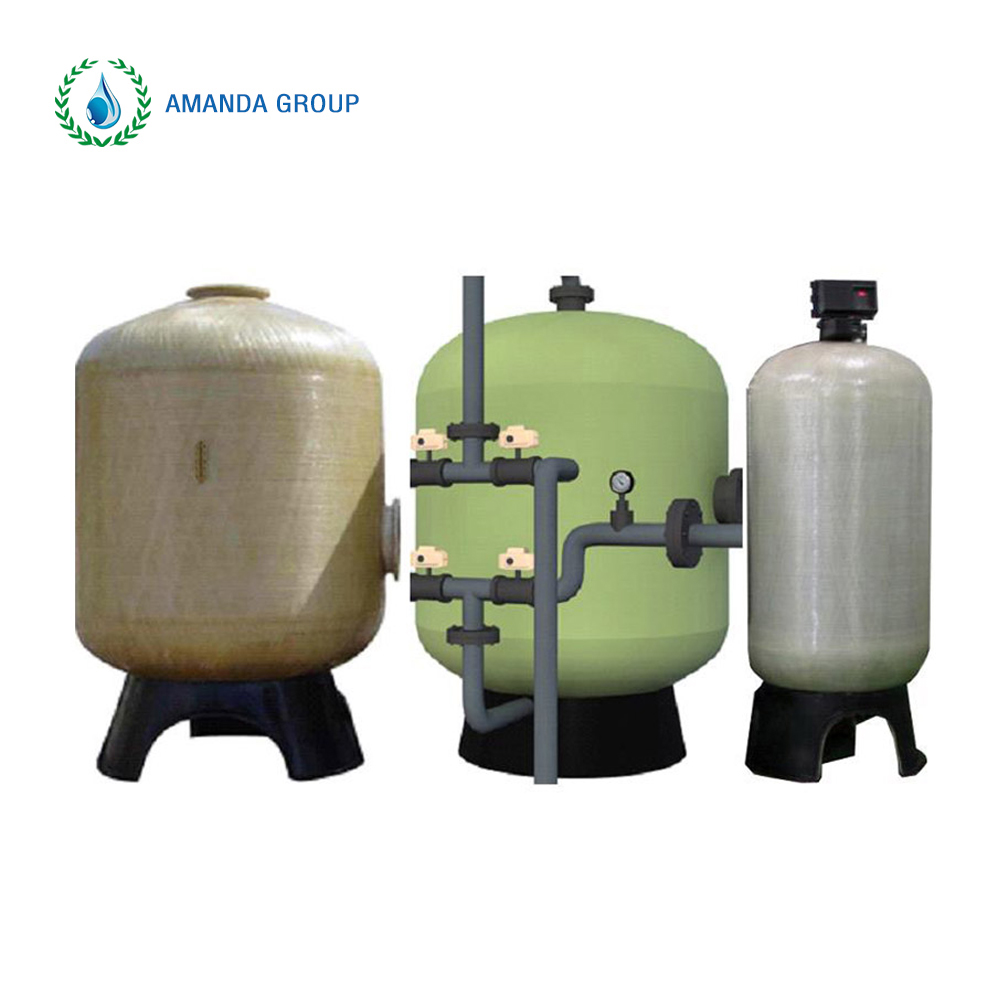

PRODUCT DISPLAY
Product advantage:
The FRP tank has a high performance epoxy resin coated fiberglass strands outer shell with polyethylene (PE) or ABS seamless one-piece liner. The tank with two layers of protection is superior corrosion resistant and rustproof. Besides, our tank is watertight, lightweight. Meanwhile, it's high strength and durable, which is longevity and can save your money in a long run.
PRODUCING PROCESS
Amanda fiber reinforced polymer tanks processes used for manufacturing :
1. 6” to 36" PE liners are made from CNC controlled blow molding machine ,
2. PE liner of industrial tanks are made from CNC controlled rotational molding machine ,
3. Inlet inserts and bases are from CNC controlled injection molding machine,
4. FRP outer shells are made from CNC controlled multi-axis filament winding machine.
PRODUCTION PROCESS
PACKAGE AND SHIPPING
1. Client's Requirements are in the first :
We are gald to customized package as per clients's demands, including logo and colors design , importantly the fiber reinforced polymer tanks also can do client's brand insteading of our manufacturer's .
2. Normally Amanda Company package is by waterproof plastic bag with carton box.
Kindly supply pictures for your reference .
