How To Choose The Right Water Softener Bypass Valve for Residential Conditions

Key points: Bypass valve selection follows a fixed step‑by‑step verification sequence: confirm the control valve platform and model first, then check connection size and thread standard. Afterwards, determine material and structure based on flow rate, water quality, installation scenario and end‑user operating habits. Finally, review regulations for target markets. For integrated bypass valves in the European and North‑American residential market, the main categories are dual‑handle, push‑pull and single‑handle rotary types. Field‑assembled three‑valve bypass and UK‑standard three‑way diverting valve are also available alternatives.

A bypass valve itself does not modify water quality. Its core value lies in enabling fast isolation of the water softener during maintenance, fault events and special‑use scenarios, while maintaining continuous domestic water supply for the building. Improper selection may not trigger problems immediately, yet it will cause practical defects such as leakage, excessive pressure drop and mis‑operation during installation, pressure testing or after‑sales service.

Targeting residential water softener systems across Europe and North‑America, this guide explains how to select proper bypass valves according to real‑world working conditions, following the workflow: platform compatibility check → connection verification → material selection based on working conditions → structure selection based on application scenarios → regulatory review. All model specifications and data cited originate from official documentation of mainstream brands.

Selection falls into two tiers. The first tier answers “whether it can be fitted”, determined by control‑valve platform, connection size and thread standard. The second tier evaluates “service performance and service life”, governed by flow parameters, water quality, material grade and operating mechanism. This document covers the first tier before moving on to the second.

1. Five Working‑Condition Parameters to Confirm before Selection

1.1 Control‑Valve Platform and Model

The bypass assembly is purpose‑matched to its control valve. Bypass valves from different control‑valve platforms are not interchangeable. The very first step of selection is confirming the brand and exact model of the water softener control valve, rather than checking connection dimensions.

Limited cross‑model compatibility exists within one single platform. The 1‑inch stainless‑steel bypass for Fleck fits 5600, 2510, 9000 and 9100 series control valves. The Clack V3006 bypass assembly is compatible with WS1, WS1.25, WS1TC, WS1CS and WS1CI models.

Practical verification methods: read model information printed on the control‑valve name‑plate; cross‑reference official parts catalogues and bypass‑compatibility lists. Never judge compatibility merely by visual appearance when model information remains uncertain.

Mainstream North‑American control‑valve platforms include Fleck (Pentair), Clack, Autotrol (Pentair), alongside complete‑system brands EcoWater and Kinetico. The Autotrol 1265 series adopts dual‑handle integrated bypass assemblies, fitted to complete systems sold under the GE brand. Bypass hardware from different platforms cannot be cross‑mounted; mismatched retrofitting ranks among leading causes of field leakage in after‑sales cases.

1.2 Connection Size and Thread Standard

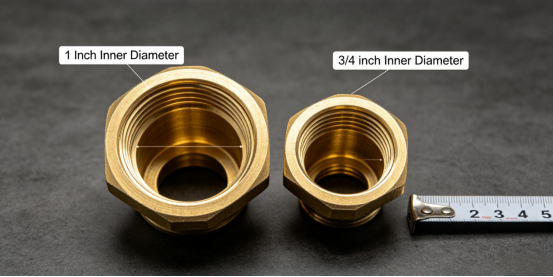

Common residential connection sizes are 3/4‑inch and 1‑inch. The Fleck 5600SXT ships factory‑equipped with a 3/4‑inch plastic bypass with 3/4‑inch male‑threaded ports. The Fleck 1‑inch stainless‑steel bypass features female NPT threads. Inlet and outlet ports of the Clack WS1 accept 1‑inch to 1.25‑inch NPT connections.

Thread standards: NPT for North‑America; BSP for Europe. Mismatch of either port size or thread specification will result in installation failure or defective sealing performance.

Practical checking procedure: measure inner and outer diameters of control‑valve inlet and outlet ports with calipers, and compare measured values against bypass technical parameters. Confirm thread type by matching against standard pipe fittings. For retrofit projects, also verify existing pipework diameter around the softener, so as to avoid extra adapter requirements caused by size mismatch.

1.3 Rated Flow Rate and Pressure Drop

Under bypass mode, the bypass valve carries full‑system flow directly. Port diameter exerts direct influence over system pressure drop. Official Clack WS1 documentation quotes service flow of 27 gpm at 15 psi pressure drop; this figure already accounts for flow resistance generated by flow meter, bypass assembly and 1.25‑inch connectors.

For high‑flow scenarios including simultaneous multi‑point water draw, pool filling and large‑area lawn irrigation, specify 1‑inch full‑flow bypass assemblies. The OEM‑supplied bypass for Clack WS1 series is designed as full‑flow 1‑inch hardware, preventing restricted outlet flow caused by undersized ports.

Definition of pressure drop: pressure loss generated when water flows through constricted passages inside the bypass. Full‑flow bypass designs maintain port dimensions close to nominal pipe size for minimal pressure drop. Undersized bypass hardware will deliver noticeably reduced flow during peak‑demand periods. Verification approach: refer to service‑flow figures on control‑valve specification sheets, confirming that system capacity inclusive of bypass hardware can cover household peak water consumption.

1.4 Water Pressure, Temperature and Feed‑Water Quality

Operating pressure range for Clack WS1 control valve and matching bypass: 20‑125 psi (1.4‑8.6 bar), operating temperature range: 40‑110 °F. During selection, verify that local municipal water pressure, hydro‑test pressure and maximum feed‑water temperature all stay within allowable limits of both control valve and bypass assembly.

For high‑temperature service or corrosive feed water (well water, high manganese content, high total dissolved solids), prioritise stainless‑steel or lead‑free brass bypass hardware. North‑American codes impose strict lead‑content requirements for wetted plumbing components; lead‑free brass represents a compliant material option. The Fleck 9000 control‑valve body utilises lead‑free brass construction.

Hydrostatic pressure testing and water‑hammer events produce transient over‑pressure. Before pressure testing, switch the softener into bypass position so high‑pressure flow passes through the bypass circuit instead of the control valve and resin tank. This mitigates risk of damage to precision internal components.

1.5 Installation Scenario and End‑User Profile

For new complete‑unit installations, use factory‑fitted integrated bypass assemblies. For retrofit projects or control‑valve models without factory‑integrated bypass hardware, deploy field‑plumbed three‑valve bypass assemblies.

End‑user operating habits influence mechanical‑structure selection: for rental premises or households with elderly occupants, select single‑handle rotary bypass valves. One‑motion switching reduces mis‑operation risk.

Additional considerations include maintenance frequency and operational accessibility. Handles left untouched for extended periods tend to seize; periodic actuation is recommended for prevention. In rental properties with frequent occupant turnover, simpler operation plus clear marking lowers after‑service complaint rates.

2. Selection Reference by Control‑Valve Platform

The table below summarises matching relationships between mainstream European and North‑American residential control‑valve platforms and compatible bypass assemblies, serving as a checklist for the initial selection phase.

表格

3. Scenario‑Driven Selection Methodology

3.1 New Complete‑Unit Installation

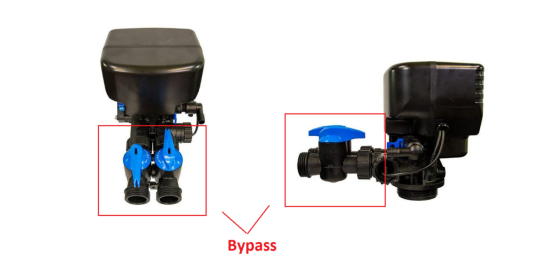

Deploy factory‑supplied OEM bypass assemblies. Port geometry is pre‑matched to the control valve and no separate component procurement is required. Fleck 5600SXT and EcoWater complete systems ship pre‑fitted with integrated bypass hardware. Under this scenario, verify only that connection size and thread standard match on‑site pipework specifications.

3.2 Retrofit Projects & Control‑Valves without Integrated Bypass

Install field‑assembled three‑valve bypass: two valves fitted in series on inlet and outlet pipe runs respectively, with one dedicated bypass valve bridging upstream and downstream pipework. GE official documentation describes this operating sequence. A three‑valve bypass works with any control‑valve model, yet requires professional on‑site assembly and features a higher count of threaded joints.

3.3 High‑Flow & Multi‑Point Draw Conditions

Specify 1‑inch full‑flow bypass assemblies. OEM Clack bypass hardware is built for full‑flow 1‑inch service. Fleck 1‑inch stainless‑steel bypass is another qualified option for multi‑point simultaneous water‑draw households.

3.4 High‑Temperature or Corrosive Feed‑Water

Select stainless‑steel or lead‑free brass bypass hardware. Also verify temperature and chemical resistance of included seal components. The Fleck stainless‑steel bypass supersedes older brass assemblies and suits continuous service under corrosive feed‑water conditions.

3.5 Prioritising Simple End‑User Operation

For rental housing, elderly‑occupant households and tenant‑occupied premises, choose single‑handle rotary bypass valves. The Kinetico Mach‑series colour‑coded single‑handle bypass uses red for shut‑off, yellow for bypass and green for service. End‑users can identify operating status without specialised technical knowledge.

3.6 United Kingdom Installations

The UK Water Supply (Water Fittings) Regulations 1999 mandate bypass fitment for water softeners. Professional standard installations adopt either a three‑way diverting valve (single body with IN, OUT and BYPASS ports) or a three‑valve bypass assembly. 22 mm service isolating valves are also required, permitting softener servicing without shutting down whole‑house water supply. Bypass mode is activated for equipment maintenance, salt depletion conditions and extended periods of residential absence.

3.7 Long‑Term Vacancy & Winter Freeze‑Protection

Select bypass hardware supporting quick manual switching and convenient unit draining. Switching to bypass position and draining the softener mitigates risks of pressure‑driven leakage and freeze‑related cracking during unoccupied periods.

3.8 Light‑Commercial Premises & Multi‑Unit Installations

For light‑commercial service or multi‑softener residential systems, deploy three‑valve bypass or full‑flow integrated bypass assemblies. This allows individual unit isolation for repair or maintenance without interrupting water delivery for remaining equipment.

4. Material and Seal Component Selection

4.1 Glass‑Filled Noryl and Glass‑Filled PP

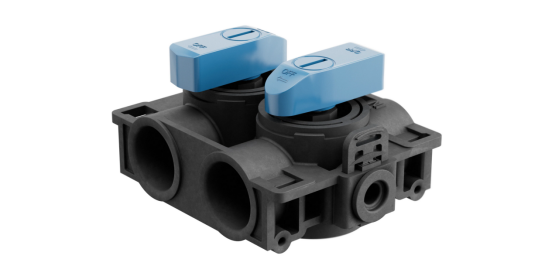

These polymer grades represent mainstream material choices for residential bypass hardware. The Clack WS1 OEM bypass is manufactured from glass‑filled Noryl, with nuts and end‑caps made of glass‑filled polypropylene. This all‑non‑metallic design enables tool‑free maintenance, delivering good corrosion resistance, low unit weight and competitive cost.

Material‑verification practice: refer to datasheet material designations such as glass filled Noryl, 304 stainless steel or lead‑free brass, alongside product compliance certifications. Do not judge material grade purely by visual appearance. All‑plastic hardware eliminates corrosion maintenance requirements; metallic variants deliver enhanced pressure and corrosion resistance at higher cost.

4.2 Stainless‑Steel

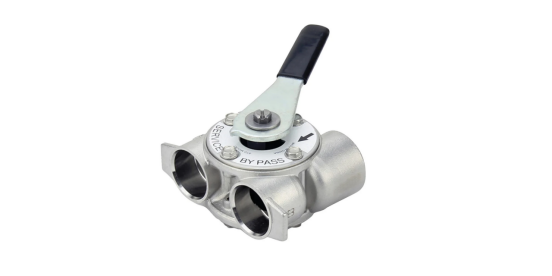

Specify stainless‑steel bypass hardware for high‑pressure, high‑temperature, high‑flow and corrosive‑water applications. The Fleck 1‑inch stainless‑steel bypass serves as typical reference, delivering full‑flow passage plus robust pressure and corrosion resistance.

4.3 Lead‑Free Brass

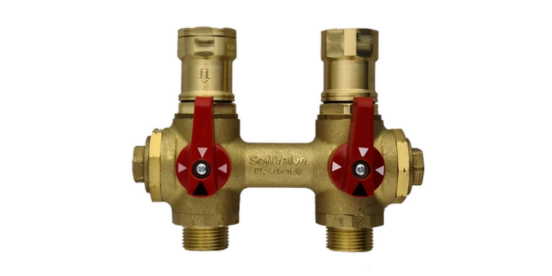

Compliant with North‑American lead‑free requirements for wetted components. Suitable for installations joining metallic pipework and high‑pressure working conditions. The Fleck 9000 control‑valve body uses lead‑free brass construction.

4.4 Seals and Wear‑Prone Components

O‑rings represent the primary wearing parts of a bypass valve and directly determine sealing performance. During selection, confirm spare‑part availability and exact part‑number for seal kits. Seals fitted to Clack bypass assemblies adopt self‑lubricating formulation and permit tool‑free disassembly and service.

5. Common Selection Mistakes and Consequences

• Matching connection dimensions without verifying platform compatibility: hardware fails to fit; forced modification creates leakage hazards.

• Matching port size while mixing NPT and BSP thread standards: defective thread‑joint sealing.

• Undersized bypass specified for high‑flow demand: increased pressure drop and reduced delivered flow rate.

• Material incompatible with feed‑water chemistry: shortened service life and recurrent leakage events.

• Ignoring peak‑flow requirements: noticeably diminished outlet flow during periods of simultaneous heavy water draw.

• Over‑complex operating mechanism with insufficient marking: end‑user mis‑operation causing prolonged loss of water‑softening performance.

• Non‑compliance with UK plumbing regulations: installation fails inspection and cannot be commissioned.

6. Pre‑Installation Selection Checklist

1. Bypass assembly verified compatible with target control valve (or three‑valve bypass field‑plumbing solution confirmed)

2. Control‑valve brand and exact model confirmed

3. Connection port size confirmed as 3/4‑inch or 1‑inch

4. Thread standard confirmed as NPT or BSP

5. Rated and peak flow capacity satisfies household demand

6. Working pressure and temperature fall within allowable range of control valve and bypass

7. Material grade matches feed‑water quality conditions

8.  Installation type (new build / retrofit) clearly defined

9. End‑user operating‑habit requirements considered

10. Target‑market regulatory requirements reviewed (e.g. UK regulations)

11. Bypass actuation direction and status marking double‑checked (push‑pull or handle‑rotation logic)

12. Freeze‑protection and drain procedure confirmed for long‑term vacancy scenarios

13. Spare‑part availability verified (handles, O‑ring seal kits)
