How To Install A Water Softener at Home Yourself To Save High Installation Costs?

In the United States, water softeners can typically be installed by homeowners (DIY). Major home improvement stores like Home Depot and Lowe's, as well as Amazon, sell residential water softeners along with various installation materials and tools. There is also a vast amount of textual and video tutorials available online, providing rich learning resources for DIY projects. For individuals with basic plumbing knowledge and hands-on skills, installing a water softener is a feasible project. You will need to handle pipe cutting and connections (such as using PEX pipes, SharkBite push-to-connect fittings, etc.), as well as complete the drain line and electrical connections. However, this ultimately depends on your manual dexterity, existing plumbing conditions, and local regulations.

I. Legal and Regulatory Considerations

· General Rule: In most U.S. states and counties, replacing or installing water treatment equipment (such as water softeners) does not require a licensed plumber's license, provided you are the owner of the house.

· Exceptions:

o Certain cities or communities (HOAs) may have specific regulations requiring connections to be made by licensed professionals.

o If you plan to sell the house, a non-professional installation could become an issue during a Home Inspection or affect the warranty.

o Drainage Connections: Water softeners discharge wastewater during regeneration. Some local regulations strictly require drain lines to use an air gap to prevent backflow contamination. Failure to comply with local plumbing codes may be considered a violation.

II. Technical Difficulty Assessment

To successfully install a water softener, you should be able to:

1. Cut and connect pipes (Copper, PEX, or CPVC).

2. Understand basic bypass valve settings to ensure water supply isn't interrupted during maintenance.

3. Handle electrical connections (most softeners require a standard 110V power outlet).

4. Connect the drain hose to a floor drain or laundry room drain pipe.

Common Difficulties Include:

· Space Constraints: Garages or basements may be narrow, making operation difficult.

· Existing Plumbing Conditions: If old pipes are rusted or the layout is complex, cutting and reconnecting can become tricky.

· Bypass System: Correctly installing a three-way bypass valve is crucial for future maintenance. Incorrect installation may prevent you from repairing the machine without shutting off the whole house's water supply.

III. Pros and Cons of DIY Installation

· Check Warranty Terms: Before buying, confirm if the brand allows DIY installation without affecting the warranty. For example, mainstream brands like Rheem, GE, and Whirlpool usually support DIY, but some high-end custom systems may require professional installation.

· Buy Suitable Accessories: It is recommended to use SharkBite or other tool-free push-to-connect fittings. This significantly lowers the DIY difficulty, eliminating the need for soldering or glue.

· Test Water Quality: Test the incoming water hardness before installation to set the machine correctly.

· Watch Tutorials: There are numerous detailed videos on YouTube (e.g., "How to install water softener"). Following a video makes the process much easier.

The information above is for reference only. Before performing any plumbing modifications, please consult your city's building codes and confirm if there are any implications for your home insurance policy.

V. Basic Installation Steps

Part 1: Preparation

1. Essential Tools and Materials

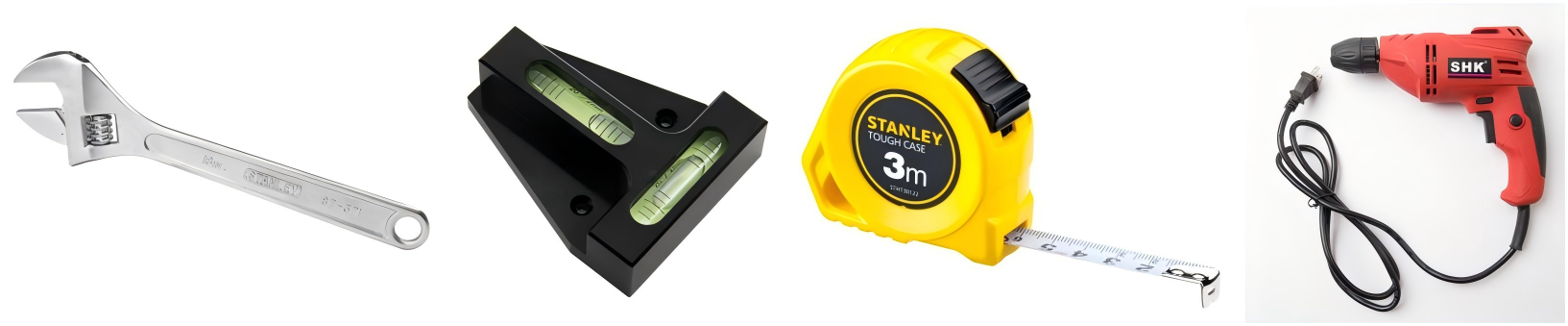

· Tools: Pipe cutter (for copper or PEX), adjustable wrench, tape measure, screwdriver, level, electric drill (if mounting brackets are needed).

· Materials:

o Bypass Valve Assembly (usually included with the machine).

o Connection Fittings: Purchase based on your home's pipe type (Copper requires fittings and a torch/crimping tool; PEX requires an expander and rings; SharkBite push-to-connect fittings are highly recommended for beginners as they require no special tools).

o Teflon tape or pipe sealant.

o Drain Line: Typically 1/2-inch or 5/8-inch polyethylene tubing (for drainage) and hose clamps.

o Softener Salt, Silicone Grease (for lubricating O-rings; do not use petroleum-based lubricants).

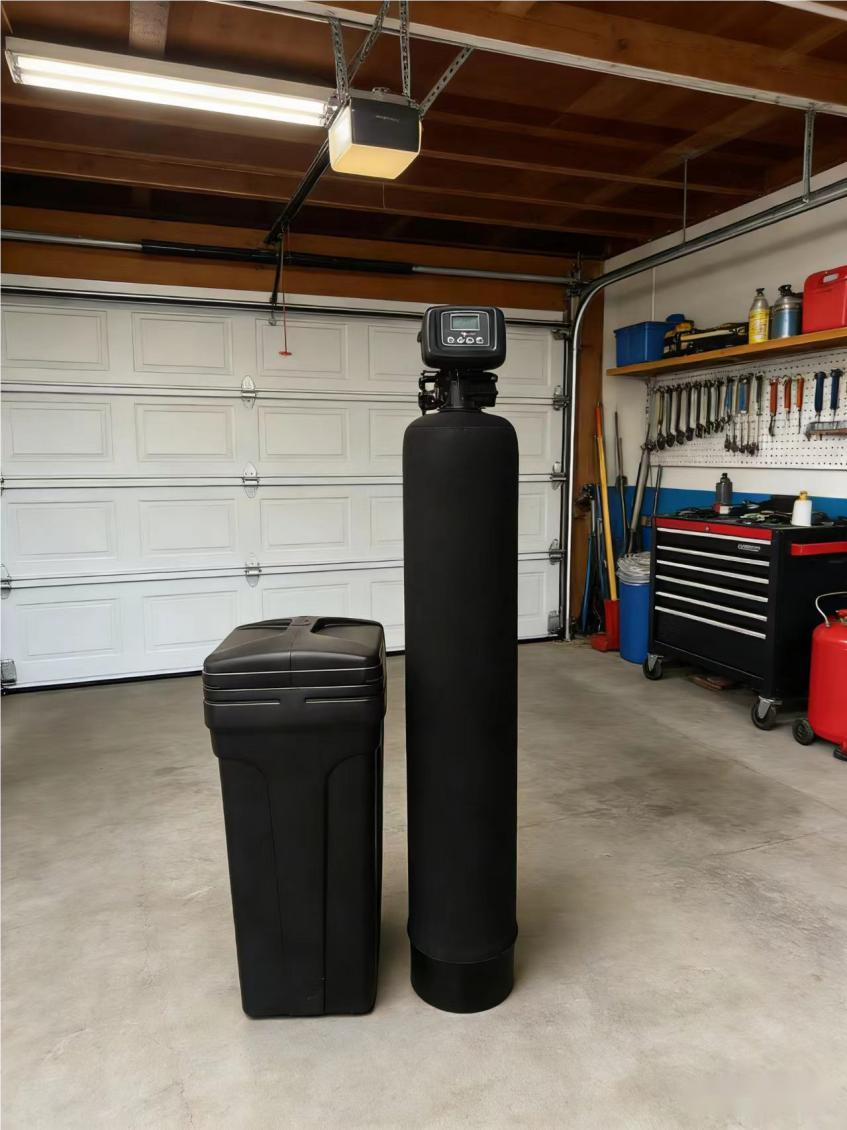

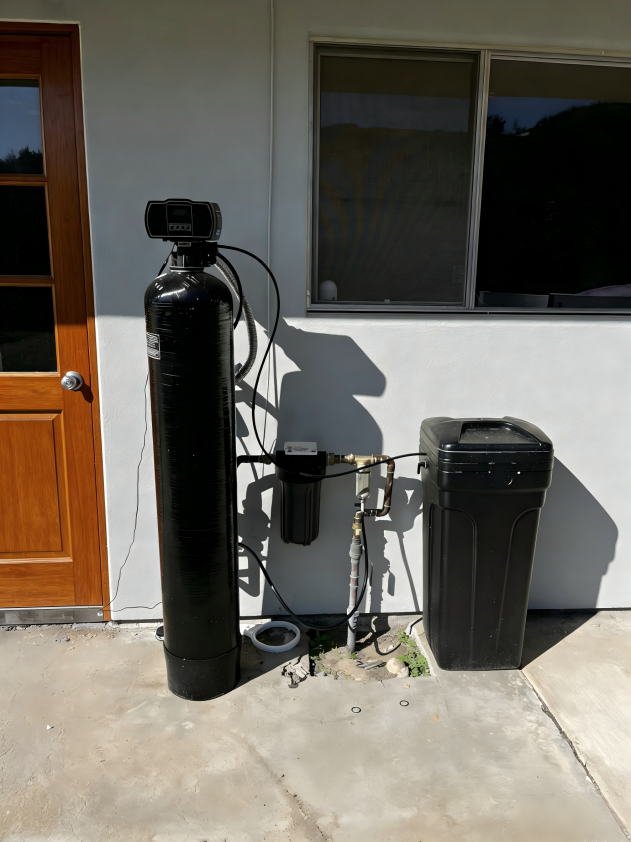

2. Determine Installation Location

· Main Water Line: Usually located after the water meter and before the water heater.

· Environmental Requirements: Flat ground, close to a power outlet (110V), near a floor drain or laundry room drain, and in a temperature-controlled area (avoid freezing; typically in an indoor garage or basement).

· Space Reservation: Leave at least 2-3 feet of space above the machine for adding salt and maintenance.

Part 2: Detailed Installation Steps

Step 1: Shut Off Water and Drain

· Close the main water valve of the house.

· Open the lowest faucet in the house (e.g., basement sink or outdoor faucet) to drain remaining water from the pipes and release pressure.

Step 2: Cut the Main Water Pipe

· Select a straight section of the main water pipe to cut.

· Cut out a length of pipe corresponding to the size of the softener's bypass valve.

· Clean the cut edges with sandpaper or a deburring tool to ensure they are smooth and burr-free.

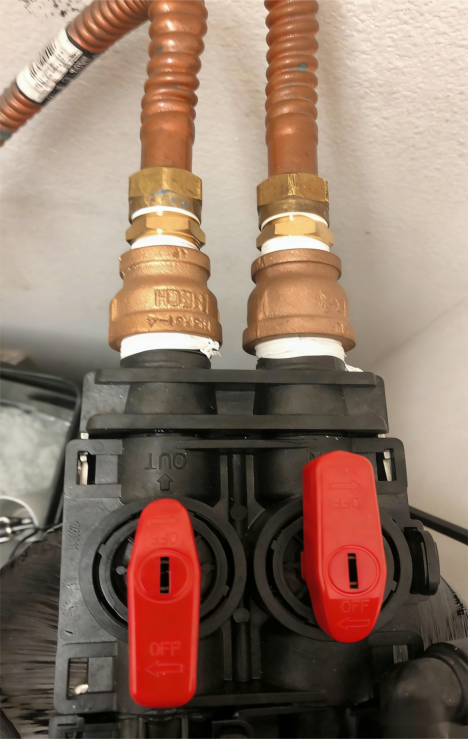

Step 3: Assemble the Bypass Valve

· Most modern softeners come with a pre-installed bypass valve, but verify the orientation.

· Identify Flow Direction: The bypass valve usually has an arrow indicating water flow (IN -> OUT). It must never be installed backwards.

o The IN port connects to the main water supply (from the city/well).

o The OUT port connects to the pipes leading into the house.

· Lubricate Seals: Apply a small amount of silicone grease to the bypass valve interfaces to prevent leaks and facilitate future disassembly.

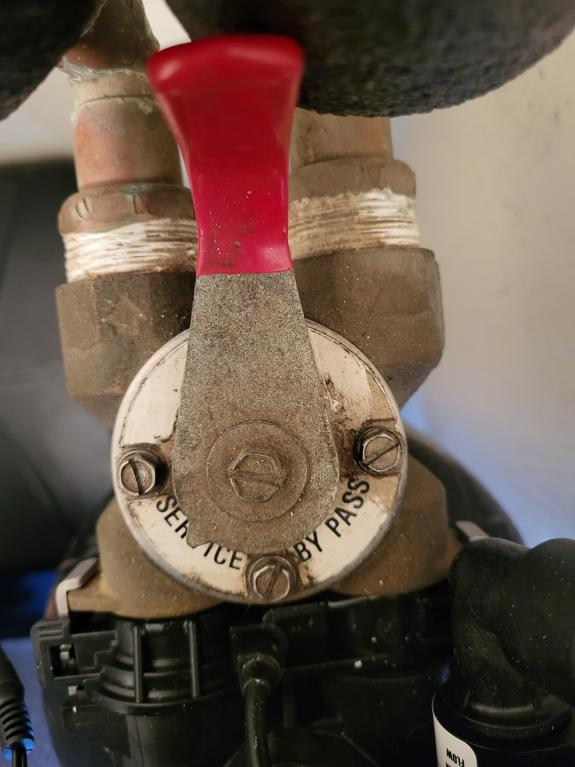

· Set to Bypass Mode: Before installation, turn the bypass valve handle to the Bypass position. This means water temporarily bypasses the softener, allowing you to test the pipes for leaks.

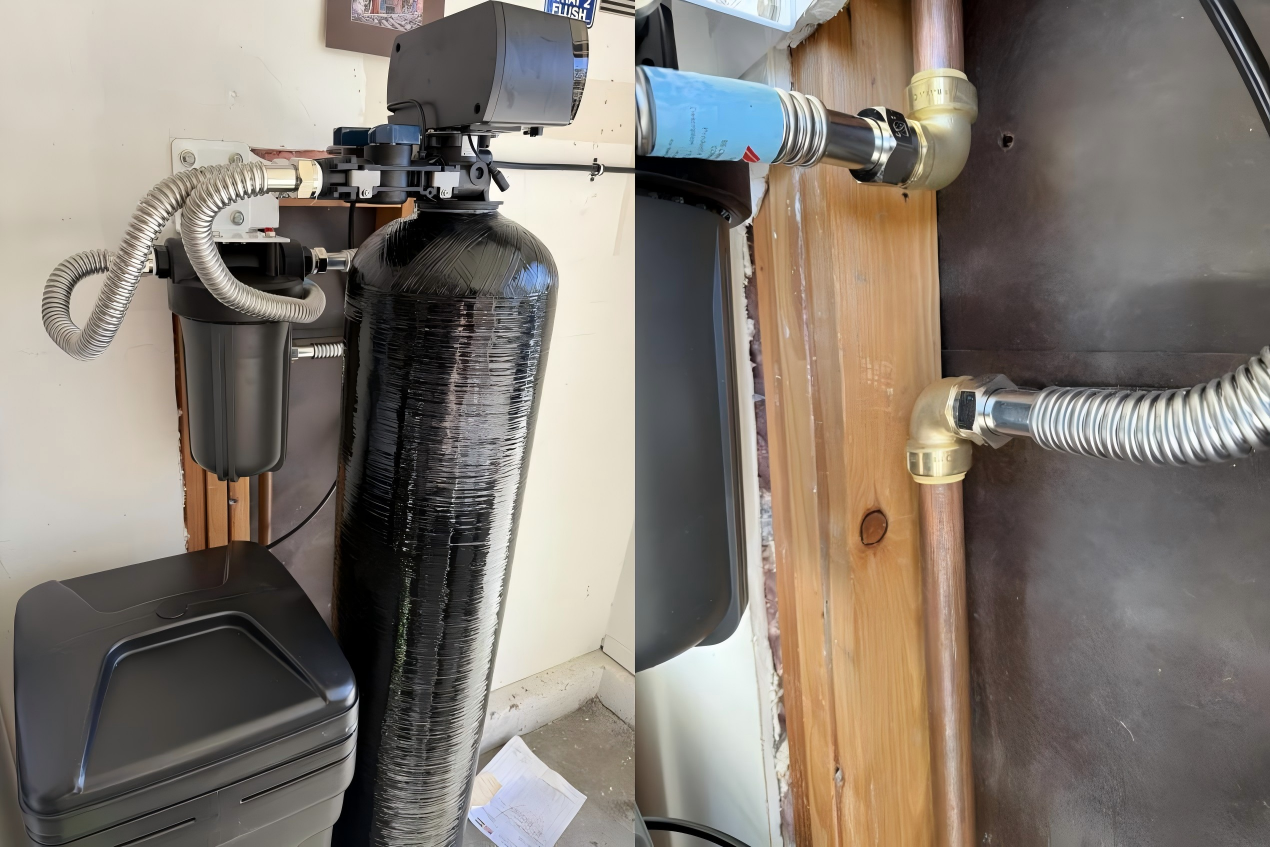

Step 4: Connect Pipes

· Use the selected fittings to connect the IN port of the bypass valve to the main water supply source.

· Connect the OUT port of the bypass valve to the pipes leading into the house.

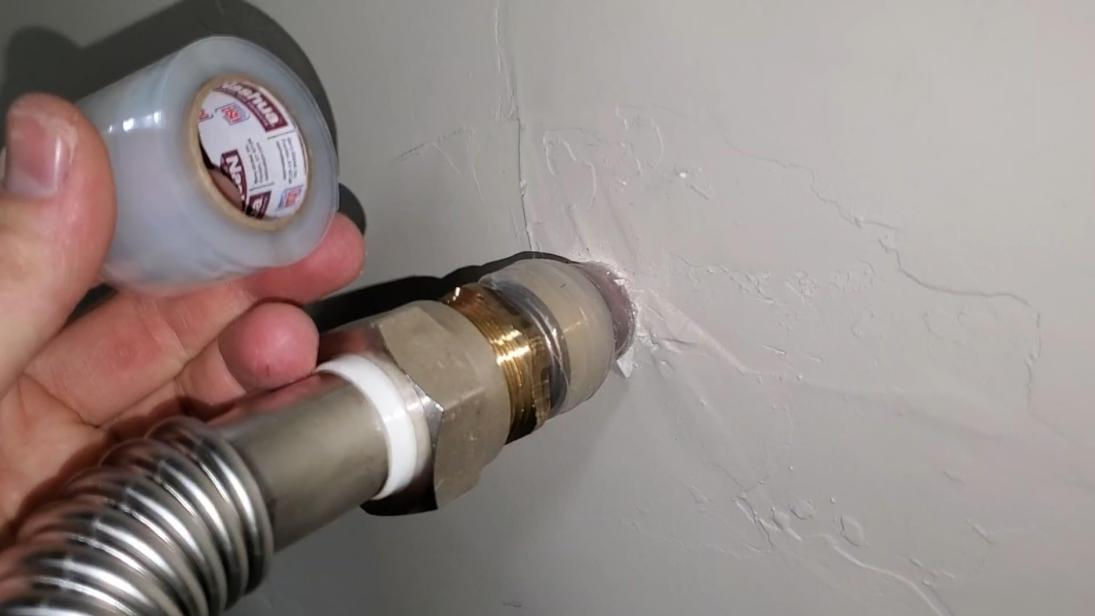

· Note: Ensure all connections are tight. For threaded connections, be sure to wrap sufficient Teflon tape (clockwise, 10-15 turns).

· Do not open the main water valve yet.

Step 5: Install the Drain Line

· Connect the softener's drain outlet (usually labeled Drain or EL) to the provided drain hose. Secure it with a hose clamp.

· Route the other end of the hose to a floor drain, laundry standpipe, or dedicated drain line.

· Critical Code Requirement (Air Gap):

o The end of the drain hose cannot be submerged in the sewer water.

o You must use a dedicated air gap kit, or secure the hose above the drain pipe, maintaining a vertical distance of at least 1.5 inches (approx. 4 cm) to prevent sewage backflow from contaminating the softener (compliant with US plumbing codes UPC/IPC).

· Secure the hose to avoid kinks and ensure smooth drainage.

Step 6: Electrical Connection

· Plug the transformer into a nearby 110V outlet.

· Connect the transformer wire to the interface on the softener control head.

· Note: Do not start the regeneration program yet.

Step 7: Initial Water Supply and Leak Check

· Ensure the bypass valve is still in the "Bypass" position.

· Slowly open the main water valve.

· Check all new connections for leaks. If leaking, close the water supply and retighten or replace the fitting.

· Once confirmed leak-free, rotate the bypass valve handle to the "Service" (Run) position. Water will now begin to flow into the softener tank.

· Bleed Air: Open the nearest cold water faucet in the house (preferably a bathtub or one without a filter) and let the water run for a few minutes until the flow is steady, expelling air from the tank.

· Check again for leaks at the softener head and tank connections.

Part 3: Debugging and Parameter Settings

After installation, you need to set the control valve according to your household situation. Different brands (Fleck, Clack, GE, Whirlpool, etc.) have different interfaces, but the logic is consistent.

1. Prepare Data Confirm the following data before setting:

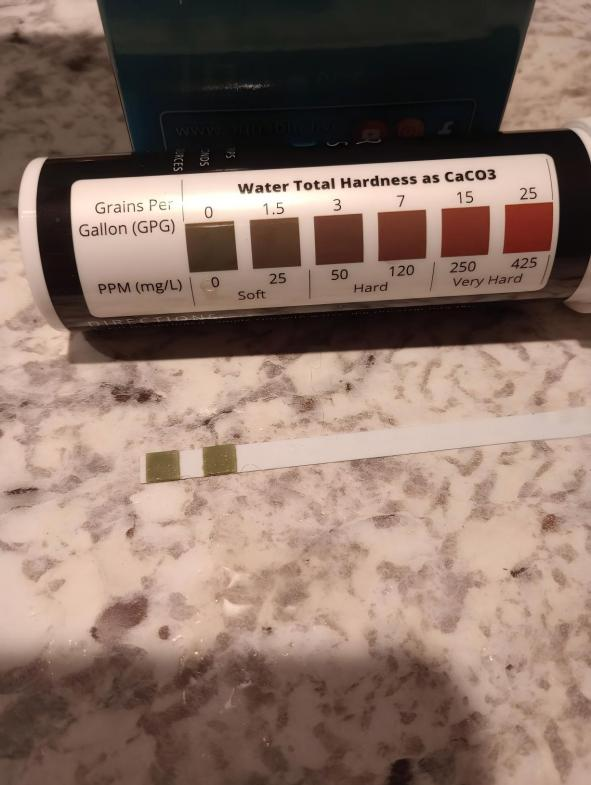

· Water Hardness: Units are typically grains per gallon (gpg) or ppm/mg/L.

o If unsure, use test strips or check the local water utility report.

o Conversion: 1 gpg ≈ 17.1 ppm.

· Household Size: Number of actual residents.

· Iron Content: If well water contains iron, extra settings are needed (every 1 ppm of iron is equivalent to adding 5 gpg of hardness).

2. General Setting Steps

· Step 1: Set Current Time Press the Set Clock or Time button to adjust to the current time. This is the basis for the regeneration cycle timing.

· Step 2: Set Water Hardness Enter the settings menu (usually by long-pressing Set or Up/Down keys). Input the measured hardness value (e.g., 20 gpg). Tip: If you prefer "slippery" water, you can increase the value slightly by 1-2 units, but do not set it too high to avoid wasting salt.

· Step 3: Set Number of People Input the number of permanent residents. The machine will calculate water usage based on the number of people and hardness to decide when to regenerate. Note: Some older machines set regeneration frequency by "days," while newer models are mostly "Demand Initiated Regeneration," triggering based on actual water usage.

· Step 4: Set Regeneration Time The default is usually 2:00 AM. It is recommended to keep it late at night (e.g., 2:00 - 4:00 AM) because water is not being used at home then, and the regeneration process temporarily stops water supply (unless you have a dual-tank system).

· Step 5: Salt Setting Most machines automatically calculate salt dosage based on hardness. If the water is particularly hard, you can manually adjust to increase salt, but this will increase operating costs. Generally, keeping the default is sufficient.

3. First Manual Regeneration This is a mandatory step to clean the resin and mix the brine.

· Ensure the brine tank is filled with softener salt (fill to half or 2/3 full; do not fill to the top, and do not let salt touch the water surface to form a "salt bridge").

· Find the Regen or Recharge button on the control panel.

· Long-press this button (usually 3-5 seconds) until the screen displays "Regen Today" or starts a countdown.

· Observe the Process:

o Brine Draw Stage: You should hear suction sounds, and the water level in the brine tank will drop. If the level doesn't drop, the drain line may be clogged or the air intake tube leaking.

o Slow Rinse and Fast Rinse: The machine will discharge wastewater. Check if the drain line is unobstructed and leaking.

o Refill Stage: Finally, the machine will inject fresh water into the brine tank, preparing for the next regeneration.

· The entire process may take 60-90 minutes. During this time, try to avoid heavy water usage (like laundry or showering), as the water flowing out may be unsoftened or contain high concentrations of salt water.

Part 4: Common Troubleshooting and Maintenance

Maintenance Tips:

· Add Salt Regularly: Check salt levels monthly; keep above 1/3, but do not exceed 3/4.

· Clean Brine Tank: Clean sludge at the bottom of the brine tank once a year to prevent clogging.

· Prevent Salt Bridges: Using high-quality pellet salt is less likely to form salt bridges than block salt.

· Winter Protection: If installed in an unheated garage, pay attention to freeze protection in winter; wrap pipes with insulation if necessary.

Important Reminders

· Drinking Water Issue: Sodium content increases in softened water. If you have high blood pressure or need to strictly limit sodium intake, it is recommended to keep a separate line of unsoftened cold water for the kitchen sink (by installing a bypass faucet) or install a Reverse Osmosis (RO) system for drinking.

· Watering Plants: Softened water is not suitable for watering plants sensitive to sodium; use outdoor unsoftened faucets instead.

By following the steps above, you should be able to successfully complete the installation and enjoy the convenience of soft water. If you feel uncertain at any step, it is wise to take photos and consult a professional plumber or the manufacturer.
