For users of major US water softener brands (such as EcoWater, GE, RainSoft, etc.), the Vacation Mode is a core function to protect equipment safety and save energy. Its working principle is to put the unit into a "deep sleep" state: it pauses unnecessary regeneration cycles to save salt and water, while retaining all clock and parameter settings. You can resume normal operation with one touch when returning home. For regions with cold winter temperatures, extra anti-freeze protection is required to ensure long-term stable performance of the equipment.
Vacation Mode is designed to balance energy saving, equipment protection, and convenience. Its key benefits cover both equipment protection and ease of use:
Save salt, water, and electricity: Pauses automatic regeneration to prevent the unit from running idle on a preset schedule when no water is used, eliminating wasteful salt, water, and power consumption during regeneration.
Protect resin tank performance: Most mainstream models (GE, RainSoft, etc.) automatically run a backwash and brine draw cycle when Vacation Mode is activated. The resin is soaked in brine to effectively prevent drying, degradation, bacterial growth, odor, and compacting, extending resin life.
Reduce safety risks: Some high-end models automatically close the inlet valve when Vacation Mode is on, lowering the risk of water leakage when the home is unattended.
Easy and convenient: The clock keeps running and all settings are preserved. No re-calibration is needed after returning home — normal operation resumes with one button. The unit still produces soft water (before resin saturation) for temporary water needs.
Operation is similar across major US electronic-control brands including EcoWater, GE, WaterCare, and DuPure. The standard steps below apply to most models:

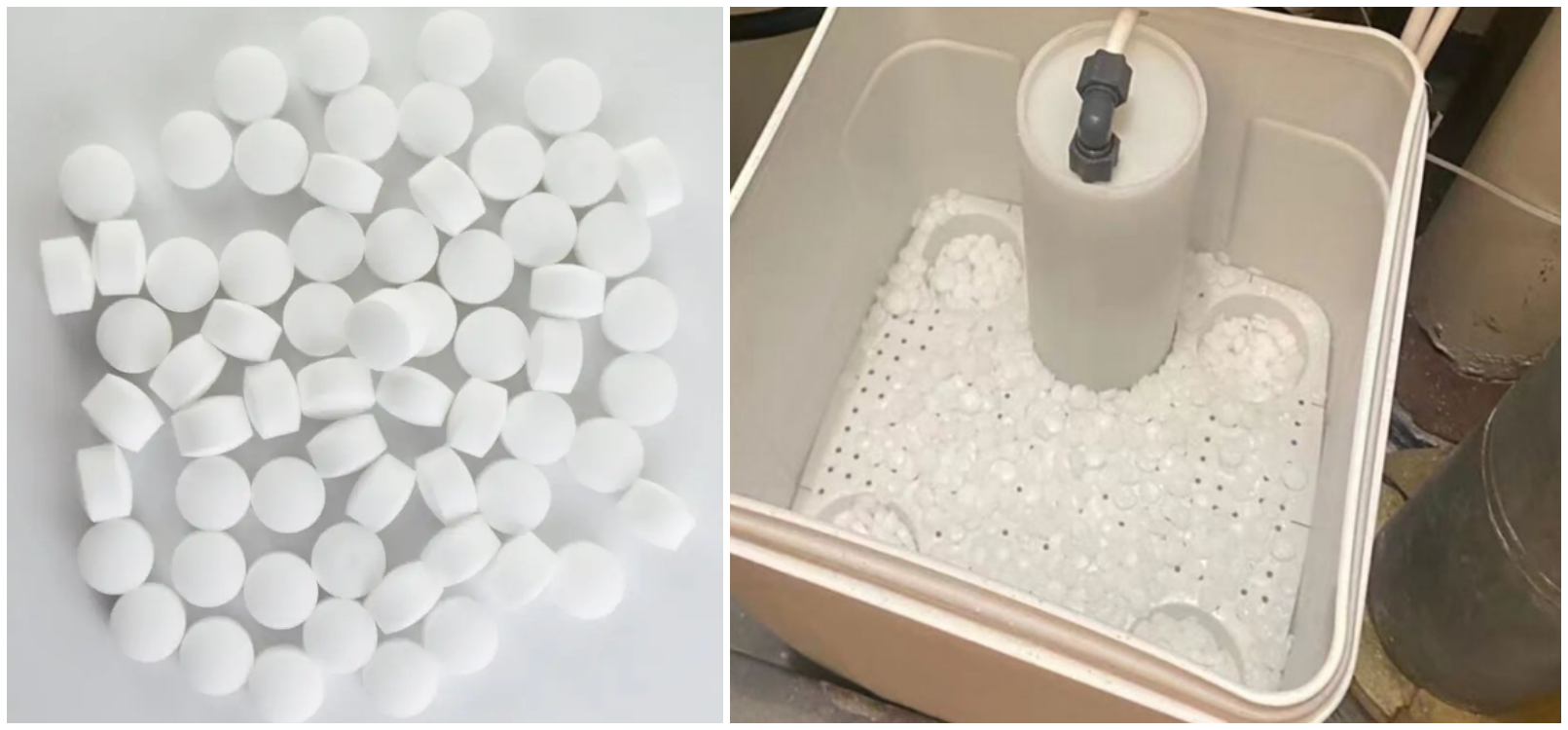

Check the brine tank: Ensure sufficient salt level — fill to about 3/4 full to avoid equipment failure and poor resin protection due to low salt during your absence.
Activate Vacation Mode: Press the Vacation or VAC button directly on the control panel. On some models, enter the settings menu and switch Vacation Mode to ON, or long-press the Hold button until the VAC icon appears.
Confirm activation: The mode is successfully enabled when the screen shows Vacation, VAC, or the corresponding indicator light is on. The unit will lock its current state and stop automatic regeneration timing.
Exit Vacation Mode: Press the Vacation or Resume button on the control panel. Some models automatically resume normal operation when water usage reaches a threshold (e.g., 50 gallons) with no manual action needed.
Check and calibrate: Re-set the date and time if the clock is incorrect due to power loss, to avoid disrupting regeneration cycles. Manually trigger one regeneration (long-press REGEN) to ensure stable resin performance and compliant softened water.
Detailed steps for top US brands to ensure accurate operation matching equipment features:
GE: Press the Touch Hold button (no long press needed). The VAC icon flashes to confirm activation. Press again to exit after returning. For timer models such as GXSS17, unplug the power for long absences to avoid wasted regeneration.
EcoWater: The screen permanently displays VAC in Vacation Mode. Normal mode shows days remaining, capacity, or time (no VAC). For long absences, bypass the unit and disconnect power.
RainSoft: Find Vacation Mode in the menu. When enabled, the screen shows Vacation On and your preset away days for user-friendly operation.
WaterCare / DuPure: Use the Next button to select Vacation Mode, then press +/- to turn it on or off. Simple operation for most electronic-control models.
Old mechanical timer models: Unplug the power if there is no electronic display. Note: clock and settings will be lost; you must manually reset time and regeneration cycles after returning.
Follow tailored steps based on your away duration, for optimal equipment protection and convenience (short trips vs. long-term storage/winterization):
Activate VAC (Vacation Mode); do NOT shut off water or disconnect power.
Ensure the brine tank has enough salt to prevent resin drying.
After returning, press REGEN to exit VAC and run one manual regeneration to refresh the resin.
Open the bypass valve: Push the handle to BYPASS to supply raw water directly and avoid leakage risks from long-term idling.
Disconnect power (unplug) to prevent accidental regeneration or water leaks.
Drain excess water from the brine tank and resin tank, especially in cold northern regions. Run a manual regeneration or open the drain valve to prevent pipe freezing and bursting.
After returning: Restore power → Exit bypass → Run one manual regeneration (≈2 hours). For idle time over 3 months, run two regenerations; disinfect and clean the resin if needed.

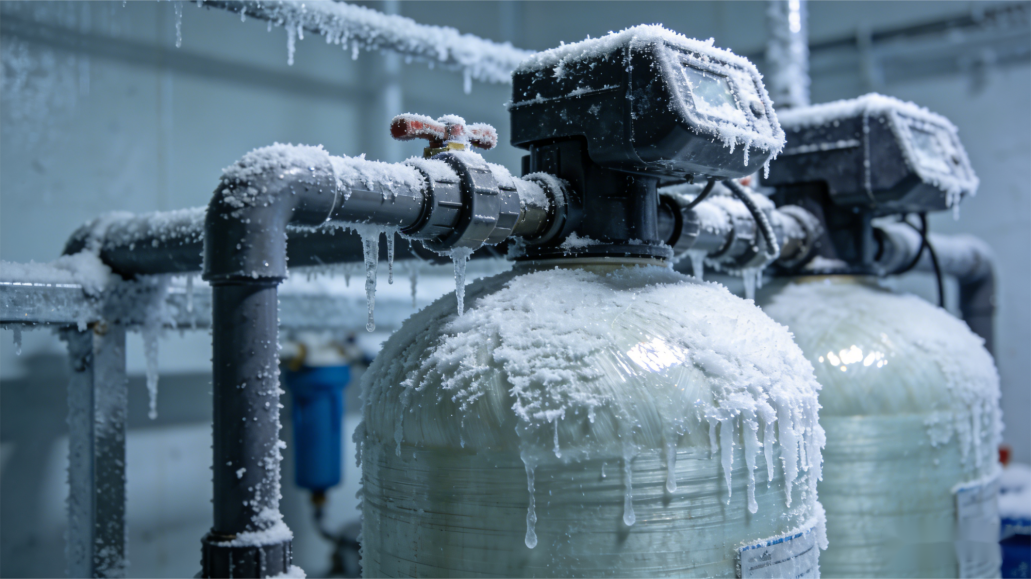

In cold areas where temperatures may drop below freezing, Vacation Mode alone is not enough to protect the unit. Focus on anti-freeze measures and avoid common mistakes:
Anti-freeze > energy saving: If the softener is installed in an unheated garage, basement, or area where temperature falls below 0°C (32°F), Vacation Mode cannot prevent internal pipes from freezing and cracking. Close the inlet valve, open the bypass valve, and fully drain all water from the unit.
Backup anti-freeze: If draining is not possible, maintain the ambient temperature above 5°C (41°F) or insulate the unit to avoid pipe rupture and resin damage.
Do NOT unplug arbitrarily: Unplugging saves power but resets the clock and erases settings on electronic models. You will have to re-set time, hardness, and other parameters, and lose resin protection benefits of Vacation Mode.
Unplugging without VAC: Old timer-model softeners still regenerate on a fixed schedule after power is restored, wasting salt/water and failing to protect resin.
No bypass for long absences: Long idling without bypass raises leakage risk; resin may develop odor or compaction, shortening service life.
Using immediately after return: Resin is saturated after long storage — water will be hard. Always run a manual regeneration first for softened water.
Misidentifying Vacation Mode: Power-off, blank-screen standby, or lowering water usage does NOT equal Vacation Mode — none pause regeneration or protect resin.
Use these 3 methods to confirm activation and avoid equipment damage or energy waste:
Vacation Mode is active if any of these appear:
Screen shows VAC, VACATION, or Holiday
VAC icon flashes (some models)
If no such labels appear and the screen shows time, remaining capacity, or water usage, the unit is in normal mode.
When active, the unit shows three fixed traits:
No automatic regeneration: Regeneration never starts, regardless of water use or preset time.
Clock runs normally: Not fully shut down — clock and all settings are preserved.
Still produces soft water: Water remains softened; only regeneration is locked.
If the unit regenerates automatically every few days (valve movement and drain noise are heard), Vacation Mode is not active — retry activation.
Note the current time on the display.
Watch for 24 hours: check if the unit regenerates automatically or drains water.
Confirmation: No automatic regeneration + VAC label = active.
Failure: Regular regeneration + no VAC label = not active — re-enable Vacation Mode.
Vacation Mode uses negligible power and actually saves energy — no need to worry about higher electricity bills:
Power logic: Vacation Mode is "deep standby" — only minimal power maintains the control panel clock and settings; all water flow and regeneration are paused. Power draw is similar to normal standby.
Actual usage: Standby power of a residential softener controller is typically 3–5W. Even 30 consecutive days of Vacation Mode uses only ~3.6 kWh — negligible cost.
Energy-saving advantage: Vacation Mode eliminates wasted power during regeneration. A softener’s motor uses 20–50W during regeneration (1–2 hours per cycle). Without Vacation Mode, the unit may regenerate when unused, wasting electricity. Protecting resin also avoids extra energy and maintenance costs from resin failure.
Quick reference for all scenarios:
Short trip (1–2 weeks): Press REGEN once → Activate VAC → Travel safely.
Long absence (>1 month): Open BYPASS → Disconnect power → Drain brine tank.
After returning: Exit VAC / Restore power → Close BYPASS → Manual regeneration.
Note: Operation may vary slightly by brand and model. Always consult your owner’s manual or a professional installer for correct use. In cold winter regions, prioritize anti-freeze protection to keep your equipment running reliably.
