SEKO is a leading global manufacturer of metering pumps, founded in 1976 with headquarters located in Brescia, Italy. Since its establishment, SEKO has made remarkable achievements in the field of metering pumps, and has become a leading brand in the industry thanks to its advanced technology and production scale. Every year, SEKO produces and exports hundreds of thousands of metering pumps, which are widely used in industries such as industrial, food, and pharmaceuticals in more than 100 countries. SEKO also has offices and subsidiaries in the United States, France, Germany, Spain, Brazil, India, China, Southeast Asia, and provides localized service support to global customers.
As one-stop supplier of water treatment products in China, Amanda has worked closely with SEKO for many years. Recently, SEKO dispatched technical personnel from its Chinese branch to provide Amanda with the latest metering pump samples and product training for sales team. This fruitful cooperation has always been positive and beneficial for both parties.
This training session mainly introduced two types of metering pumps, electromagnetic metering pumps and mechanical metering pumps. Their main difference lies in their working principles.

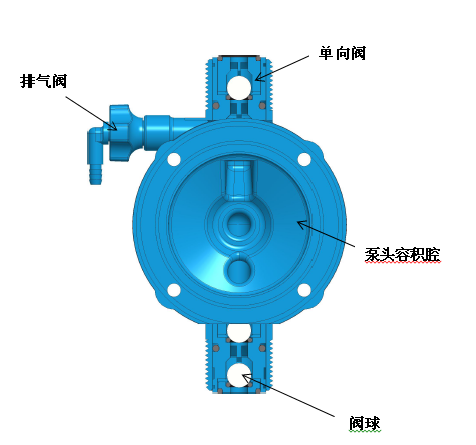

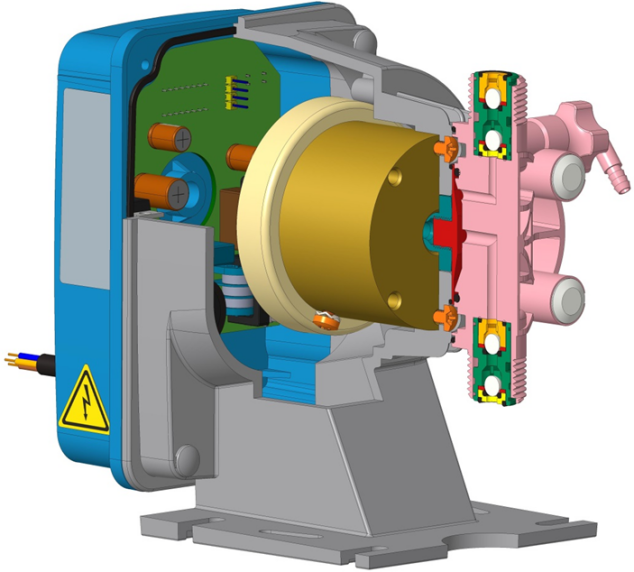

The working principle of the electromagnetic metering pump is as follows
Electromagnetic metering pumps generate flow by changing the volume of the pump head through the reciprocating motion of the coil. When the diaphragm moves away from the pump chamber, the inlet valve opens and liquid enters the pump chamber.
When the diaphragm compresses the pump chamber, the outlet valve opens and liquid enters the pipeline.

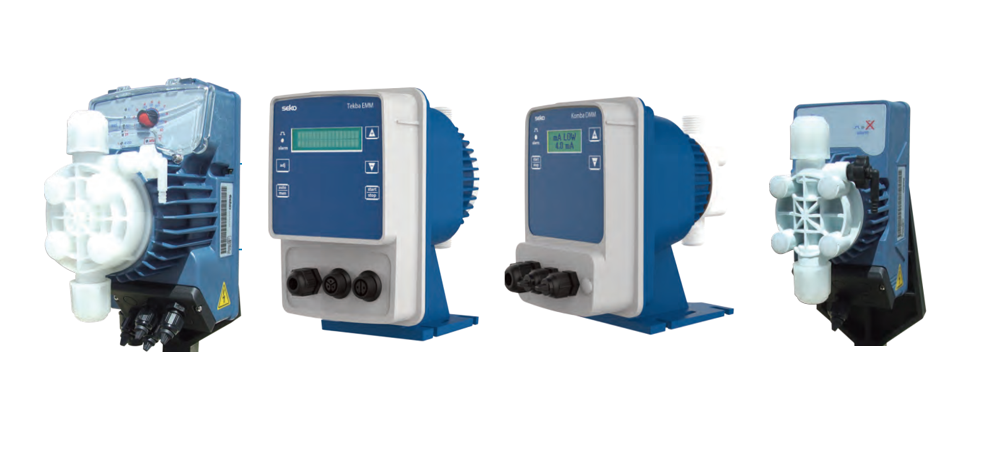

Seko electromagnetic pumps are available in the following series:
TEKNA, TEKBA, KOMBA, KOMPACT
Material of the liquid contact end:
Pump head: PVDF polyvinylidene fluoride, a kind of fluoroplastic with chemical resistance, high temperature resistance and electric insulation.
Valve ball: ceramic, with excellent mechanical properties and corrosion resistance, Mohs hardness can reach 9, to avoid damage by impurities in the liquid.
Diaphragm: PTFE polytetrafluoroethylene, compared with other fluoroplastics, its uniqueness lies in its excellent low friction, which can effectively reduce friction when the pump is working and lower the failure rate.
Seal: FPM/EPDM/PTFE fluoroelastomer/ethyl propylene rubber/polytetrafluoroethylene, which can be chosen flexibly according to the composition of dosing.

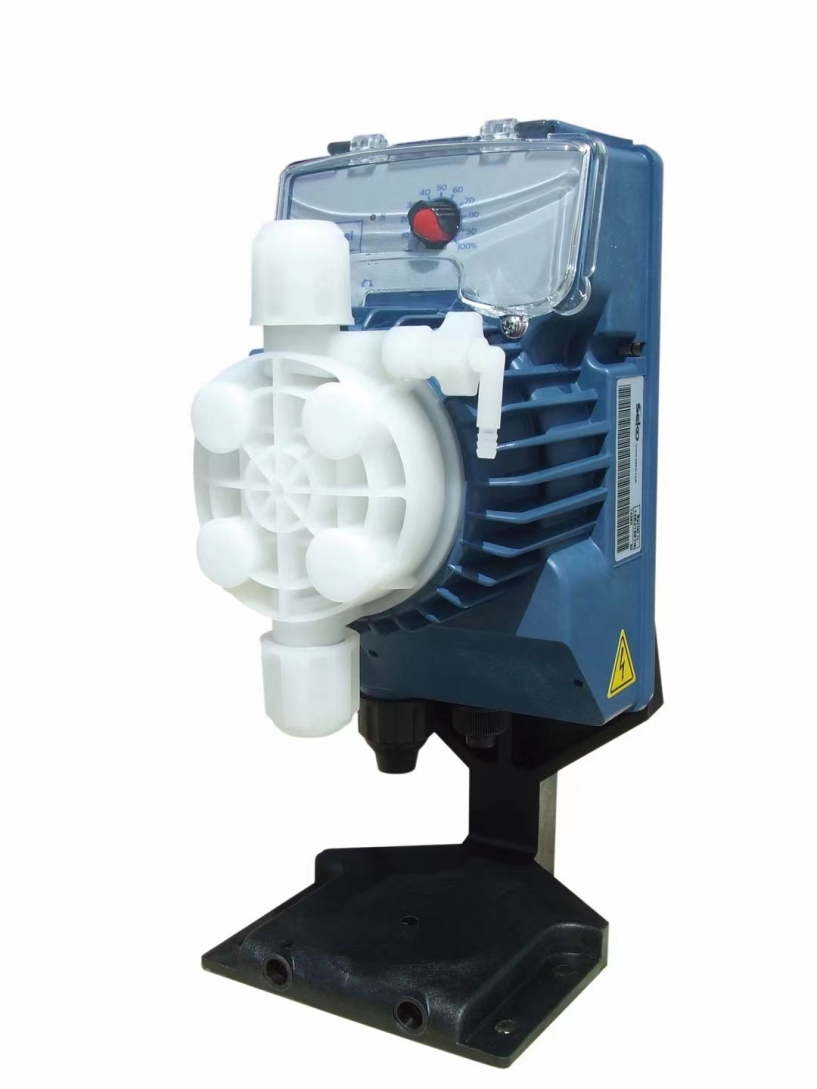

Tekna Series - AKS Electromagnetic Metering Pumps
Product features:
1. Manual knob adjustment control
2.0-110L/H range of flow rate to satisfy
3.0-20bar pressure range to meet the
4. Pure PVDF pump head as standard.
5. Standard with pure PTFE corrosion-resistant diaphragm

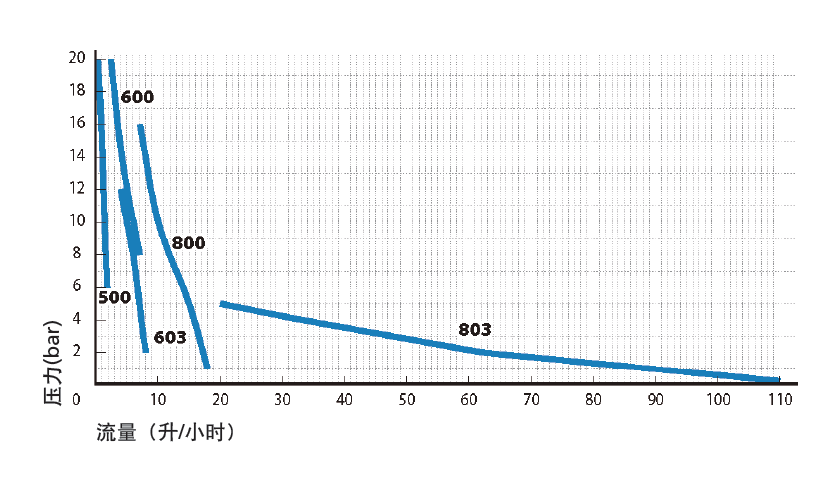

Flow Performance Chart

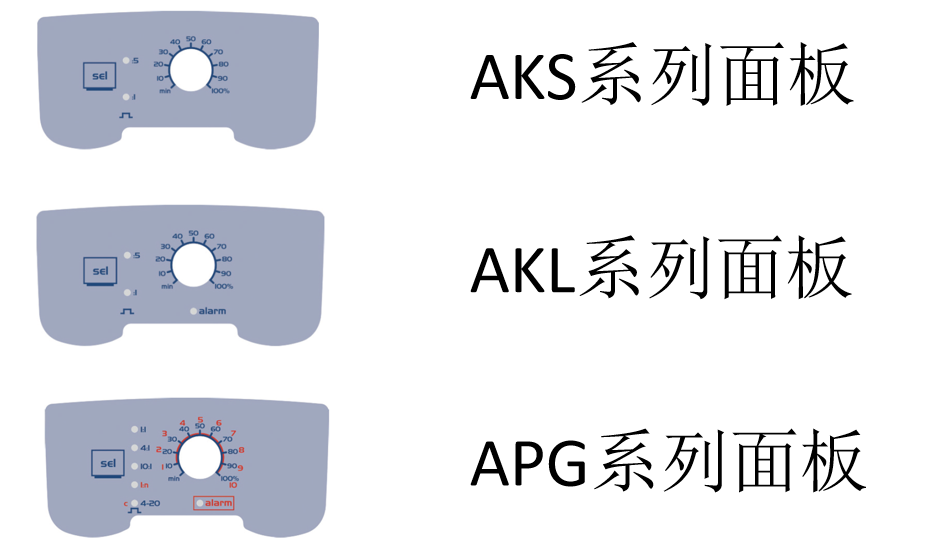

There are five types of control panels, analog and digital, to cope with different use scenarios.

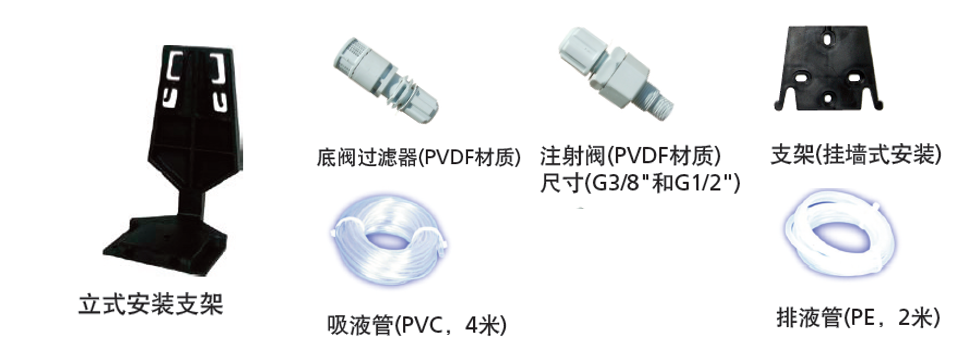

Pump Accessories
Accessories include a bottom valve filter, vertical mounting bracket, wall mounting bracket, injection valve, suction tube, discharge tube, and screws.

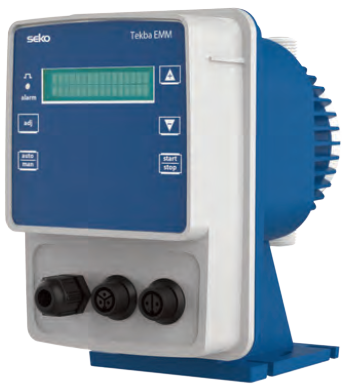

Tekba Series

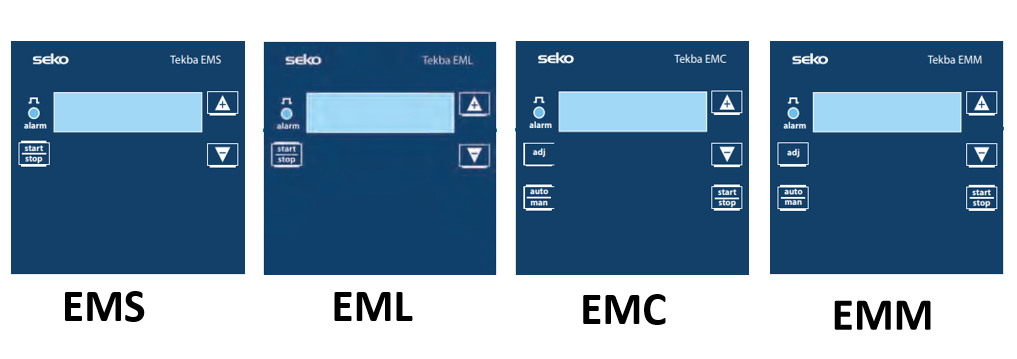

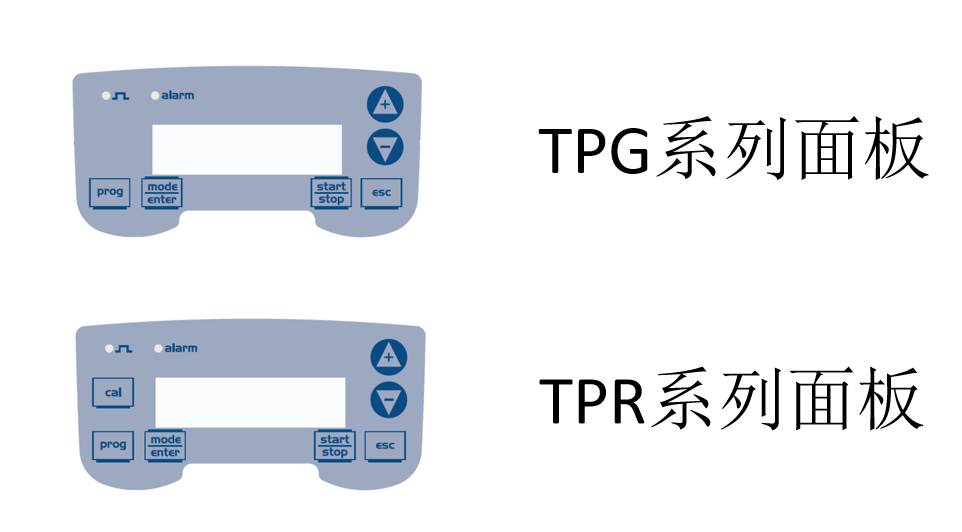

The Tekba range is fully equipped with CNC panels as standard and there are four panels with different functions.

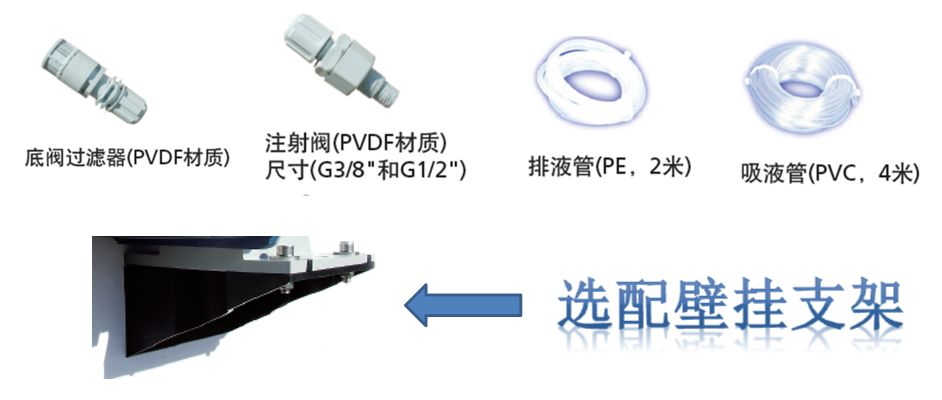

The product comes with pump accessories:
The accessories are bottom valve filter, injection valve, suction and discharge tubes and wall mounting bracket (optional).

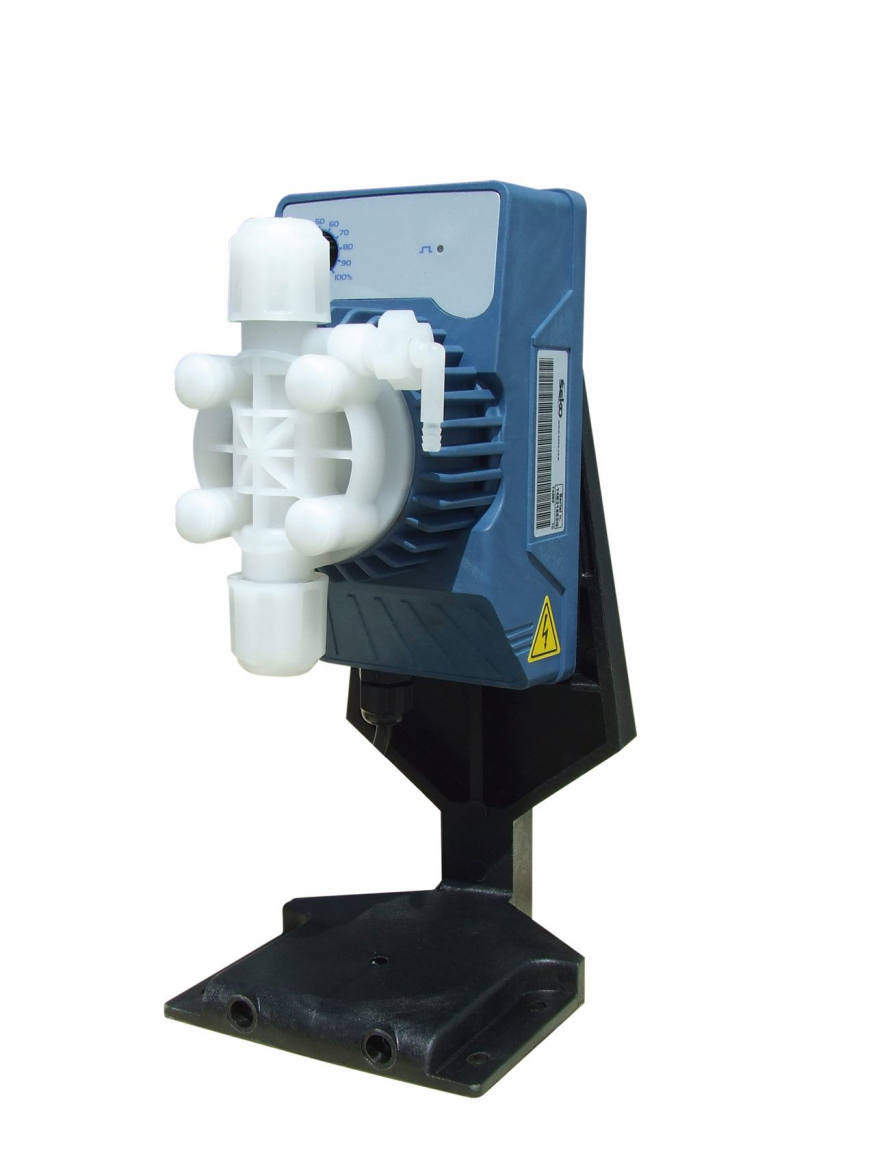

Kompact Series-AMS Electromagnetic Metering Pumps
Product features:
1. Manual knob adjustment control
2.0-9L/H range flow rate to meet
3.0-10bar pressure range meets
4. Pure PVDF pump head as standard.
5. Standard with pure PTFE corrosion-resistant diaphragm

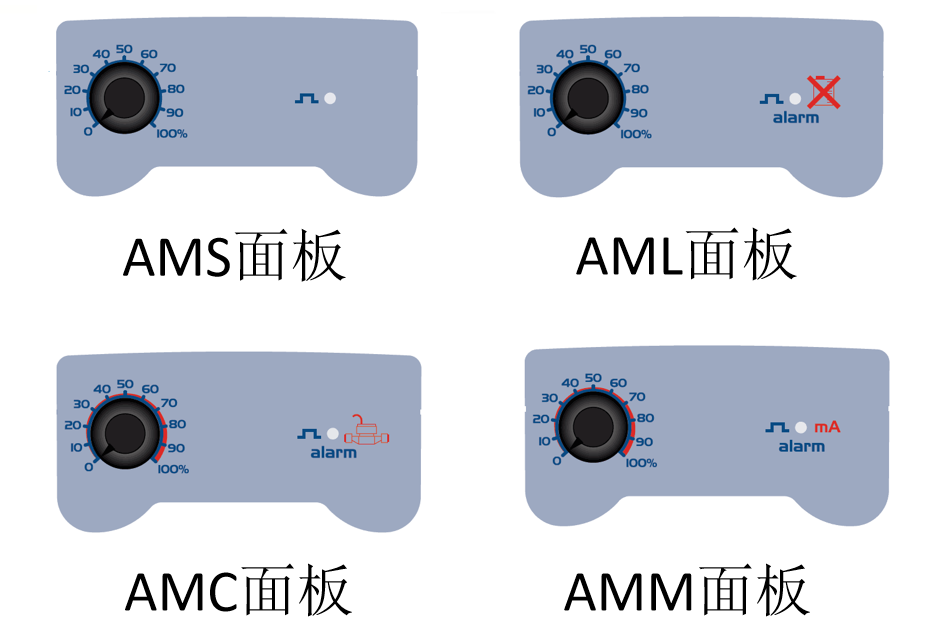

Control panel is divided into four kinds

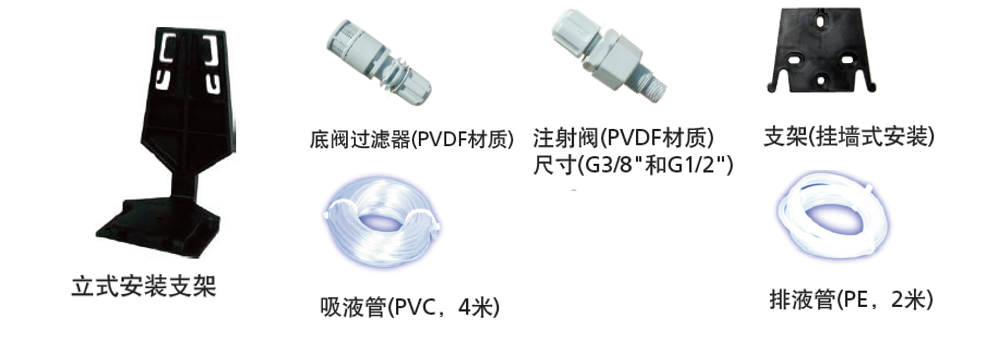

Product Accessories with Pump
Accessories include a foot valve strainer, vertical mounting bracket, wall mounting bracket, injection valve, suction hose, discharge hose, and screws.
Komba Series-DMS Electromagnetic Metering Pumps
Product Features.
1.Manual knob adjustment control
2.0-9L/H range of flow rate to satisfy
3.0-10bar pressure range meets
4.Pure PVDF pump head as standard.
5.Pure PTFE corrosion-resistant diaphragm as standard.

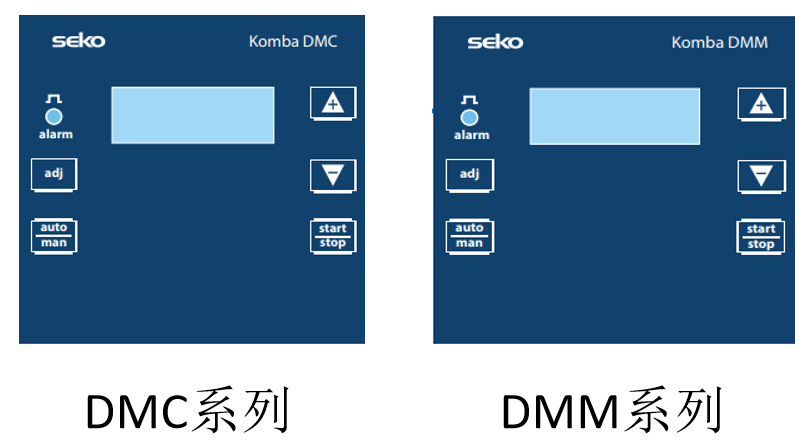

The control panel is divided into four kinds

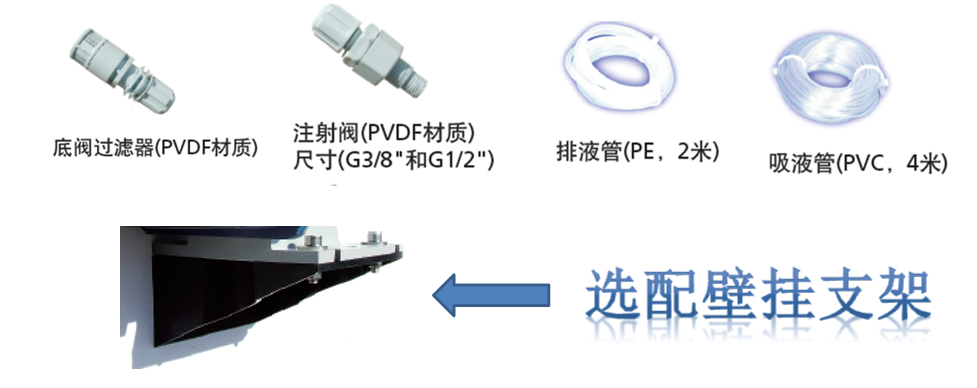

Product accessories with the pump
Accessories include bottom valve filter, injection valve, suction pipe, discharge pipe and wall-mounted bracket (optional).
Electromagnetic metering pump product protection level
Due to the internal design of the circuit boards, all Seko solenoid pumps are IP65 rated in order to ensure that the pumps do not malfunction over long periods of time.
Brief description of the protection level: The first number indicates the level of protection of the appliance against dust and intrusion of foreign objects, and the second number indicates the level of protection of the appliance against moisture and intrusion of water, with the larger number indicating a higher level of protection.
The first number 6 represents the meaning of: completely prevent the entry of dust.
The second number 5 means: no harm can be done by rinsing with water.

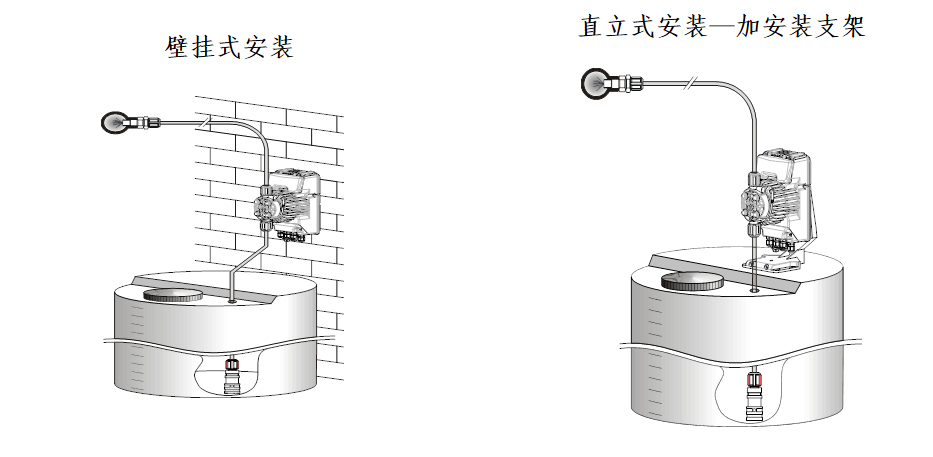

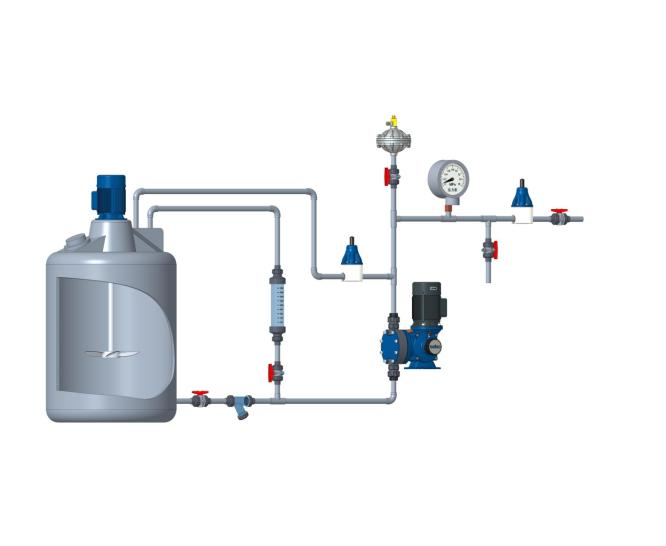

Electromagnetic metering pump installation schematic

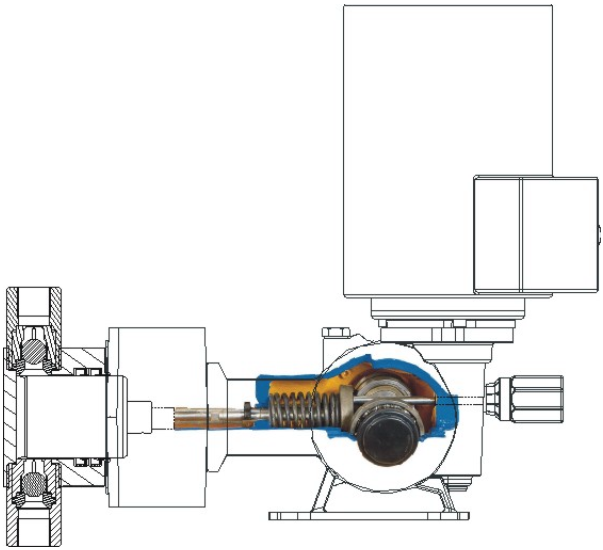

Mechanical metering pump working principle
A pump is a machine that can transfer liquid or change the pressure of liquid in a volume. It is divided into the following categories: volumetric pumps, power pumps and special pumps.Seko mechanical diaphragm metering pump belongs to one of the volumetric pumps.
Metering pumps are volumetric, mechanically operated reciprocating diaphragm pumps. Each pump consists of a power end and a liquid end, which are separated by a Teflon diaphragm. The appearance of each pump varies due to the different liquid ends and accessories, but the basic operating principle is the same.
The metering pump is driven by a motor mounted on the flange of the motor connector. The motor drives a set of worm gears that convert rotary motion into moments. The worm gears then power an eccentric shaft assembly that converts the rotary motion into reciprocating motion. The pump restricts diaphragm movement on the suction portion of each stroke by a semi-contact type stroke length adjustment device. The stroke length setting is indicated by a scale (0% - 100%) on the stroke adjustment assembly.

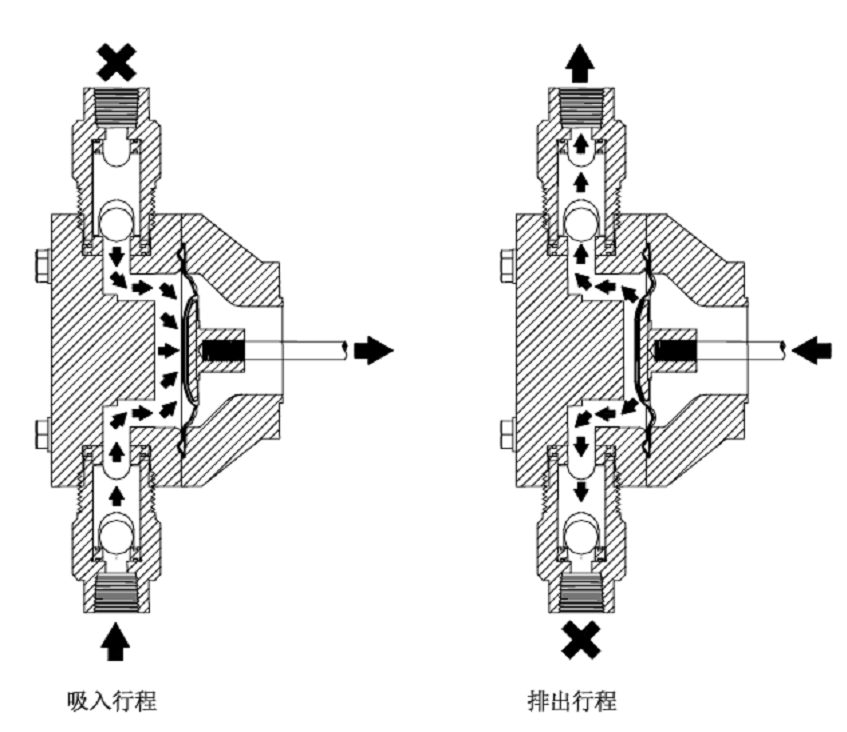

Flow generation principle
When the push rod moves backward, the suction valve opens and the discharge valve closes, allowing the liquid to enter the volumetric chamber.
When the push rod moves forward, the suction valve closes, the discharge valve opens and the liquid enters the pipeline.
Seko mechanical pumps are available in the following types
MS series, PS series, Kosmo series

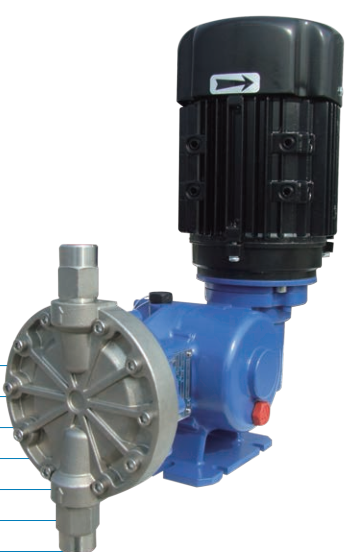

MS series mechanical diaphragm metering pumps
Product features:
1.Zero leakage solution for low pressure applications, safe and economical.
2.The diaphragm material of mechanical diaphragm pump is PTFE.

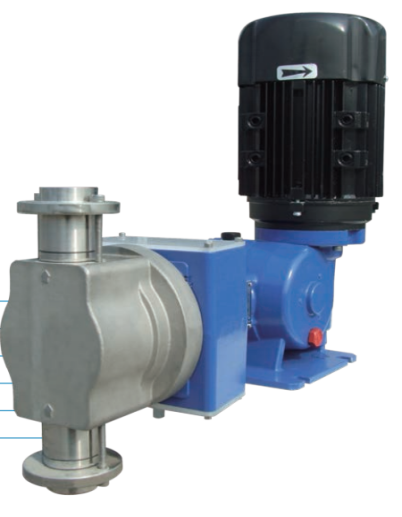

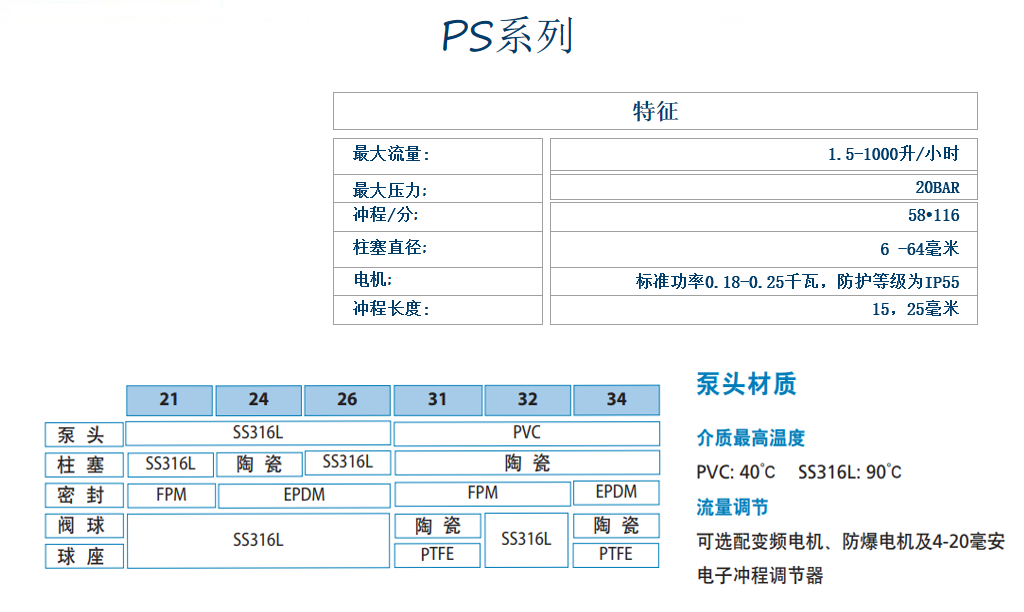

PS Series Mechanical Piston Pumps
Product Features:
Suitable for high temperature, high pressure, high viscosity and other special fields

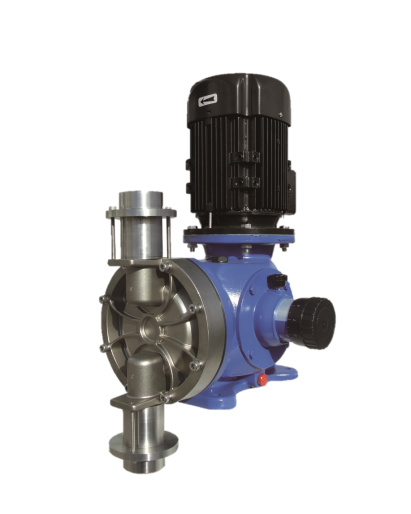

Kosmo series mechanical metering pumps
Product features:
1. Wider flow coverage
2. Composite diaphragm, stable quality, zero leakage guarantee
3. Stable operation, lower noise
4. Simple adjustment, higher precision
5. Wider choice of liquid end materials, strong compatibility
6. Convenient installation, providing a variety of connection methods
Advantageous design features:
Connecting rod mechanism, stable operation, reduce noise
Composite diaphragm for longer life and chemical compatibility

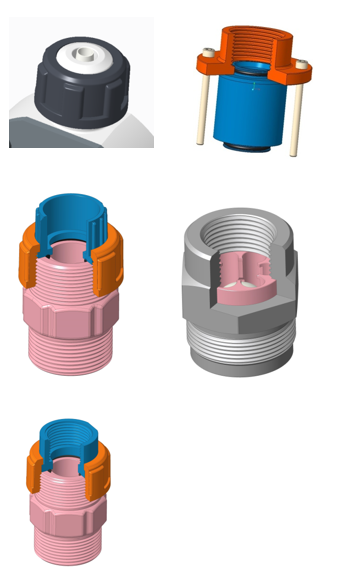

Provides a variety of convenient mounting options

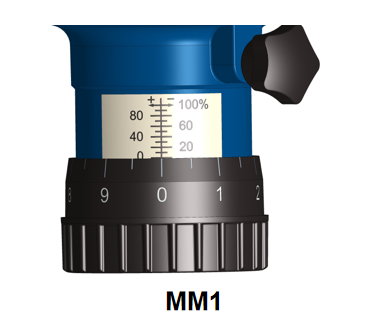

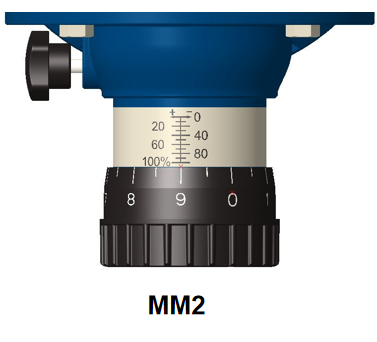

Easy Adjustment
Easy-to-understand stroke length adjustment knob, 10:1 adjustment standard, 1% stroke range, clear adjustment numbers, 100% adjustable in shutdown/run mode.

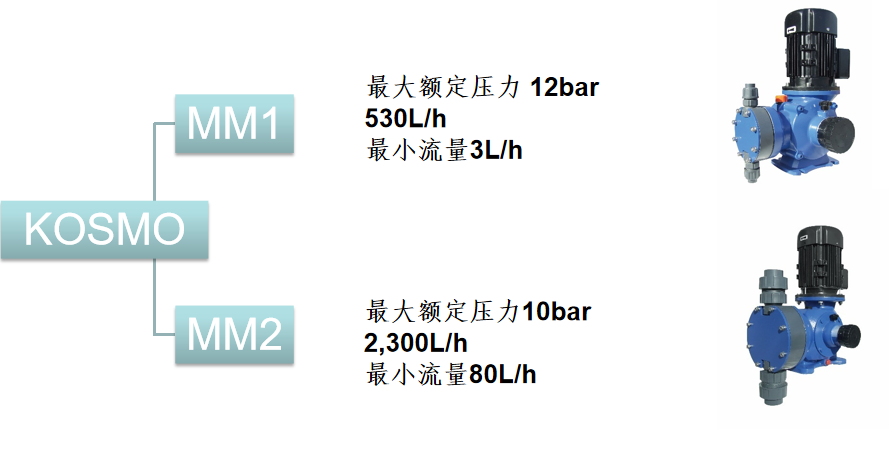

Two Kosmo sizes

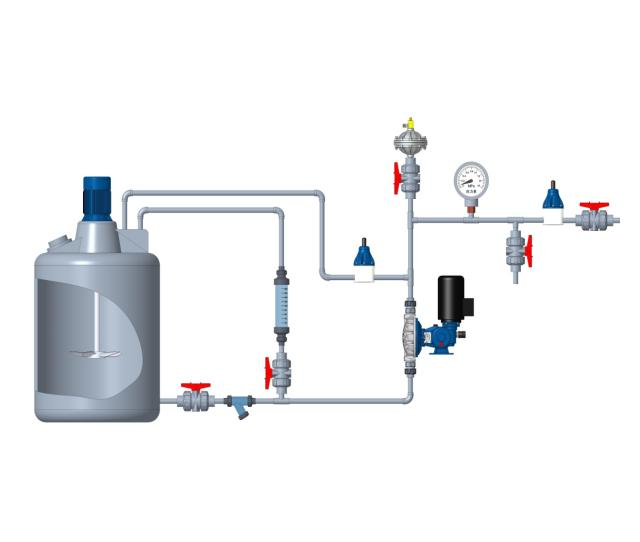

Metering Pump Installation Diagram
Seko metering pumps in China

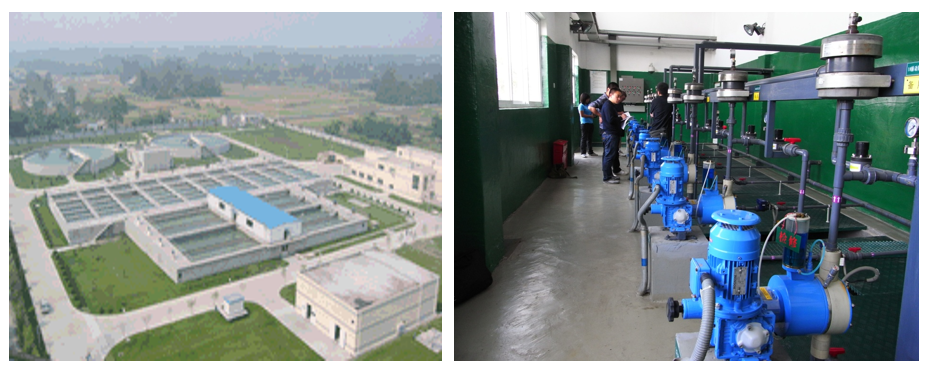

Waterworks
Chengdu Water Supply Plant No. 6 is currently the largest gravity-flow water supply plant in China. The three plants operate independently and in close proximity to each other, forming a gravity-flow uniform water supply base of 1.4 million per day.

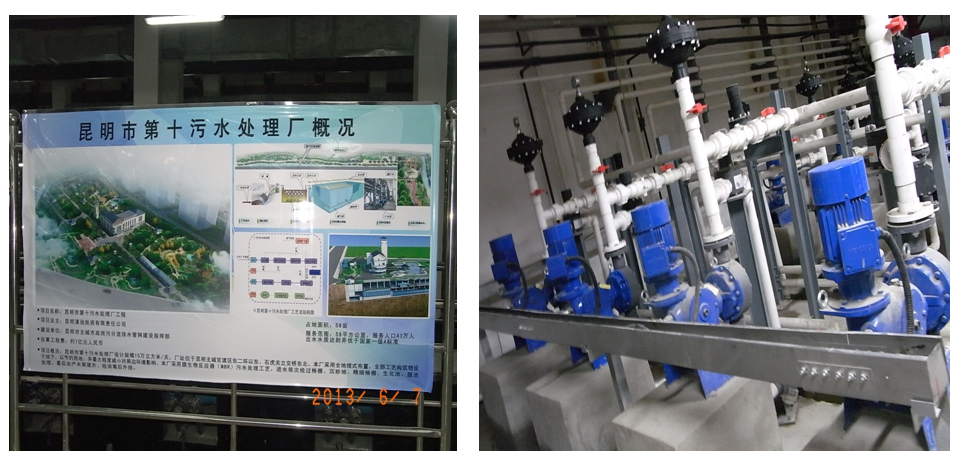

Sewage Treatment Plant
The Kunming 10th Wastewater Treatment Plant, the largest underground wastewater treatment plant in China, serves 59 square kilometers and 430,000 people.

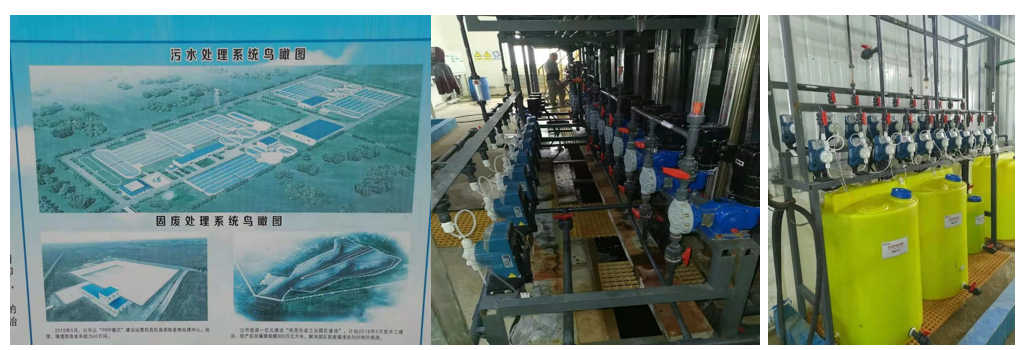

Wastewater Treatment Plant
Jinhe Environmental Protection Co., Ltd, located in Tuo County Industrial Park, covers an area of 7,000 square meters, with a daily sewage treatment capacity of 10,000 tons.

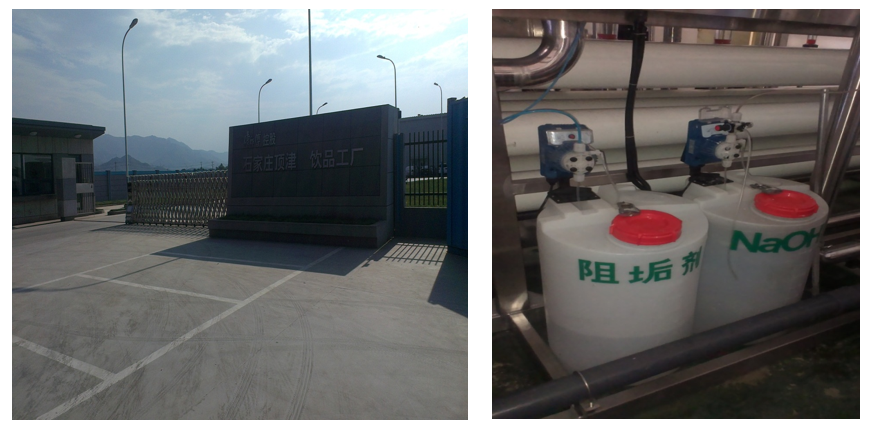

Beverage, Food
Ltd. is a wholly owned subsidiary of Tingxin, which owns the brands of Master Kong and Ajinomoto. It is a sales company that produces, sells, and distributes Master Kong's Tea series and other products, such as Green Tea, Black Tea, and Refreshing Tea, etc., and it owns processing factories in various parts of China.
After the theoretical training, Seko technicians disassembled the samples on the spot and showed and explained them one by one. After the theoretical training, Seko technicians also disassembled the samples on site and showed and explained each component to understand its internal excellent structural design and workmanship, and Seko technicians also introduced that each product from the production line has to go through a strict product quality inspection, including water pressure, dustproof, measurement accuracy and corrosion resistance. Let Amanda team more intuitively understand the product quality of seko.
Through this training, Amanda's sales team has a deeper understanding of Seko's cutting-edge products, and believes that in the future, when facing customers in different regions, different industries, different regional water quality, and different water treatment requirements, it will be able to provide customers with more satisfactory solutions.
