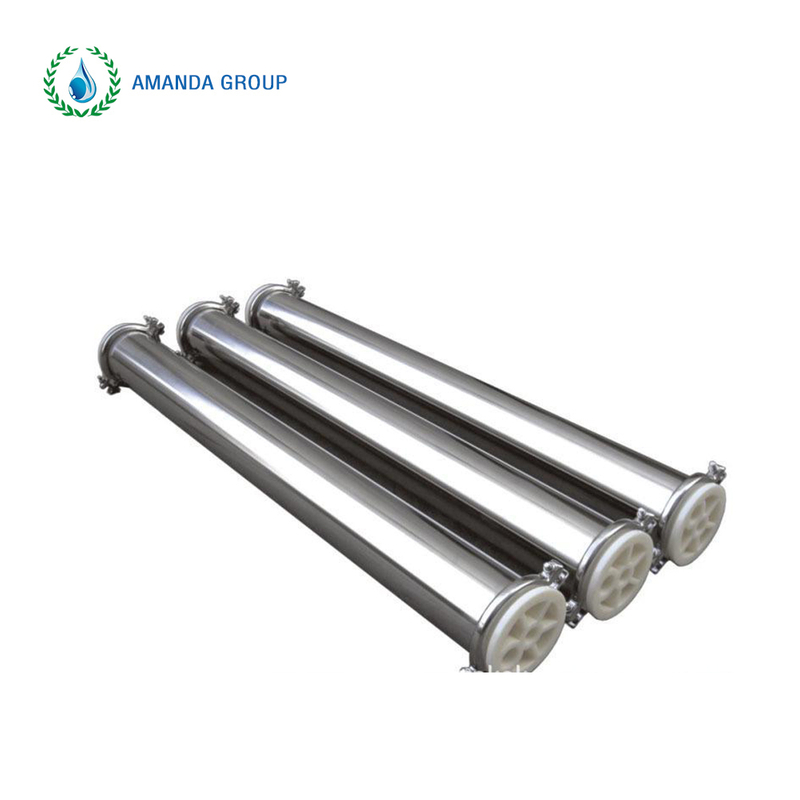

Stainless Steel RO Membrane Pressure Vessel
MAIN TECHNICAL FEATURE
| Product Name: | Stainless Steel RO Membrane Pressure Vessel |
| Material: | 304/316 Stainless steel |
| Material of end cap: | ABS;SUS304;SUS316L |
| Max working pressure： | 250Psi |
| Connection: | End port or side port |
| Let's begin to communicate Contact us |
Description of Stainless Steel RO Membrane Pressure Vessel
Stainless Steel RO Membrane Pressure Vessel pressure vessels provide reliable, long-lasting performance in commercial water treatment systems rated up to 300 PSI working pressure, allowing you to take full advantage of the membrane's capabilities. These high quality stainless steel (SS) pressure vessels are available in industry standard sizes and can be directly connected to most standard membrane elements.
Product parameters
| Model | Size (inch*inch) | Length (mm) | Length between side opening(mm) | Inlet dia | Outlet dia (inch) |
| AMD-4021E | 4'' ×21'' | 600 | / | 1/2'' | 1/2'' |
| AMD-4040E | 4'' ×40'' | 1087 | / | 3/4'' | 3/4'' |
| AMD-4080E | 4'' ×80'' | 2103 | / | 3/4'' | 3/4'' |
| AMD-40120E | 4'' ×120'' | 3119 | / | 3/4'' | 3/4'' |
| AMD-40160E | 4'' ×160'' | 4135 | / | 3/4'' | 3/4'' |
| AMD-40200E | 4'' ×200'' | 5151 | / | 3/4'' | 3/4'' |
| AMD-4040S | 4'' ×40'' | 1150 | 1010 | 3/4'' | 1/2'' |
| AMD-4080S | 4'' ×80'' | 2116 | 2026 | 3/4'' | 1/2'' |
| AMD-40120S | 4'' ×120'' | 3182 | 3042 | 3/4'' | 3/4'' |
| AMD-80160S | 4'' ×160'' | 4198 | 4058 | 3/4'' | 3/4'' |
| Model | Size (inch*inch) | Length (mm) | Length between side opening(mm) | Inlet dia | Outlet dia (inch) |
| AMD-8040E | 8'' ×40'' | 1174 | / | 1'' | 1.5'' |
| AMD-8080E | 8'' ×80'' | 2190 | / | 1'' | 1.5'' |
| AMD-80120E | 8'' ×120'' | 3206 | / | 1'' | 1.5'' |
| AMD-80160E | 8'' ×160'' | 4222 | / | 1'' | 1.5'' |
| AMD-80200E | 8'' ×200'' | 5238 | / | 1'' | 1.5'' |
| AMD-80240E | 8'' ×240'' | 6254 | / | 1'' | 1.5'' |
| AMD-8040S | 8'' ×40'' | 1308 | 1094 | 1'' | 1.5'' |
| AMD-8080S | 8'' ×80'' | 2324 | 2110 | 1'' | 1.5'' |
| AMD-80120S | 8'' ×120'' | 3340 | 3216 | 1'' | 1.5'' |
| AMD-80160S | 8'' ×160'' | 4356 | 4142 | 1'' | 1.5'' |
| AMD-80200S | 8'' ×200'' | 5372 | 5158 | 1'' | 1.5'' |
| AMD-80240S | 8'' ×240'' | 6387 | 6174 | 1'' | 1.5'' |
Application of Stainless Steel RO Membrane Pressure Vessel
Designed for industrial water treatment, wastewater treatment, fluid separation process and can work under the high pressure
