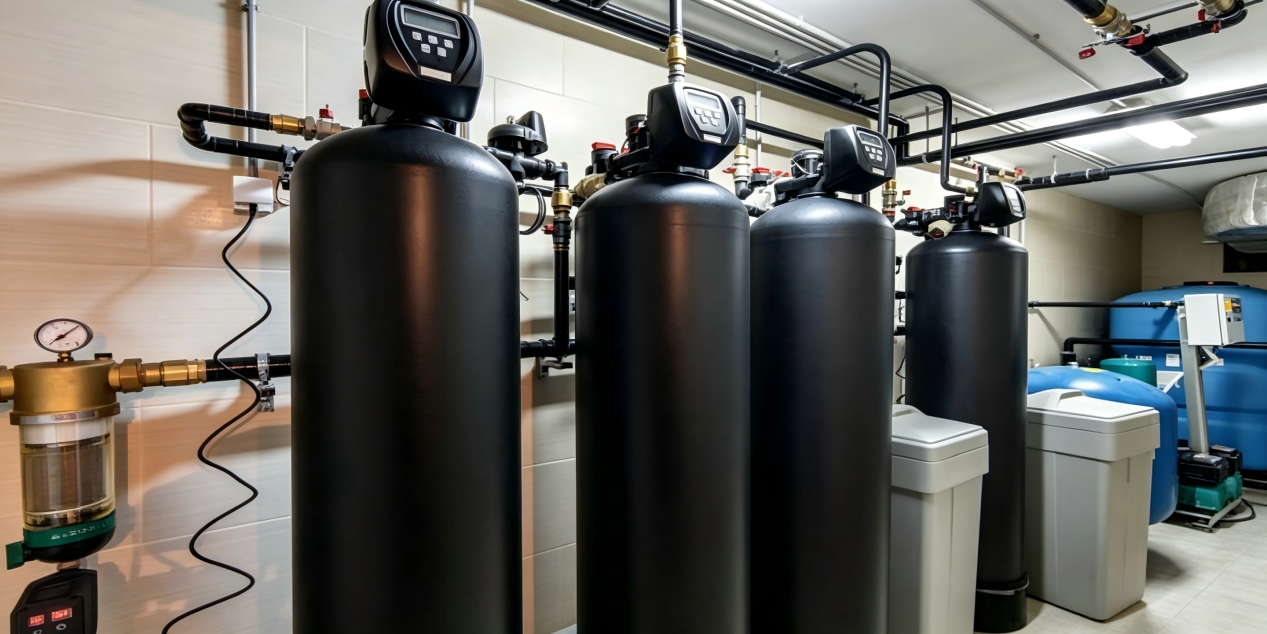

Ion exchange resin serves as the core medium for water quality modification in residential, commercial and light industrial water treatment systems, widely installed in whole-house water softener systems, commercial softening equipment, boiler feed water treatment, and reverse osmosis pre-desalination processes. The aging rate, service life and failure characteristics of resins are fully determined by raw water source conditions, pre-treatment configuration of equipment, automatic operation logic and routine maintenance standards.
Most municipal water supplies are sourced from deep groundwater and surface lake water with high cleanliness and almost no suspended sediment, eliminating common faults such as filler deposition and physical blockage of resin beds. Primary water quality issues stem from natural characteristics including elevated total hardness, excessive alkalinity, trace iron and manganese enrichment, and accumulated dissolved organic matter, which act as primary inherent factors undermining long-term resin performance.
Water treatment equipment is universally equipped with complete multi-stage pre-filtration systems. Impurities in incoming water are fully intercepted before entering the resin tank, minimizing physical abrasion of resins. Water supply pipelines consistently carry trace residual chlorine, with stable water temperature and narrow fluctuation ranges all year round. Fully automatic scheduled regeneration is adopted as the standard operation mode, creating stable load cycles and unique resin degradation patterns.
Fixed service life cycles are never used as the sole basis for resin replacement within the industry. Real-time water quality test data, equipment operating parameters and actual physical conditions of resins are adopted as core judgment criteria to avoid unnecessary replacement costs and subsequent problems including substandard water quality and equipment scaling caused by delayed resin replacement.

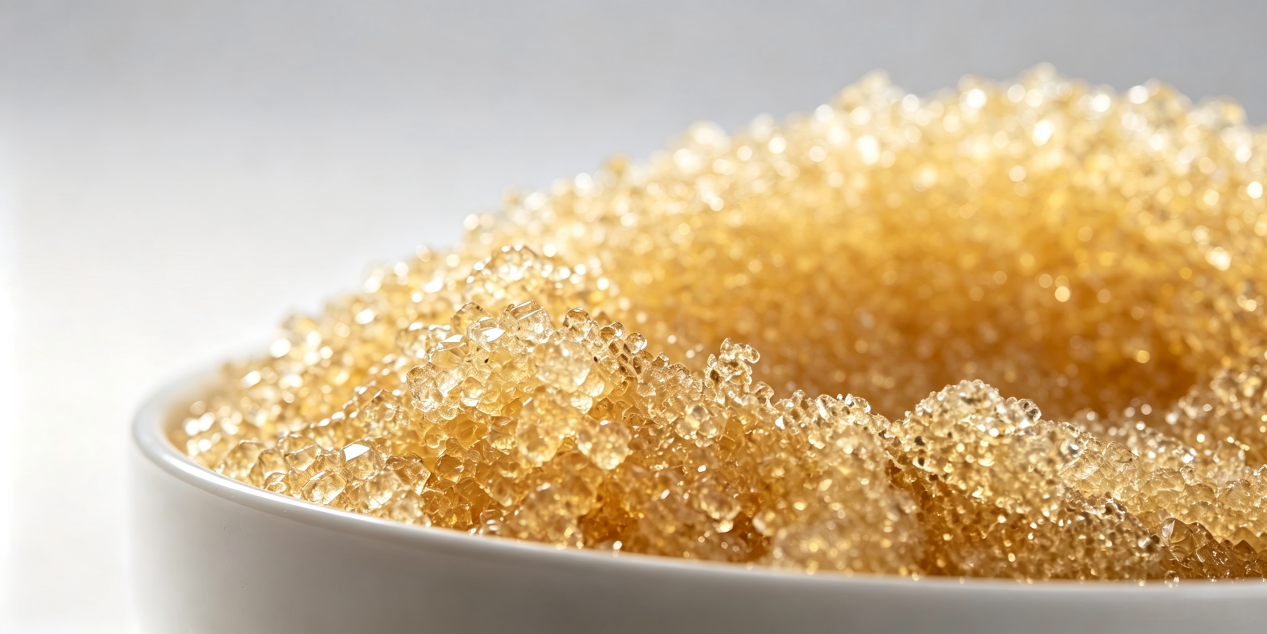

Ion exchange resins are spherical granular media formed by polymer polymerization, which complete reversible ion exchange via active functional groups on their surfaces, differing from physical interception filtration modes of activated carbon and sand filters. In softening systems, resins primarily adsorb calcium and magnesium ions in water, fundamentally eliminating water hardening and limescale formation.

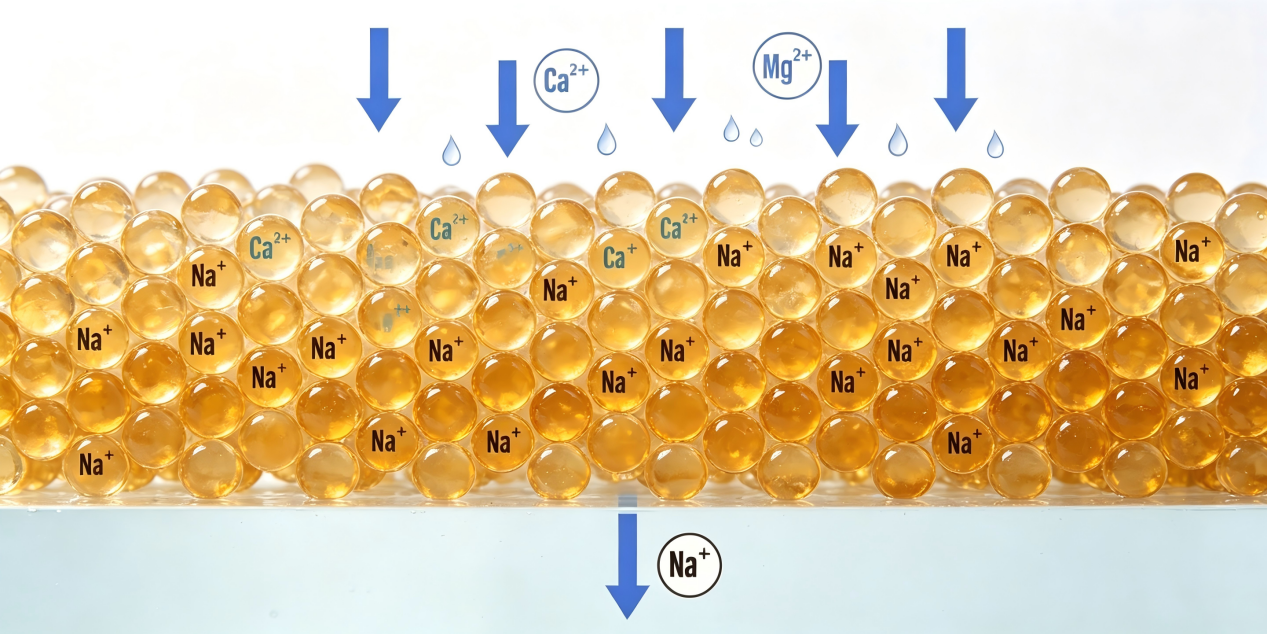

When water flows uniformly through the resin bed, hard calcium and magnesium ions in water are captured and locked by resin functional groups, while sodium ions are released to reduce water hardness. Once resins reach adsorption saturation, their softening capacity disappears completely. Flushing with high-concentration brine regenerates resins by stripping accumulated calcium and magnesium impurities, restoring most of their working performance.
Regeneration only partially restores original performance and cannot fully recover brand-new functionality. Each cycle of water pressure exposure and regeneration flushing causes slight irreversible damage to resin particle structures and surface active functional groups. As such damage accumulates over long-term repeated operation, the effective exchange capacity of resins declines continuously, particles crack and pulverize gradually, and resins eventually lose all functionality and require full replacement.
Resin selection in mainstream water treatment systems is highly standardized with streamlined models and clear scenario division, while customized niche media are rarely used. Four major categories of resins are widely applied in daily operation, featuring distinct structural strength, fouling resistance, working condition tolerance and service life, and cannot be substituted across scenarios.
Strong acid cation exchange resins act as the universal core medium for all softening systems, compatible with all residential whole-house water softeners, commercial softening units and boiler pre-treatment water systems. Their stable active functional groups enable consistent ion exchange in neutral, weakly acidic and weakly alkaline water, matching the vast majority of conventional municipal water sources. Regeneration operations are simple, relying solely on sodium chloride brine to restore performance, fully compatible with scheduled regeneration programs of automatic equipment.
These resins feature compact physical structures with outstanding resistance to water flow erosion and temperature tolerance, maintaining extremely low breakage rates under long-term high-frequency automatic operation. Supported by complete pre-filtration configurations, resins are barely abraded by sediment and large particulate impurities, delivering exceptional operational stability. They represent the longest-lasting and most versatile category of all water treatment resins.
Anion exchange resins are not deployed for conventional water softening. Instead, they are paired with cation resins to form multi-stage desalination systems for industrial and commercial pure water production and high-precision water purification processes. Their core function is to remove anionic impurities including chloride, sulfate and carbonate ions, lowering total dissolved solids in water and purifying water quality.
Anion resins feature lower tolerance thresholds, with weaker oxidation and fouling resistance compared to cation resins. Residual chlorine in pipelines and trace dissolved organic matter in water continuously erode resin active sites, accelerating performance degradation during long-term operation. Regeneration requires dedicated strong alkali chemicals with rigorous maintenance procedures and higher operational barriers, resulting in shorter overall service life than conventional softening resins.
Both types are dedicated media for specific working conditions with poor versatility, almost never adopted in residential applications. Weak acid resins are engineered for raw water with high hardness and high alkalinity, offering superior adaptability to complex water sources and strong resistance to organic fouling, primarily used for pre-treatment of industrial high-alkalinity water. Weak base resins focus on adsorbing acidic impurities and dissolved organic matter in water, mainly applied to wastewater treatment and special water purification scenarios, and are not required for standard water purification systems.
Polishing resins are precise blends of cation and anion resins, categorized as high-precision water treatment media deployed for ultrapure water production in laboratories, medical facilities and precision manufacturing. They deeply remove residual trace ions in water to meet high-end pure water standards.
These resins have extremely strict working condition requirements for incoming water quality. Trace organic matter or residual chlorine contamination triggers irreversible resin poisoning failure. Most operating conditions prohibit repeated regeneration, requiring one-time use only, accompanied by high consumable costs and short replacement cycles, limited exclusively to high-precision water purification scenarios.
No unified fixed service life exists for ion exchange resins. Raw water source conditions, daily water production load, regeneration frequency and pre-filtration quality directly govern resin degradation rates. Under standardized equipment configuration, stable water sources and compliant automatic maintenance routines, clear and stable reference ranges are available for the service life of all resin categories.

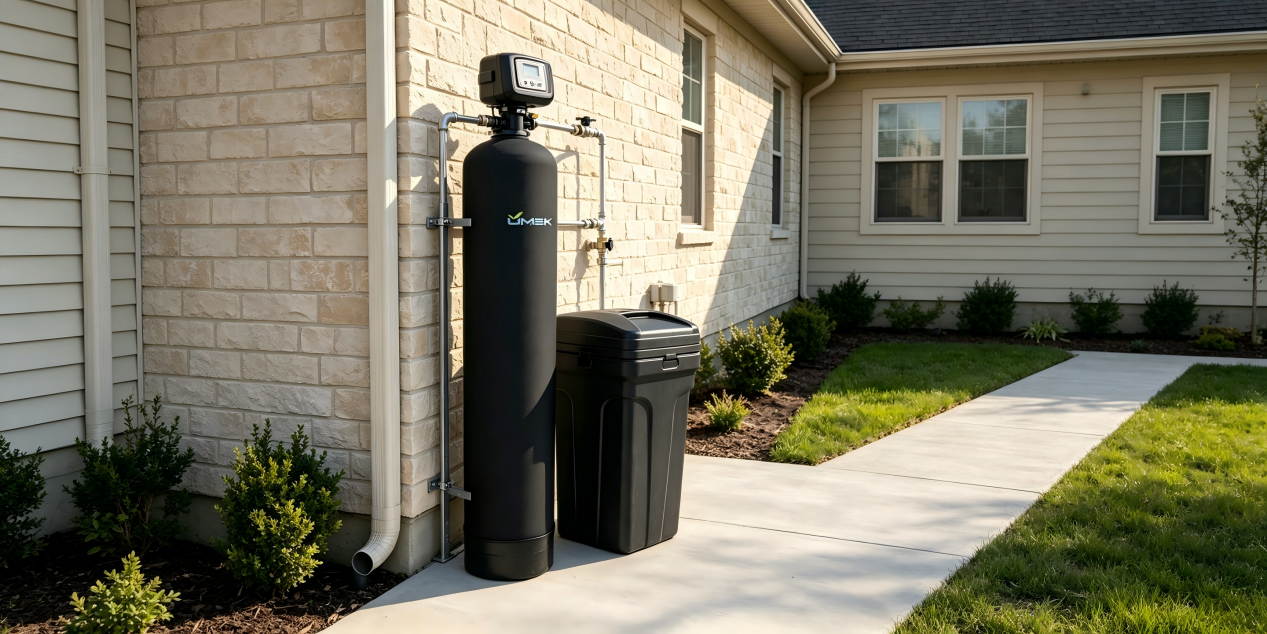

Residential equipment operates with stable incoming water quality and low impurity content, complete pre-filtration configurations, fixed regeneration cycles, uniform operational loads and no overloaded or abnormal water flow conditions. Standard cation softening resins deliver a conventional service life of 6 to 9 years. In regions with inherently hard water and trace iron/manganese excess, resin aging accelerates moderately, with service life generally falling between 4 and 6 years. Working conditions remain stable overall, slowing resin performance degradation and delivering reliable long-term operation.

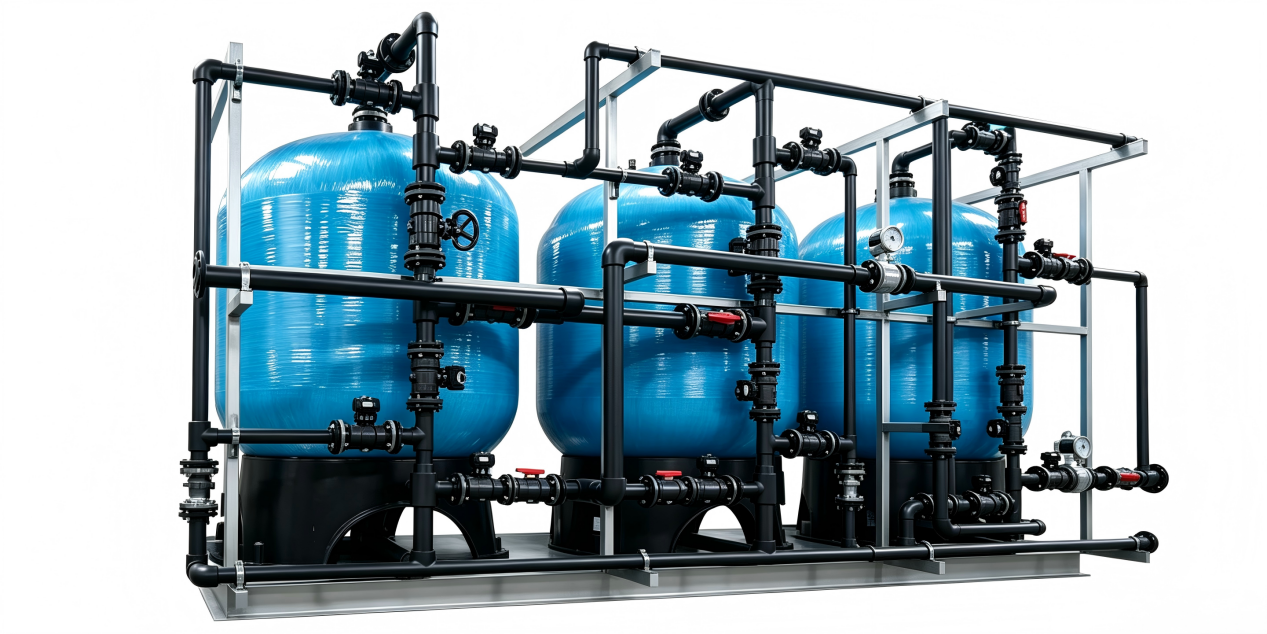

Commercial equipment handles large daily water production volumes with frequent regeneration cycles, subjecting resin beds to far higher erosion from water flow than residential units. Some commercial intake water sources contain elevated organic matter. Under standardized maintenance, periodic backwashing and compliant chemical regeneration, resins offer a service life of 4 to 6 years. Continuous trace iron/manganese contamination in water or year-round constant-temperature operation accelerates resin aging, shortening service life to 3 to 4 years.
Industrial desalination and pure water systems operate under high load, with elevated dissolved solids and organic matter in incoming water. Resins undergo frequent regeneration and intensive chemical flushing, maintaining continuous high-load operation. Under standard maintenance protocols, cation and anion resins deliver a stable service life of 2 to 4 years. Inadequate upstream pre-treatment and persistent impurity accumulation in water trigger premature functional group degradation and particle breakage, with obvious performance failure observed in some equipment after only 1 to 2 years of operation.
The service life of polishing resins depends entirely on the purity of upstream incoming water, exhibiting extreme sensitivity to water quality fluctuations. Under stable supply of pre-treated RO pure water as standard working conditions, resins can operate continuously for 6 to 12 months. Minor fluctuations in upstream water quality containing trace organic impurities or residual chlorine induce rapid resin poisoning failure, shortening operational cycles to 3 to 6 months with no regenerative value after failure and mandatory direct replacement.
Premature resin failure and shortened service life are not determined solely by operation duration, falling into three core categories: physical breakage, irreversible degradation of chemical functional groups and water contamination-induced resin poisoning. All resin degradation issues can be classified within these three groups.
Long-term water pressure exposure and repeated regeneration flushing subject resin particles to persistent shear force from water flow, gradually triggering cracking, breakage and pulverization. Fine resin powder accumulates in gaps of the filler bed, causing internal tank flow blockage, uneven water distribution and localized biased flow, drastically reducing the effective ion exchange area. Fluctuating water pressure and long-term high-temperature water flow further accelerate physical aging of resins, representing the primary cause of resin failure in high-frequency operating equipment.
The water treatment capacity of resins fully relies on surface active functional groups. Residual chlorine, trace oxidants in water and long-term high-temperature aqueous environments continuously damage functional group structures, inducing permanent decline in resin exchange capacity. This type of damage cannot be repaired through regeneration and counts as irreversible failure. Even resins with intact physical appearance and no breakage experience steady decline in water treatment capacity, eventually failing to meet water usage standards.
Iron, manganese ions, heavy metals, dissolved organic matter and trace oil in water continuously adhere to resin particle surfaces, blocking pores and wrapping active functional groups. This prevents normal ion adsorption and exchange, defined within the industry as resin poisoning. Mild contamination can be alleviated via enhanced regeneration and deep flushing, while severe contamination causes permanent irreparable failure requiring full resin replacement.
Professional testing equipment is not required to identify failed resins; judgment can be accurately made through equipment operating status, effluent water quality performance and physical appearance of resins. The simultaneous appearance of multiple characteristics below confirms substandard resin performance requiring timely replacement.
Effluent hardness from softening equipment remains excessively high, with rapid limescale formation on water appliances and glass sanitaryware showing no obvious improvement after complete regeneration cycles. Resistivity and conductivity parameters of pure water effluent fluctuate abnormally, failing to reach rated equipment standards. After eliminating hardware faults including incorrect program settings, valve defects and pipeline leakage, resin performance degradation and failure can be directly confirmed.
No significant changes occur to equipment water consumption load, yet regeneration intervals shorten drastically. Cycles originally scheduled for every several days shift to every other day or daily, accompanied by a sharp drop in single-cycle effective water production volume. This represents a typical characteristic of degraded effective resin exchange capacity, as resins reach adsorption saturation far more quickly with drastically weakened overall working performance.

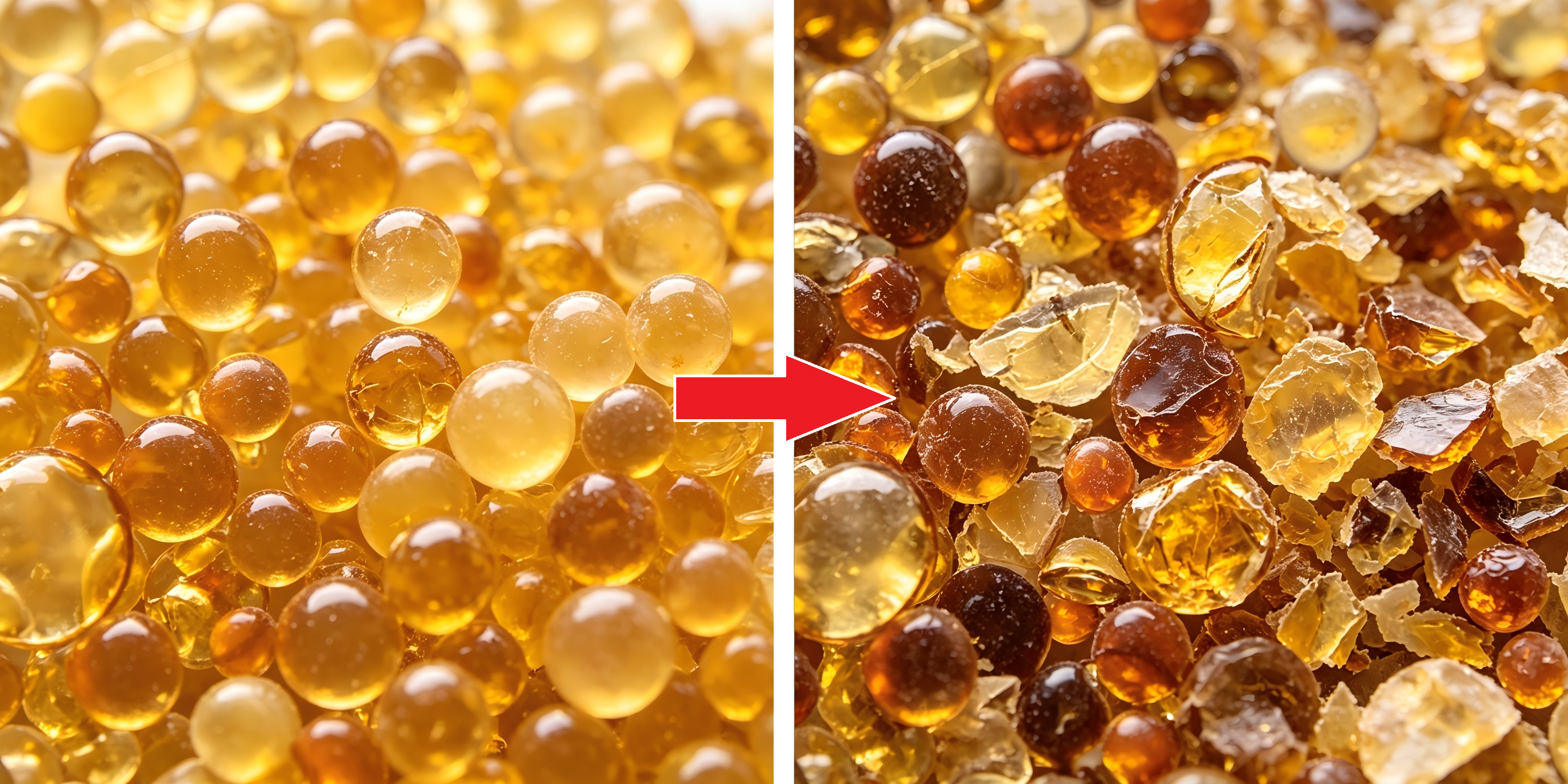

Fully functional resins feature smooth, uniform particles with translucent coloration. Aged and failed resins appear dark, blackened and turbid, with massive accumulation of fine resin powder inside tanks and sharply elevated particle breakage rates. Severely contaminated resins exhibit particle adhesion, clumping and filler bed caking, drastically reducing water permeability inside the tank.
Inlet water pressure remains normal, yet effluent flow decreases significantly, alongside sustained high pressure drop inside tanks and slowed flow during regeneration flushing, forward washing and backwashing cycles. The root cause lies in resin pulverization blocking filler gaps and obstructing water flow channels, which not only reduces water production efficiency but also increases overall equipment operating load.
Fine pulverized resin fragments flow out with water, generating slight turbidity and tiny suspended particles in effluent. Long-term resin contamination facilitates microbial growth, introducing fishy or unpleasant odors into water that cannot be eliminated through routine flushing and regeneration, classified as severe aging and contamination of resins.
Judgment centers on actual water usage experience and equipment operating status. Resin replacement is recommended when rapid limescale formation persists post-regeneration, water hardness rebounds noticeably, and equipment regeneration frequency rises significantly, alongside reaching the standard service life cycle. For water sources with inherently high hardness or trace iron/manganese excess, resin inspection and replacement can be scheduled in advance.
Comprehensive judgment combines water quality test data and equipment operating conditions. Timely resin replacement is mandatory regardless of service life when effluent hardness remains unqualified, effective water production declines by over 30%, or severe resin pulverization occurs. Full resin inspection is required once equipment completes three years of operation to arrange replacement as needed.
Precise water quality parameters serve as the sole judgment benchmark. Immediate resin replacement is required even with short service cycles if conductivity and resistivity fail to meet standards post-regeneration, accompanied by severe iron and organic contamination and high particle breakage rates, to avoid compromising production line water precision and operational stability.
Sharply shortened resin service life mostly stems from non-compliant maintenance and inadequate upstream protection. Comprehensive routine maintenance effectively slows resin aging and sustains stable long-term equipment performance. Fully qualified pre-filtration equipment must be installed to intercept sediment, rust and suspended solids, preventing solid particulate matter from entering resin tanks and reducing physical abrasion and blockage of resins at the source.
Regeneration must adopt high-purity compliant chemicals, prohibiting low-grade regenerants with high impurity content that attach to resin surfaces and trigger persistent contamination. Standard equipment regeneration cycles must be strictly followed to avoid overloading resins via long-term saturation and maintain stable ion exchange efficiency. Regular forward and backwashing of resins clears accumulated fine resin powder and residual impurities inside tanks to preserve permeability of the filler bed.
When equipment remains shut down for extended periods, stagnant water inside tanks must be drained to prevent microbial proliferation, resin adhesion and caking, and structural corrosion of resins from static water. Stable water pressure and temperature must be maintained to avoid continuous extreme operating conditions and minimize irreversible resin degradation. The core objective of maintenance is to sustain resins within optimal working conditions, balancing stable water quality and consumable service cycles.
