U.S. Outdoor Water Softener Winter Maintenance & Freeze Protection

As a professional brand with over 30 years of deep roots in the U.S. water treatment industry, we always put customer needs first. Leveraging our decades of expertise, we deliver high-quality water softening equipment to millions of households across North America. Amanda & Umancon maintains long-term stable partnerships with numerous water treatment equipment wholesalers, contractors, and service providers, boasting extensive experience in the U.S. market.

Severe winter cold in the U.S. poses a critical threat to outdoor-installed water softeners. When water freezes, it expands in volume, easily cracking the equipment’s pipelines, tanks, and valves. This not only results in costly repairs but also may disrupt the household’s normal water supply. To address this, we have compiled this professional freeze protection guide by combining our product advantages with the climatic characteristics of different U.S. regions, helping you fully protect your water softener and avoid winter maintenance risks.

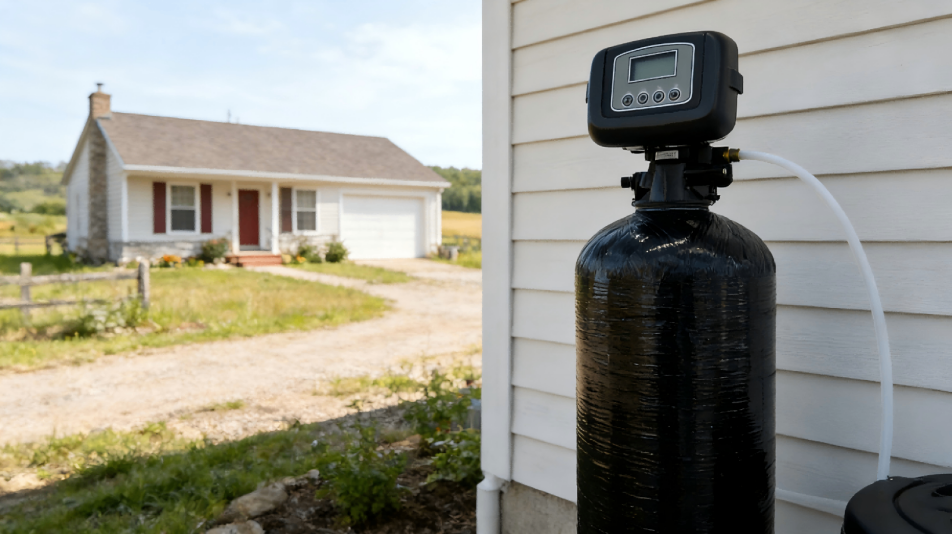

From the original intention of product design, we always recommend installing water softeners indoors (such as garages, basements, etc.), which is also the general standard in the industry. If you have to install the equipment outdoors (such as in warmer areas like Texas and Florida) due to house size restrictions or usage needs, winter freeze protection will become the top priority of maintenance. Please note that water leakage or component damage caused by freezing cracks is usually not covered by the manufacturer's warranty. Our products, equipped with NSF-certified water-contact parts and cold-resistant materials, can greatly reduce the risk of freezing damage with reasonable protection.

Based on our years of service experience, the most reliable freeze protection method is to completely drain the system before winter comes. This method is applicable and safest whether your water softener is installed outdoors, or in unheated spaces such as garages and sheds.

I. Winter Shutdown & Draining Steps (Suitable for Vacation Homes and Other Scenarios)

If you do not need to use the water softener in winter (such as long-term vacant vacation homes), please strictly follow the steps below, together with our product-specific operation instructions, to maximize the protection of the core components of the equipment (such as food-grade resin, control valve, fiberglass tank):

Turn off the water supply: Locate and close the water supply valve leading to the water softener, cut off the water source to prevent cold water from continuously entering the equipment.

Switch to bypass mode: Operate the bypass valve on the water softener to make the water flow bypass the water softener and directly supply to the household pipelines, ensuring that daily water use is not affected, while protecting the internal components of the equipment.

Drain the system: Drain the water in the resin tank and brine tank. Usually, you can start a regeneration cycle to completely drain the water from the drain pipe.

Disconnect and store: If conditions permit, disconnect the relevant hoses or pipelines and store them properly indoors.

II. Protection Measures for Continuous Use in Winter

If you still need to use the water softener in winter, in addition to routine protection, you can make full use of our product advantages with the following protection measures to balance the use experience and equipment safety:

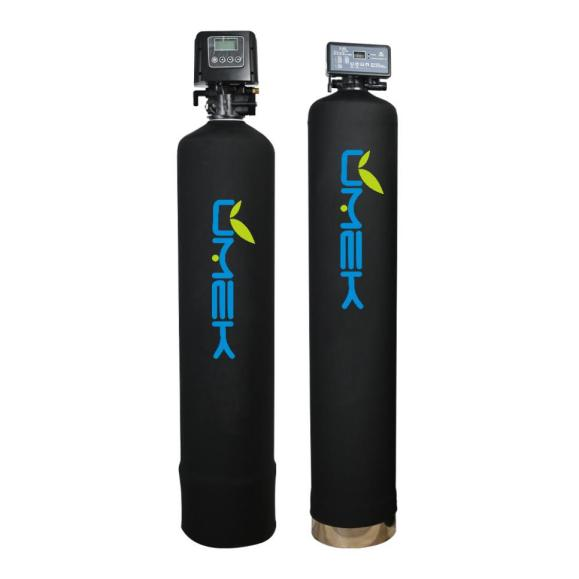

Use a special protective shell: Install a weatherproof protective cover for the water softener. It is recommended to choose a special shell adapted to our products, which is made of UV-resistant and moisture-proof materials, can effectively resist the erosion of rain, snow and cold wind, complement the tank of the equipment itself, and provide double protection for greater peace of mind.

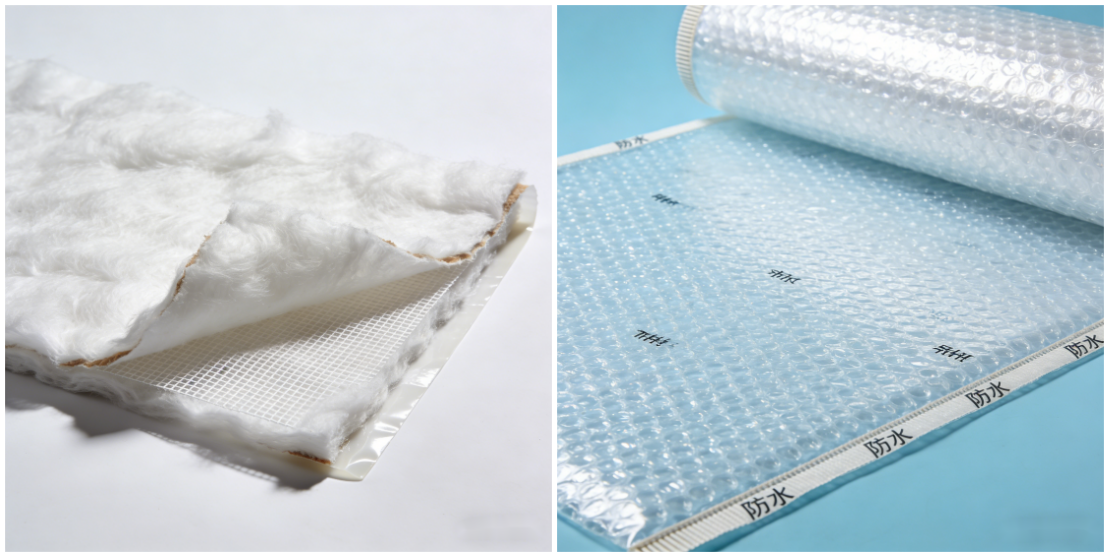

Add an insulation layer: Inside the protective shell, you can use a special water softener insulation blanket, or wrap the whole body (resin tank, brine tank, control valve) with self-adhesive fiberglass wool or waterproof bubble film; if the ambient temperature is extremely low, you can use UL-certified heating cables (in compliance with safety regulations).

Keep water flowing: When there is an extreme cold weather warning, turn on the faucet regularly to keep the water flowing — this is a common method for outdoor pipe freeze protection in the United States, which can prevent water in the pipeline from freezing without affecting the normal water use experience.

Location: Try to move the equipment under the eaves or to a leeward place to avoid direct exposure to wind and snow, reducing the direct impact of low temperature on the equipment.

Drip Method

On nights when the temperature is forecast to be below 32°F (0°C), keep the farthest faucet in your home at a slow drip. Flowing water is not easy to freeze, which can protect the entire pipeline system. This method is compatible with the operation logic of our models and will not increase additional energy consumption.

Enclosure Installation

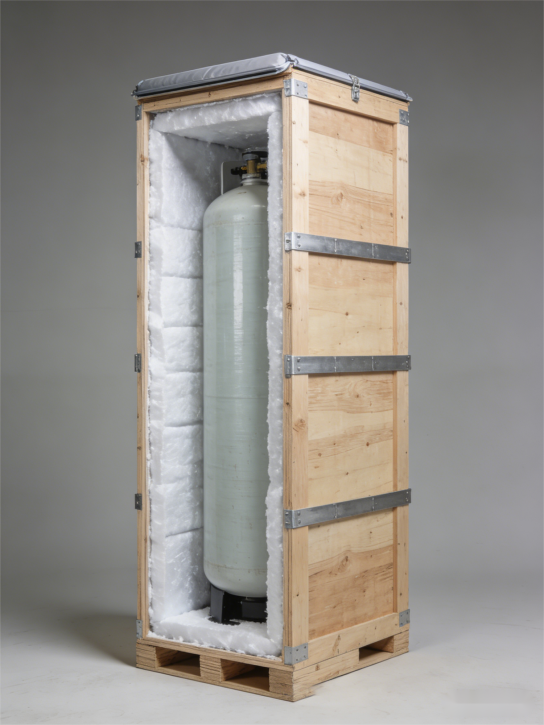

If conditions permit, build a ventilated insulated wooden box for the outdoor water softener with internal insulation materials attached — this is more effective than simple wrapping, and can be precisely matched with the size of our equipment, which not only does not affect the heat dissipation of the equipment, but also achieves efficient heat preservation.

III. Extreme Cold Response: Electric Auxiliary Heating and Draining

Temporary Drain Down

In case of extreme cold weather (such as Polar Vortex), the safest method is to drain the equipment. Follow the steps below, and you can contact after-sales service for one-to-one guidance combined with our user manual:

Close the water inlet valve and switch the water softener to bypass mode;

Unplug the power supply, open the drain valve, and completely drain the water in the resin tank and brine tank;

For the brine tank, it is recommended to pump out the remaining brine to prevent salt crystallization. Our brine tank adopts an oversized salt storage design and vortex salt dissolving technology, which can reduce crystallization residue and make cleaning easier after draining.

Different from simply relying on external heating, some high-end models of brands have exclusive freeze protection technologies, realizing more accurate and hassle-free freeze protection from the equipment operation logic:

Freeze Protection Mode: An advanced industry technology that adds exclusive freeze protection logic to the control valve program. When there is an extreme cold warning, the system will automatically perform a special salt suction cycle to draw high-concentration brine into the resin tank — the freezing point of brine is much lower than that of pure water (down to below -20°C), which can effectively protect the resin bed from being frozen solid without affecting the subsequent softening effect of the equipment.

Active Draining Technology: Cooperating with the smart home system, when the sensor detects that the house is unoccupied for a long time and the temperature drops sharply, it can automatically trigger the bypass + drain program to drain the static water in the tank, realizing "physical-level" freeze protection without manual operation, providing all-weather protection for your equipment.

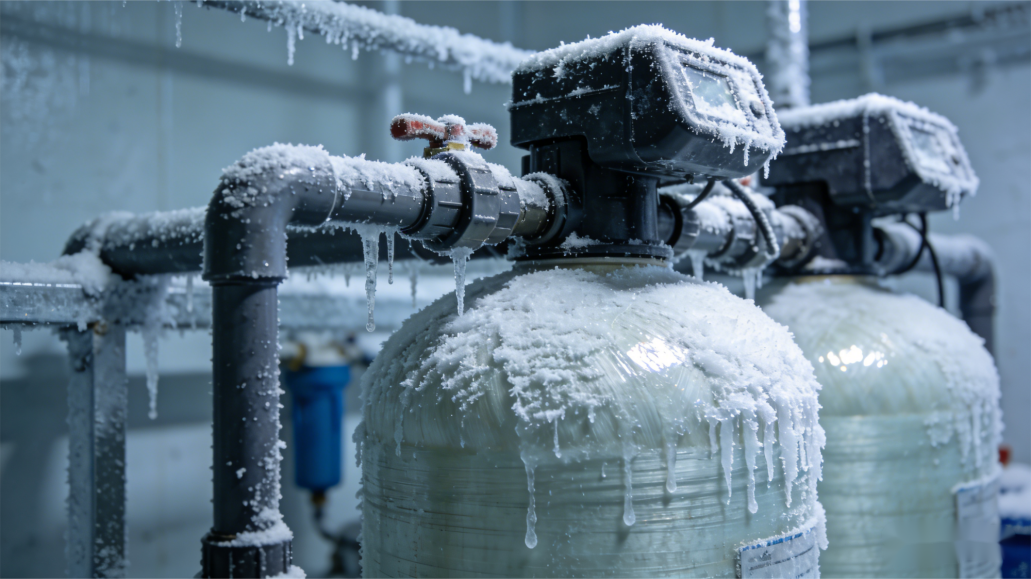

IV. What to Do If the Equipment Is Already Frozen

If you find that the equipment is frozen, stay calm and never pour boiling water directly or bake it with fire (a sharp temperature difference will cause the tank and pipeline to burst). Follow these steps:

Stop using immediately: Do not attempt to start or power on the equipment, which may further damage the core components of the equipment (such as resin, control valve).

Check for damage: Visually inspect the tank for cracks, bulges or water leakage — our tanks can withstand high-pressure bursts and have excellent cold and impact resistance.

Thaw naturally: Move the equipment to an environment with room temperature above freezing point (such as a garage) and thaw naturally for at least 48 hours. Do not use boiling water or a heat gun to heat directly to avoid component bursting due to thermal expansion and contraction.

Contact a professional: After thawing, before restarting, it is recommended to contact a professional water treatment technician for a comprehensive inspection — we have more than 300 authorized partners in more than 120 countries and regions around the world, and our products can be quickly responded to by service providers all over the world.

V. Spring Restart Guide

After the temperature is stably above freezing point, you can restart the water softener according to the following steps, together with our product-specific instructions, to ensure the equipment returns to normal operation and extend its service life:

Reconnect: Carefully reconnect all pipes and hoses disassembled for winter. Our pipelines adopt three-channel ABS antibacterial pipe fittings, which are easy to connect and have excellent sealing performance, effectively preventing water leakage.

Disinfect the system: To prevent bacterial growth during the idle period of the equipment, it is recommended to disinfect the system according to our manufacturer's instructions.

Replenish salt: Check and add special salt for water softeners. We recommend using special salt adapted to the model, paired with the vortex salt dissolving technology of the brine tank, which can improve the salt efficiency ratio and reduce the frequency of salt addition.

Gradually restore: Start a manual regeneration cycle to let the water softener gradually return to normal operation, and closely observe whether there is water leakage or abnormal noise.

VI.Our Commitment

As a leader in the U.S. water treatment industry, we always adhere to protecting the water safety of every user with high-quality products and user-friendly services. From product design to after-sales support, we make efforts throughout the whole process — strictly selecting food-grade materials, equipped with core freeze protection technologies, and building a global service network, just to make your water softener run stably every winter and let you enjoy a hassle-free and reassuring soft water life. If you have any questions about winter freeze protection or equipment operation and maintenance, you can visit our official website or contact your local authorized partner at any time.
