US Water Softener Composition & Accessory Disassembly: A Complete Guide 2026

Many households have installed water softeners, yet only know they "soften water and protect home appliances"—with no clear idea of their internal components, the most critical parts, or the consequences of component failure. A stable and reliable water softening system relies on the precise coordination of every part. Many buyers only focus on brand and price, ignoring that core components directly determine service life, water output quality, and failure rate. Today, we will explain all key components of a water softener in a professional perspective.

US water softeners (taking mainstream brands such as Fleck and Autotrol as examples) operate on the core principle of ion exchange. Unlike water purifiers that retain impurities through "filtration", water softeners use resin to "capture" calcium and magnesium ions (replacing them with sodium ions). The entire process is divided into a Service Cycle and a Regeneration Cycle, making its component composition and consumable logic highly unique. A water softener is a "mechanical + chemical" system, mainly composed of three external assemblies and internal precision accessories.

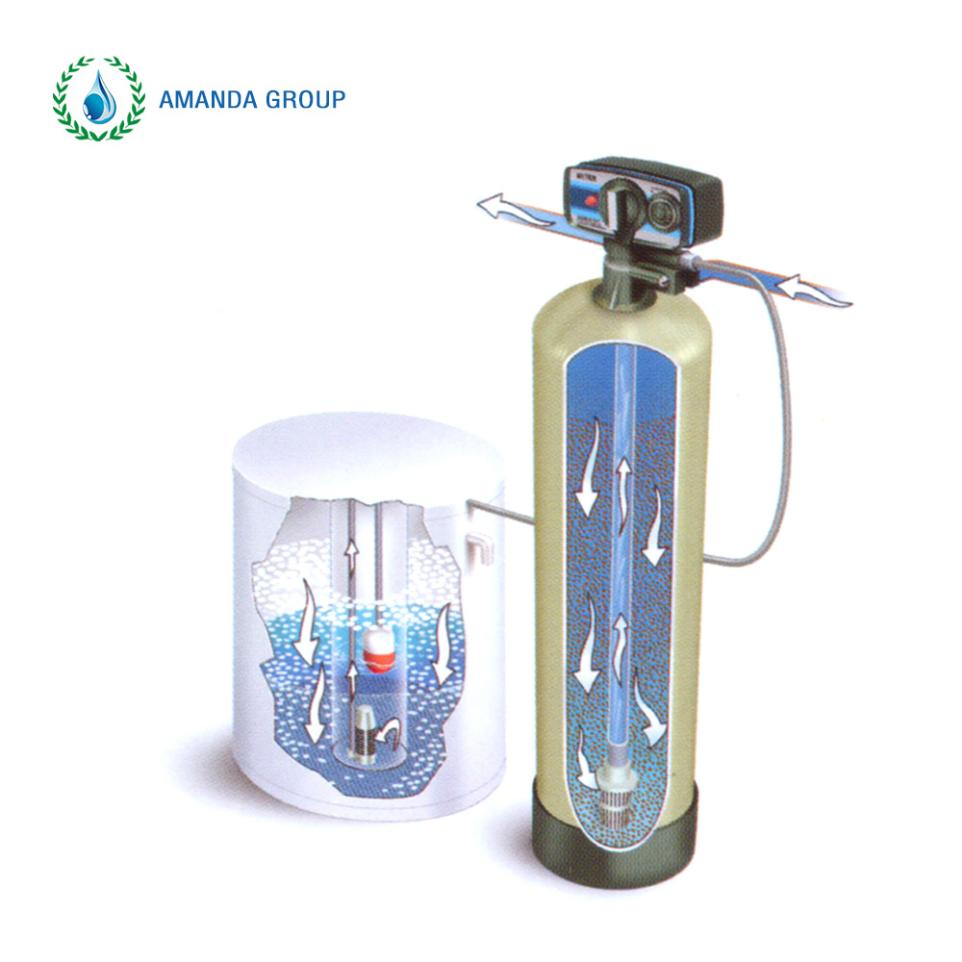

The core working principle of a water softener is ion exchange technology. Millions of cation exchange resin beads filled in the resin tank are the key medium for water softening. These tiny yellow or brown resin spheres carry a negative charge on their surface and pre-adsorb positively charged sodium ions. When hard water containing calcium and magnesium ions flows through the resin layer, calcium and magnesium (divalent ions) have a stronger electrostatic attraction than monovalent sodium ions, so the resin preferentially adsorbs calcium and magnesium ions in the water and releases an equal amount of sodium ions to complete ion exchange. Through this process, calcium and magnesium ions that cause scaling are effectively removed, turning hard water into soft water with only a slight increase in sodium ions. Saline wastewater is produced during regeneration (discharged into the sewer), which has no health impact on normal drinking and only requires special attention for people on a strict low-sodium diet.

This article disassembles the water softener into three parts to clarify its composition and service life for you.

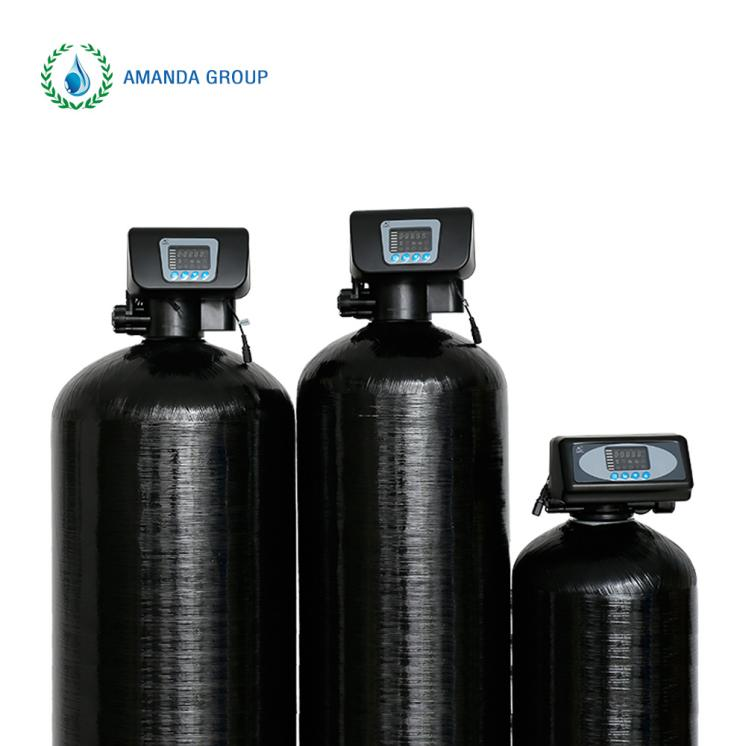

The core of mainstream US water softeners (ion exchange type) consists of a control valve + resin tank + brine tank. Most accessories are durable parts, and the main consumables are water softener salt and resin.

Part 1: Main Components (Core Structure)

The stable operation of a water softener depends on the precise coordination of three core components.

Thecontrol valve, the "brain" of the equipment, is mostly made of Noryl engineering plastic, with high-end models using lead-free brass. It is mainly responsible for precise timing and intelligent switching of water circuits such as water production, backwashing, brine suction, and quick flushing. Fleck, Clack, and Autotrol are the three mainstream US brands for control valves. As the most expensive component of the whole machine, the valve body directly determines the regeneration efficiency and service life of the equipment.

The resin tank is the working chamber, made by fiberglass winding process with a food-grade polyethylene inner liner, and filled with ion exchange resin inside. It can withstand a system pressure of50-80PSI, with common household specifications of 9"x48", 10"x54", and 12"x52". A distributor is equipped at the bottom of the tank to ensure uniform water flow.

The brine tank, a container for regenerant, is made ofhigh-density polyethylene (HDPE). It is used to store water softener salt and dissolve it into saturated brine, providing the core raw material for resin regeneration. Most models are equipped with a salt well to make the regeneration process more stable and efficient.

1. Control Valve

• Function: Controls the entire process of water intake, water production, backwashing, brine suction for regeneration, rinsing, and sewage discharge; mainstream brands include FLECK, Clack, Pentair, etc.

• Types: Mechanical time-controlled, metered, intelligent electronic (with LCD/metering).

• Service Life: 10–15 years; electronic board/motor: about 8–10 years.

• Failure Characteristics: Program malfunctions, motor idling with buzzing noise, valve body water leakage.

• Causes: Gear set wear (mechanical valve), circuit board moisture damage/lightning strike (electronic valve), piston O-ring aging.

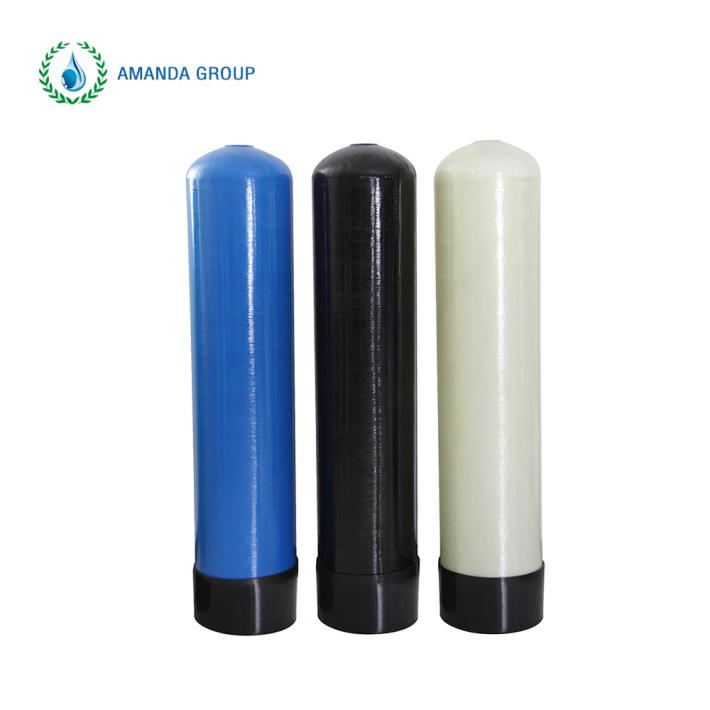

2. Resin Tank

• Materials: Fiberglass (FRP) (mainstream for household use, with PE inner liner), carbon steel with rubber lining, stainless steel.

• Function: Filled with ion exchange resin to complete calcium and magnesium ion exchange.

• Service Life: 15–25 years (fiberglass); longer for carbon steel/stainless steel.

• Failure Characteristics: Water seepage or burst on the tank surface.

• Causes: Fiberglass embrittlement due to UV irradiation (if installed in a garage or outdoors), inner liner delamination.

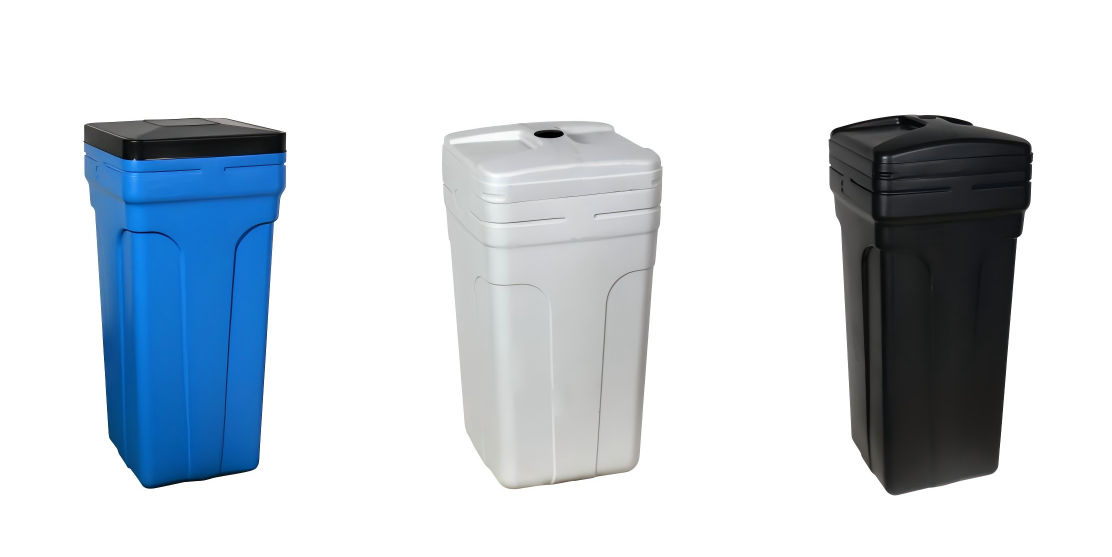

3. Brine Tank

• Material: Food-grade PE (high-density polyethylene).

• Function: Stores water softener salt and prepares regenerated brine.

• Service Life: 15–20 years; almost no wear.

• Failure Characteristics: Water leakage at the bottom or side of the tank.

• Causes: PE plastic aging and embrittlement, perforation by salt corrosion, float valve jamming leading to water overflow and floor damage.

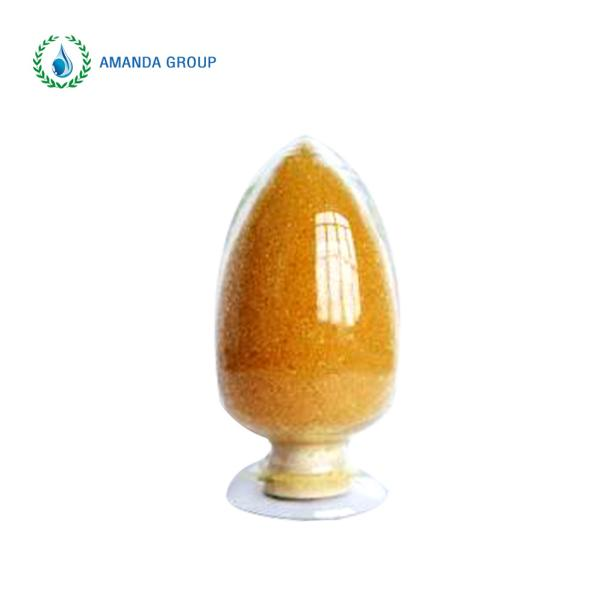

4. Ion Exchange Resin Beads

• Type: Strong acid cation exchange resin (e.g., Rohm and Haas, Dow).

• Function: Adsorbs calcium and magnesium ions and releases sodium ions to achieve water softening.

• Service Life: 8–15 years; water with high chlorine/iron content will shorten it to 5–8 years.

• Failure Characteristics: Persistent excessive hardness of produced water, increased pressure drop, rapid failure after regeneration.

• Causes: Iron poisoning (resin turns black), chlorine oxidative degradation, physical fragmentation (fragmentation rate >40%).

Part 2: Standard Accessories (Durable Parts, Non-consumables)

The distributor (also called lower collector) is a precision screen at the bottom of the tank, made of ABS or stainless steel. It intercepts resin particles to prevent loss with drained water and distributes water evenly at the same time. It is a core vulnerable part; once damaged, it will directly cause resin loss and equipment failure.

• Failure Characteristics: Sharp drop in water output, yellow resin particles flowing out of the drain pipe.

• Causes: Screen rupture due to repeated friction from broken resin; sediment blockage of gaps without pre-filtration.

The riser tube is the core channel connecting the control valve and the distributor, made of ABS. It needs to be precisely cut according to the tank height during installation, and its length directly affects water distribution effect and sealing performance.

• Failure Characteristics: Water leakage at the connection between the tank and the valve body.

• Causes: Aging and embrittlement, water leakage due to burrs from improper cutting during installation.

The eductor (Venturi device) is a key small nozzle inside the control valve. It uses water pressure difference to generate negative pressure, sucking brine from the brine tank into the resin tank for regeneration.Blockage is the most common cause of the equipment's "no brine suction" fault and also a key point of daily maintenance.

• Failure Characteristics: No brine suction during regeneration (no gurgling sound heard).

• Causes: Small holes blocked by scale or impurities in salt.

The bypass valve is mostly a manual or automatic three-way valve, used for quick switching of water circuits during equipment maintenance, servicing, or temporary use of hard water. In accordance with relevant US regulations, water softeners must be equipped with a bypass valve, and soft water is strictly prohibited for lawn irrigation to avoid soil salinization.

Gaskets/Seals are the sealing barrier at the interface between the valve body and the tank. They need to be regularly maintained and lubricated with silicone-based grease to prevent aging and cracking that cause water leakage and extend the sealing life of the equipment.

• Failure Characteristics: Dripping at the interface between the valve body and the tank.

• Causes: Rubber hardening and loss of elasticity, or dry friction due to lack of lubricant.

Part 3: Consumables (Need Regular Replenishment/Replacement)

In addition to core components, the daily operation of a water softener also relies on three types of key consumables. Reasonable management, replacement and replenishment of consumables are essential to ensure long-term stable water output of the equipment.

Water softener salt, the core raw material for resin regeneration, is mainly divided into salt pellets, salt blocks and high-purity non-iodized salt. It dissolves to form saturated brine, which reduces and regenerates the resin to restore its ion exchange capacity. As a consumable, water softener salt has no fixed service life and is usually replenished every1–3 months according to household water consumption and water hardness.

Ion exchange resin is the core functional medium of a water softener, with a normal service life of 8–15 years; if the raw water quality is poor with high chlorine, iron and manganese content, the resin life will be shortened to 5–8 years. Timely replacement is required when the produced water has excessive hardness, regeneration frequency increases significantly, or the resin is broken or caked.

There are also two types of optional consumables:

• Resin rejuvenator can deeply clean the resin to remove stubborn pollutants, recommended for use every 1–2 years.

• If the equipment is equipped with a prefilter, its filter element needs to be replaced every3–6 months according to water quality to protect the downstream water softening system and extend the overall service life.

US Usage and Maintenance Tips

Salt Selection (Critical)

If there is iron in your water (common in well water or old urban areas), you must use high-purity evaporated salt pellets. Soil impurities in solar salt crystals will combine with iron to form cement-like sludge on the resin surface, permanently damaging the machine.

Antifreeze Measures

If the water softener is installed in a garage or unheated crawlspace, antifreeze measures (insulation jacket) must be taken in winter; otherwise, resin tank cracking due to freezing is not covered by the warranty.

Bypass Valve Usage

When using an outdoor hose bibb to water flowers and plants, be sure to turn on the bypass valve. Watering plants with soft water (high sodium content) will kill them.

Regeneration Time Setting

Try to set the regeneration time to 2-4 a.m. (low water usage period) to avoid water pressure fluctuations caused by water use during regeneration.

A stable and durable water softener comes from high-quality components + reasonable consumables + standardized maintenance. Understanding the structure, making informed purchasing decisions, and mastering maintenance skills ensure long-term reliable use.
