Views: 7521 Author: Site Editor Publish Time: 2026-05-22 Origin: Site

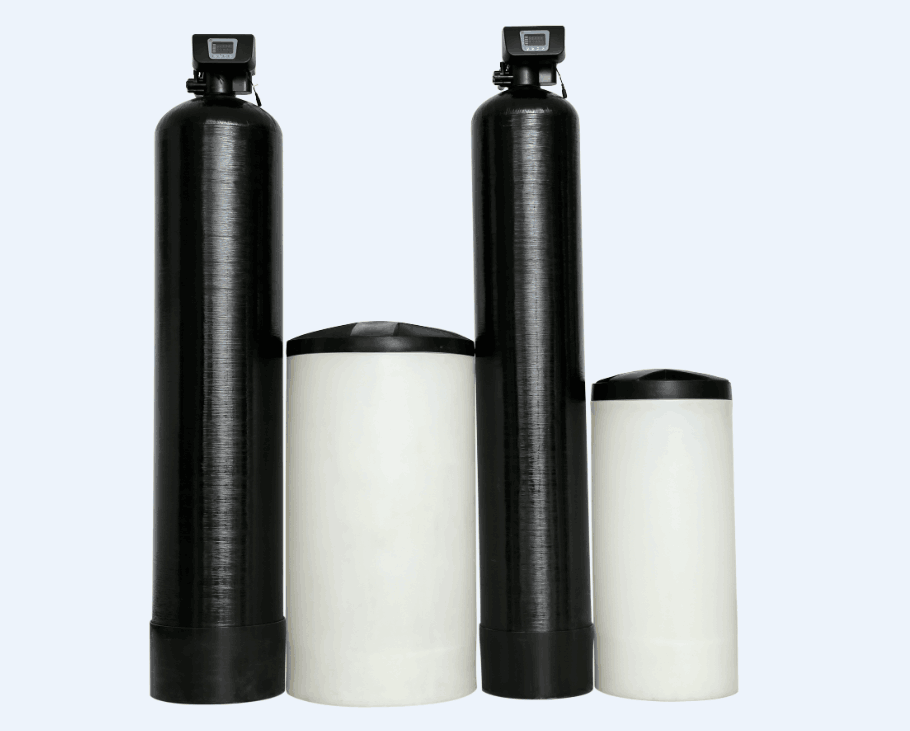

Water softeners are essential home appliances in the United States for addressing hard water, protecting household appliances, and improving daily water quality. They are especially common in hard‑water regions such as the Midwest. Major US brands include Culligan, Whirlpool, Fleck, GE, and others. While their core structures are similar, various malfunctions often occur due to municipal water pressure, water characteristics (high iron, high chlorine in some areas), and usage habits. Based on real user feedback and installer experience in the US, this article summarizes the most frequent issues, causes, and practical solutions to help users resolve problems quickly.
Regeneration is the core function of water softeners and one of the most reported issues in the US. It directly reduces softening efficiency, drastically increases salt consumption, and may damage the unit.
Common Causes
Flow sensor malfunction: Scale from calcium and magnesium clogs the impeller, causing false water‑use readings and frequent regeneration. A failed sensor cannot trigger regeneration at all.
Incorrect programming: Regeneration cycles not adjusted for local hardness, wrong time/timezone, or poor compatibility with 120V North American power leading to unstable timing.

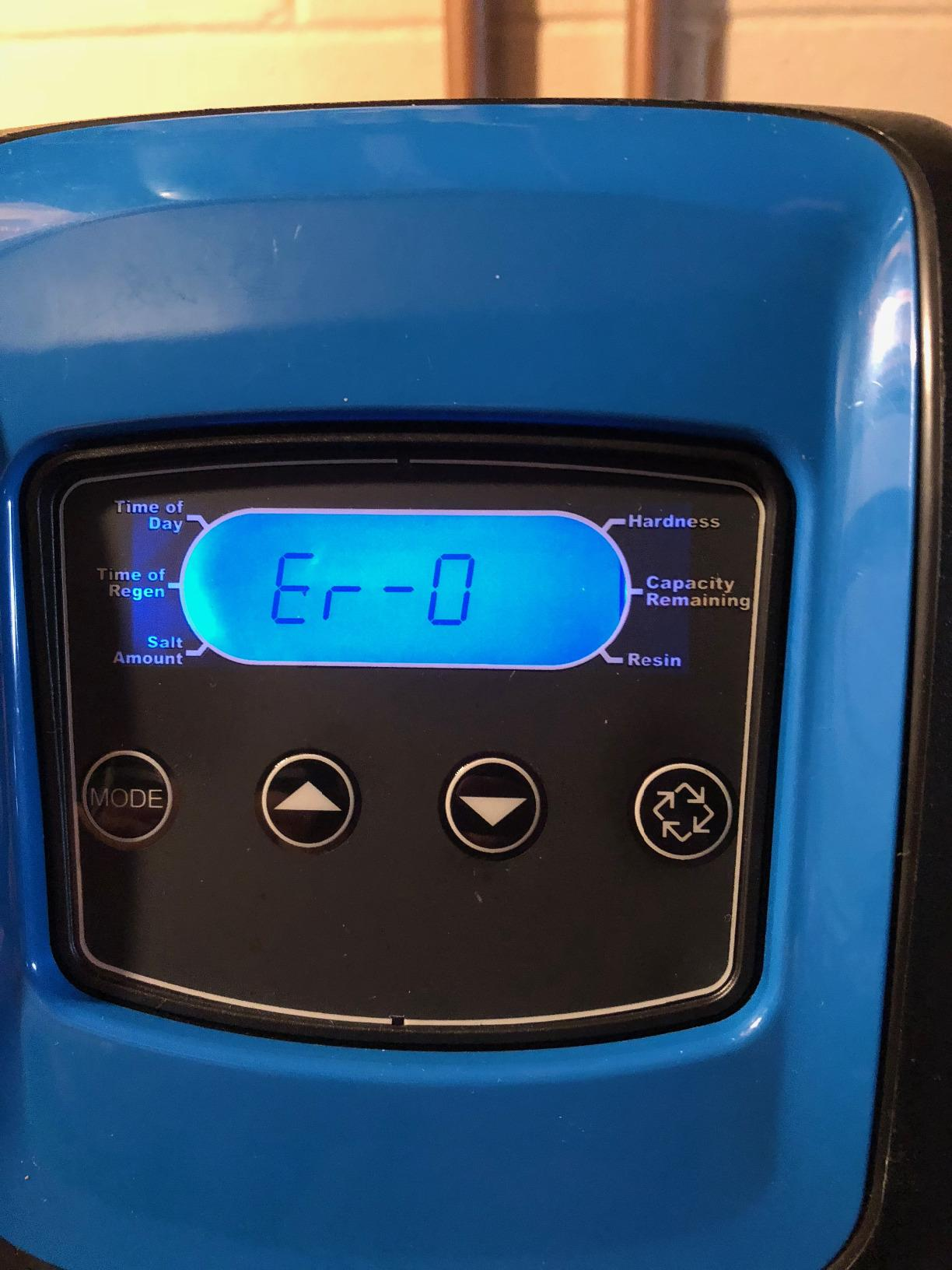

Control board or battery failure: Loose wiring, program errors, or a dead backup battery erases regeneration settings after power loss.
Clogged injector: The injector draws brine into the resin tank; blockage causes failed brine draw and incomplete regeneration loops.
Solutions
Clean or replace the flow sensor: Shut off power, remove the sensor, rinse scale from the impeller, and replace the sensor if broken.
Reprogram the unit: Test water hardness, adjust regeneration and hardness settings, reset time/timezone, and verify voltage compatibility.
Repair the control board and battery: Check wiring, replace the 3V backup battery, perform a factory reset, or replace the control board if needed.
Clear the injector: Remove the injector and screen, rinse with warm water, and check for kinked or blocked brine lines.
Discolored or smelly water is common among well‑water users and older homes in the US, indicating possible internal component damage.
Common Causes
Broken resin or distributor: Worn resin causes yellow water; a cracked distributor screen allows contaminants into the tank, causing black water.
Mold or bacteria in the brine tank: High humidity, stagnant water, or low‑quality salt leads to mold and foul odors.
High iron/manganese in feed water: Common in Midwest and Southern well water; corrodes parts, poisons resin, and causes rust odors.
Resin contamination: High free chlorine in municipal water damages resin structure and creates odors.
Solutions
Inspect the distributor and resin: Replace broken distributors; replace the entire resin bed if badly degraded.
Clean and sanitize the brine tank: Empty salt and water, scrub with diluted vinegar or disinfectant, rinse, dry, and refill with high‑purity softener salt (no iodized salt).
Install pre‑filters: Use an iron filter if iron >0.3 ppm; install an activated carbon filter for high chlorine.
Restore resin: Use resin cleaner and run 2–3 manual regenerations for iron‑poisoned resin.
US municipal pressure often exceeds 80 PSI; improper installation causes noise, vibration, or pressure loss.
Common Causes
Excess incoming pressure: Over 40–60 PSI damages valves and creates vibration/whistling.
Air in the system: Trapped air from installation or regeneration causes noise.
Loose plumbing or poor drainage: Unsecured pipes resonate; kinked or elevated drain lines cause whistling.
Internal clogging: Resin beads or debris block valves or lines, reducing flow.
Solutions
Install a pressure regulator: Set pressure to 40–60 PSI.
Purge air: Shut off power and inlet, open the outlet, run a manual regeneration to bleed air.
Secure lines and adjust drainage: Fasten pipes; maintain slope, limit drain height to ≤1.5 m, and leave an air gap to prevent siphoning.
Clear blockages: Disassemble lines and valves, clean debris and screens, replace damaged piping.

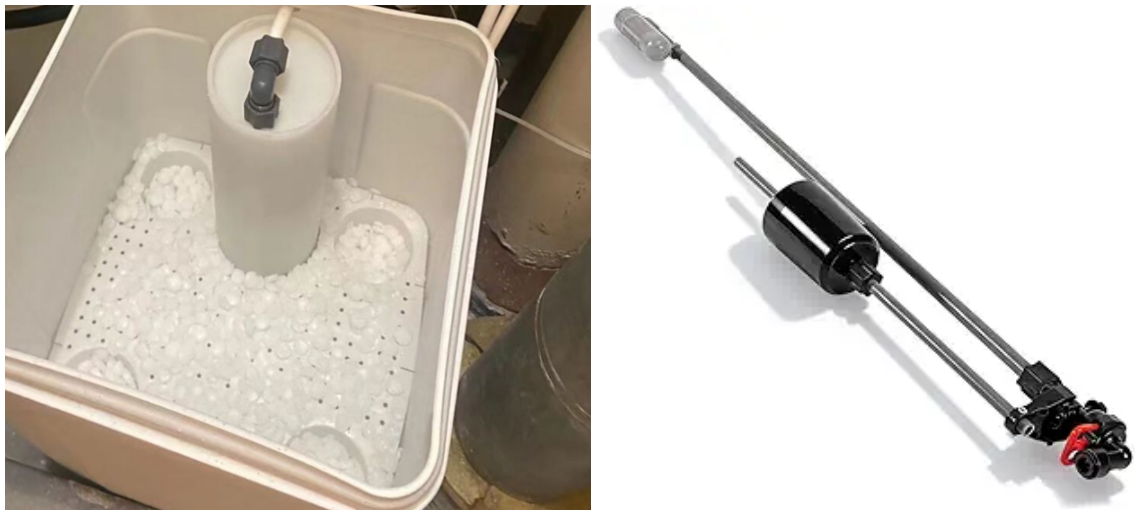

The brine tank is critical for regeneration. Common issues include pooling water, overflow, and high salt waste with poor softening.
Common Causes
Clogged brine line or screen: Salt sludge blocks flow, causing standing water and overflow.
Faulty float valve: Stuck or damaged float causes overfilling or insufficient brine.
Poor‑quality salt: Iodized or low‑grade salt creates sludge and requires more salt for regeneration.
Incorrect refill time: Too long causes overflow; too short causes weak brine and repeated cycles.
Solutions
Clean the brine line and screen: Rinse parts and remove sludge from the tank bottom.
Service the float valve: Ensure free movement, clean scale, replace if broken, and adjust to the correct level.

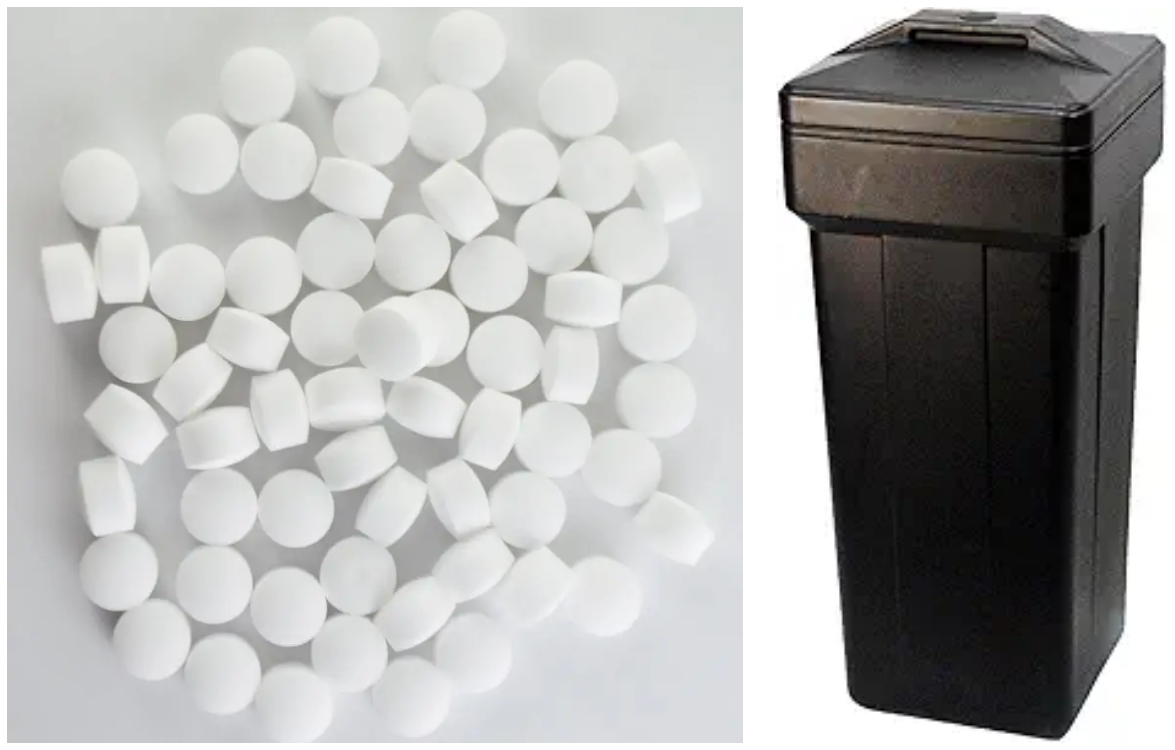

Use high‑purity salt: Choose softener‑grade pellet salt or solar salt; avoid iodized or low‑grade salt.
Adjust refill time: Follow the US standard: 12–15 kg salt per m³ of resin per regeneration.
The most common household complaint: plenty of salt used but hard water remains.
Common Causes
Salt bridge / salt caking: Salt forms a hard crust; brine cannot reach the salt, so regeneration fails.
Resin aging or poisoning: Iron, manganese, or chlorine shortens resin life (typical lifespan: 5–8 years; premium: 10–15 years).
Control valve failure: Clogged sensor, worn seals, or stuck piston stops regeneration.
Incorrect brine level: Low salt concentration leads to weak regeneration.

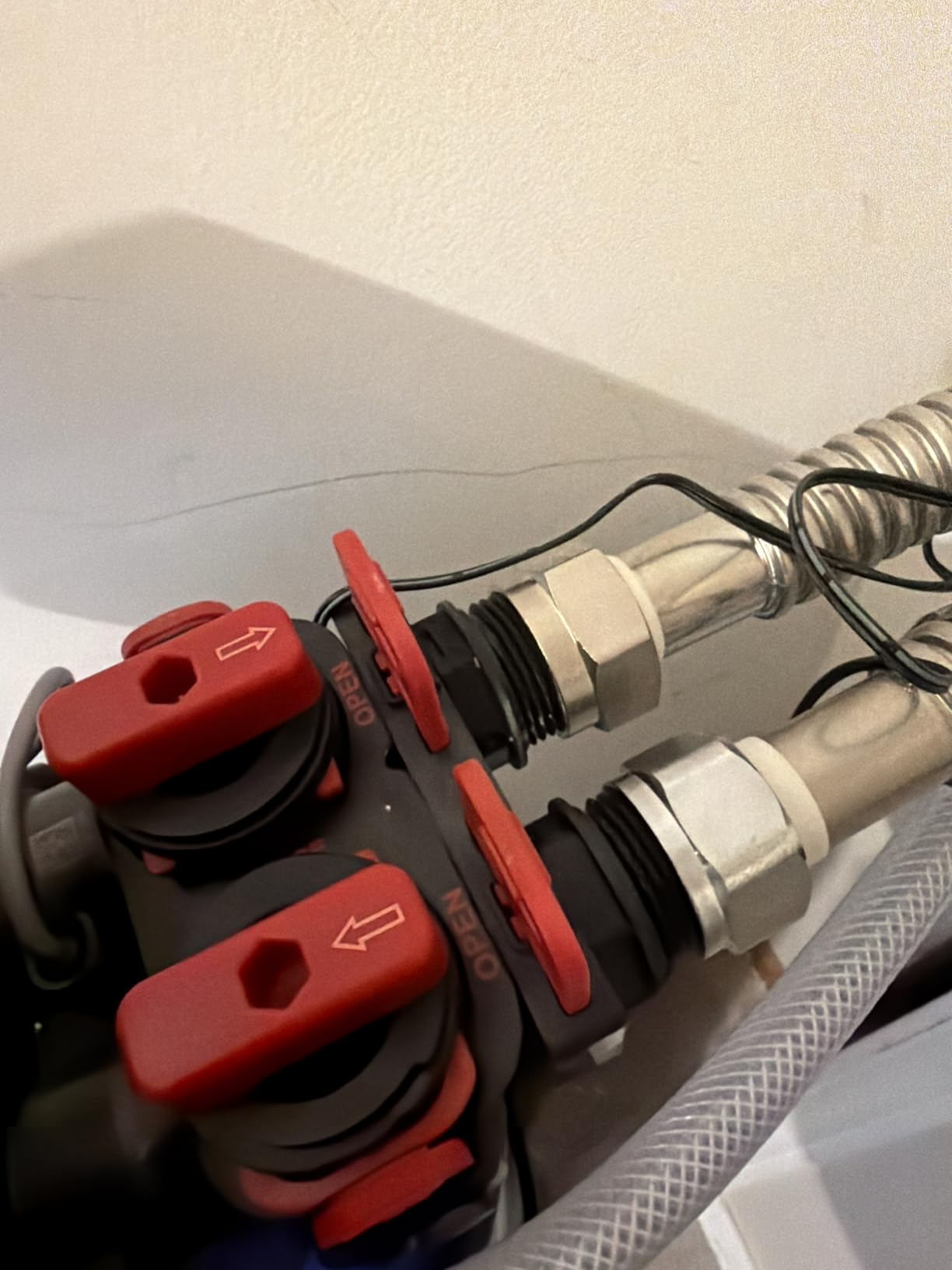

Partially open bypass valve: Hard water bypasses the softener.
Solutions
Break salt bridges: Use a broomstick to puncture caked salt; clean sludge; maintain salt at 1/2 to 2/3 full.
Fix resin issues: Install an iron filter; use resin cleaner (e.g., Iron Out) for poisoned resin; replace resin bed if aged.
Repair the valve: Clean internals, replace seals, reset the controller.
Adjust brine settings: Match salt dosage to US standards.
Close the bypass valve: Ensure it is fully in the Service position, not Bypass.
Common Causes
Clogged brine line or screen
Worn seals or cracked valves (common due to hard water and high pressure)
Kinked, blocked, or over‑elevated drain lines
Cracked brine tank or degraded fittings
Salt sludge buildup
Faulty float valve or wrong refill time
Solutions
Clean brine line and screen; ensure clear drainage.
Replace valve seal kits; replace the valve body if cracked.
Correct drain line routing: slope, ≤1.5 m lift, no kinks.
Tighten fittings; replace a cracked brine tank.
Deep clean the tank and switch to high‑purity salt.
Service the float valve and adjust refill time.
Incorrect Vacation Mode use: Frequent travel leads to resin degradation or excess salt use.
Solution: Enable Vacation Mode and set auto‑maintain cycles.
Freeze damage in cold northern regions: Outdoor or uninsulated units crack in winter.
Solution: Install indoors or insulate thoroughly.
Uncontrolled draining after power failure: Some brands (e.g., certain AO Smith models) drain continuously if power cuts out during flushing.
Solution: Install a leak guard; test power failure protection.
Poor installation/setup: Causes abnormal operation and leaks.
Solution: Use a professional installer; verify seals and function after setup.
Check the brine tank every 3 months: Remove sludge, maintain salt at 1/2–2/3 full.
Clean the valve, screens, and brine tank yearly; treat resin every 1–2 years.

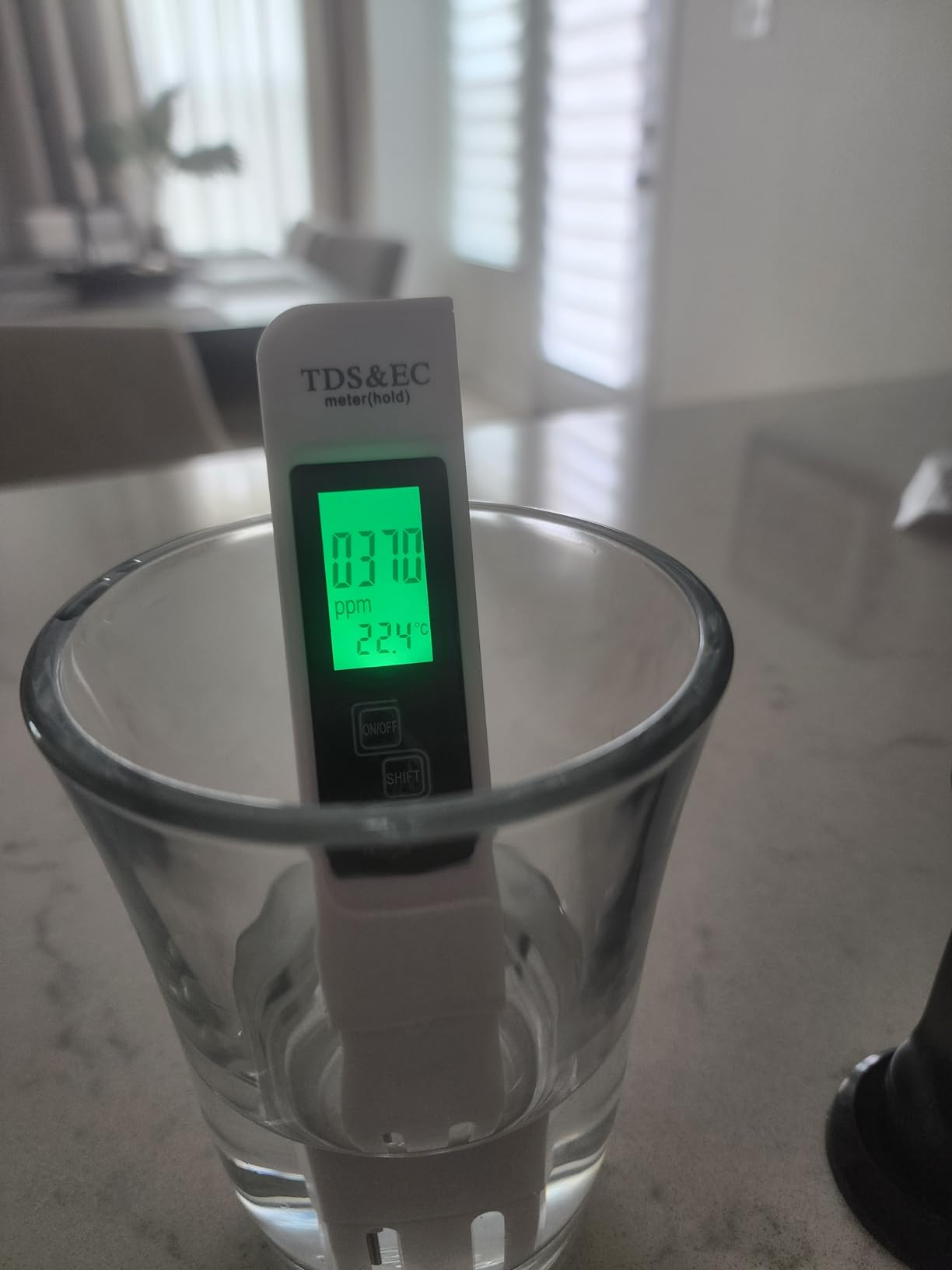

Test water quality regularly with hardness strips.
Disconnect power and water before service.
Do NOT attempt DIY repairs for:
Physical damage: cracked resin/ brine tank, broken lines
Electrical issues: blank display, frequent tripping, failed control board
Severe clogs or broken internal parts (distributor, piston)
Resin bed replacement
Most US water softener failures involve the brine tank, control valve, and resin. Many can be fixed with basic maintenance and DIY checks. Regular care and proper use ensure good softening and long service life. For complex issues, contact a licensed plumber or brand service to avoid further damage.
