Key points: A bypass valve is a set of water‑path switching components. It provides an alternative water passage outside the water softener, allowing raw water to bypass the unit and flow directly into household plumbing. For integrated bypass valves in the European and North‑American residential market, the main types are dual‑handle type, push‑pull type and single‑handle rotary type. In addition, there are field‑assembled three‑valve bypass assemblies and three‑way diverting valves commonly used in UK installations.
Whole‑house water softeners are installed in series on the main incoming cold‑water line. All cold water entering the property flows first through the softener control valve and resin tank before being distributed to individual water outlets.
A bypass valve is a set of water‑path switching components fitted within this series‑connected pipeline. It is mounted either on the inlet and outlet sides of the water softener, or integrated directly at the rear of the control valve.
The core function of a bypass valve is to create an alternative water route that bypasses the water softener: when activated, raw water flows straight to downstream household plumbing without passing through the softener. A bypass valve itself does not treat water; it only redirects the flow path.
Bypass valves fall into two mounting categories. The first type is assembled as a complete unit behind the control valve and supplied together with the softener. This represents the mainstream practice in North‑America. The second type is installed on the piping before and after the softener, physically separate from the unit itself. This configuration is frequently seen in retrofit projects and UK installations.
Since water softeners are series‑connected electromechanical devices, bypass valves enable the unit to be isolated independently while maintaining continuous domestic water supply. This is the fundamental reason why bypass valves are widely adopted in European and North‑American households.
A residential bypass valve generally has two operating positions:
Service position: Water flows through the water softener. After being softened by resin media, water enters household plumbing for normal daily use.
Bypass position: Water bypasses the softener, and untreated raw water feeds directly into household piping.
Switching is performed manually. The vast majority of residential bypass valves require no power supply. Certain models offer a third Off position, which shuts off water supply to both the softener and the building.
During maintenance or service work, switching to bypass mode isolates the water softener. Water supply to the rest of the house remains available, and there is no need to close the main building shut‑off valve. This constitutes the primary practical benefit for end‑users in Europe and North‑America.
Operating procedures vary across brands, yet the underlying logic remains identical. According to EcoWater documentation, pull the rod out for service mode and push it in for bypass mode. For the Clack WS1, the two handles control inlet and outlet flow respectively. Rotate each handle 90° to complete switching; water flows in the direction the handle points.
An integrated bypass valve typically consists of four main parts:
Valve body: Glass‑filled Noryl plastic is the dominant material for residential applications, as used in the bypass assembly for the Clack WS1. Stainless steel or lead‑free brass are selected for high‑flow or corrosive‑water conditions.
Seals: O‑rings prevent leakage across the bypass. These represent key wearing components.
Actuator: Handles, pull rods or knobs that physically change the internal flow path.
Connection fittings: Snap‑in retainers or threaded ports for connection to control valves and plumbing.
Connection sizes: 3/4‑inch and 1‑inch are standard for residential systems. The Fleck 5600SXT ships factory‑fitted with a 3/4‑inch plastic bypass with 3/4‑inch male‑threaded connections.
Thread standards: NPT threads apply for North‑America; BSP threads are used across Europe. The Fleck stainless‑steel bypass uses 1‑inch female NPT ports.
Field‑plumbed bypass assembly: Plumbers assemble this on‑site using separate valves and pipe fittings. Commonly referred to as a three‑valve bypass, it works independently of any specific control‑valve model.
Control‑valve integrated bypass: The complete bypass assembly mounts directly to the rear face of the softener control valve. It is supplied as part of the unit or available as a separate optional component.
Both configurations deliver equivalent functional performance. The difference lies in component sourcing: integrated bypasses come pre‑supplied with the softener for simplified installation; three‑valve bypasses are assembled on‑site and offer broad compatibility.
Based on operating mechanism, integrated bypass valves are grouped into dual‑handle, push‑pull and single‑handle rotary types. Additional bypass hardware is supplied as part of installation kits for twin‑tank non‑electric systems.
表格
Type | Operation | Representative Products | Main Applications |
|---|---|---|---|
Three‑valve bypass (field‑assembled) | Operate inlet valve, outlet valve and bypass valve separately | Generic plumbing components from multiple manufacturers | Retrofit jobs; control‑valve models without factory integrated bypass |
Dual‑handle integrated bypass | Two independent handles for inlet and outlet flow control | Clack WS1 / WS1.25, Autotrol 1265 | Standard matching bypass for mainstream North‑American residential control valves |
Push‑pull integrated bypass | Mode change by pushing or pulling a single rod | EcoWater selected units, certain Rheem complete systems | Factory‑fitted bypass for many North‑American residential softeners |
Single‑handle rotary integrated bypass | Rotate one handle by 90° to switch modes | Fleck stainless‑steel bypass, Kinetico Mach series kits | Mid‑to‑high‑end installations where simple operation is prioritised |
Kit‑supplied / built‑in bypass | Supplied within installation kit or integrated into unit hardware | Kinetico twin‑tank systems | Non‑electric twin‑tank continuous‑flow softener systems |

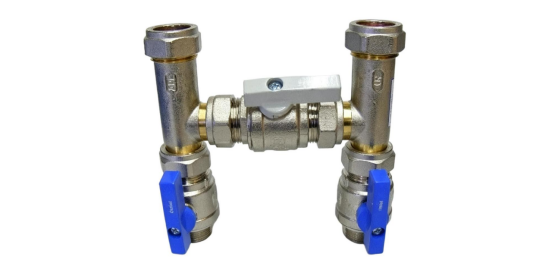

A three‑valve bypass assembly includes three separate valves. Two valves are installed in series on the softener inlet and outlet piping, and the third bypass valve links the upstream and downstream pipework.
For normal softener operation: open the inlet and outlet valves and close the bypass valve. To activate bypass mode: close the inlet and outlet valves, then open the bypass valve. GE official documentation describes exactly this operating sequence.
This assembly is usually fitted close to the softener inlet‑outlet connections. Some installers add isolating service valves before and after the softener to facilitate full unit removal.
This solution is compatible with virtually any water softener regardless of control‑valve model. Components are widely available at low cost. Autotrol service manuals list field‑plumbed globe‑valve bypass systems alongside factory‑integrated bypasses as the two most common bypass solutions.
Drawbacks include a higher number of joints, larger space requirements and mandatory on‑site assembly by qualified tradespeople. This configuration remains common for North‑American retrofits and selected light‑commercial projects.

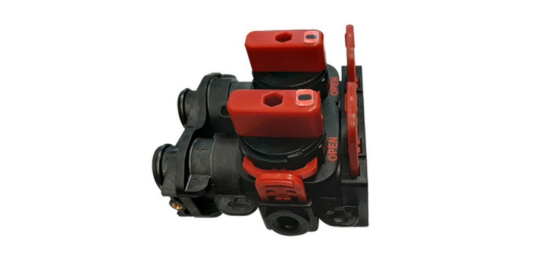

A dual‑handle integrated bypass houses two independent shut‑off valves within one unified body, each fitted with a dedicated handle to control inlet‑side and outlet‑side flow. As documented in Clack WS1 manuals, it uses two interchangeable plug‑type valves operated by red arrow‑marked handles; water flows in the direction each handle points.
Switch between service and bypass status by rotating each handle 90 degrees.
Representative hardware includes the Clack WS1 / WS1.25 bypass assembly (Part No. V3006) manufactured from glass‑filled Noryl. The Autotrol 1265 series bypass follows the same dual‑handle concept and is fitted to complete systems marketed under the GE brand.
Strengths include intuitive layout and high reliability. The downside is that two separate movements are required for mode transition; full switching cannot be completed with one single action.

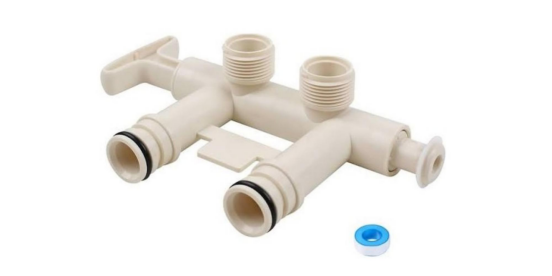

A push‑pull bypass uses a single rod driving an internal slide valve. Mode transition is achieved by pushing or pulling the rod. EcoWater documentation specifies: push the rod in for bypass mode and pull it out for service mode.
Representative products: EcoWater single bypass assemblies (available with T‑handle or conical‑style knobs), and bypass units fitted to selected Rheem complete softeners.
Key advantages are one‑handed operation and compact dimensions. It ranks among the most widespread integrated bypass formats for North‑American residential water softeners.

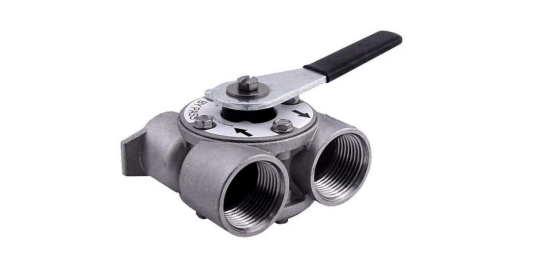

A single‑handle rotary bypass completes mode change by rotating one lever, typically through a 90‑degree angle.

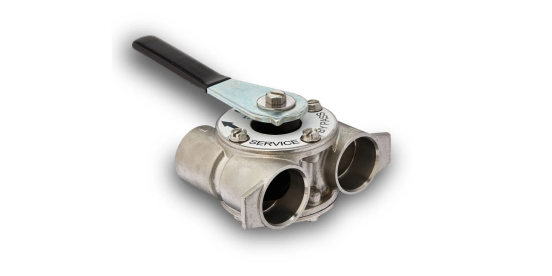

Representative product: Fleck 1‑inch stainless‑steel bypass with NPT female threads. It is compatible with Fleck 5600, 2510, 9000 and 9100 control valves and serves as a modern replacement for older brass bypass assemblies. The Fleck 9000 control‑valve range offers both glass‑filled polymer and stainless‑steel bypass options.
Kinetico Mach‑series bypass kits implement colour‑coded single‑handle operation: red for shut‑off, yellow for bypass and green for service. This allows homeowners and service technicians to identify current status rapidly.
This design delivers the most straightforward user experience, with mode switching finished in one movement. Colour marking reduces risk of incorrect operation.
Installation kits for Kinetico non‑electric twin‑tank softeners contain manual bypass hardware. It enables technicians to isolate the softener from plumbing during servicing or repairs while preserving continuous household water supply.
These systems rely on alternating operation between two resin tanks to deliver uninterrupted softened water, making the bypass an essential component of the installation.
UK water‑fitting regulations (Water Supply (Water Fittings) Regulations 1999) mandate that water softeners shall be fitted with bypass valves. This permits switching to raw‑water supply for maintenance, salt‑depletion scenarios and extended periods of absence from home.
Professional UK installations frequently adopt a three‑way diverting valve: one valve body featuring IN, OUT and BYPASS ports. The softener is taken out of circuit via one single operating action. Some installers still implement three‑valve bypass layouts. UK standards also require 22 mm service isolating valves so the softener can be worked on without shutting down the whole‑house water supply.
Complete systems from Water2Buy, BWT and Harvey are normally shipped with bypass kits. BWT installation manuals illustrate plumbing arrangements built around dedicated inlet, outlet and bypass valves.
For residential installations across continental Europe, factory‑integrated bypass assemblies supplied with complete softener units prevail. Clack and other North‑American control‑valve platforms with matching bypass hardware are widely distributed throughout Europe.
The majority of complete residential water softener systems sold in North‑America ship factory‑equipped with integrated bypass hardware. The Fleck 5600SXT comes standard with a 3/4‑inch plastic bypass. EcoWater complete systems are delivered with matching factory bypass assemblies.
Manufacturer installation manuals state clear requirements regarding bypass fitment. Pentair Fleck service instructions note: If no bypass is supplied with the unit, a bypass assembly must be provided during installation. Autotrol documentation specifies: All water‑treatment systems should be fitted with a bypass arrangement.
Major North‑American control‑valve platforms include Fleck (Pentair), Clack, Autotrol (Pentair), plus complete‑system brands EcoWater and Kinetico. Bypass assemblies from different platforms are not interchangeable; hardware must be selected according to the exact control‑valve model.
For control‑valve models without factory‑integrated bypass, installers can satisfy isolation requirements by fitting a field‑plumbed three‑valve bypass. Therefore bypass capability is not exclusive to any single control‑valve platform.
In the UK, regulatory requirements together with established plumbing practice enforce bypass fitment; three‑way diverting valves mounted on pipework represent the preferred professional solution. In continental Europe, factory‑integrated bypasses fitted to complete softener units dominate.
These configuration differences stem from divergent installation cultures: North‑American plumbers favour bypass hardware mounted directly onto the control‑valve body, whereas UK installers traditionally select pipe‑mounted diverting valves.
Match to control‑valve model: Integrated bypass assemblies from different control‑valve platforms are non‑interchangeable. Confirm brand and exact model number of the control valve before ordering.
Check connection specifications: Confirm physical size (3/4‑inch or 1‑inch) and thread standard (NPT or BSP).
Material selection: Glass‑filled reinforced plastic is standard for residential use. Specify stainless‑steel hardware for high‑flow, elevated‑temperature or corrosive‑water conditions.
Consider installation conditions: Select factory‑integrated bypass for new complete‑unit installations. Use three‑valve field‑plumbed bypass for retrofits or where matching integrated hardware is unavailable.
Factor in end‑user operating habits: Prioritise single‑handle rotary‑type bypass for rental properties or households with elderly occupants to minimise mis‑operation risk.
Loss of softening performance due to incorrect valve position: If bypass handles are not fully returned to service position, water continues to bypass the softener. Clack manuals remind technicians that both handles must align with body‑marked arrow directions; pointing toward the centre of the bypass body indicates bypass mode.
Handle sticking: Caused by prolonged periods without actuation. Periodic manual switching helps prevent seizure.
Leakage from degraded seals: O‑rings are wearing components. Replace seal kits once leakage occurs.
Long‑term vacancy and winter freeze‑protection: Switch to bypass mode and drain the softener unit to mitigate leakage hazards.
Post‑switch functional verification: After returning to service mode, open a nearby cold‑water tap to confirm softened‑water supply has resumed. This avoids prolonged unintentional bypass operation.
Spare‑part availability: Handles, O‑rings and retaining snap‑rings are readily available service parts; always order spares against the exact control‑valve model.
A bypass valve does not modify water quality. It solves the isolation challenge created by series‑connected installation of whole‑house softeners. Understanding bypass‑valve definitions and available types forms a shared foundation for product selection, on‑site installation and after‑sales servicing. Within European and North‑American residential markets, the main integrated bypass families are dual‑handle, push‑pull and single‑handle rotary variants, complemented by field‑assembled three‑valve bypass solutions. The UK additionally widely adopts regulation‑driven three‑way diverting‑valve installations.
