What Is The Working Principle of A Household Water Softener?

In the field of household water treatment, the ion-exchange water softener is currently the only device that can completely solve the scale problem and deliver high-quality domestic water. Its core value lies in the precision ion-exchange reaction that permanently removes key scale-causing ions from water. It fully protects water-consuming equipment such as water heaters, wall-hung boilers, and showerheads, while bringing a premium water experience including smooth bathing, soft laundry, and residue-free boiling. It is an essential water treatment device for households in areas with severe scaling issues.

1. Structural Components of a Household Water Softener: Functions of Each Part

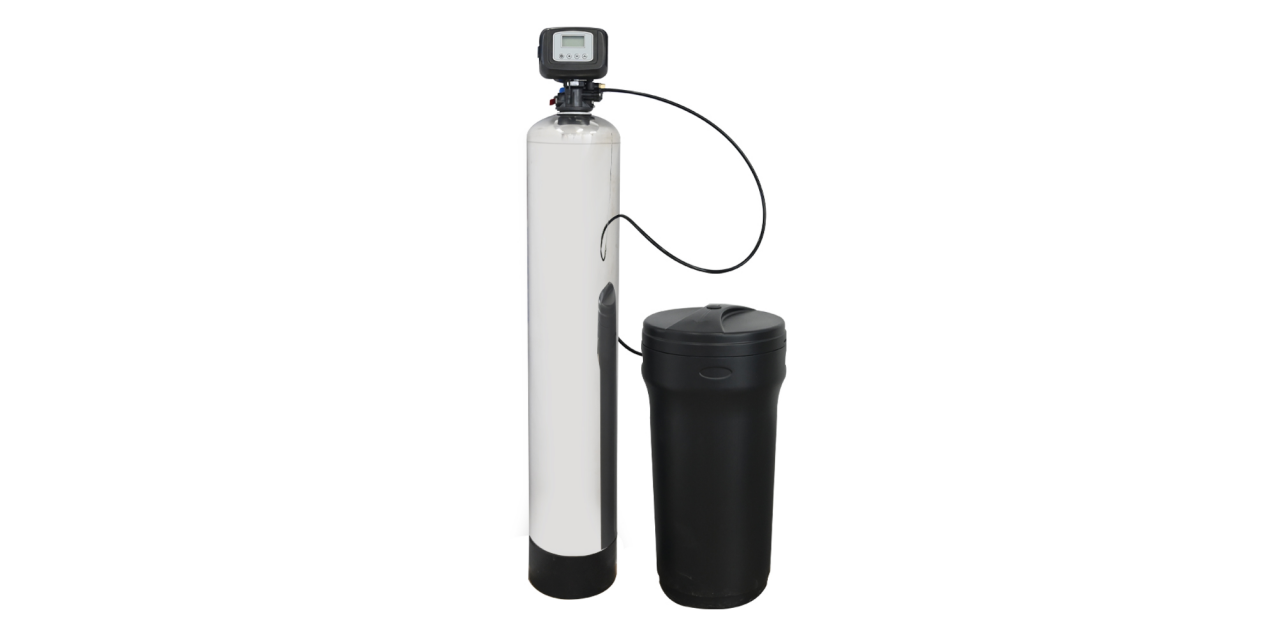

A household ion-exchange water softener mainly consists of five core components: resin tank, control valve, brine tank, water distribution system, and piping system. Each component performs its duty and works together to complete the whole process of "softening – regeneration – cycling", ensuring stable operation and continuous production of softened water.

(1) Resin Tank

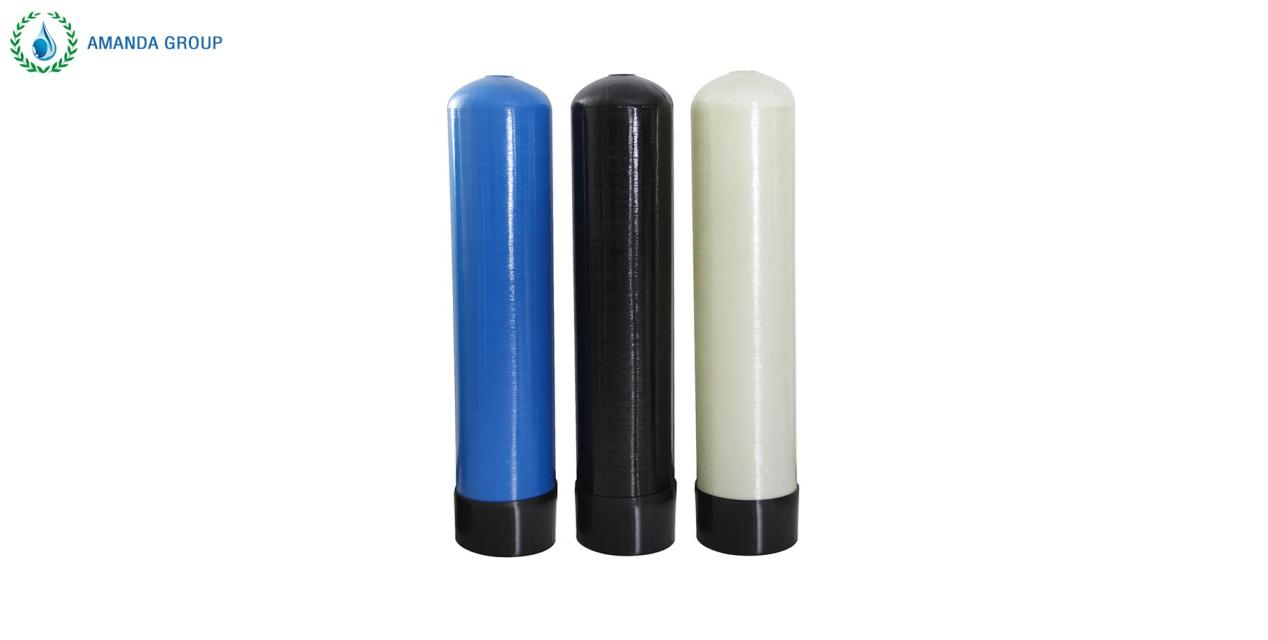

The resin tank is a sealed container holding ion-exchange resin, where the ion-exchange reaction takes place. Most household softener tanks are made of food-grade fiberglass or stainless steel, with a cylindrical design. They are corrosion-resistant, pressure-resistant, and temperature-resistant, adapting to the household water supply environment.

1. Tank Structure

Material: The mainstream is fiberglass-wound tank (inner food-grade PE, outer fiberglass reinforcement), withstanding 0.6–1.0 MPa pressure and 5–48 °C temperature. It is lightweight, corrosion-resistant, and long-lasting. High-end models use 304/316 stainless steel tanks, which are costly and mostly used in villas, commercial, and high-water-consumption scenarios.

Specification: Common household volumes are 6L, 8L, 10L, 12L, 18L, 25L, matching different household water consumption and water quality. The resin filling volume directly determines the periodic water production capacity (total softened water produced after one regeneration).

Internal layout: Top distributor at the top, bottom distributor + water collector (central tube) at the bottom, filled with ion-exchange resin in the middle to form a uniform resin bed, ensuring even water flow through the resin layer for full ion exchange.

2. Core Functions

Provide a stable reaction space for resin, ensuring even water flow to avoid channeling or bias flow, so every drop of water fully contacts resin and improves exchange efficiency.

Withstand inlet water pressure, prevent leakage, protect internal resin and distribution system, and extend equipment life.

(2) Control Valve

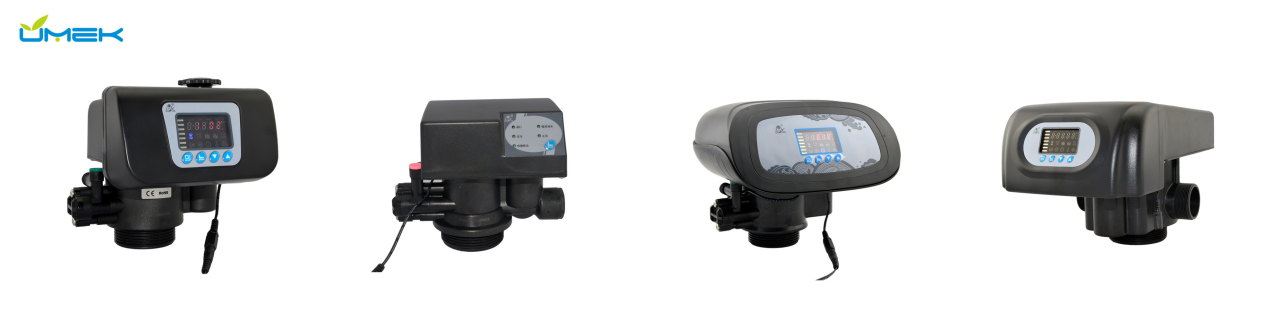

The control valve is the automatic control core of the softener, installed on top of the resin tank. It switches water flow direction, controls operation/regeneration processes, monitors water consumption, and triggers regeneration programs. It is critical for fully automatic operation and directly determines efficiency, salt and water savings.

1. Control Valve Types (by Control Mode)

(1) Flow-type Control Valve (Mainstream for Household Use)

Works by monitoring softened water output with a built-in flow meter. It automatically triggers regeneration when cumulative production reaches the set value (resin saturation threshold).

Advantages: Precise, salt-saving, water-saving; regenerates based on actual usage, avoiding "wasteful regeneration" or "delayed regeneration" of time-type valves. Preferred for households with fluctuating water use and energy-saving needs.

(2) Time-type Control Valve (Old/Economical Type)

Regenerates at a preset fixed time (e.g., every 3 or 7 days) regardless of actual water use.

Disadvantages: Imprecise, wastes salt and water. Regenerates too early when water use is low (resin not saturated) or too late when use is high (resin prematurely saturated). Gradually phased out for household use; mostly for stable commercial use.

(3) Time + Flow Dual-control Type (High-end Smart)

Combines flow and time control, prioritizing flow and supplementing with time. Smart, stable, and highly adaptable. Used in high-end household softeners for complex household water scenarios.

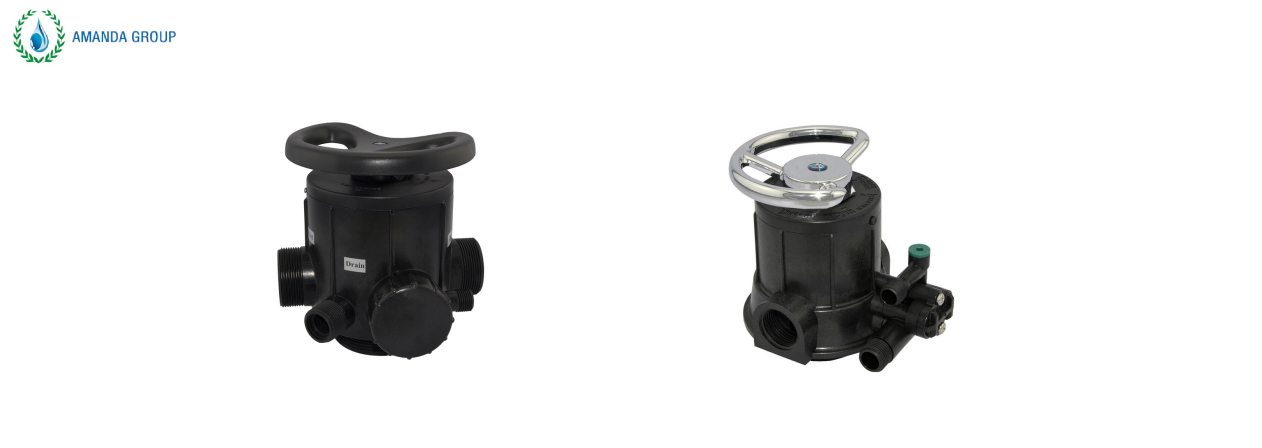

(4) Non-electric Manual Control Valve

Requires no power; drives internal mechanical gears via water flow to measure volume and trigger regeneration automatically. Uses water pressure for brine suction and flushing.

Advantages: No electricity, flexible installation, low failure rate; suitable for cabinets, outdoors, etc., without power.

Disadvantages: Single function, no smart adjustment, slightly lower regeneration efficiency than electric flow-type.

2. Core Functions of the Control Valve

Water flow switching: Controls direction of inlet, outlet, drain, and brine suction; switches between service, backwash, brine draw, slow rinse, fast rinse, and brine tank refill (only for wet brine tanks; dry brine tanks refill 4–6 hours before next regeneration, not in current cycle).

Program control: Built-in fixed regeneration programs, accurately controlling time, flow, and velocity for each stage to ensure regeneration effect.

Monitoring and alerts: Some high-end models have outlet hardness monitoring, low-salt alerts, fault alarms, and mobile APP control for daily use and maintenance.

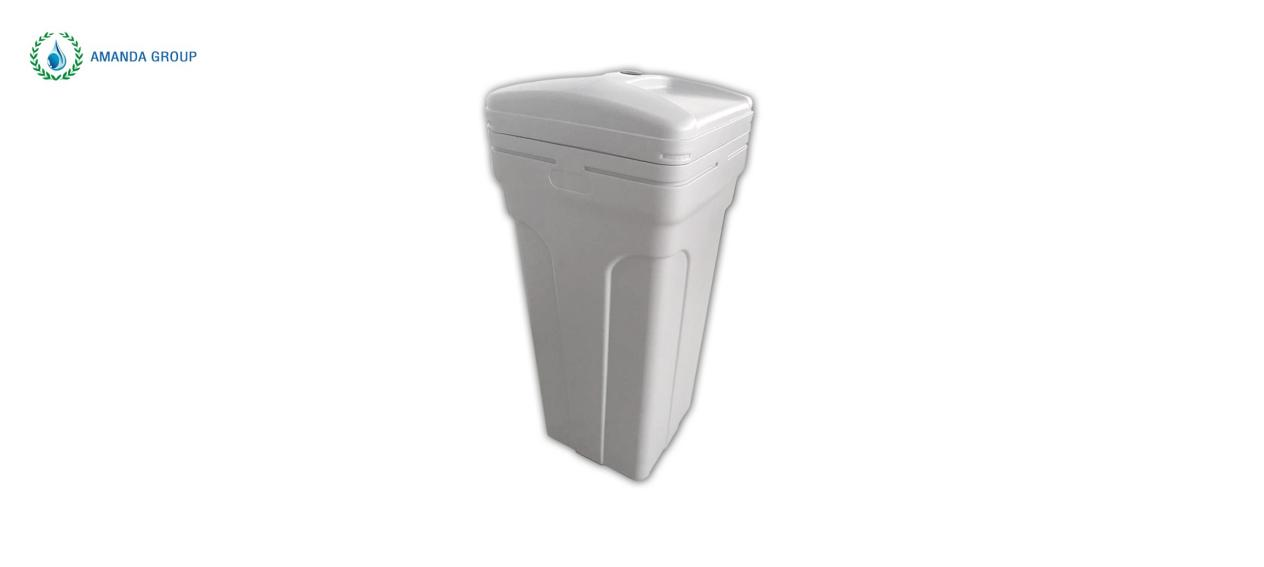

(3) Brine Tank

The brine tank stores water softener salt and prepares saturated brine, supplying high-concentration NaCl solution for resin regeneration. It is essential for restoring resin capacity. Household brine tanks are mostly food-grade PE plastic, divided into wet brine tank and dry brine tank.

1. Brine Tank Types and Features

(1) Wet Brine Tank (Traditional Design)

Always contains clean water; softener salt soaks in water to continuously dissolve into saturated brine.

Advantages: Simple structure, low cost, stable brine preparation; suitable for budget-limited users.

Disadvantages: Prone to bacteria and algae growth, scaling on inner walls; requires regular cleaning. Brine concentration is affected by water temperature and salt level, with slightly unstable regeneration efficiency.

(2) Dry Brine Tank (Mainstream High-end Design)

Normally empty of water; no post-regeneration refill. The control valve automatically adds a fixed amount of clean water 4–6 hours before the next regeneration to dissolve salt into saturated brine. All brine is sucked into the resin tank during regeneration; the tank returns to dry after use.

Advantages: Salt-saving, water-saving, hygienic; avoids brine tank contamination, precise brine concentration, high regeneration efficiency. Mainstream for households pursuing convenience and hygiene.

Disadvantages: Slightly complex structure, marginally higher cost than wet tanks.

2. Core Brine Tank Parts

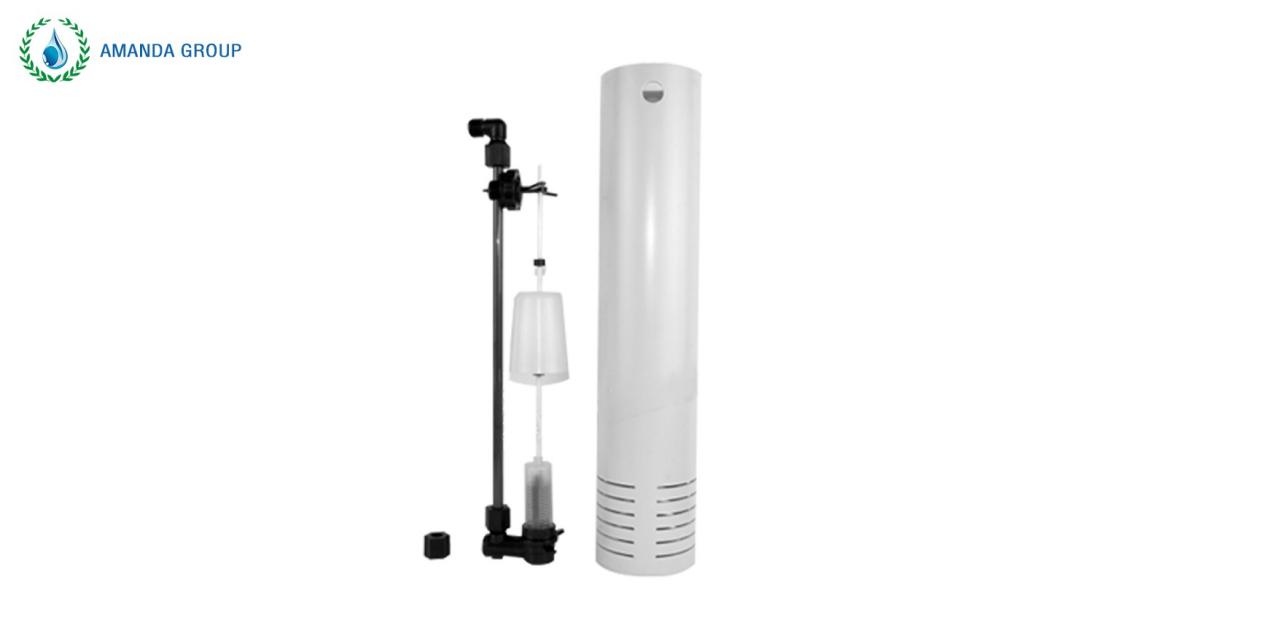

Brine valve (brine aspirator): Installed inside the brine tank, connecting control valve and brine tank. Controls brine suction volume and flow rate to prevent over/under-suction, ensuring regeneration.

Salt well/salt plate: Supports softener salt, prevents salt grains from blocking the suction port, ensuring smooth brine flow.

Overflow/drain port: Drains excess water or cleaning wastewater to avoid standing water and contamination.

(4) Water Distribution System: Key to Even Water Flow

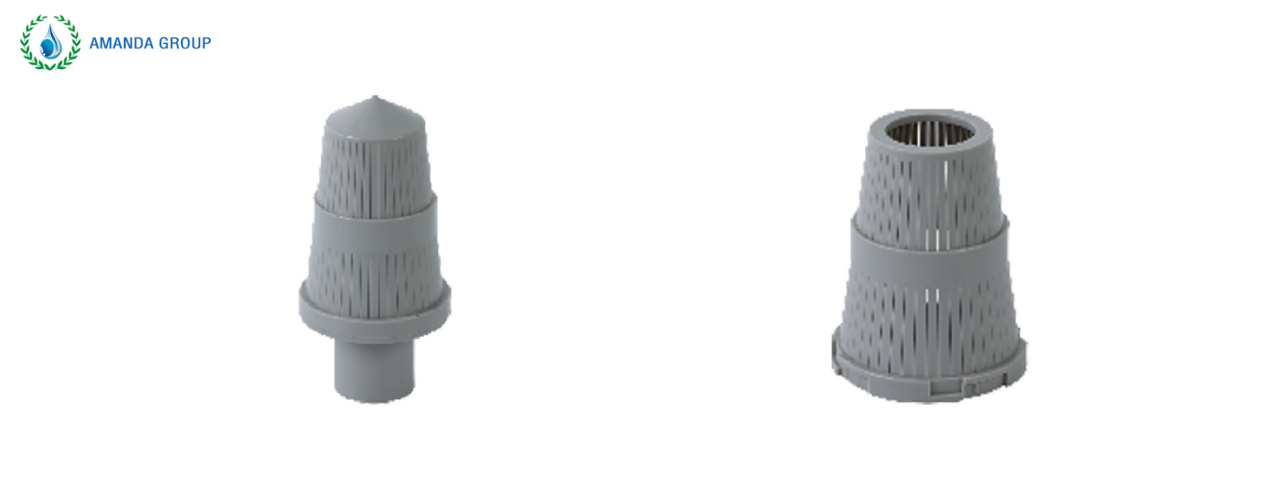

Composed of top distributor, bottom distributor, and central water collector, installed inside the resin tank. Its core role is to distribute water evenly and stably through the resin layer, avoiding bias flow, channeling, or short-circuit flow, ensuring full resin-water contact, high exchange efficiency, and stable softening.

Top distributor: At the tank top; spreads incoming water evenly to avoid direct impact on resin, compaction, and bias flow.

Bottom distributor: At the tank bottom below resin; collects softened water evenly and prevents resin particles from flowing out.

Central water collector: Connects bottom distributor and control valve; delivers softened water to the outlet and acts as a passage for brine and backwash water during regeneration.

(5) Piping System: Water Passage Connecting All Components

Includes inlet, outlet, drain, brine suction port, and bypass valve. Mostly food-grade PPR, PVC, or stainless steel. Connects resin tank, control valve, brine tank, and household water line, ensuring unobstructed, leak-free flow and stable softened water supply.

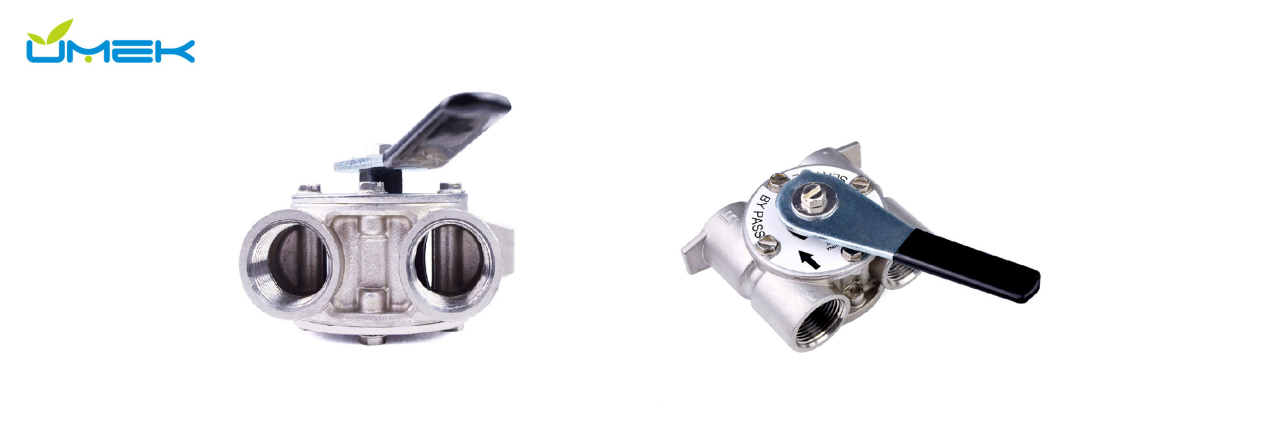

Bypass valve (safety emergency device): Installed between inlet and outlet.

Maintenance: Close softener inlet/outlet, open bypass for normal raw water use.

Failure: Switch to bypass mode during breakdown or regeneration (some models) to maintain supply.

Commissioning: Adjust outlet hardness (some models mix small amounts of raw water).

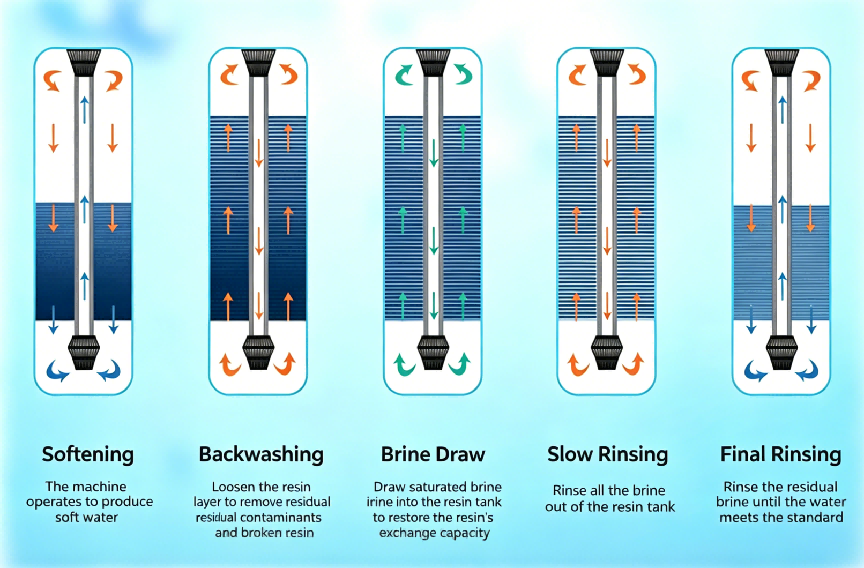

2. Complete Working Process of a Household Ion-exchange Water Softener

Operation has two core stages: softening service stage (producing softened water) and resin regeneration stage (restoring softening capacity). Fully automatic softeners switch stages automatically for uninterrupted softened water supply.

(1) Stage 1: Softening Service (Normal Water Production, Core Process)

Continuous softened water production for household use:

1. Raw water inlet: Household raw water enters the control valve, adjusts pressure and flow, then flows into the top distributor of the resin tank.

2. Even water distribution: Top distributor spreads water slowly and evenly over the resin surface; water flows top-down uniformly through the resin bed for full contact.

3. Ion-exchange reaction: Calcium and magnesium ions in water exchange selectively with sodium ions on resin. Negatively charged sulfonic acid groups (-SO₃⁻) on resin strongly adsorb positively charged Ca²⁺/Mg²⁺ (divalent, stronger adsorption); sodium ions (monovalent, weaker adsorption) are released equally into water. Ca²⁺/Mg²⁺ are 100% adsorbed (when resin is unsaturated), meeting softening standards.

4. Softened water output: Treated water passes through the bottom distributor, central tube to the control valve, then flows out to the household water line for washing, laundry, bathing, hot water, etc.

5. Flow monitoring: Built-in flow meter tracks output and accumulates total production. When reaching the set periodic capacity (resin saturation threshold), service stops automatically and regeneration triggers.

(2) Stage 2: Resin Regeneration (Fully Automatic, 5 Core Steps)

Regeneration restores resin exchange capacity. The automatic sequence takes ~60–120 minutes (varies by model and resin volume). Some models stop softened water supply (bypass mode) during regeneration; dual-tank models supply continuously.

Step 1: Backwash (~5–15 minutes)

Water flows bottom-up (reverse of service). Water enters from the tank bottom, flushes the resin layer upward, and discharges from the top drain.

Loosen compacted resin to expand the bed and increase brine contact area.

Remove impurities: sediment, rust, suspended solids, broken resin particles to avoid clogging.

Resin bed expands 50%–100% for thorough cleaning.

Step 2: Brine Draw (~20–40 minutes, Regeneration Core)

Flow switches back to top-down. The control valve uses a venturi injector to draw saturated brine slowly and evenly into the resin tank. High-concentration sodium ions displace adsorbed Ca²⁺/Mg²⁺ from resin, converting exhausted resin back to sodium-form resin with softening ability.

Flow rate strictly controlled at 0.5–1× resin volume per hour; regeneration efficiency >95%.

Displaced Ca²⁺/Mg²⁺ drain with brine wastewater.

Step 3: Slow Rinse (~15–25 minutes)

Brine draw stops; raw water slow rinse starts (top-down, same flow rate as brine draw).

Rinse residual unreacted brine in resin gaps and on surfaces.

Flush remaining Ca²⁺/Mg²⁺ to maximize salt utilization and avoid salty taste in later water.

Step 4: Final Rinse (~10–20 minutes)

Top-down raw water flushes at high speed.

Thoroughly remove residual brine, Ca²⁺/Mg²⁺, and impurities until water is clear, odorless, and chloride <100 mg/L.

Step 5: Brine Tank Refill (~5–10 minutes)

Only for wet brine tanks; dry brine tanks skip this step.

Wet brine tank: After fast rinse, the valve refills a fixed amount of clean water to maintain saturated brine for next regeneration.

Dry brine tank: No refill in current regeneration. Water is added 4–6 hours before next regeneration to dissolve salt; brine is fully consumed, tank dries after use.

(3) Cyclic Operation

After full regeneration (wet tank refilled, dry tank brine consumed), the softener automatically returns to softening service, entering an endless "softening – regeneration – softening" loop. It runs stably long-term with good resin, sufficient salt, and normal regeneration.

3. Core Technical Parameters of Ion-exchange Water Softeners

Core parameters: resin volume, periodic water production, working flow rate, regeneration salt consumption, operating pressure/temperature. They directly determine performance, efficiency, and operating cost.

(1) Resin Filling Volume (L)

Volume of ion-exchange resin in the tank. Larger resin volume = higher exchange capacity = more periodic water production = lower regeneration frequency.

Household reference: 1–2 people: 6–8L; 3–4 people: 10–12L; 5–6 people: 18–25L.

(2) Periodic Water Production (m³/cycle)

Total qualified softened water per regeneration.

Formula: Periodic production = (Resin volume × Resin exchange capacity) ÷ Raw water hardness

Household sodium-form resin exchange capacity: ~1.8–2.0 mmol/L.

Example: 10L resin, raw water hardness 3 mmol/L → (10×2.0)÷3 ≈6.7 m³.

(3) Working Flow Rate (m³/h)

Maximum hourly softened water output. Determines ability to meet simultaneous household water use (e.g., two bathrooms showering + kitchen use).

Household reference: Standard home: 1.0–1.5 m³/h; Large apartment/villa: 2.0–3.5 m³/h.

(4) Regeneration Salt Consumption (kg/cycle)

Salt used per regeneration. Affects operating cost: ~0.5–2.0 kg per cycle for households. Larger resin and higher hardness increase consumption.

Salt-saving tips: Choose flow-type valve, dry brine tank, counter-current regeneration; save 30%–50% salt long-term.

(5) Operating Pressure and Temperature

Pressure: Normal 0.15–0.6 MPa (1.5–6 bar). Too low → poor brine suction, insufficient flow; too high → damage parts, shorten life.

Temperature: Optimal 5–48 °C. <5 °C → lower exchange efficiency; >48 °C → resin aging/deformation, shorter life.

4. Key Factors Affecting Ion-exchange Water Softener Performance

Softening effect depends on equipment, raw water quality, configuration, installation, and usage.

(1) Raw Water Quality

Hardness: Higher hardness → less periodic water, more frequent regeneration. >5 mmol/L → large resin or dual-tank model required.

Impurities: Excessive sediment/rust clogs resin and reduces efficiency. Install a pre-filter for pretreatment.

Iron/manganese: Fe³⁺ >0.3 mg/L or Mn²⁺ >0.1 mg/L → resin "iron poisoning" and permanent failure. Requires deironing/demanganizing pretreatment.

(2) Equipment Configuration

Resin quality: Food-grade high-quality resin (e.g., Purolite, Rohm and Haas) has high capacity and 10–15 years life. Poor resin has low capacity, breaks easily, 3–5 years life.

Control valve: Flow-type > time-type; smart > mechanical in precision, salt-saving, stability.

Regeneration mode: Counter-current regeneration (brine bottom-up) is 15%–20% more efficient, salt/water-saving, and more thorough than co-current regeneration. Preferred for high-end models.

(3) Installation and Usage

Location: Near drain, with power (electric models), suitable temperature, sufficient space; avoid direct sunlight and freezing.

Pre-filtration: Must install 40–100 μm pre-filter to remove sediment/rust and protect resin/valve.

Salt replenishment: Never run out of salt; otherwise resin cannot regenerate, performance drops, and resin may be damaged.

5. Maintenance and Service Life of Ion-exchange Water Softeners

Low maintenance difficulty; proper care extends resin and equipment life.

(1) Routine Maintenance

Regular salt replenishment: Every 1–3 months; salt level ≥1/3 of tank. Use high-purity softener salt (NaCl≥99.5%, iodine-free, anti-caking agent-free).

Brine tank cleaning: Dry tank every 6–12 months; wet tank every 3–6 months. Remove dirt and prevent bacteria.

Drain check: Regularly inspect drain line for clogging/leakage.

Pre-filter flush: Flush weekly or monthly to remove trapped impurities.

(2) Resin Life and Replacement

High-quality food-grade resin lasts 10–15 years with proper care.

Signs of aging/failure: Sharply reduced periodic production, frequent regeneration, poor softening, heavy resin breakage.

Replace when expired or severely poisoned (e.g., iron contamination).

(3) Equipment Life

Overall service life: 15–20 years. Control valve, resin tank, brine tank last long-term; only resin needs periodic replacement. Low long-term cost and high cost-performance.

6. Common Misconceptions About Ion-exchange Water Softeners

Many misunderstandings mislead purchase and usage.

Misconception 1: Softened water contains sodium, unsafe to drink

Fact:

Softened water has ~50–100 mg/L sodium (at 3 mmol/L hardness), far below WHO’s adult daily limit (2000 mg).

Safe for healthy people for washing, laundry, bathing, and light cooking. Strict low-sodium patients (hypertension, kidney disease) can use RO purifier for drinking; softened water for other uses.

Sodium content is much lower than soy sauce, pickles, bread, etc.

Misconception 2: Softener wastes too much regeneration wastewater

Fact:

One regeneration uses ~50–150 L wastewater; periodic production ~5–15 m³ → wastewater rate only 1%–3%, much lower than RO purifiers (30%–50%).

Dry brine tank, flow-type, counter-current regeneration further reduce wastewater.

Misconception 3: Softener needs frequent filter replacement, high cost

Fact:

Core is resin, not filters; high-quality resin replaced every 10–15 years.

Only cost is softener salt: ~10–30 kg/year, ~¥50–150, much lower than RO filter costs.

Misconception 4: Softener conflicts with water heaters, cannot be installed

Fact:

Softener is the best protector for water heaters; eliminates scale, avoids heating element fouling and inner tank corrosion, extends life 2–3 times, cuts energy use by >30%.

Compatible with all household water heaters (electric, gas, wall-hung boiler, air-source); no conflict, only better performance and longer life.

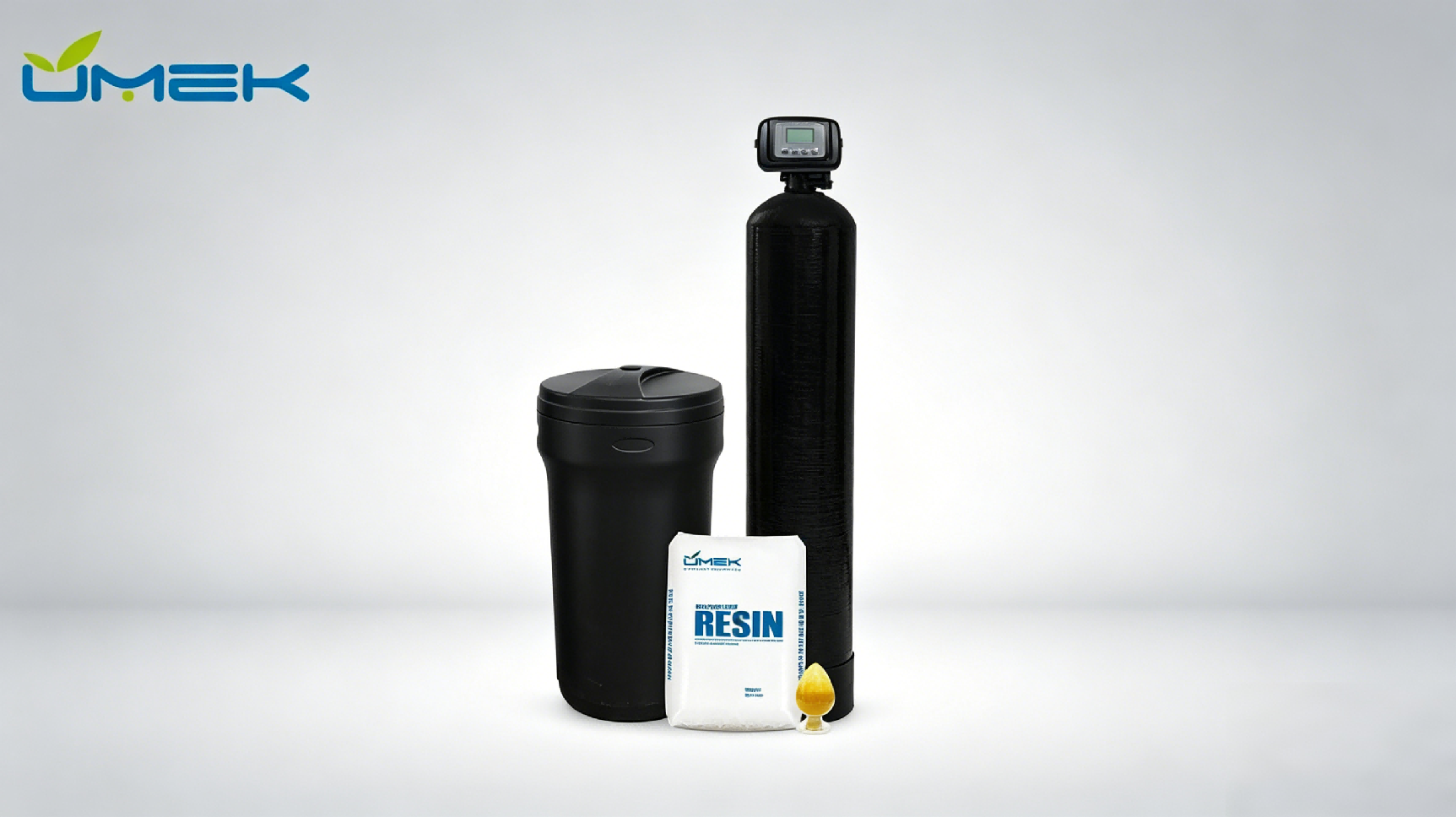

7. UMEK Household Water Softener
