Why Do Water Softeners Need Pre-Filters? A Complete Guide

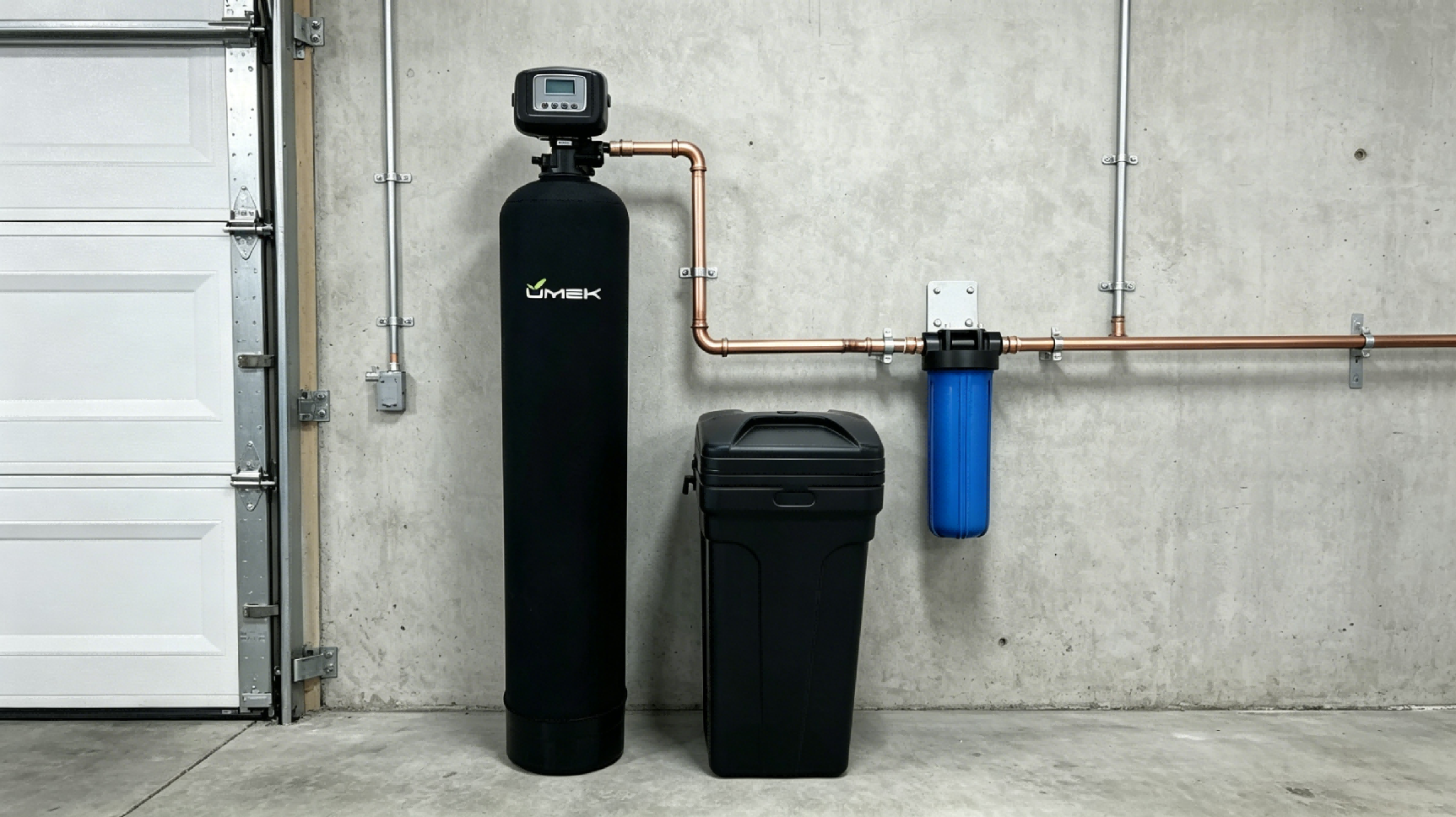

In a whole‑house water treatment system, a water softener has become a must‑have appliance for households in hard water areas and families pursuing high‑quality living, thanks to its core function of removing calcium and magnesium ions and solving limescale problems. For both residential and commercial water softening systems, the durability and stability of core components—resin, control valve, and water distributors—directly determine the service life and treatment performance of the softener. Yet the pre‑filter, as the first protective barrier for the water softener, is often overlooked by many users.

Chapter 1: Why Do Water Softeners Need Pre-Filters?

The core working principle of a water softener is ion exchange to remove calcium and magnesium ions from water: hard water ions (Ca²⁺, Mg²⁺) exchange with sodium ions (Na⁺) inside the resin tank. The resin adsorbs hard water ions and releases sodium ions, thus softening the water. Core components include resin, control valve (valve head), upper and lower distributors, plus a brine tank, brine valve, and other auxiliary parts. Most of these parts are precision‑structured and material‑sensitive. Once eroded or clogged by impurities in water, they will not only reduce softening efficiency but also drastically shorten the equipment life and increase maintenance costs.

The core role of the pre‑filter is to capture various impurities before tap water enters the softener, preventing these impurities from entering the softener and damaging its core components. Simply put, the pre‑filter is the bodyguard of the water softener, allowing it to focus on water softening without being damaged by impurities. Below we analyze the necessity of pre‑filters from the vulnerabilities of the softener’s core components, each corresponding to common failures and losses in actual use.

1.1 Protect Resin: Avoid Failure and Powdering

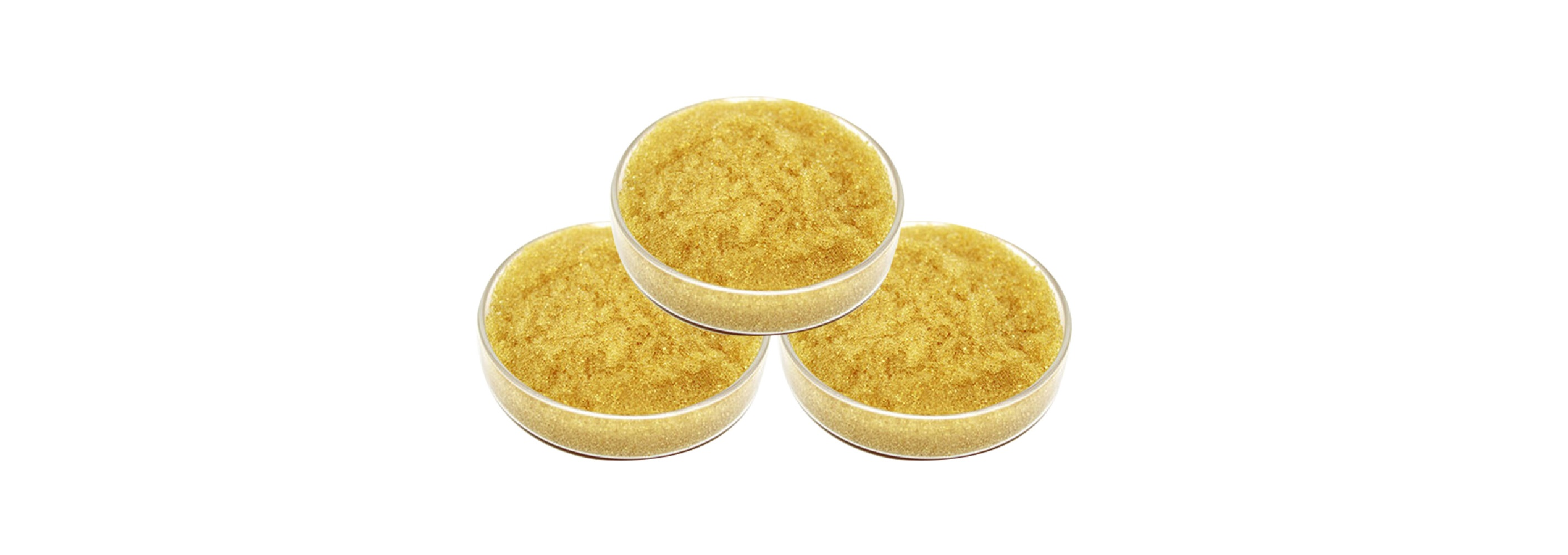

Resin is the heart of the water softener and the most critical and expensive component (a residential resin tank usually costs dozens to hundreds of US dollars; commercial resin is even more costly). High‑quality softener resin can last 10–15 years with proper maintenance and no impurity interference. Without pre‑filtration, resin life may drop to only 2–3 years or even shorter, leading to very high replacement costs.

Resin is delicate mainly due to its structure and material: it is made of porous polymer with tiny pores on the surface, which are key to adsorbing hard water ions. Impurities in water damage resin in two ways, leading to failure:

Impurities clog resin pores and disable ion exchange. Sediment, rust, suspended solids, colloids and other impurities in tap water enter the resin tank, attach to the resin surface, and even block its pores. Once blocked, the resin cannot fully contact hard water ions, and ion exchange efficiency drops sharply, showing symptoms such as insufficient hardness reduction and persistent limescale—even frequent regeneration (salt flushing) cannot restore performance. Worse, these impurities form “mud balls” and compacted layers on the resin surface, causing caking and complete loss of exchange capacity.

Impurities scratch and abrade resin, causing powdering. Sharp impurities such as metal flakes and fine sand continuously impact and scratch resin beads, causing the surface polymer to peel off and form resin powder. This powder clogs faucets, showerheads, distributors and drains, and powdered resin can no longer perform ion exchange and must be fully replaced.

In addition, residual chlorine (the main component of tap water disinfection) is the No.1 killer of resin. As a strong oxidizing agent, chlorine oxidizes and damages the polymer structure of resin, causing disintegration and powdering—this damage is irreversible. Activated carbon pre‑filters can effectively remove residual chlorine and protect resin from oxidation. Industry data shows that when chlorine concentration exceeds 1.0 ppm, resin life is halved; tap water usually contains 0.5–1.0 ppm chlorine, enough to damage resin.

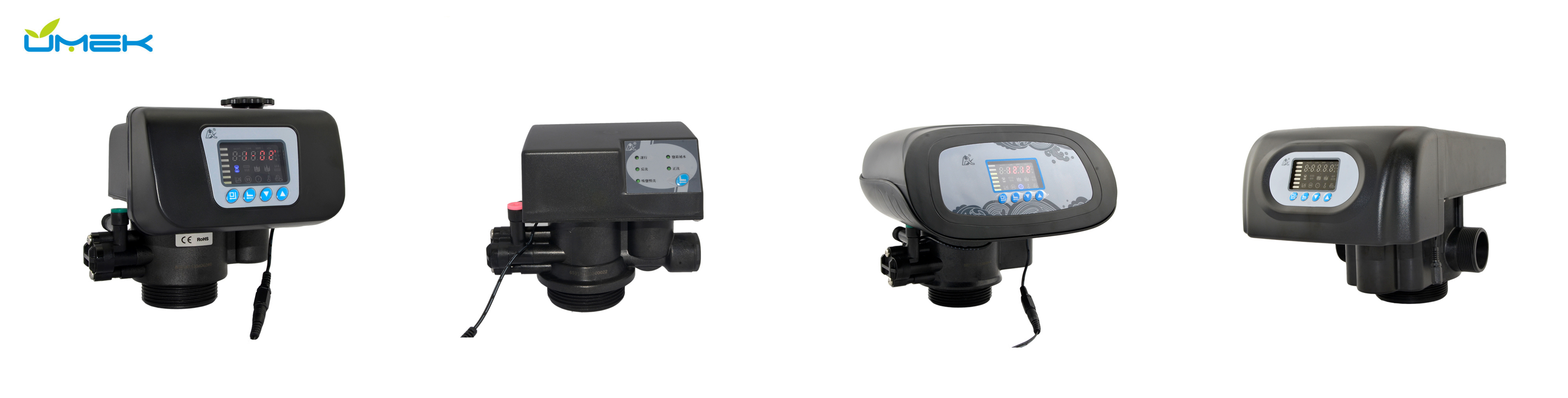

1.2 Protect Control Valve: Avoid Jamming and Malfunctions

The control valve is the brain of the water softener, controlling all processes including operation and regeneration. It has a very precise internal structure, including spool, ejector, flow restrictor, seals and other small parts with gaps of only a few millimeters or even micrometers. Once clogged or worn by impurities, the valve malfunctions and the entire softener stops working properly.

Without a pre‑filter, sediment, rust, pipe debris and other impurities cause the following common failures with high repair costs:

Spool jamming, requiring disassembly, cleaning or replacement (cost: dozens to hundreds of US dollars).

Ejector or flow restrictor clogging, causing failed brine suction and regeneration, requiring professional disassembly and cleaning.

Seal wear and water leakage, wasting water, damaging furniture, and even causing electrical short circuits.

After‑sales data from the water treatment industry shows that more than 60% of softener failures are related to impurity clogging and wear—and most of these failures can be effectively avoided by installing a suitable pre‑filter. In commercial scenarios, valve failures directly affect operations, making pre‑filtration even more necessary.

1.3 Protect Distributors: Avoid Uneven Water Distribution

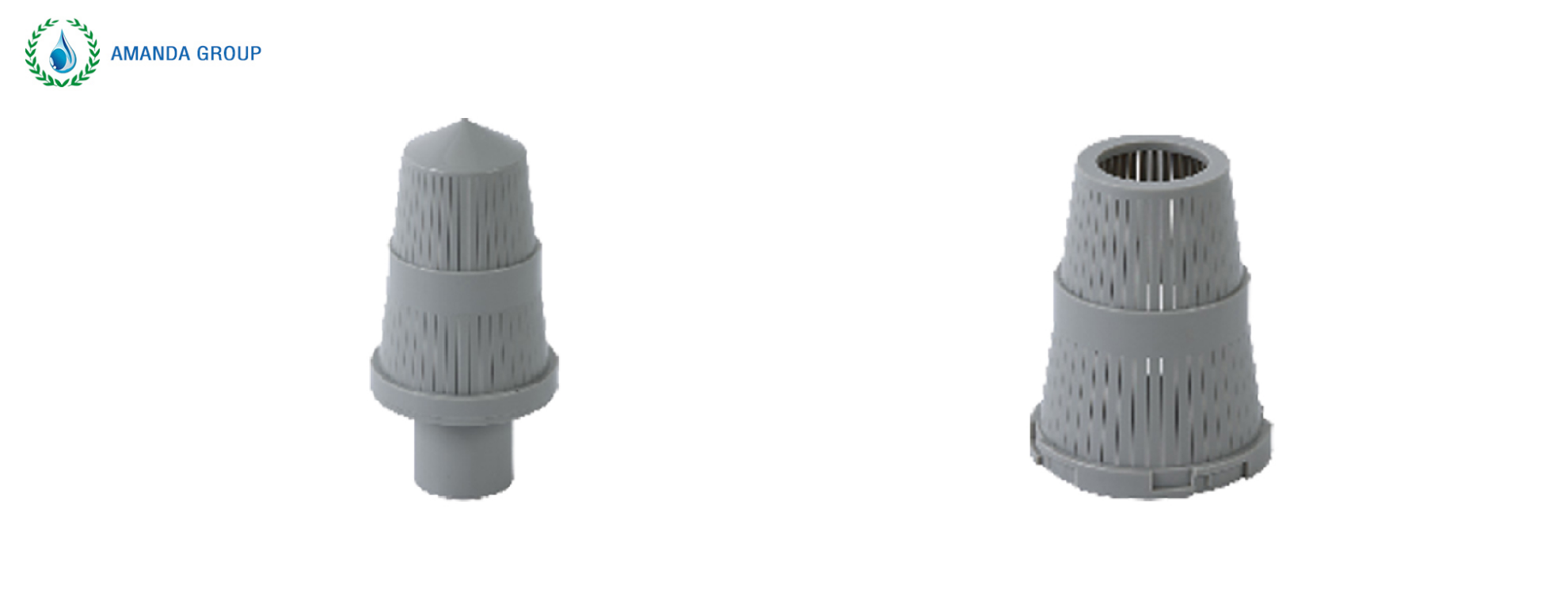

Distributors are installed at both ends of the resin tank, with the core function of even water distribution—allowing tap water to flow evenly through the entire resin bed to ensure all resin participates in ion exchange; during regeneration, distributing brine evenly to ensure thorough regeneration. Distributors are covered with tiny outlets (usually 10–20 micrometers), and clogging by impurities causes uneven distribution.

Without a pre‑filter, clogged distributors lead to three problems:

Poor softening performance, uneven outlet hardness, and persistent limescale.

Incomplete regeneration, requiring frequent regeneration and increased salt consumption.

Distributor deformation or rupture, requiring resin tank disassembly, time‑consuming and likely to damage resin, with high repair costs.

1.4 Avoid Secondary Pollution and Ensure Water Safety

Pre‑filters prevent impurities from breeding bacteria and algae inside the softener, avoiding secondary pollution. Suspended solids, colloids, insect eggs and other impurities in tap water accumulate in resin tanks and brine tanks, forming a breeding ground for bacteria. Especially in humid and warm environments, bacteria enter downstream pipelines with softened water, irritating skin and causing discomfort. Excessive impurity buildup also causes rusty or musty odors inside the softener, degrading the user experience.

1.5 Reduce Maintenance Frequency and Lower Overall Costs

A softener without a pre‑filter requires frequent cleaning of valves and distributors, frequent resin replacement, and unclogging services—time‑consuming, labor‑intensive and costly. After installing a pre‑filter:

Resin replacement cycle extends from 2–3 years to 10–15 years.

Clogging failures of valves and distributors almost never occur.

Maintenance is limited to flushing and cartridge replacement of the pre‑filter, with low cost and simple operation.

Case Study: A user in an old community did not install a pre‑filter. After 1.5 years of use, the softener suffered from increased outlet hardness, valve jamming, and resin powdering. The total cost of replacing resin, spool and distributor reached 150 US dollars. After installing a stainless steel mesh + melt‑blown dual pre‑filter, the softener operated normally for 8 years, with only 4 melt‑blown cartridge replacements (3 US dollars each) and no failures, greatly reducing overall costs.

1.6 Supplementary Notes

Pre‑filtration is particularly critical in the following scenarios and directly determines whether the softener can operate normally:

Old communities and secondary water supply: Aging pipelines contain far more impurities than new communities, so a pre‑filter is mandatory.

Self‑built houses and well water supply: Well water and groundwater have extremely high impurities, which will directly damage resin and valves; high‑precision multi‑stage pre‑filtration is required.

Commercial and industrial scenarios: Large water volume and fast impurity accumulation require large‑flow, high‑contamination‑resistance pre‑filters.

Areas with high residual chlorine: Areas near water plants and disinfection stations need activated carbon pre‑filters to prevent resin oxidation.

Chapter 2: Types of Pre‑Filters Suitable for Water Softeners

Pre‑filters for water softeners focus on capturing impurities and protecting the softener. According to filter media, four mainstream types are used in the industry: stainless steel mesh, melt‑blown, activated carbon, and disc type. They differ in filtration principle, application scenarios, advantages and disadvantages—there is no absolute “best”, only the most suitable.

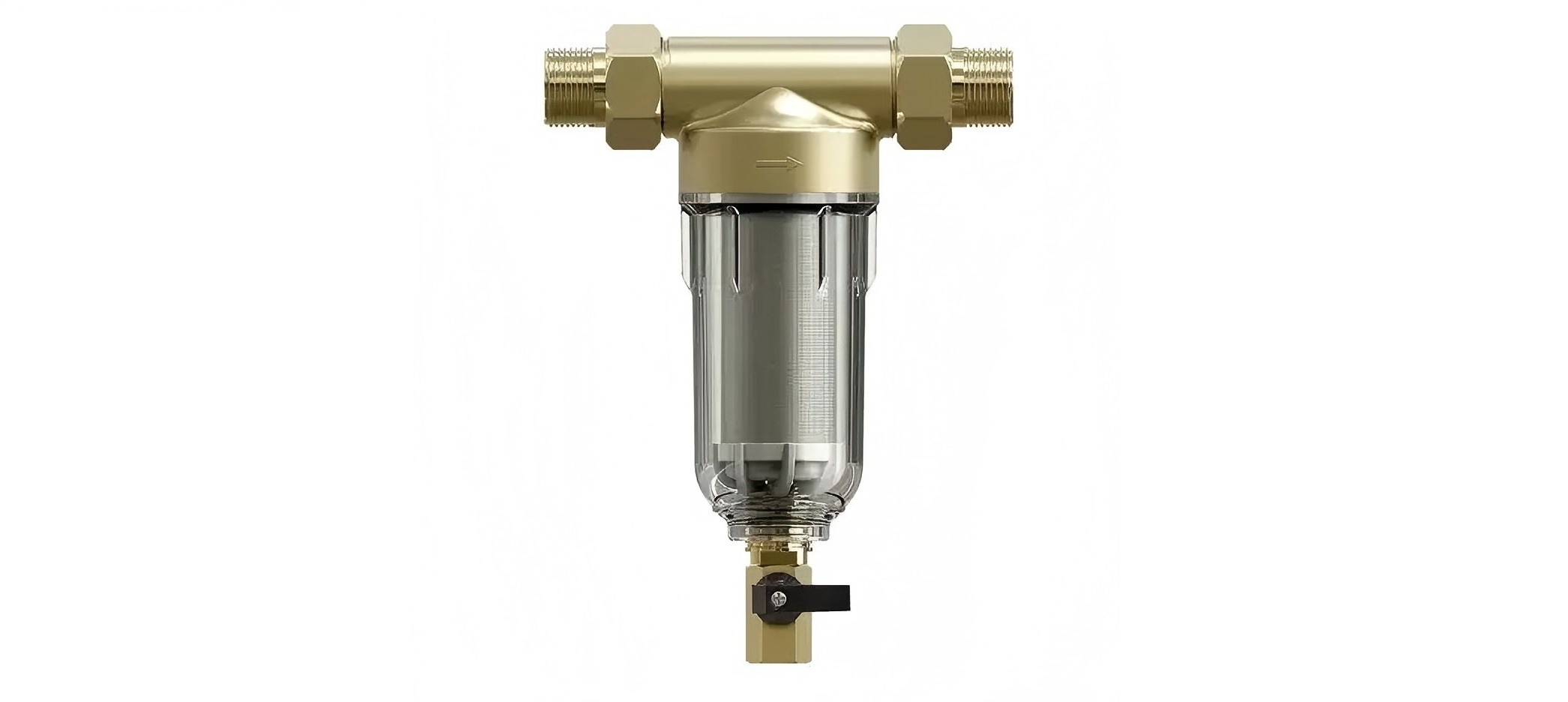

2.1 Stainless Steel Mesh Pre‑Filter

The most common and basic pre‑filter for water softeners, serving as the first line of defense in most scenarios. The core filter media is 304 or 316L stainless steel mesh, which physically captures large impurities with a filtration precision of 20–100 μm. It can block large sediment and rust without affecting water flow.

Core Working Principle

Simple structure: filter housing, stainless steel mesh, drain valve, and connectors. Tap water enters the housing; large impurities are trapped on the mesh surface; filtered water flows to the softener. When excessive impurities cause pressure drop, open the drain valve for backwashing—no mesh replacement needed. Flushing modes: direct flush (gradually phased out), backwash, and scraper flush (mainstream, more thorough cleaning).

Core Advantages

No cartridge replacement, extremely low maintenance cost: Reusable mesh, no lifetime replacement, operable by ordinary users.

Large flow rate, no pressure loss: Mainstream residential flow 5–8 t/h, commercial ≥10 t/h, perfectly matching softener water demand.

Durable material, strong compatibility: 304/316L stainless steel is corrosion‑resistant and heat‑resistant, with a service life of more than 10 years.

Easy installation: Compact size, vertical/horizontal installation, complete interface specifications.

Disadvantages

Limited filtration precision: Maximum 20 μm, cannot capture fine rust, colloids and other impurities; must be used with other pre‑filters.

Incomplete flushing: Easy to retain fine impurities; manual disassembly and cleaning once or twice a year is recommended for long‑term use.

No dechlorination function: Cannot remove residual chlorine; must be used with activated carbon pre‑filter.

Application Scenarios

All residential and commercial water softeners, as the first coarse filtration line to capture large impurities. Especially suitable for scenarios with good water quality, many large impurities, and medium budget—the most mainstream type at present.

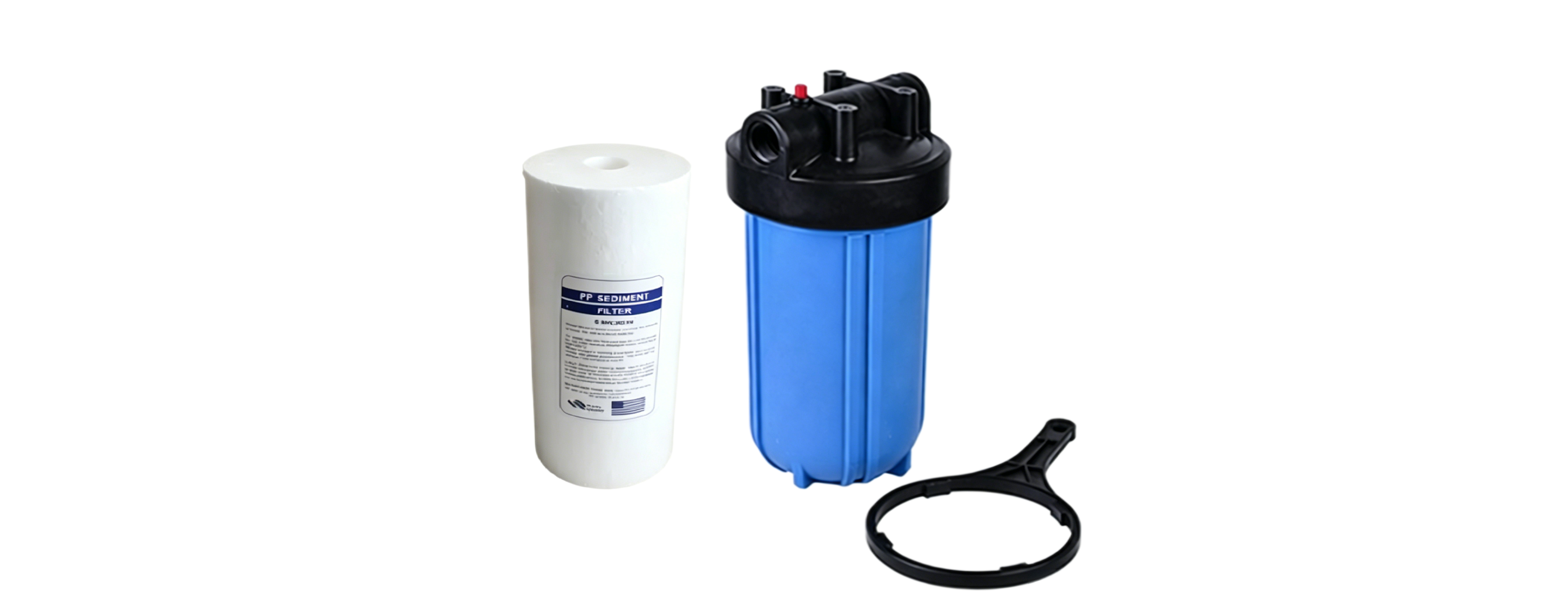

2.2 Melt‑Blown PP Pre‑Filter

The second line of defense for water softeners, core media is polypropylene melt‑blown cartridge, which physically captures and adsorbs fine impurities with a precision of 1–50 μm. 5 μm is the golden precision—it can capture fine impurities that stainless steel mesh cannot filter, and is critical for protecting resin. Available in 10‑inch (mainstream residential) and 20‑inch (mainstream commercial); cartridges are non‑reusable and require regular replacement.

Core Working Principle

Made of polypropylene resin via high‑temperature melting and blowing, with a 3D mesh fiber structure and loose‑outside‑tight‑inside pores. When tap water passes through the cartridge, fine impurities are trapped in fiber gaps. Replace the cartridge after 3–6 months of use or when adsorption is saturated.

Core Advantages

High filtration precision: 1–5 μm precision, effectively captures fine rust, colloids, etc., directly protecting resin.

Stable filtration effect: Disposable cartridge, no impurity residue, safe and non‑toxic material.

Low cost, easy replacement: Single cartridge 1–8 US dollars, operable by ordinary users.

Strong compatibility: Can be paired with stainless steel mesh to form coarse + fine dual protection.

Disadvantages

High maintenance frequency: Cartridge replacement every 3–6 months, higher than stainless steel mesh.

Limited flow rate: Fine pores may cause pressure drop if improperly selected.

No dechlorination function: Cannot protect resin from chlorine damage; must be used with activated carbon pre‑filter.

Application Scenarios

All water softeners, especially scenarios with many fine impurities such as old communities and self‑built houses, as the second fine filtration line paired with stainless steel mesh for dual protection.

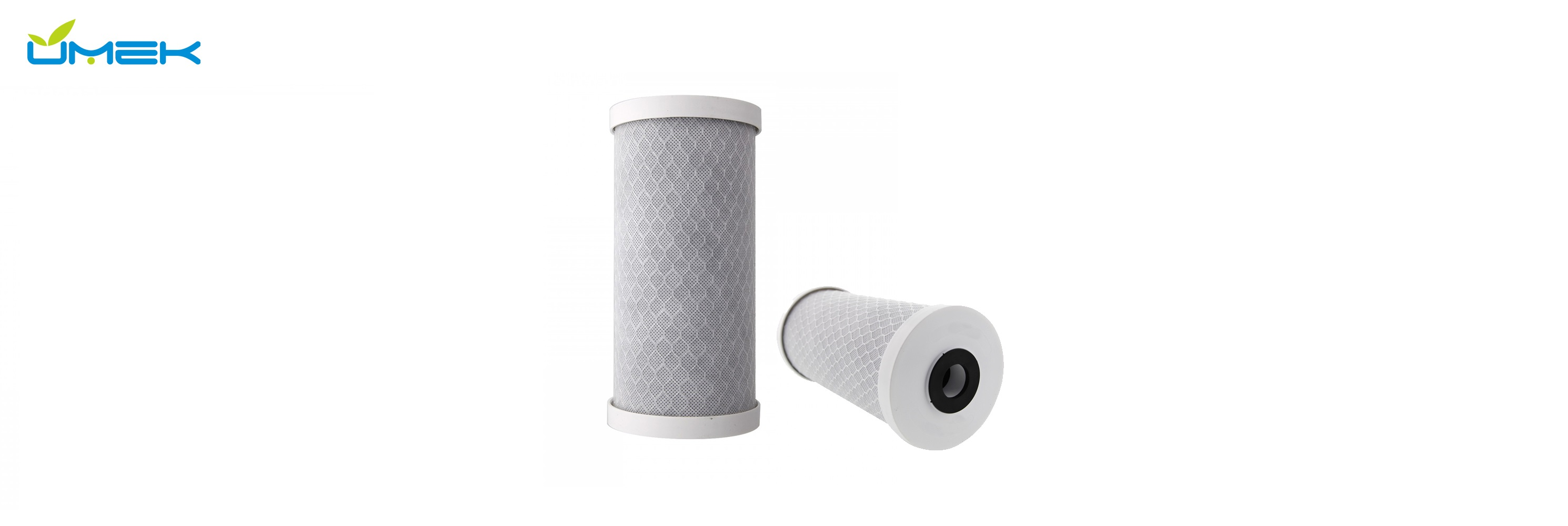

2.3 Activated Carbon Pre‑Filter

The third line of defense for water softeners, core media is coconut shell or coal‑based activated carbon, which removes residual chlorine, color, odor and organic matter through physical and chemical adsorption. Its core function is dechlorination to avoid chlorine oxidation of resin and effectively extend resin life. Divided into granular activated carbon (GAC, low precision) and compressed activated carbon (CTO, 1–5 μm precision, with fine filtration function).

Core Working Principle

Activated carbon has a highly porous surface with strong adsorption capacity. When tap water passes through the activated carbon layer, chlorine reacts with activated carbon and converts into harmless chloride ions; it also adsorbs color, odor and some organic matter. Filtered water flows to the softener, protecting resin from chlorine corrosion.

Core Advantages

Excellent dechlorination effect: Effectively removes free and combined chlorine; resin life can be extended by more than 50% after installation.

Adsorbs color and odor, reduces secondary pollution.

Dual fine filtration (compressed carbon): 1–5 μm precision, reduces filtration stages.

Strong compatibility: Can be integrated into multi‑stage filtration, suitable for high‑chlorine scenarios.

Disadvantages

Relatively high maintenance cost: Cartridge replacement every 3–12 months, single cartridge 8–30 US dollars.

Easy to breed bacteria: Impurities and bacteria easily accumulate in pores; monthly flushing required.

Limited flow rate: high resistance of carbon layer may cause pressure drop if improperly selected.

Cannot capture large impurities: Cannot be used alone; must be paired with melt‑blown cartridge.

Application Scenarios

All water softeners, especially residential and commercial scenarios with high residual chlorine.

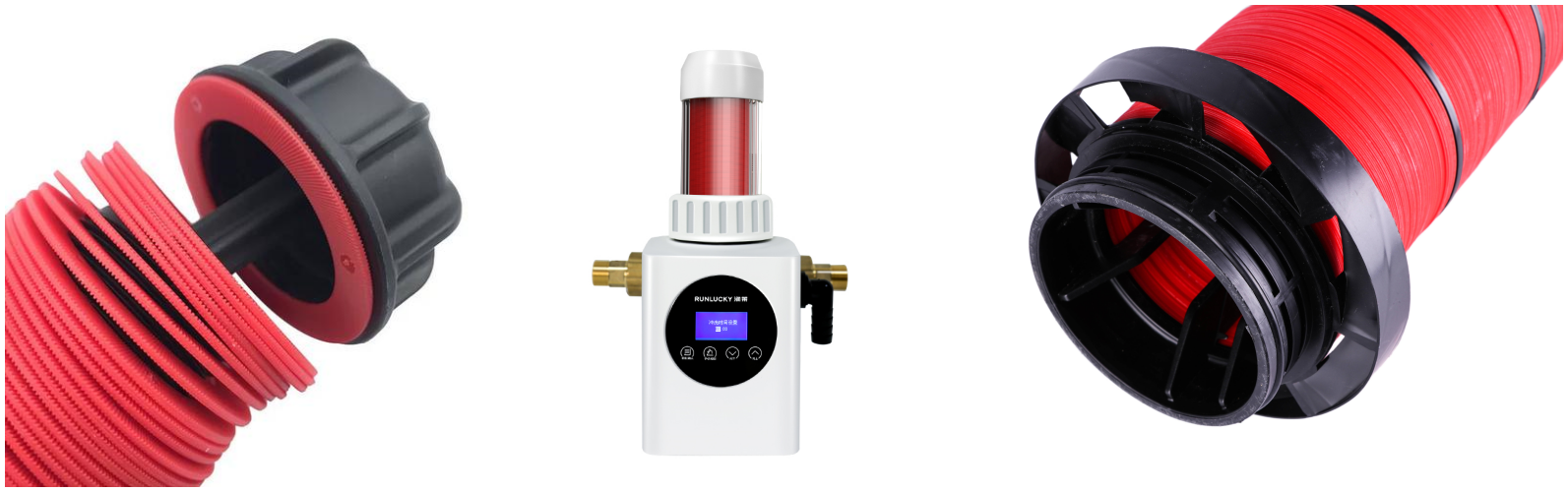

2.4 Disc Pre‑Filter

Core media is PP or nylon plastic discs, which capture impurities through gaps between discs with a precision of 10–100 μm. Large flow rate and strong contamination resistance, mainly for commercial and industrial water softeners; rarely used in households.

Core Working Principle

Multiple plastic discs with micron‑scale grooves on the surface are tightly fitted, and the grooves form tiny filtration channels. When tap water passes through the channels, impurities are trapped between discs; when impurities accumulate, backwashing separates the discs and impurities are discharged with water flow for cleaning.

Core Advantages

Large flow rate, strong contamination resistance: Mainstream commercial flow 10–50 t/h, perfectly matching large‑flow commercial and industrial softeners.

Adjustable filtration precision: Change discs with different groove sizes to adjust precision between 10–100 μm.

No cartridge replacement: Reusable discs, no lifetime replacement.

Strong durability: Corrosion‑resistant and wear‑resistant plastic discs, adapt to poor water quality, service life 8–10 years.

Disadvantages

Large size: High installation space requirement, not suitable for small residential units.

High price: High initial investment, residential model over 150 US dollars, commercial model over 800 US dollars.

Incomplete flushing: Impurities easily stuck in disc gaps; manual disassembly and cleaning required for long‑term use.

No dechlorination function: Must be used with activated carbon pre‑filter.

Application Scenarios

Mainly for commercial and industrial large‑flow, high‑impurity scenarios such as hotels, factories, laundries as the first coarse filtration line; also suitable for large‑villa softeners with sufficient installation space.

Chapter 3: Which Pre‑Filter Combination Is Suitable for Water Softener?

The core principle for selecting a pre‑filter for a water softener is select by need, graded protection—choose a suitable combination based on water quality, softener type, installation space and budget to ensure protection without waste. Below we analyze combination methods for different scenarios and provide selection tips and precautions.

3.1 Core Selection Principles

Follow these 5 core principles to avoid improper selection:

Graded filtration principle: Choose corresponding stages according to budget and demand; basic version focuses on coarse filtration, cost‑effective version focuses on fine filtration + dechlorination, premium version focuses on full purification + microbial protection.

Flow matching principle: Pre‑filter flow rate ≥ softener rated flow rate; residential choose 10‑inch melt‑blown, 5–8 t/h stainless steel mesh; commercial choose 20‑inch melt‑blown, ≥10 t/h stainless steel mesh or disc type.

Water quality adaptation principle: Prioritize coarse + fine filtration for high impurities (old communities, well water); activated carbon is mandatory for high chlorine (urban tap water); UV filtration optional for high microbial risk.

Space adaptation principle: Compact 10‑inch filter for small apartments; 20‑inch filter or disc type for large spaces.

Budget adaptation principle: Basic single‑stage coarse filtration for limited budget; cost‑effective dual‑stage filtration for medium budget; premium multi‑stage filtration + UV protection for sufficient budget.

3.2 UMEK Pre‑Filter Combinations for Household Water Softeners

Residential water softeners have a rated flow of 1–3 m³/h, limited installation space and large budget differences. Three combinations cover more than 90% of residential scenarios for usage.

Solution 1: Minimalist Version

Combination: Single stainless steel mesh pre‑filter (40 μm) → Water softener

Core features: Lowest cost, only basic coarse filtration, captures large sediment and rust, meets basic protection needs.

Suitable for: Limited budget, good water quality (new communities), low protection requirements.

Advantages: Total set 30–120 US dollars, no cartridge replacement, simple maintenance, no pressure loss.

Disadvantages: No fine filtration or dechlorination, resin and valve still at risk of fine impurity wear and chlorine oxidation, no microbial protection.

Solution 2: Cost‑Effective Version (Recommended)

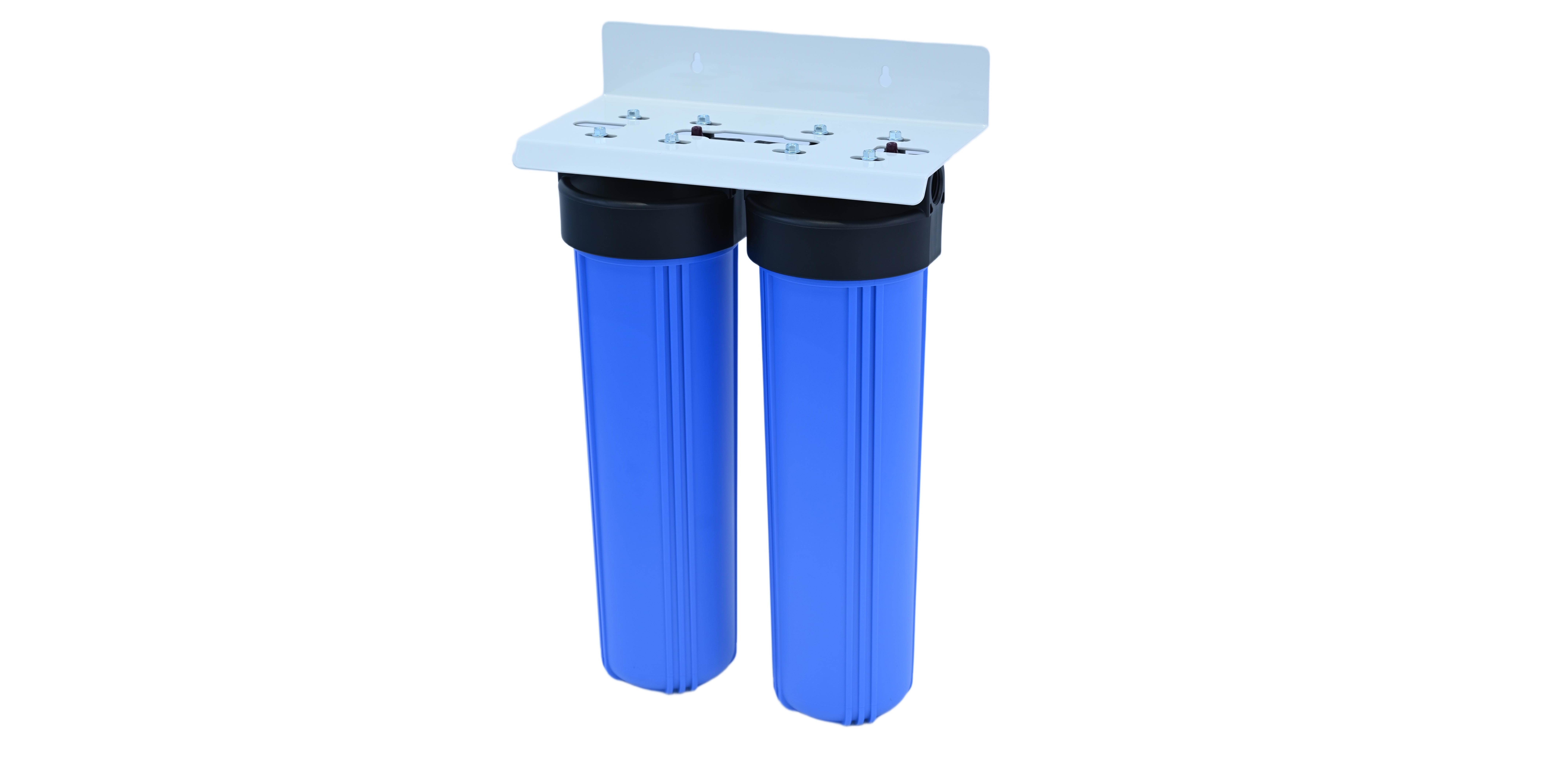

Combination: Melt‑blown PP filter (5 μm, 10‑inch) → activated carbon filter (CTO) → Water softener

Core features: Balances fine filtration and dechlorination, highest cost‑performance, effectively captures fine impurities and removes chlorine, fully protects softener core components.

Suitable for: Most residential scenarios (old communities, urban tap water).

Advantages: Total set 23–105 US dollars, moderate maintenance cost, dual fine filtration + dechlorination protection, effectively extends resin life and reduces softener failures.

Disadvantages: No large‑particle coarse filtration (stainless steel mesh can be added according to water quality), no microbial protection, activated carbon requires regular replacement.

Solution 3: Premium Version

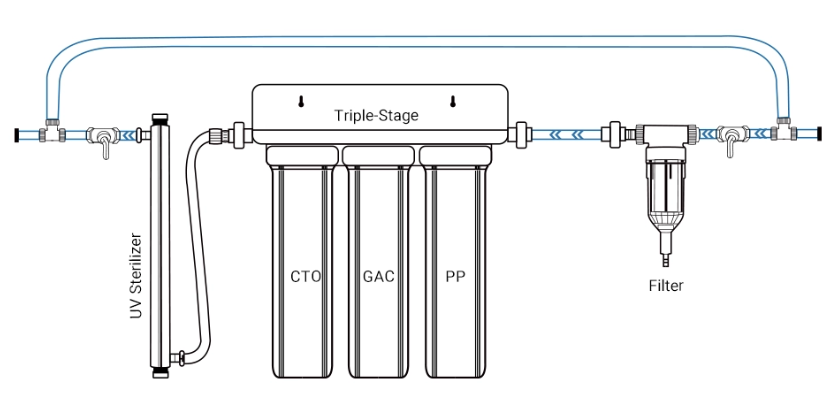

Combination: Stainless steel mesh (40 μm) → melt‑blown PP filter (5 μm) → GAC → CTO → UV filter → Water softener

Core features: Coarse + fine + dechlorination + microbial four‑stage filtration, fully ensures water cleanliness, avoids damage to softener from impurities, chlorine and microorganisms.

Suitable for: High water quality requirements, sufficient budget, or poor water quality (well water, secondary water supply), need to avoid bacterial growth.

Advantages: All‑round protection of softener core components, greatly extends equipment life, avoids secondary pollution, highest water cleanliness.

Disadvantages: Relatively high cost, total set 138–520 US dollars, high maintenance frequency (melt‑blown, activated carbon, UV lamp require regular replacement), requires certain installation space.

3.3 Special Scenario Selection Guide

Self‑built houses / well water (high impurities): Prioritize three‑stage pre‑filter: stainless steel mesh + melt‑blown + activated carbon to avoid impurity clogging of resin and valve.

Near water plant (high chlorine): Compressed activated carbon pre‑filter is mandatory and cannot be omitted.

Small apartments (limited space): Choose compact vertical stainless steel mesh + 10‑inch vertical melt‑blown, stacked installation to save space.

3.4 Selection Precautions

Do not install stainless steel mesh alone: It only captures large particles; not recommended for poor water quality; must be paired with melt‑blown and activated carbon.

In cost‑effective combination, install melt‑blown before activated carbon to avoid rapid saturation of activated carbon due to impurity adsorption.

In premium combination, install UV filter at the last stage of multi‑stage filtration to ensure no impurities in water entering UV filter and avoid affecting sterilization effect.

Do not blindly pursue high precision: 5 μm melt‑blown is sufficient for residential use; commercial can adjust according to flow rate.

Do not ignore flow matching: If pre‑filter flow rate is lower than softener rated flow rate, water output will decrease and softening performance will drop.
