Negative pressure (where the pressure inside the tank is lower than the external atmospheric pressure) may occasionally occur in household water softeners during operation or shutdown. In mild cases, it affects the normal operation of the equipment; in severe cases, it causes deformation and damage to the resin tank, shortening the service life of the equipment. In particular, resin tanks of different materials and thicknesses on the market vary greatly in their pressure resistance to negative pressure. Understanding the causes of negative pressure, the responses of different tank bodies, and the corresponding solutions can effectively avoid equipment damage and extend the service life of water softeners.
Negative pressure in the resin tank of a water softener is divided into two categories: normal operating negative pressure and abnormal dangerous negative pressure. The former is essential for equipment operation, while the latter is a hidden danger caused by improper installation or malfunctions and requires key differentiation.

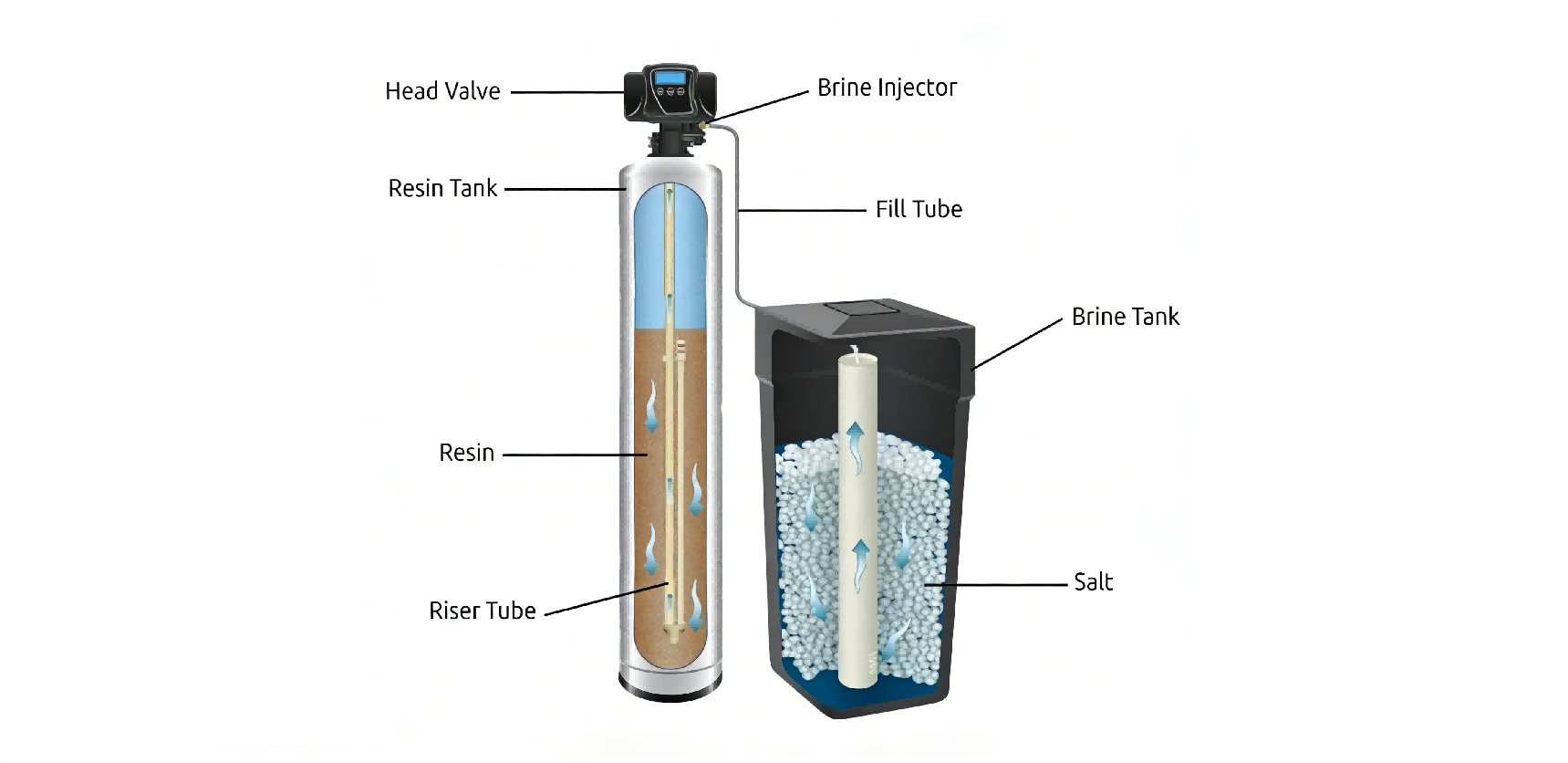

During the brine suction regeneration stage, fully automatic water softeners actively generate negative pressure using the ejector (based on the Venturi principle) in the control valve, which is a necessary step for resin regeneration. The specific process is as follows: raw water flows rapidly through the throat of the ejector to form a low-pressure zone, generating a mild negative pressure of approximately 0.02MPa, which sucks the brine from the brine tank into the resin tank to react with the exhausted resin and complete resin regeneration. This type of negative pressure is a controllable state within the equipment's design range, with mild pressure and short duration, and will not cause any damage to qualified tank bodies.
This is the most concerning situation in daily use and the main cause of resin tank deformation and collapse. The core issue is that the pressure inside the tank drops rapidly and cannot be replenished in a timely manner. There are 5 common inducing factors:
Drainage siphon: Improper installation of the drain pipe is the primary cause, such as an overly long, sagging drain pipe inserted below the liquid level of the sewer, or a pipe with accumulated water due to underground routing or floor penetration. After drainage, the water column in the pipe falls due to gravity, acting like a "water pump" to draw air out of the tank and form a strong negative pressure that acts on the tank wall instantaneously.
Check valve failure or reverse installation: The check valve (one-way valve) at the water inlet prevents water backflow. If the check valve is damaged, stuck, or installed in the wrong direction, the pipe network pressure drops sharply when water supply is cut off or the equipment is shut down, and the water in the tank will flow back into the pipe network. The tank cannot be refilled in time, leading to vacuum negative pressure, which is often accompanied by the phenomenon of "obvious tank depression when water supply resumes after a cut-off".
Improper pipeline installation: An overly long outlet pipe with a large drop and long-term downward routing will cause the water in the pipe to fall due to its own weight the moment the equipment or pump is shut down, creating a "suction force" on the tank and forming negative pressure. If a reverse osmosis (RO) booster pump is directly connected after the water softener, excessive suction speed of the pump body or an instant shutdown will quickly draw off the pressure inside the tank, triggering negative pressure.
Equipment malfunctions or improper maintenance: Blockage of the brine suction nozzle and throat of the control valve will cause an abnormal increase in negative pressure during regeneration; blockage of the tank's vent hole and breather will prevent air intake for pressure compensation during drainage, leading to a continuous drop in tank pressure; abnormal regeneration procedures (e.g., excessive flow rate and duration of backwashing and rapid rinsing) will also result in excessive negative pressure.
Abnormal external water supply: A sudden cut-off of water supply, a sharp drop in water pressure, an emergency stop of the water pump, or water hammer in the pipe network will cause severe pressure fluctuations and an instantaneous pressure imbalance inside the tank, forming negative pressure. Frequent start-stop of deep well pumps and variable frequency pumps may also cause instantaneous back suction and trigger negative pressure.
Mainstream resin tanks on the market are mainly divided into three categories: fiberglass reinforced plastic (FRP) tanks, thin stainless steel tanks, and thickened stainless steel tanks (including steel-lined PE tanks). Their negative pressure resistance capabilities vary drastically. Combined with the three common negative pressure levels in daily use (0.02MPa, 0.05MPa, and 0.1MPa), their specific responses are as follows, with special attention to the hidden dangers of low-cost thin tanks.
FRP tanks are a common choice for early household water softeners, with the advantages of light weight and low price, but they have low rigidity and poor negative pressure resistance, making them prone to damage from negative pressure.

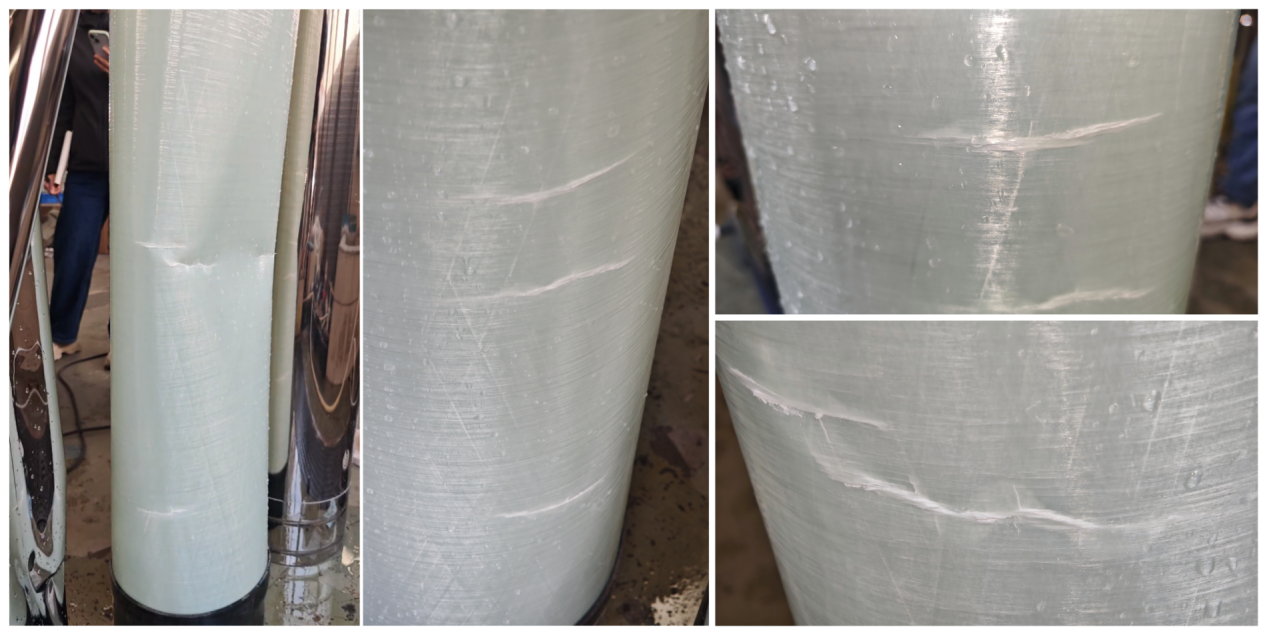

Specific responses: When the negative pressure inside the tank reaches 0.05–0.08MPa, the tank body will show obvious depression and bulging; if the negative pressure exceeds 0.08MPa, the tank body will most likely crack, break at the shoulder, or even be scrapped directly; even mild negative pressure (around 0.03MPa) acting repeatedly over the long term will cause tank deformation and seal failure, leading to water leakage and cross-flow problems.
Core reason: FRP material itself has insufficient rigidity and lacks the strength to resist the extrusion of external atmospheric pressure. Moreover, the tank body is mostly integrally formed without a reinforced structure and cannot disperse pressure when facing negative pressure.
Such tanks are commonly equipped in low-cost water softeners on the market. They have a stainless steel appearance but are made of extremely thin plates with very low rigidity, comparable to "tin buckets", and do not meet the tolerance standards of regular stainless steel tanks at all.

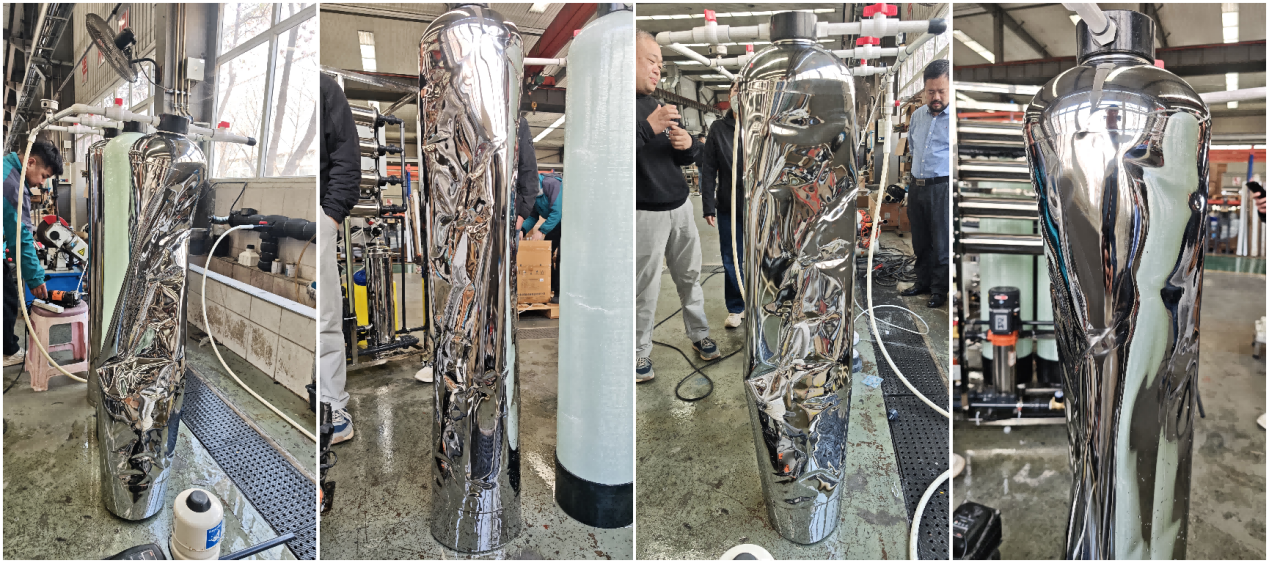

Specific responses: As observed in actual use, when a slight negative pressure of around 0.02MPa occurs inside the tank (even lower than the negative pressure during normal regeneration), the tank body will show depression, waist shrinkage, and bulging; if the negative pressure reaches 0.05MPa, the tank will deform irreversibly and even crack and leak in severe cases; even without negative pressure, slight daily impacts may cause deformation, resulting in a short service life.
Core reason: The ultra-thin plates (only about 0.5mm thick) without reinforcing ribs lead to insufficient overall rigidity of the tank body, which cannot resist the extrusion of external atmospheric pressure. Though seemingly made of stainless steel, their protective capacity is far inferior to qualified FRP tanks.

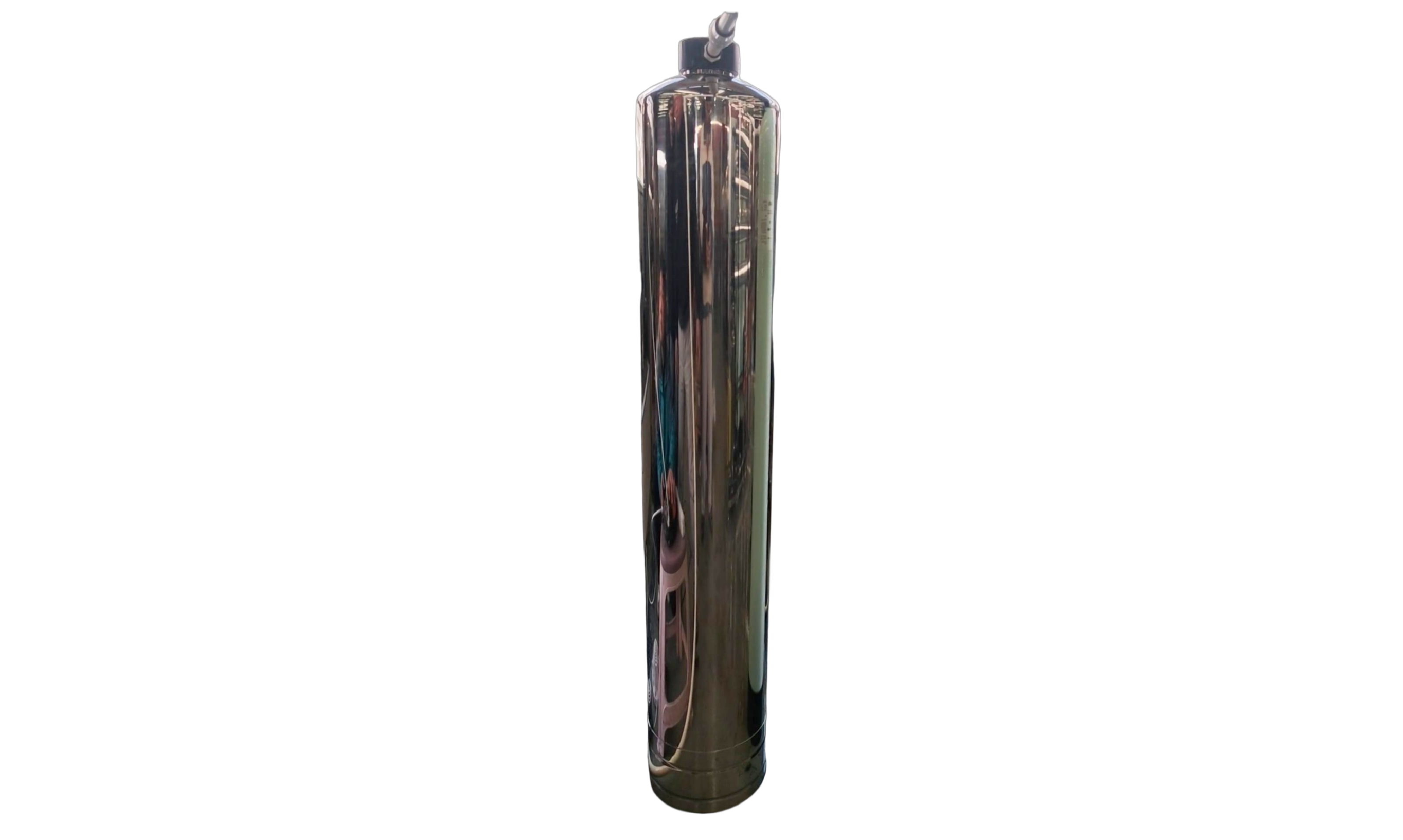

Such tanks are the mainstream choice for current household and commercial water softeners and offer the optimal cost-performance ratio and safety. In particular, steel-lined PE tanks (stainless steel outer shell + PE inner liner) are bestsellers on the market with extremely strong negative pressure resistance.
Specific responses: Regular thickened stainless steel tanks (1.0–1.5mm thick, with reinforcing ribs and thick flanges) can withstand negative pressure close to absolute vacuum (-0.1MPa). Even if the negative pressure inside the tank reaches 0.08MPa, there will be no deformation or depression at all, and they have the longest service life.
Core reason: The stainless steel outer shell has high strength and rigidity, and the thickened plates plus reinforced structures can effectively disperse the pressure of external atmospheric pressure.
Prevention is the most effective solution. Especially for FRP tanks and thin stainless steel tanks, implementing the following measures can significantly reduce the risk of damage from negative pressure. Although thickened stainless steel tanks/steel-lined PE tanks are resistant to negative pressure, good preventive measures can also extend the overall service life of the equipment and lay the foundation for the operation of negative pressure valves.
This is the core basic step to solve negative pressure and must be strictly implemented for all types of tank bodies: ① Do not insert the drain pipe below the liquid level of the sewer, and reserve a sufficient air gap (at least 5cm) to avoid siphon formation; ② Keep the drain pipe as short, horizontal, and with few elbows as possible, avoid excessive sagging, underground routing or floor penetration to reduce water accumulation in the pipe; ③ If the drain pipe must be lengthened or sagged, install a negative pressure valve for double protection.

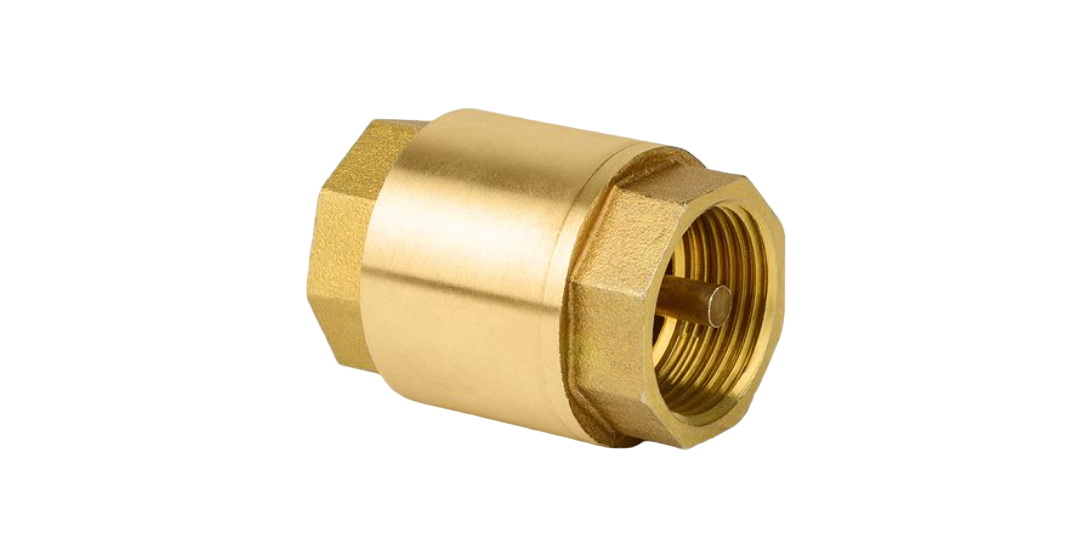

A qualified check valve (one-way valve) must be installed at the water inlet in the correct direction; inspect it every 6 months to ensure no water leakage, jamming, or backflow. Replace it in a timely manner if damage is found to avoid negative pressure caused by water backflow when water supply is cut off and reduce the activation frequency of the negative pressure valve.
① Shorten the outlet pipe as much as possible to avoid a large drop and long-term downward routing; ② If an RO booster pump is connected after the water softener, install a pressure tank between them and set a delayed shutdown function to avoid negative pressure suction during pump start-stop; ③ Keep the tank's vent hole and breather unobstructed, and clean dust and insects regularly to avoid blockage leading to poor pressure compensation and assist the negative pressure valve in quickly balancing pressure.
① Clean the brine suction nozzle and throat of the control valve regularly to avoid blockage causing an abnormal increase in negative pressure; ② Set regeneration parameters (flow rate, duration) in accordance with the manufacturer's requirements, and do not arbitrarily increase the flow rate and duration of backwashing and rapid rinsing; ③ Inspect the tank body every 12 months for deformation, liquid leakage, seal failure and other problems, and handle them in a timely manner to avoid potential negative pressure hazards caused by tank damage.
This is the most worry-free basic protection method: ① For ordinary households (inland areas with tap water), priority should be given to 1.0mm or thicker 304 stainless steel + PE inner liner tanks, which offer high cost-performance ratio, good negative pressure resistance and corrosion resistance, and can reduce reliance on negative pressure valves; ② For coastal areas, high-salt environments, and scenarios with frequent regeneration, select 316L stainless steel + PE inner liner tanks to improve salt corrosion resistance; ③ Avoid choosing thin stainless steel tanks (about 0.5mm thick) and ordinary FRP tanks as much as possible. If already in use, a negative pressure valve must be equipped for complete protection.

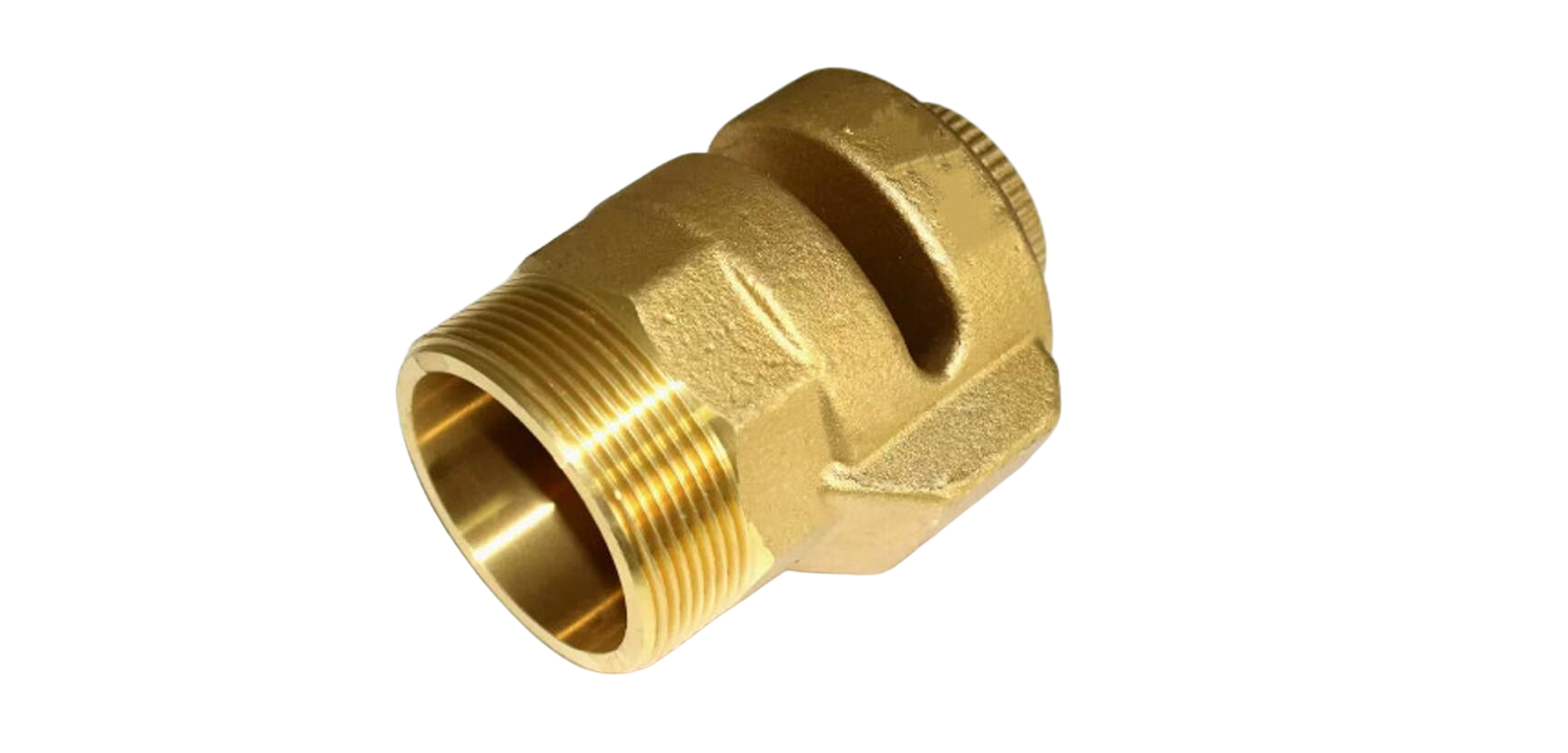

The negative pressure valve (also known as vacuum breaker valve or anti-siphon valve) is the "last line of defense" against abnormal negative pressure. It is an indispensable protective component, especially for FRP tanks and thin stainless steel tanks with poor negative pressure resistance. Even for thickened stainless steel tanks/steel-lined PE tanks that are resistant to negative pressure, installing a negative pressure valve can further improve safety and avoid accidental damage in extreme negative pressure scenarios. The key points for using negative pressure valves are detailed below from four aspects: core function, selection criteria, installation requirements, and daily maintenance.
The core function of the negative pressure valve is to "automatically balance the pressure inside and outside the tank" to achieve two-way protection: ① When negative pressure is generated inside the tank (pressure lower than external atmospheric pressure), the valve will open automatically to suck in external air, quickly balance the pressure inside and outside the tank, break the vacuum instantaneously, and prevent the tank from being collapsed or deformed; ② When the tank is under normal positive pressure (operating state), the valve will close automatically and seal completely without water leakage or cross-flow, and will not affect the normal operation of the water softener. Simply put, the negative pressure valve is a "life-saving valve" for the resin tank, specially designed to solve sudden hidden dangers such as drain pipe siphon, water backflow after supply cut-off, and negative pressure suction during pump shutdown.
No complex selection is required for household scenarios. Focus on the following 3 points to meet the protection needs of all water softeners and avoid unqualified products:
Material: Prioritize brass or food-grade engineering plastic materials, which are corrosion-resistant, not easy to rust, and suitable for the brine environment of water softeners, avoiding valve failure due to material aging;
Specification: 1/2 inch (4 points) or 3/4 inch (6 points) male thread interfaces are commonly used for household water softeners, which must match the tank or pipeline interfaces to avoid water leakage caused by incompatible interfaces;
Type: Select an "atmospheric vacuum breaker valve" suitable for household negative pressure scenarios (0.01–0.1MPa negative pressure range), which operates automatically without manual operation and adapts to the operating characteristics of fully automatic water softeners.
The protective effect of the negative pressure valve mainly depends on the installation position and method; incorrect installation will render the valve inoperable. The specific requirements are as follows:
Installation position: It must be installed on the top of the resin tank, near the control valve, or at the highest point of the outlet pipe (the top priority) to ensure that it can sense the negative pressure inside the tank at the first time and suck in air quickly; if installed too low, pressure cannot be replenished in a timely manner, and the protective effect will be lost;
Installation direction: It must be installed vertically upward with the air inlet facing up; horizontal or inverted installation is strictly prohibited, otherwise the sealing performance and air intake efficiency of the valve will be affected, leading to failure to open normally under negative pressure;
Installation details: The air inlet must not be blocked, covered, or immersed in water, and must remain unobstructed to ensure free entry of external air; wrap Teflon tape at the interface for good sealing to avoid water leakage;
Applicable scenarios: Mandatory installation is required for all FRP tanks and thin stainless steel tanks; for thickened stainless steel tanks/steel-lined PE tanks, installation is recommended in scenarios with overly long drain pipes, unstable water pressure, and frequent water supply cut-offs to improve the protection level.
Negative pressure valves do not require complex maintenance, but regular inspections can avoid valve jamming and failure and extend their service life. The specific maintenance frequency and content are as follows:
Inspect every 6 months: Check if the air inlet is blocked by dust or insects; if so, clean it with a soft brush to ensure unobstructed air intake;
Check valve flexibility every 12 months: Gently press the valve core to check if it is flexible and not stuck; replace the valve in a timely manner if the core is stuck;
Daily observation: Check for water leakage at the valve interface; if water leakage occurs, re-wrap Teflon tape for sealing or replace the sealing ring;
Replacement cycle: Under normal use, brass negative pressure valves can be used for 5–8 years, and plastic valves for 3–5 years. Timely replacement is recommended when the service life expires to avoid negative pressure hazards caused by aging and failure.
If slight depression or bulging of the tank body is found, or negative pressure is suspected, the following measures must be taken immediately to avoid further damage, and potential problems should be investigated in combination with the operation of the negative pressure valve:
Shut down the equipment immediately, close the water inlet and outlet valves of the water softener, and stop the regeneration program to prevent the continuous action of negative pressure and further deformation of the tank body;
Inspect core hidden danger points: First check if there is a siphon in the drain pipe and if the check valve is faulty, adjust the position of the drain pipe in a timely manner (e.g., pull out the pipe mouth inserted into the sewer) and replace the damaged check valve; then check if the negative pressure valve is working normally; if the negative pressure valve is stuck or the air inlet is blocked, clean it or replace it temporarily immediately;
If slight depression has occurred in the tank body, slowly open the water inlet valve to allow water to enter the tank slowly, gradually balance the pressure inside and outside the tank, and observe if the depression recovers; if the depression cannot be recovered, or the tank body is cracked or leaking, replace the tank immediately to avoid further damage to the resin and control valve;
If negative pressure occurs frequently even if the tank body is not damaged, inspect the installation and status of the negative pressure valve to ensure normal operation; if no negative pressure valve is installed, install it immediately, especially for FRP tanks and thin stainless steel tanks—this step cannot be omitted.
