Views: 531 Author: Site Editor Publish Time: 2026-04-04 Origin: Site
Installing an iron and manganese removal system before a water softener is mainly to protect the core component of the softener—the ion exchange resin—from failure caused by iron poisoning, ensuring the long-term stable operation and treatment performance of the water softener. A water softener achieves water softening by adsorbing calcium and magnesium ions in water through its internal ion exchange resin. However, the resin has a stronger affinity for iron and manganese ions in water. Many households in the United States rely on groundwater, and excessive iron and manganese levels are common. Installing a dedicated iron and manganese removal system upstream of the water softener can effectively remove iron and manganese before they enter the softener, providing critical pretreatment protection for the softener. This configuration is a popular golden combination in the U.S. water treatment industry.
States such as Minnesota, Wisconsin, and Michigan commonly have groundwater iron levels exceeding 1 mg/L, and manganese levels often reach 0.2–0.5 mg/L, making this region the most severely affected by iron and manganese pollution in the U.S.
Well water and municipal water in states such as Florida and Iowa also frequently show excessive iron and manganese levels (e.g., Iowa once recorded extreme manganese levels of 0.62–1.3 mg/L).
Water in the U.S. (especially the Midwest, Great Plains, and coastal areas) has two notable characteristics that make using a water softener alone extremely risky:
Hard water is widespread, and excessive iron and manganese are even more common
Strict standards: The U.S. EPA classifies iron and manganese as secondary contaminants, with recommended limits of 0.3 mg/L for iron and 0.05 mg/L for manganese (the manganese standard is stricter than China’s).
Actual excess: USGS data shows that approximately 19% of private wells exceed iron limits, and 21% exceed manganese limits. Groundwater in the Mississippi Valley, Great Lakes region, and East Coast has extremely high iron and manganese content.
Lack of regulation for private wells

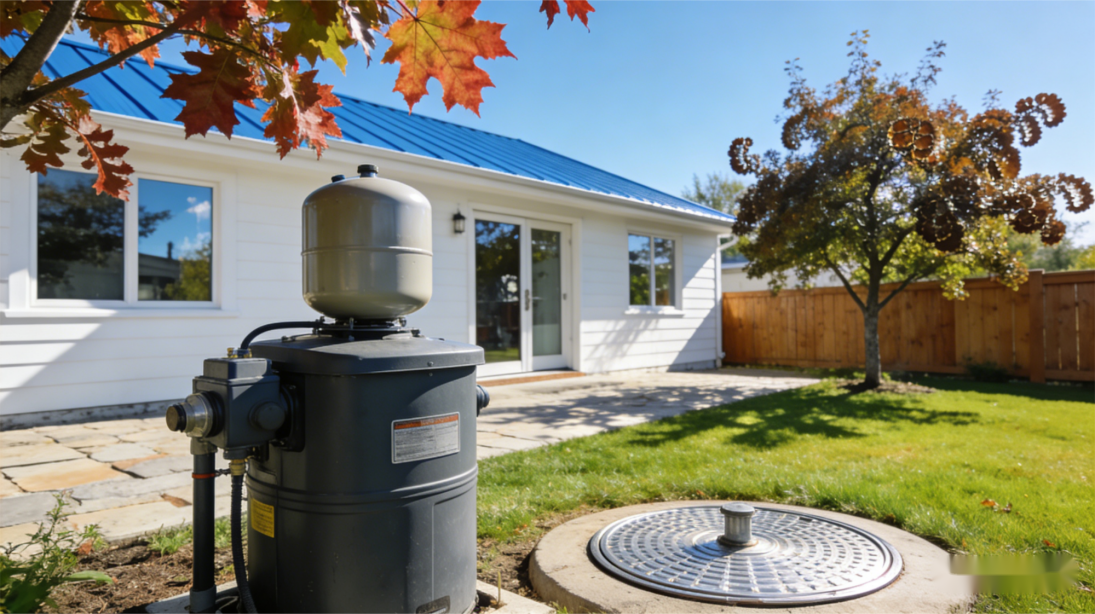

About 15 million households in the U.S. use private wells. These water sources are untreated by municipalities, and directly extracted groundwater often contains high hardness, excessive iron and manganese, and hydrogen sulfide simultaneously. Users must handle whole-house water treatment on their own.
Many U.S. households, especially those in suburban or rural areas, rely on private wells for domestic water. As groundwater flows through mineral-rich rock formations, it dissolves large amounts of iron and manganese. For well water users, high concentrations of iron and manganese are common water quality issues, causing a metallic smell in water and unsightly reddish-brown stains on fixtures and laundry. Given this common situation, the concept of pre-filtration is highly important in U.S. water treatment solutions. For well water users, installing a separate iron and manganese filter before the water softener is a standard and necessary configuration after water testing confirms excessive iron levels (typically above 0.3 mg/L or 1 PPM).

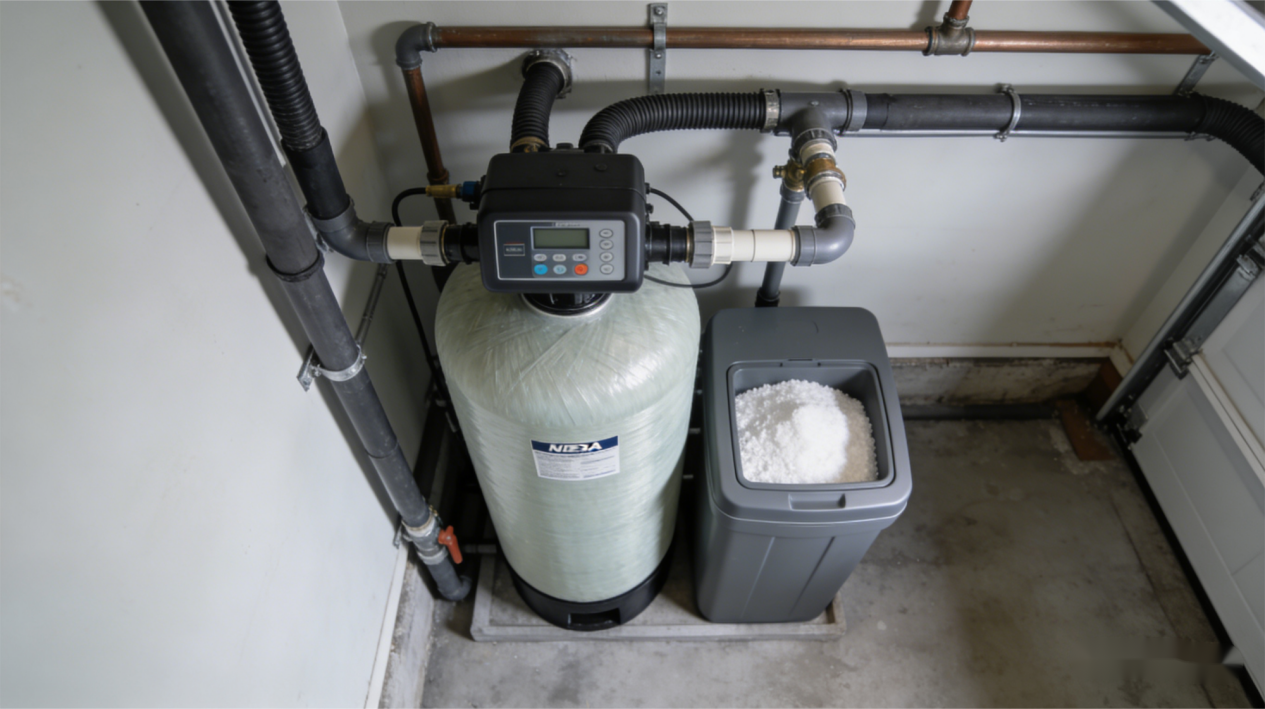

In professional U.S. water treatment guidelines, a water softener is regarded as precision equipment, not a "universal trash can". The core of a water softener is the ion exchange resin, which softens water by exchanging sodium ions for calcium and magnesium ions. However, the resin has very low tolerance for heavy metal ions such as iron and manganese, and excessive levels will trigger a chain of problems:
Resin "poisoning" and failure: Iron and manganese ions are firmly adsorbed by the resin and difficult to regenerate. Iron ions combine with resin functional groups to form stable complexes that cannot be eluted by conventional salt regeneration, occupying exchange sites and causing permanent degradation of the resin’s softening capacity, shortening its service life from 3–5 years to 1–2 years.

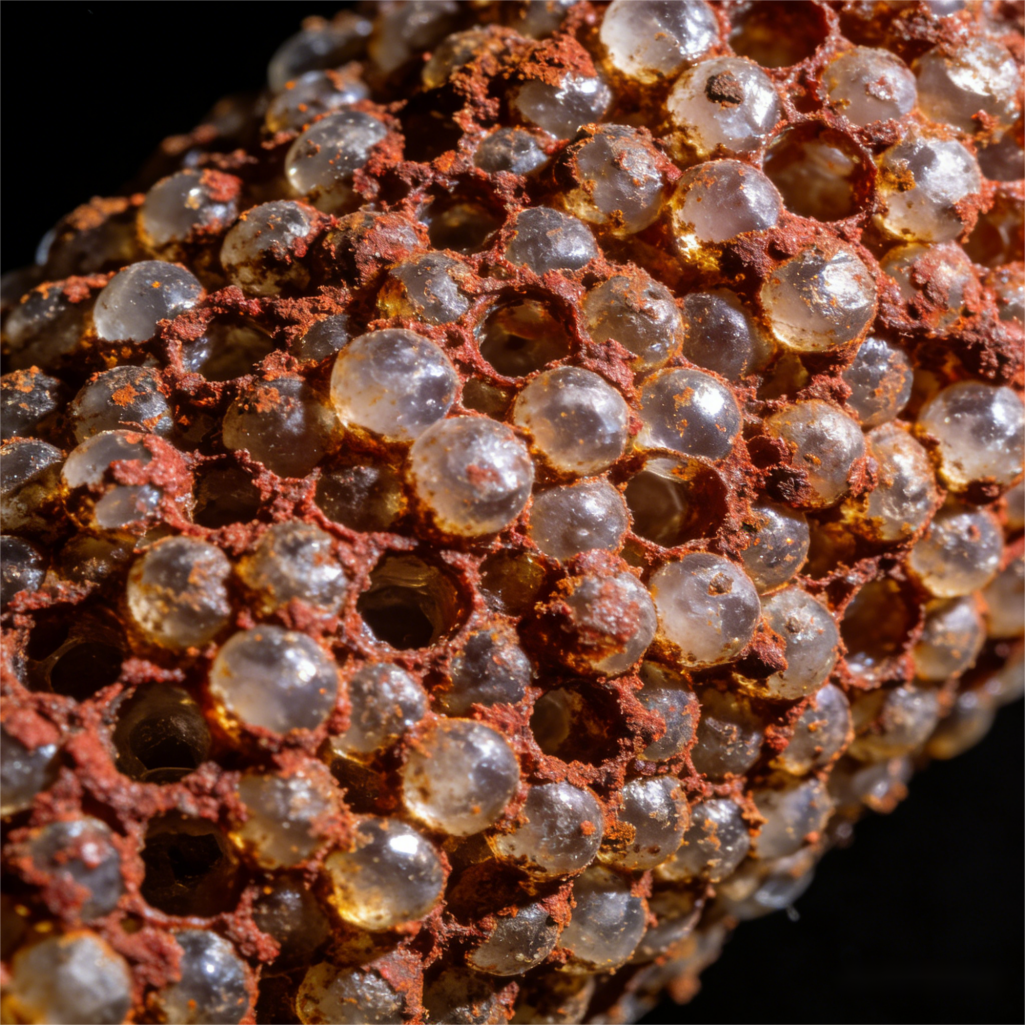

Equipment clogging: Iron and manganese oxidize and deposit in the resin layer. Fe²⁺ and Mn²⁺ in water form Fe(OH)₃ and MnO₂ colloids or precipitates after contact with air or oxidation, tightly wrapping resin particles and clogging exchange pores. This prevents the resin from adsorbing calcium and magnesium ions, causes caking and clogging of resin pores and water distributors, and increases equipment pressure loss while reducing water production.
Contamination of downstream equipment and water use scenarios: Excessive iron and manganese cause yellowish water with a rusty smell, leave brown/black rust stains on fixtures, laundry, and pipes, clog the water softener control valve, and shorten the service life of water-using appliances. They also contaminate the brine tank—rust enters the salt tank during backwashing, polluting the regeneration brine and creating a vicious cycle.
Equipment Role | Function | U.S. Water Quality Pain Point | Why It Must Be Installed Upstream |
|---|---|---|---|
Iron Filter (Iron and Manganese Removal System) | Removes Fe/Mn through oxidation + filtration | Well water often contains iron bacteria and hydrogen sulfide, easily forming colloids or precipitates | Intercepts large amounts of solid particles and iron oxide to prevent clogging of the softener’s water distributor |
Water Softener | Removes Ca/Mg through ion exchange | Resin is extremely sensitive to iron ions | Prevents iron ions from occupying resin exchange sites and causing poisoning failure |
Although a water softener can theoretically treat small amounts of dissolved iron (< 2–3 mg/L), iron levels in U.S. well water often exceed this limit. Once exceeded, the resin will quickly foul, and regeneration cannot restore its performance.
U.S. water treatment professionals strongly recommend: a dedicated iron filter must be installed upstream when iron levels > 1 ppm.
Consensus in the U.S. water treatment industry: an iron and manganese removal system must be installed before a water softener if raw water has Fe > 0.3 mg/L or Mn > 0.1 mg/L, otherwise the resin will inevitably be contaminated.
In summary, installing an iron and manganese removal system before a water softener is a common and necessary practice in the U.S. because many households use groundwater rich in iron and manganese, protecting the expensive water softener and ensuring its treatment performance. The situation is different for households using municipal tap water. Water treatment plants usually control iron and manganese levels to meet national drinking water standards (e.g., China’s standard requires iron ≤ 0.3 mg/L). Therefore, additional iron and manganese removal systems are usually unnecessary when using municipal tap water, unless severe pipeline aging in the area causes secondary pollution.
Water Source Type | Typical U.S. Regions | Need Upstream Iron and Manganese Removal? | Configuration Notes |
|---|---|---|---|
Municipal Tap Water | Major cities on the East and West Coasts | Usually not required | Municipal water has treated iron and manganese. Only a pre-filter for sediment or an activated carbon filter for dechlorination (chlorine degrades resin) is needed before the softener. |
Private/Community Well Water | Midwest, South, Rural Areas | Strongly recommended / Required | Standard process: Sediment filter → Iron and manganese removal tank (aeration/greensand) → Water softener. This is the standard whole-house solution for hard well water treatment in U.S. households. |
It is recommended to first test the iron (Fe) and manganese (Mn) content in water. If Fe > 0.3 mg/L or Mn > 0.05 mg/L, be sure to reserve space for an iron and manganese removal system before the water softener.
For high iron and manganese water quality, the common process for U.S. household/commercial use is:
Raw water → Aeration/oxidation (oxidize Fe²⁺, Mn²⁺ into precipitates) → Iron and manganese filter (remove precipitates) → Water softener (ion exchange for hardness removal) → Water points
Iron and manganese removal systems are mainly divided into three categories: oxidation filtration, contact oxidation, and ion exchange. The North American market also offers complete sets of equipment dedicated to well water.
Working principle: Use aeration or chemical oxidants (e.g., potassium permanganate, chlorine, hydrogen peroxide) to oxidize soluble divalent iron (Fe²⁺) and divalent manganese (Mn²⁺) in water into insoluble trivalent iron (Fe³⁺) and tetravalent manganese (MnO₂) precipitates, which are then physically trapped by multi-media filter media (e.g., quartz sand, manganese sand, Birm) and discharged through backwashing.
Applicable scenarios: Well water with iron content > 3 mg/L, hydrogen sulfide (rotten egg smell), or iron bacteria. This is a heavy-duty solution for treating "dirty well water" in U.S. households.
Common North American equipment: AIO (Air-In-Oxidation) aeration systems, Greensand filters, Birm filters.
Aeration + sand filter/manganese sand filter tank: The most classic, widely used in old houses/farms in North America
Suitable for well water with high iron, high manganese, and hydrogen sulfide (rotten egg smell) coexisting.
Structure: Air compressor/ejector aeration → sedimentation tank → manganese sand/quartz sand filtration
Chemical oxidation filtration:
Dosing small amounts of chlorine, hydrogen peroxide, or potassium permanganate to oxidize iron and manganese, suitable for extremely high iron and manganese levels where aeration is insufficiently fast. Commonly used in U.S. commercial/large-flow well houses.
The first choice for upstream installation of household water softeners in North America, these integrated filter tanks do not require separate aeration. They use the catalytic activity on the filter media surface to complete oxidation during filtration without additional oxidants.
Working principle: When water passes through the catalytic filter media layer (e.g., MnO₂-coated media), the media surface provides a reaction site to accelerate the oxidation of iron and manganese by dissolved oxygen. It integrates oxidation and filtration, and the equipment is usually more compact.
Applicable scenarios: Well water with mild to moderate pollution, iron content of 0.3–3 mg/L, and sufficient dissolved oxygen. Filter media is prone to caking if iron content is too high.
Common North American equipment: Filox filters, Pyrolox filters (using manganese dioxide-coated media).
Greensand filter: The most classic iron and manganese removal media in the U.S., with inherent oxidation capacity, can remove iron, manganese, and hydrogen sulfide simultaneously, requiring regular regeneration with chlorine or potassium permanganate.
Birm filter media filter: Gentler than greensand, no chemical regeneration required. Oxidizes iron and manganese using dissolved oxygen in water, automatic backwashing, suitable for mild to moderate iron and manganese excess, the most hassle-free for household use.
Premium oxidation filter media such as Pyrolox, Filox: Commonly used in high-end commercial/high-end whole-house systems, long service life, low backwashing frequency, higher iron and manganese removal efficiency.
Principle: Directly adsorbs iron and manganese ions with resin, similar to a water softener. Uses the ion exchange capacity of softening resin to remove iron and manganese, often misunderstood as "softener iron removal".
Working principle: Same as a water softener; the resin exchanges not only calcium and magnesium (Ca²⁺/Mg²⁺) but also divalent iron (Fe²⁺) and divalent manganese (Mn²⁺). However, the resin has lower selectivity for iron and manganese than calcium and magnesium, and is highly susceptible to iron poisoning.
Applicable scenarios: Extremely mild iron and manganese excess (Fe < 0.5 mg/L), and water must be free of dissolved oxygen (to prevent iron oxidation and deposition in the resin layer). In North America, this is usually regarded as an "incidental function" rather than a dedicated solution.
Dedicated cation exchange resin for iron and manganese removal: Suitable for very low iron and manganese levels (Fe＜0.5 ppm) where large filter tanks are not desired.
Disadvantage: Poisoned by excessive iron, generally not recommended as the main iron and manganese removal solution in the U.S.
For the compound problems of private well water (sediment + iron and manganese + odor), the North American market has formed standardized whole-house treatment packages.
Mainstream configuration: "Cyclone separator + aeration tank + multi-media filter tank + water softener + UV sterilizer".
Working process:
Spin-down Filter: Removes large-particle sediment.
Air Injection Tank: Injects air to oxidize iron and manganese and strip hydrogen sulfide.
Media Filter: Filled with Birm or Greensand to trap oxidized iron and manganese precipitates.
Water Softener: Responsible for water softening after iron and manganese are removed.
UV Sterilizer: Addresses bacteria risks in well water.
Integrated iron and manganese removal + central water purifier: Fully automatic backwashing, powered on and automatic operation.
Iron and manganese removal + activated carbon 2-in-1 tank: Removes rust smell, residual chlorine, and color simultaneously, suitable for municipal water with mild iron and manganese issues.
Private well water: Birm/Greensand iron and manganese tank → Water softener
Mild iron and manganese municipal water: Big blue activated carbon + iron and manganese composite filter → Water softener
High iron and manganese + odor water: Aeration + manganese sand → Water softener
