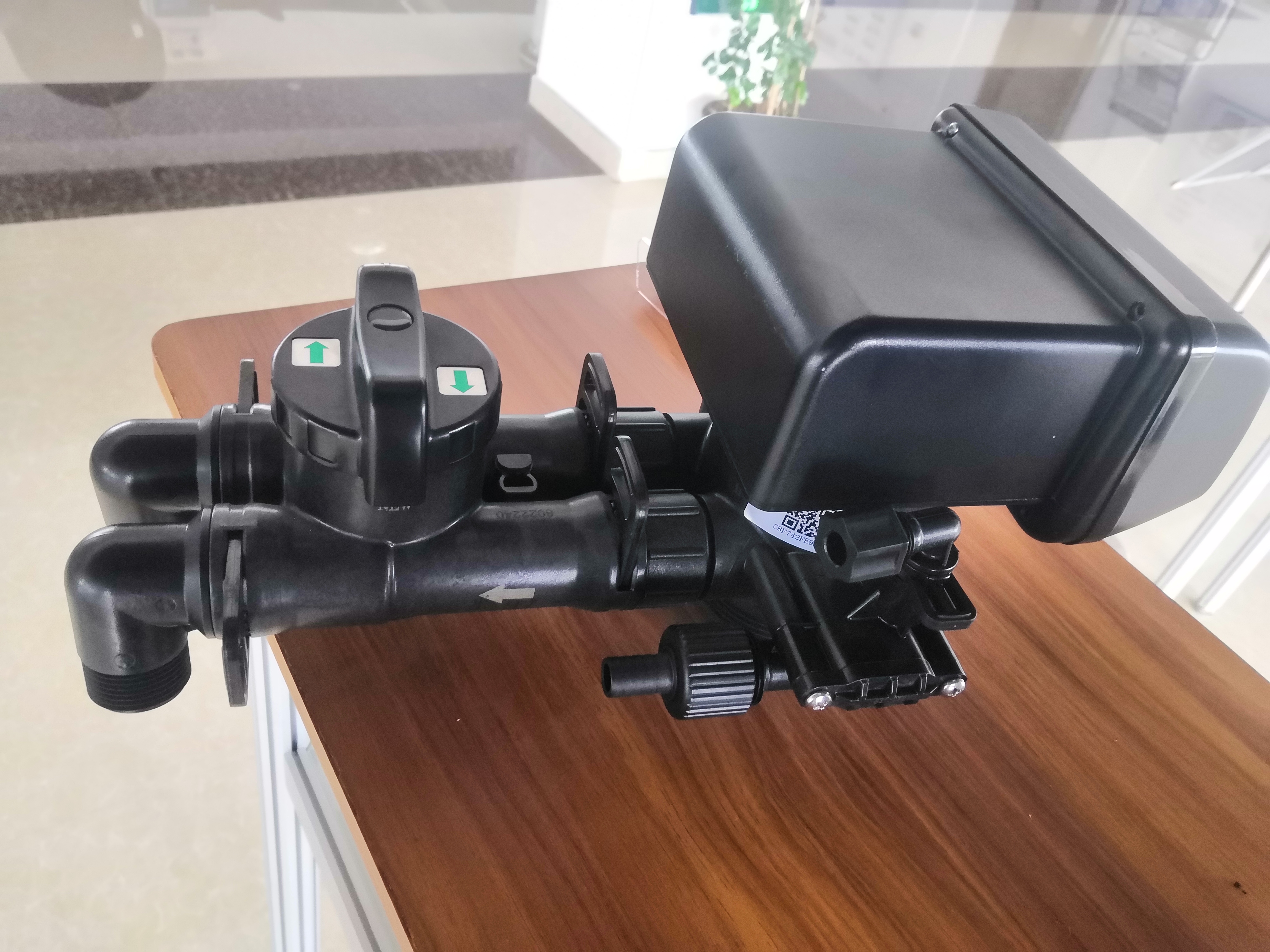

WIFI Type F163 Automatic Multiport Valve
WIFI Type F163 Automatic Multiport Valve
type | inlet | outlet | drain | salt suction port | base | central tube | Hard water bypass | Regeneration method |
F163（82603FD） | G1 | G1 | NPT3/4 | G3/8 | 2.5’’-8NPSM | 1.05’’OD(26.7mm) | yes | Forward/Countercurrent |
The main technical parameters |
Water production（0.1MPAdifferential pressure） | F163:2.7m3/h (Output without bypass valve installed) |
power adapter input | AC100~240V /50-60HZ |
Power adapter output | DC12V,1.5A |
Working period | The working cycle in normal mode: running-water replenishment-240min molten salt-backwash-salt absorption/slow wash-forward wash. Work in vacation mode: water replenishment - 240min molten salt - salt absorption - off |
Manual Filter Valve |
| Manual Softener Valve |
|
Automatic Filter Valve
|
Automatic Softener Valve |
| One Valve On Duplex Tanks |
| Residential Softener of D Series |
PRODUCT DISPLAY
Main Application
Applicable: household softening system, ion exchange equipment, softening system in reverse osmosis pretreatment, etc.
Water softener |
|
Industrial water filter |
