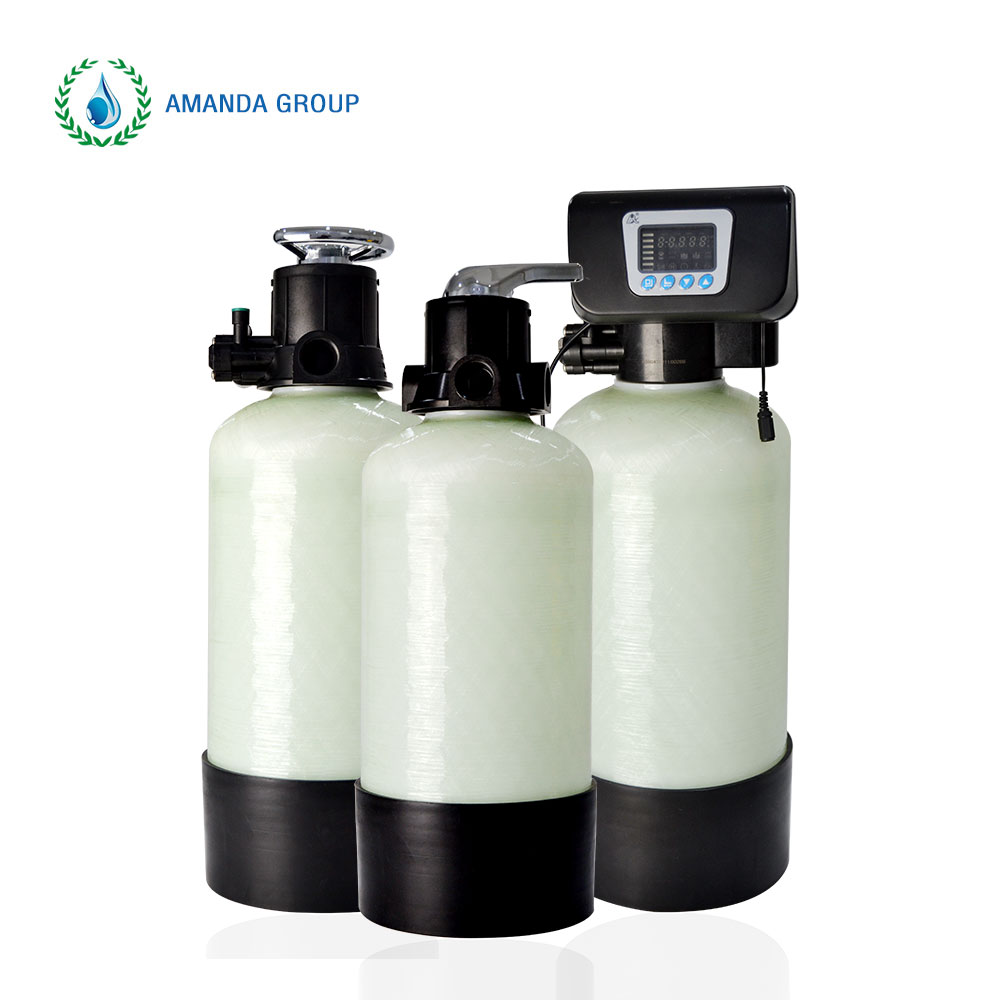

8"x24" 8"x17" Small Filtration Media Vessel
Key Features and Benefits
The compact size of a FRP pressure tank makes it perfect for various water treatment needs. These tanks can hold different filtration media and are commonly used in demineralisation systems, DI bottles, small sand filters, and more. They are also great for multi-media filters, iron filters, carbon filters, and other media filters. With their versatility, FRP filter pressure vessel tanks are widely used to provide clean and safe water for different applications.
AMANDA-H TANK SPECIFICATION
| Model | Vessel Size | Vol | Opening | Dimension/mm | Base |
| Inch | mm | L | Top | Bot. | LA | LB | LC | D |
| H2162/4T-R | 21x62 | 550x 1650 | 326 | 4"-8UN | / | 1650 | 1600 | / | 550 | FRP Round
|
| H2162/4T | 21x62 | 550x1910 | 326 | 4"-8UN | / | 1910 | 1600 | / | 550 | FRP Tripod |
| H2162/4T4B | 21x62 | 550x1910 | 326 | 4"-8UN | 4"-8UN | 1910 | 1590 | 320
| 550 | FRP Tripod |
| H2472/4T-R | 24x72 | 615x1890 | 471 | 4"-8UN | / | 1890 | 1839 | / | 615 | FRP Round |
| H2472/4T | 24x72 | 615x2150 | 471 | 4"-8UN | / | 2150 | 1839 | / | 615 | FRP Tripod |
| H2472/4T4B | 24x72 | 615x2150 | 471 | 4"-8UN | 4"-8UN
| 2150 | 1830 | 320 | 615 | FRP Tripod |
| H3072/4T-R | 30x72 | 780x 1860 | 758 | 4"-8UN | / | 1860 | 1839 | / | 780 | FRP Round |
| H3072/4T | 30x72 | 780x2150 | 758 | 4"-8UN | / | 2150 | 1830 | / | 780 | FRP Tripod
|
| H3072/4T4B | 30x72 | 780x2150 | 758 | 4"-8UN | 4"-8UN | 2150 | 1830 | 320
| 780 | FRP Tripod
|
| H3672/4T4B | 36x72 | 918x2150 | 1023 | 4"-8UN | 4"-8UN | 2150 | 1830 | 320 | 918 | FRP Tripod |
| H3672/6T6B | 36x72 | 918x2260 | 1023 | 6"-flane | 6"-flange | 2260 | 1940 | 320 | 918 | FRP Tripod |
H4272/6T6B | 42x72 | 1088x2270 | 1389 | 6"-flane | 6"-flange | 2270 | 1950 | 320 | 1088 | FRP Tripod |
H4872/6T6B | 48x72
| 1218x2270 | 1743 | 6"-flane | 6"-flange | 2270 | 1950 | 320 | 1218 | FRP Tripod |
| H6370/6T6B | 63x70 | 1620x1780 | 2580 | 6"-flane | 6"-flange | 2100 | 1780 | 320 | 1620 | FRP Tripod |
| H6383/6T6B | 63x83 | 1620x 2080 | 3150 | 6"-flane | 6"-flange | 2400 | 2080 | 320 | 1620 | FRP Tripod |
*The actual dimmension may have ±1.2% error due to PE materlats contraction coefficient
PRODUCT DISPLAY
Material of Construction: FRP with polyethylene inner shell.
Color: Blue (default) or natural color (Optional).
Opening: Top opening with 2.5″ Threaded, 2.5"-8NPSM neck.
Total Capacity: 11.5 liter.
Nominal Dimension: 8 inch OD x 17 inch High.
Maximum Operating Pressure: 150 psi (1 MPa).
Burst Pressure: 4 times of design pressure.
Maximum Operating Temperature: 49°C.
PRODUCING PROCESS
PRODUCTION PROCESS
PACKAGE AND SHIPPING
1. Client's Requirements are in the first :
We are gald to customized package as per clients's demands, including logo and colors design , importantly the fiber reinforced polymer tanks also can do client's brand insteading of our manufacturer's .
2. Normally Amanda Company package is by waterproof plastic bag with carton box.
Kindly supply pictures for your reference .
