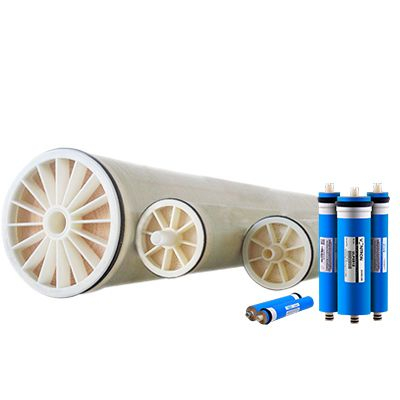

OV-FR SERIES INDUSTRIAL MEMBRANE EL EMENTS
MAIN TECHNICAL FEATURE
OV-FR series fouling membrane components are produced by qualified materials with durable, high desalination, large permeate flow components properties., OV-FR series membrane elements is designed to be easily-clean, with a wider feed water inflow conduit net. A special surface treatment is used to change the surface smoothness and the embrane material, for the purposes of increasing the membrane surface hydrophilicity. The structure of the contaminants and microbial contamination deposited on the membrane surface. Therefore, the special design improves cleaning effect, reduces the membrane element pollution and elongates service life. OV-FR series are perfect for desalination of surface water, groundwater, tap water and other low salinity water sources(s10000ppm). It is mainly used in industrial water reuse, boiler feed water and other industrial water treatment, as well as urban sewage treament and industrial wastewater which contain a small amount of organic pollutans.

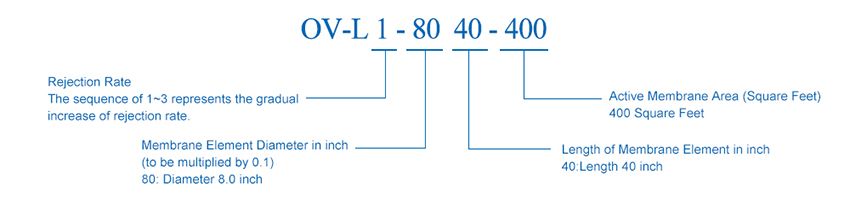

SPECIFICATIONS AND MAIN PROPERTIES
| Model | Active area f² (m²) | Permeat flow rate GPD (m³/d) | Stabilized salt rejection % | Minimum salt rejection % |
| OV-FR-8040-365 | 365 (33.9) | 9600 (36.3) | 99.5 | 99.3 |
| OV-FR-8040-400 | 400 (37.0) | 10500 (39.7) | 99.5 | 99.3 |
OV-FR-4040 | 85 (7.9) | 2200 (9.3) | 99.5 | 99.3 |
Testing condition:
Testing sclution concentration-- 2000 ppm
Test solution pH value一7.5
Recovery rate of single membrane element一15%
Testing temperature一 25℃
Testing pressure一225 psi (1.55 Mpa)
Operation Limits and Conditions:
Free Chlorine Tolerance一<0.1 ppm
Maximum feed water SDI5一5
pH range of feed water during continuous operation- 3~10
pH range of feed water during chemical cleaning 一2~12
Maximum feed water temperature一45°C
Maximum operating pressure一600 psi (4. 14 Mpa)
Maximum pressure drop of single element一15 psi (0.1 Mpa)
Maximum permeated flux一75 gpm (17 m2/h) (Model:8040)
16 gpm (3.6 m2/h) (Model: 4040)
CHARACTERISTICS
Low voltage (L) series is developed by ovay used for low concentration brackish water desalination of aromatic polyamide composite membrane element, has many characteristics, such as desalination rate is high, large flux, can be widely used in municipal water supply, surface water recycle, coal chemical, thermal power boiler make-up water, food industry, textile printing and dyeing, electroplating industry, and other fields.

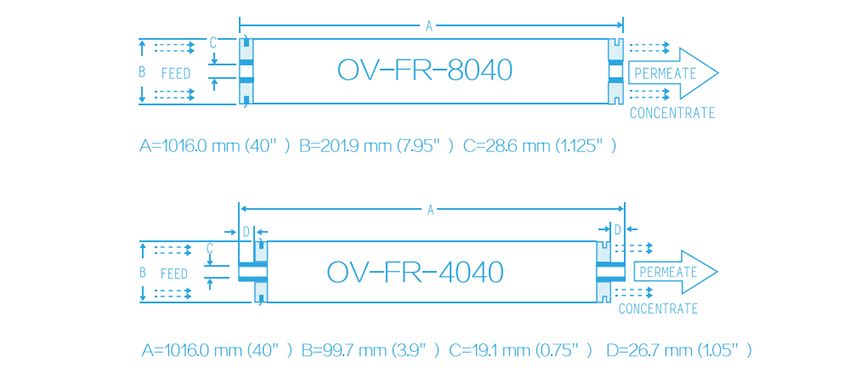

PRODUCT SIZE
WE CAN CUSTOMIZE THE EQUIPMENT SIZE ACCORDING TO YOUR NEEDS!
