AMD-CUV-320 Ultraviolet Light Water Sanitizer
You are here: Home » Products » UV Water Sterilizer » Commercial UV Water Sterilizer » AMD-CUV-320 Ultraviolet Light Water Sanitizer

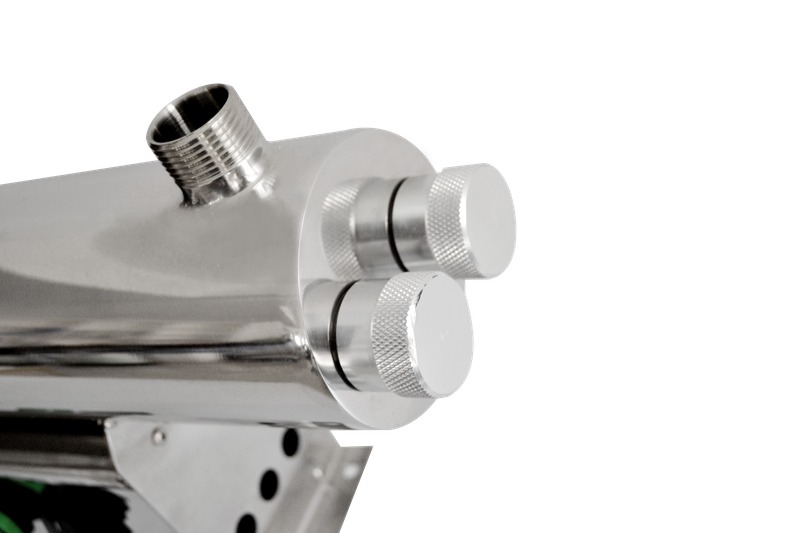

AMD-CUV-320 Ultraviolet Light Water Sanitizer

Lamp Watts:80
Lamp QTY:4
Inlet/Outlet Port:DN80
Lamp - Replace every 12 months
Quartz Sleeve - Replace every 24 months or as needed
sharethis sharing button

 Commercial application


  Product description



Lamp Watts:80

Lamp QTY:4

Inlet/Outlet Port:DN80

Lamp - Replace every 12 months

Quartz Sleeve - Replace every 24 months or as needed

  Sterilization Principe

UV radiation has three wavelength regions: UV-A, UV-B and UV-C, and the last region, short-wave UV-C, has disinfecting and germicidal properties.

Low-pressure mercury arc lamps, similar to fluorescent lamps, produce UV radiation in the 254 pressure (nm) range. One nanometer is one billionth of a meter (10^-9 meters).

These lamps contain elemental mercury and an inert gas, such as argon, in the UV transmission tube, usually quartz (which, unlike glass, is transparent to UV light).

Traditionally, most mercury arc UV lamps are of the so-called "low pressure" type because of their relatively low partial pressure of mercury, low total vapor pressure (about 2 mbar), low external temperature (50-100 °C) and low power consumption.

These lamps emit near-monochromatic UV radiation at a wavelength of 254 nm, which is in the optimal range for UV energy absorption by nucleic acids (~240-280 nm); the UV light breaks bonds in the nucleic acids and thus kills microorganisms.

Amanda Ultra Violet Water Sterilizer Sterilization Principle

  Operating Conditions

Environmental conditions:

1. Temperature: 5"C -40C

2.  Relative humidity: s90% (at ambient temperature 25*C

3. Power supply: 10V/220V/240W/380V , 50Hz/60Hz

4. Max. operating pressure: s 1.0MPa

Water supply requirements:

Parameter Standard
Fe ≤0.3 (mg/)
Hydrogen sulfide ≤0.05 (mg/)
Suspended solid ≤10 (mg/)
Mn ≤0.05 (mg/)
Hardness ≤120 (mg/)
Chroma ≤15 (degree)
Turbidity ≤5 (NTU)
Water temperature 5°C ~60C


Model Flow Rate @ 30mj/cm⊃2; Lamp Watts



Inlet/outlet Port Reactor Size(mm)
AMD-CUV-80 24 5.5 40 2 G1 1/4" M Thread 920 100 233
AMD-CUV-120 35 8 40 3 G1 1/2" M Thread 920 159 300
AMD-CUV-160 44 10 40 4 G1 1/2" M Thread 920 159 300
AMD-CUV-160 53 12 80 2 DN50 920 101 300
AMD-CUV-240 88 20 80 3 DN65 920 133 320
AMD-CUV-320 110 25 80 4 DN80 975 159


AMD-CUV-360 132 30 120 3 DN80 1350 159 380
AMD-CUV-480 154 35 80 6 DN100 920 219 400
AMD-CUV-600 176 40 120 5 DN100 1250 159 580
AMD-CUV-620 198 45 155 4 DN100 1660 159 380
AMD-CUV-720 220 50 120 6 DN100 1250 168 530
AMD-CUV-775 242 55 155 5 DN100 1660 219 550
AMD-CUV-930 286 65 155 6 DN125 1660 219 530
AMD-CUV-1085 330 75 155 7 DN125 1660 219 480
AMD-CUV-1240 420 95 155 8 DN125 1600 219 480
AMD-CUV-1600 490 110 320 5 DN150 1600 280 550
AMD-CUV-1920 660 150 320 6 DN200 1600 300 550

The above pictures and parameters are only for reference. We conserve all rights of parameter modification without prior notiiccation.

  Product Advantages

*Immediate and safe disinfection without added chemicals.

*The odor and taste of the water is not affected.

*Simple installation without any reaction vessels or tanks.

*Economical maintenance costs.

  Product Application

Pure Water: Drinking water; Tap water factory; Food process water; Hospital and Pharmaceutical; Beer industry; Hotel; Lab ultrapure water; Cosmetics industry.

Circulating Water: Water entertainment facilities swimming pool water; Landscape water; Industrial circulating cool water;Spa; Micro-electronics.

Wastewater: Municipal sewage; Hospital sewage; Oilfield reinjection water; Urban sewage; Reclaimed water;Slaughter-house wastewater; Sewage from ships.

Aquaculture: Hydroponic shellfish; Fish hatcheries; Farms;Aquarium.Military bases, Field operations, Aircraft, Ships, Submarine water disinfection.

Amanda-Ultra Violet Water Sterilizer-Swimming pool water1Swimming Pool Water
Amanda-Ultra Violet Water Sterilizer-Campus water seilizationCampus Water Seilization
Amanda-Ultra Violet Water Sterilizer-Freshwater aquacultureNon-Soil Cltvation

  UV Light Purification Advantages

1. High efficient UV Light Purification:

Normally kill 99-99.99% bacteria within 1 to 2 seconds.

2. Broad spectrum:

UV Light Purification has broadest spectrum, can kill almost all bacteria and virus.

3. No secondary pollution:

Do not add any chemical, so can not create secondary pollution to water and ambient environment, and do not change any ingredient in water.

4. Safe and reliable to operate:

Traditional disinfection technologies, such as chloride or ozone, which disinfection agent itself are highly toxic and flammable material while  48 gpm uv light sterilizer has no such potential safety hazard.

5. Low maintenance fee:

UV lamps occupies a small area; structure requirement is simple, so total investment is smaller. Lower in operation, it costs only half than that chlorine disinfection in kiloton water treatment.

  UV Light Purification Advantage Than Others Way


UV Chlorination Ozone
Destruction Physical Chemical Chemical
Capital Cost Low Medium High
Operating Cost Low Medium High
Maintenance Cost Low Medium High
Maintenance Frequency Low Medium High
Disinfection Performance Excellent Very good Unpredictable

Contact time

1-5 Seconds 25-24 minutes 5-10 Minutes
Persanal Hazards Low Medium High
Toxic Chemicals No Yes Yes
Water Chemistry Change No Yes Yes
Residual Effect No Yes Yes

  Working Theory Of UV Light Purification

UV Light Purification is invisible, exists in the outside of UV spectrum,so it is called UV radiaction. According to a different wavelength range,they are cut into A, B, C three kinds of bands, including the C-band UV wavelength between 240-260nm, which is the most effective sterilizer band, band's strongest point it the wavelength of 253.7nm.

Working Theory OfUV Light Purification

  Swimming pool disinfection system

Swimming pool disinfection system

  Where Need UV Light Purification?

  • Pure Water: Drinking Water;Tap Water Factory; Food Process Water; Hospital and Pharmaceutical;

  • Beer Industry; Hotels; Lab Ultrapure Water;Cosmetics Industry.

  • Circulating Water: Water Entertainment Facilities&Swimming pool water; Landscape water; Industrial Circulating Cooling Water; Spa; Micro-electronics.

  • Wastewater: Municipal Sewage; Hospital Sewage; Oilfield Reinjection Water; Urban Sewage;Reclaimed Water; Slaughter-house Wastewater; Sewage from Ships.

  • Aquaculture: Hydroponic Shellfish; Fish Hatcheries; Farms; Aquarium.
