Best Price 10x54 FRP Water Softener Vessel with NSF Certificate 150 Psi
Key Features and Benefits
High-strength FRP Material: Constructed with corrosion-resistant fiberglass reinforced plastic (FRP), this vessel offers excellent durability and pressure resistance.
NSF Certified: The vessel has obtained NSF international certification, ensuring that it meets relevant standards and is a safe and reliable product.
Suitable for Water Softening Systems: The 10x54 size is suitable for various water softening systems and can be widely used in homes, hotels, drinking water facilities, swimming pools, and more.
Maximum Working Pressure of 150 psi: The vessel is designed to withstand high pressure up to 150 psi, ensuring stable operations and long-lasting use.
Strong Compatibility: With its standard 10-inch diameter and 54-inch height, the vessel is compatible with commonly available water softening media, making replacement and maintenance convenient.
AMANDA-H TANK SPECIFICATION
| Model | Vessel Size | Vol | Opening | Dimension/mm | Base |
| Inch | mm | L | Top | Bot. | LA | LB | LC | D |
| H2162/4T-R | 21x62 | 550x 1650 | 326 | 4"-8UN | / | 1650 | 1600 | / | 550 | FRP Round
|
| H2162/4T | 21x62 | 550x1910 | 326 | 4"-8UN | / | 1910 | 1600 | / | 550 | FRP Tripod |
| H2162/4T4B | 21x62 | 550x1910 | 326 | 4"-8UN | 4"-8UN | 1910 | 1590 | 320
| 550 | FRP Tripod |
| H2472/4T-R | 24x72 | 615x1890 | 471 | 4"-8UN | / | 1890 | 1839 | / | 615 | FRP Round |
| H2472/4T | 24x72 | 615x2150 | 471 | 4"-8UN | / | 2150 | 1839 | / | 615 | FRP Tripod |
| H2472/4T4B | 24x72 | 615x2150 | 471 | 4"-8UN | 4"-8UN
| 2150 | 1830 | 320 | 615 | FRP Tripod |
| H3072/4T-R | 30x72 | 780x 1860 | 758 | 4"-8UN | / | 1860 | 1839 | / | 780 | FRP Round |
| H3072/4T | 30x72 | 780x2150 | 758 | 4"-8UN | / | 2150 | 1830 | / | 780 | FRP Tripod
|
| H3072/4T4B | 30x72 | 780x2150 | 758 | 4"-8UN | 4"-8UN | 2150 | 1830 | 320
| 780 | FRP Tripod
|
| H3672/4T4B | 36x72 | 918x2150 | 1023 | 4"-8UN | 4"-8UN | 2150 | 1830 | 320 | 918 | FRP Tripod |
| H3672/6T6B | 36x72 | 918x2260 | 1023 | 6"-flane | 6"-flange | 2260 | 1940 | 320 | 918 | FRP Tripod |
H4272/6T6B | 42x72 | 1088x2270 | 1389 | 6"-flane | 6"-flange | 2270 | 1950 | 320 | 1088 | FRP Tripod |
H4872/6T6B | 48x72
| 1218x2270 | 1743 | 6"-flane | 6"-flange | 2270 | 1950 | 320 | 1218 | FRP Tripod |
| H6370/6T6B | 63x70 | 1620x1780 | 2580 | 6"-flane | 6"-flange | 2100 | 1780 | 320 | 1620 | FRP Tripod |
| H6383/6T6B | 63x83 | 1620x 2080 | 3150 | 6"-flane | 6"-flange | 2400 | 2080 | 320 | 1620 | FRP Tripod |
*The actual dimmension may have ±1.2% error due to PE materlats contraction coefficient

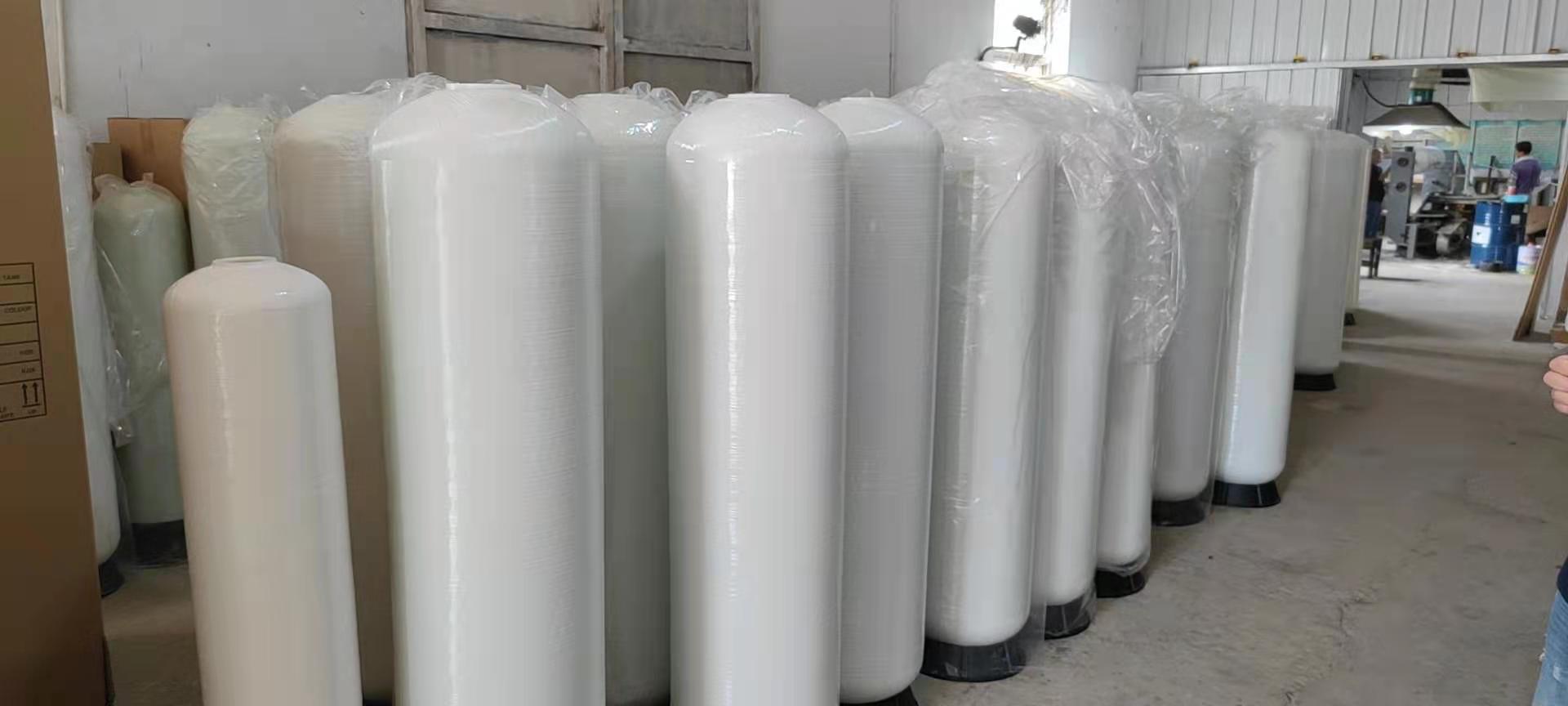

PRODUCT DISPLAY
Vessel Size: 10x54 inches
Material: FRP (Fiberglass Reinforced Plastic)
Working Pressure: Maximum 150 psi
Certification: NSF certified
Compatible Systems: Water softening systems
PRODUCING PROCESS
Amanda fiber reinforced polymer tanks processes used for manufacturing :
1. 6” to 36" PE liners are made from CNC controlled blow molding machine ,
2. PE liner of industrial tanks are made from CNC controlled rotational molding machine ,
3. Inlet inserts and bases are from CNC controlled injection molding machine,
4. FRP outer shells are made from CNC controlled multi-axis filament winding machine.
PRODUCTION PROCESS
PACKAGE AND SHIPPING
1. Client's Requirements are in the first :
We are gald to customized package as per clients's demands, including logo and colors design , importantly the fiber reinforced polymer tanks also can do client's brand insteading of our manufacturer's .
2. Normally Amanda Company package is by waterproof plastic bag with carton box.
Kindly supply pictures for your reference .
