Split Tank Whole House Water Softener System

DESCRIPTION

Why Do You Need a Resin-Based Whole House Water Softener?

Hard water with calcium/magnesium causes stubborn scale, clogs pipes, and forces water heaters/dishwashers to work overtime—30% higher energy use, 50% shorter appliance life. It also leaves limescale stains, increases detergent use, and dries out skin/hair.

Single-tap filters offer partial protection, but our resin-based softener treats water at the main inlet: high-performance cation exchange resin swaps hard water ions for sodium ions, delivering fully softened water to every tap. The salt regeneration system restores resin performance for long-term, stable softening—cut repair costs, save energy, and upgrade your home’s water quality for good.

Product Description

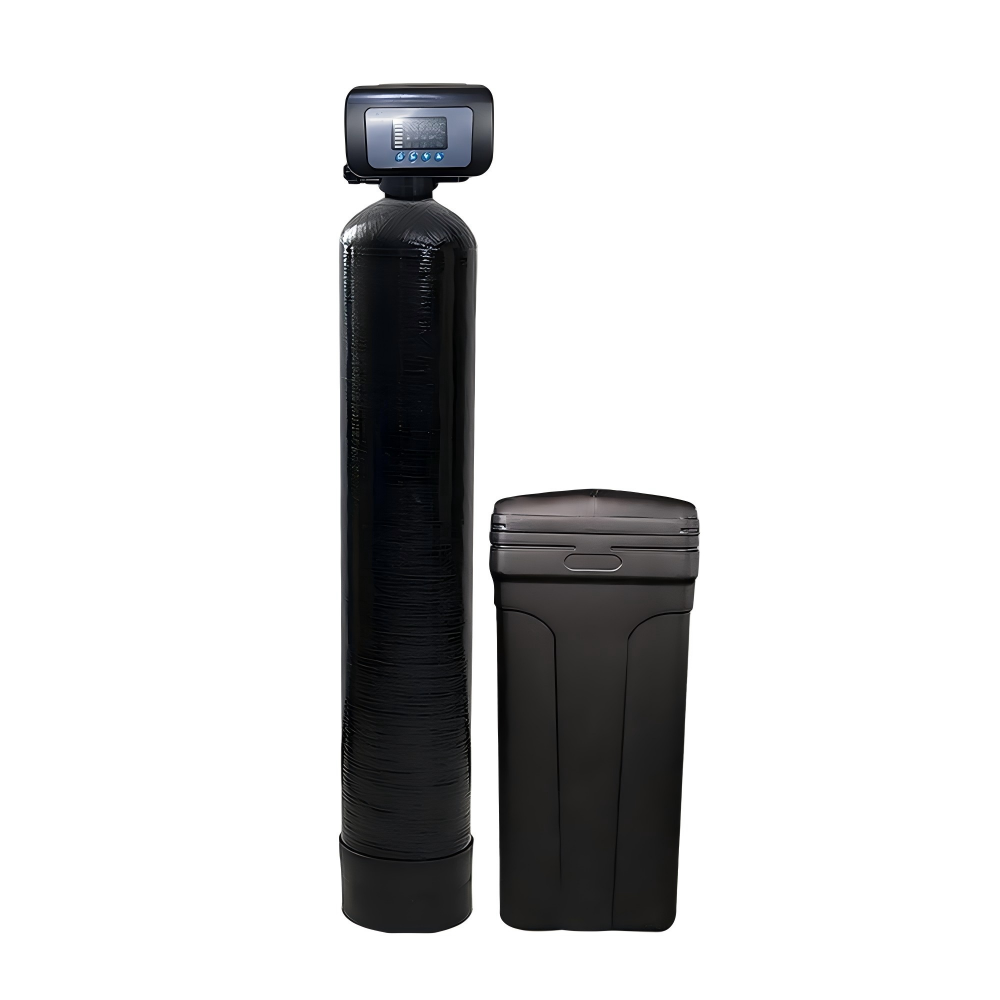

Space-saving split tank softener system combining standard 10×54 FRP resin tank, adjustable multifunction auto control valve and anti-overflow standalone brine tank. This salt-based softener balances installation footprint and softening capacity, effectively eliminating hard water stains and mineral buildup for all types of US suburban residential buildings.

ADVANTAGE

Split resin tank & brine tank layout flexible for narrow utility rooms and compact basement spaces
Multifunction adjustable auto valve supports multiple regeneration modes to match different water hardness
Double-layer anti-overflow brine tank structure eliminates hidden water leakage hazards
Complete standard US plumbing fittings included for seamless connection to home water mains
Neutralizes hard water minerals to reduce soap waste and keep glassware spot-free

PARAMETER

Category	Details
Brand	AMANDA
Core Features	Resin-Based, Salt Regeneration (Auto/Manual), NSF 61 Certified, DIY Install, No Pressure Loss
Resin Lifespan	4-9 Years
Treatment Capacity	340,000 - 900,000 Gallons
Flow Rate	7-10 GPM
Compatible Water	City/Well Water (≤25 GPG hardness, ≤1200 PPM TDS)
Installation	Kitchen、Bathroom、Laundry room、Garage
Material	Food-Grade Cation Exchange Resin, Composite, Stainless Steel Fittings
Included	Softener Unit, Resin Bed, Regeneration Valve, Full Installation Kit
Power	Electric (Auto Regen) / Manual (No Power)
Warranty	4-9 Year Manufacturer’s Warranty
Core Performance	99% Ca/Mg removal

EXCELLENT ACCESSORIES

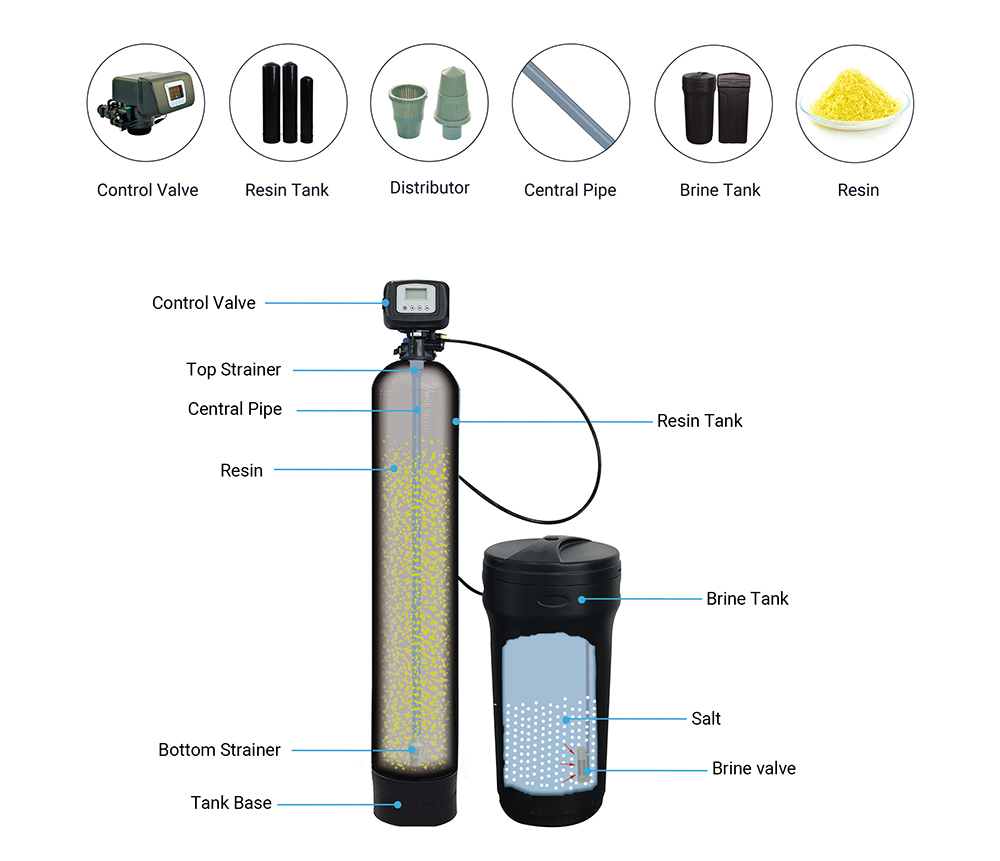

Water Softener 1054 Vessel with Automatic Head-EXCELLENT ACCESSORIES-1

Grain Capacity Calculation Guide

Grains = daily water consumption (gallons) x waterhardness (GPG) x days of regenreation cycle

example：

Family: 4 people (400 GPD)

Water quality: hardness12 GPG (hard water)

Cycle: regnerate onc every 8 days

Step:400x12x8=38,400 Grains

Buy 40,000 Grain or 48,000 Grain models

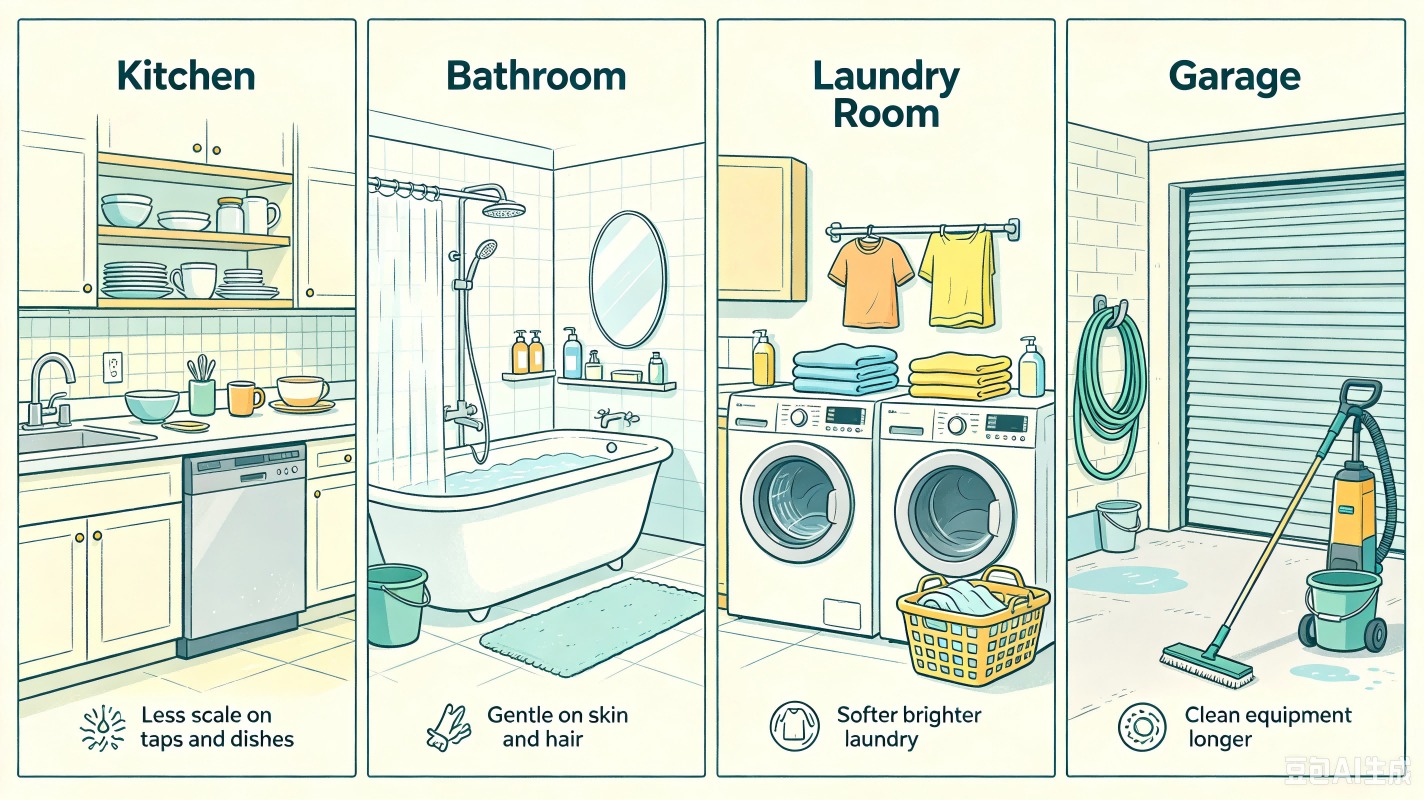

APPLICATION

water softener applications

Kitchen

Hard water causes limescale to build up quickly on kitchen faucets and inside dishwashers, leaving cloudy white spots on plates and glassware. Soft water eliminates this buildup completely. Dishes rinse clean without streaky residue, and far less dish soap is needed to get a thorough clean with every wash cycle.
Bathroom

Hard water dries out skin and leaves hair dull and rough after bathing, caused by limescale residue left on the skin and scalp. Soft water reduces this irritation noticeably. It also stops limescale from building up on showerheads, bathtubs and all bathroom fixtures, so surfaces stay easier to wipe clean and fittings function reliably for much longer.
Laundry Room

Over time, hard water leaves limescale buildup inside washing machines, and makes clothes feel stiff and look faded after each wash. Soft water stops scale from accumulating inside the appliance. Fabrics come out softer and retain their original color, with far less laundry detergent required. Hard water streaks no longer show up on garments, and the washer’s service life is extended considerably.
Garage

Outdoor faucets, wash hoses, pressure washers and car cleaning equipment all get clogged by limescale with regular hard water use. Soft water prevents this buildup from forming inside pipes, fittings and tools. Water flow stays consistent and unobstructed, equipment maintains steady performance, and overall service life is prolonged. It works well for washing vehicles, scrubbing patio surfaces and rinsing muddy yard tools
