High Hardness Well Water Softening System with Large Capacity Resin Tank And Pre-Filtration Solution

Complete water softening solutions for well water and groundwater applications, including rural water supply, farms, hotels, commercial buildings, and industrial projects. The system integrates raw water pumping, pre-filtration, large-capacity softener tanks, and downstream water treatment equipment to reduce hardness, prevent scaling, and provide reliable water quality solutions.

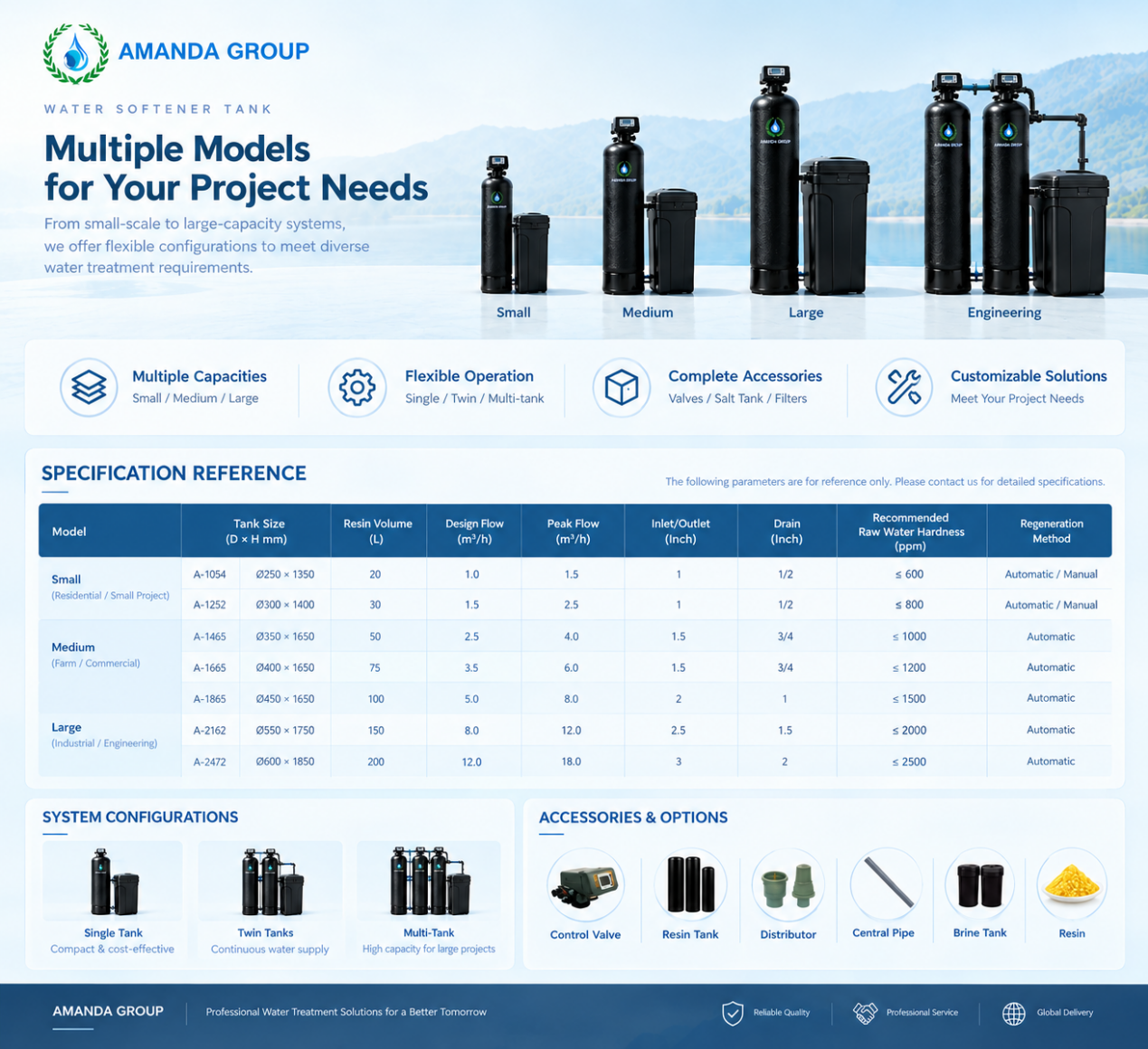

Multiple water softener tank models for well water and groundwater treatment projects, including A1054, A1252, A1465, A1665, A1865, A2162, and A2472 series. Available with different tank sizes from 10 to 24 inch, resin capacities from 20 to 200L, and flow rates from 1 to 18. Supports single, twin, and multi-tank configurations with control valves, distributors, resin, and brine tanks for customized softening solutions.

Reliable Water Softening Performance for High-Hardness Well Water

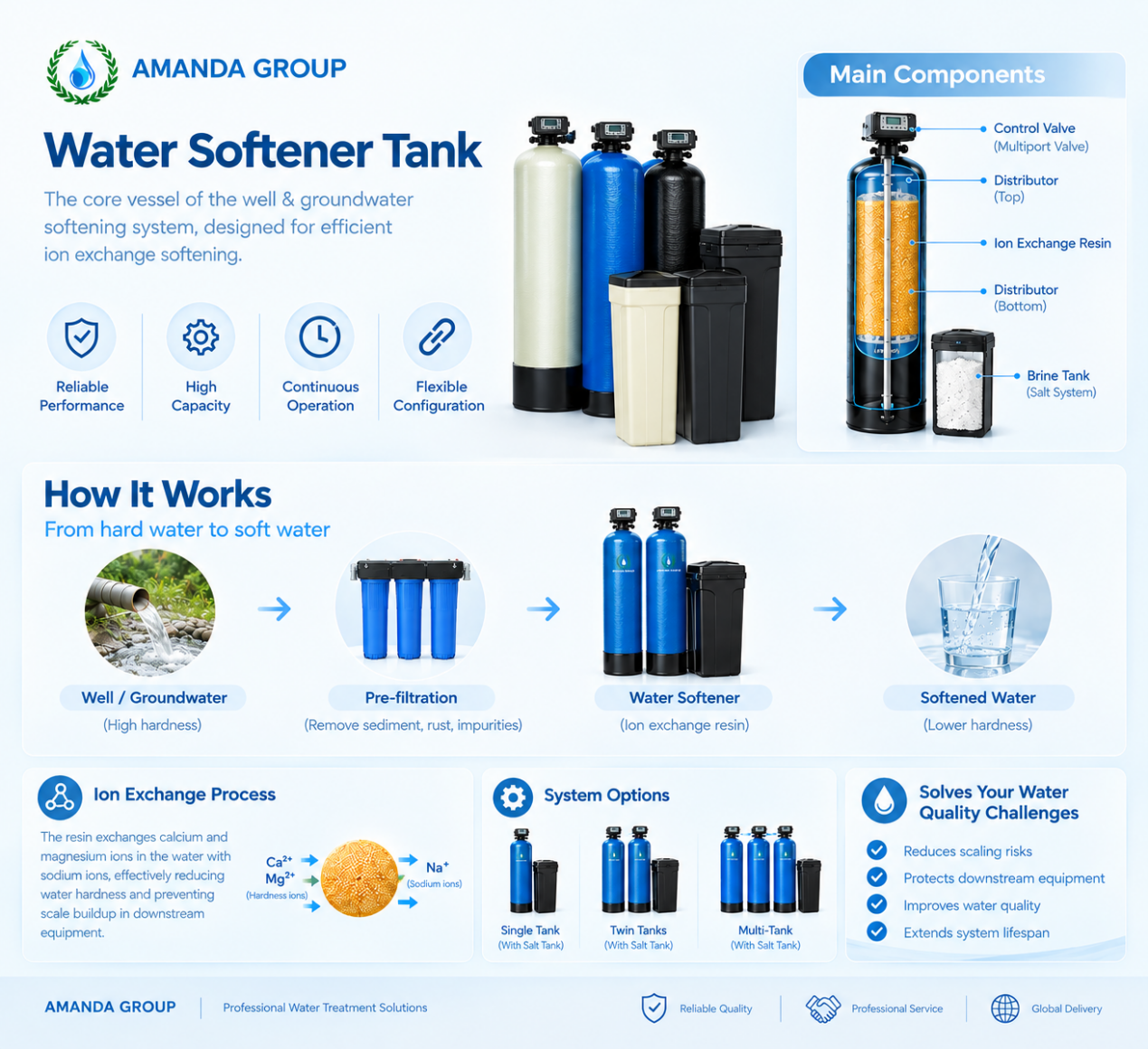

Designed for high-hardness well water and groundwater treatment, this softener tank features large resin capacity, efficient ion exchange, and stable operation. It reduces hardness, prevents scale buildup, protects downstream equipment, and supports pre-filtration integration for sediment, iron, and manganese removal.

Water Softener Selection Guide

Choosing a softener requires more than tank size. Consider family size, daily water consumption (GPD), peak flow rate (GPM), raw water hardness (GPG), required softening capacity, and installation conditions. Use water demand and hardness to determine resin volume, tank size and valve capacity, ensuring the right solution for each home or project.

Installation & System Connection

Install the softener after the main water inlet and pre-filtration system, with proper bypass and drainage according to local requirements. The basic flow is Raw Water → Pre-filtration → Softener → House Water Supply. Ensure correct inlet/outlet direction, brine, drain, overflow and bypass connections, adequate installation space, proper power supply, and suitable local water pressure and quality.

Water Softener System Solutions

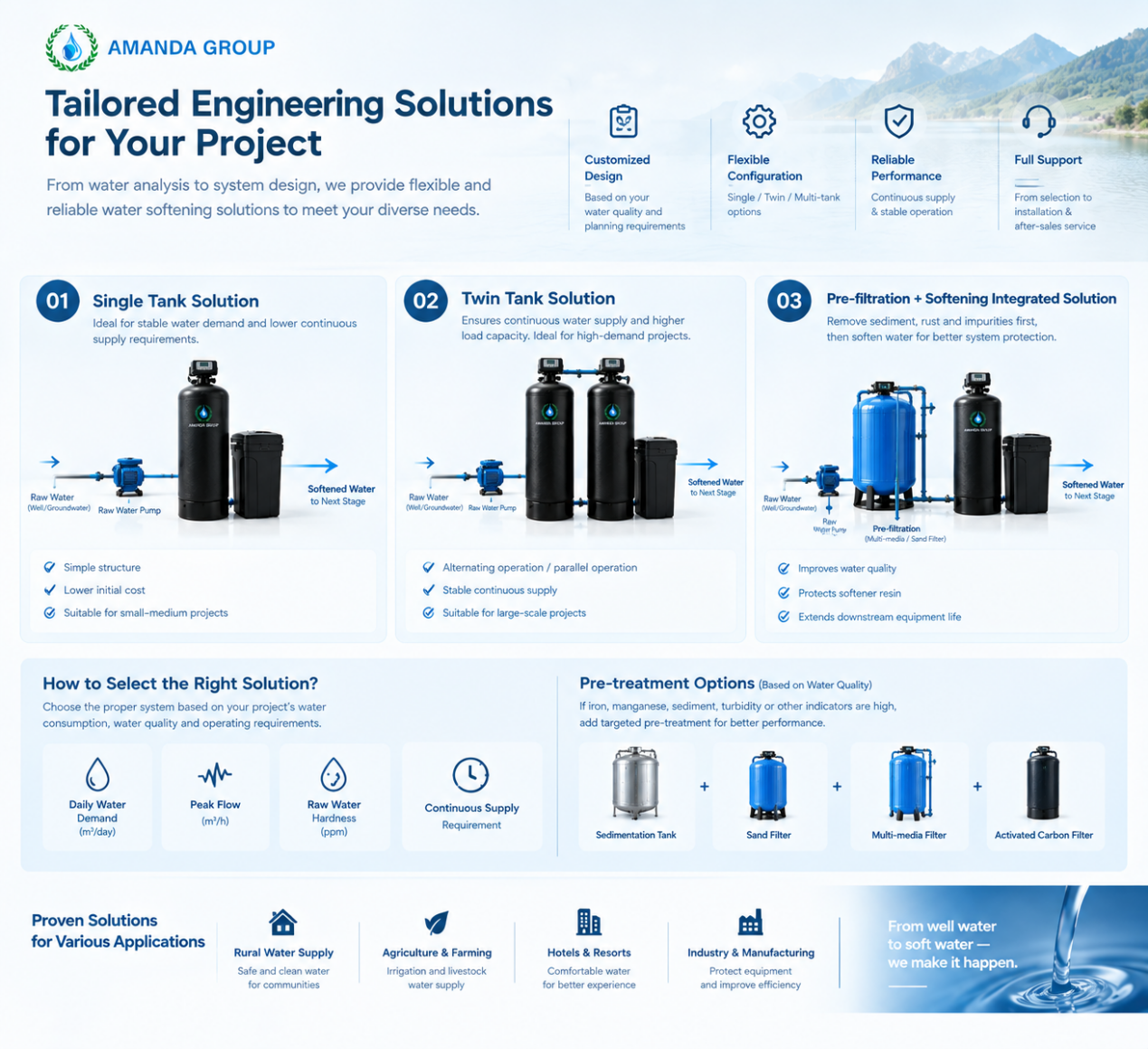

Build complete whole-house solutions from a single softener to a full purification system. Options include Pre-filtration + Softener, Pre-filtration + Softener + Central Water Filter, and Pre-filtration + Softener + Central Filter + RO. Ideal for distributors, contractors, importers and wholesalers to create flexible packages and meet different residential needs.

ABOUT US

We partner with top-tier suppliers like Runxin Valve and Pentair, ensuring certified products with strict quality control. UMEK（Amanda）  also offers a value-driven environment, comprehensive training, and growth opportunities, empowering employees and achieving mutual success. Choose UMEK – your partner in expertise, innovation, and sustainable development!

Q1. How do I select the right resin tank for high-hardness well water?
A: Tank size should be selected based on raw water hardness, required flow rate, daily water consumption, and regeneration frequency. Share your water analysis report and usage requirements for a suitable configuration.

Q2. What information is needed for system sizing?
A: We typically need raw water hardness, flow rate, daily water consumption, water quality data, and required operating hours. Based on these parameters, we can recommend the appropriate tank and resin capacity.

Q3. Why is pre-filtration recommended before the softener?
A: Well water may contain sediment, rust, iron, manganese, and suspended solids. Pre-filtration helps protect the resin and control valve from contamination, supporting more stable long-term operation.

Q4. Should I choose a single-tank or twin-tank system?
A: Single-tank systems are suitable for standard or intermittent water demand. Twin-tank systems are better for projects requiring continuous softened water, with tanks operating alternately according to the control configuration.

Q5. How often does the resin need regeneration?
A: Regeneration frequency depends on raw water hardness, water consumption, resin capacity, and operating conditions. We can help estimate regeneration requirements and salt consumption based on your project data.

Q6. Can the softener be integrated with existing equipment?
A: Yes. The tank can be configured with suitable control valves, brine tanks, pre-filters, and other water treatment components according to the existing system and connection requirements.

Q7. Can you design a complete solution based on our water analysis report?
A: Yes. Send us your water quality report, required flow rate, application, and site requirements. Our team can recommend the tank size, resin capacity, control configuration, and pre-treatment setup.

Q8. Can the tank size and connections be customized for my project?
A: Yes. We can provide customized configurations based on flow requirements, resin volume, available installation space, and system connection requirements.
