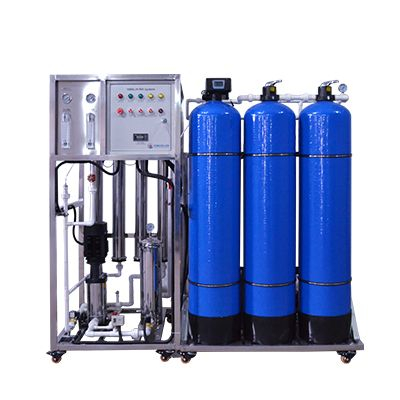

1000LPH RO Plant
NSF/ CE/ RoHS certification Runxin Electronic Control
Operating parameters of 1000LPH RO Plant
Feed water salinity:≤1000mg/L
Desalination rate :≥97%
Feed water temperature: 2 -40℃
Recovery rate: 50%
Power supply (available): 380v/50hz; 220v ( 440v ) /60hz
Membrane components: international leading brand.
Equipment detailed parameters
Model | Recovery（%） | Capacity（T/H） | Dimension | Weight（KG） |
L | W | H |
AMDRO-1000L | 50 | 1 | 1750 | 950 | 1950 | 600 |
1000LPH RO Plant Process
Raw water - + the original tank -→raw water pump - →multi-media filter (quartz sand filterl) - →activated carbon filter - →water softener processor (Add the scale inhibitors device) - - > -→precision filter reverse osmosis (RO) high-pressure pump - > Device - >ultraviolet disinfection device (ozone sterilization device)→water points
1. Water tank:
Storage of raw water, to solve the problem of insufficient raw water pressure and the back booster pump due to the impact of
insufficient water, reduce the failure rate.
2. Booster pump:
Equipped with a stainless steel pump, to provide sufficient pressure for subsequent fltration.
3. Quartz sand flter:
Equipped with a stainless steel pump, to provide sufficient pressure for subsequent fitration.
4. Carbon filter:
Mainly remove organic substances, residual chlorine and odor in tap water.
5. Water softener filter:
Mainly remove the calcium and magnesium in raw water, reduce the hardness of water.
6. Security filter:
Further fitration of 5um, protection of reverse osmosis membrane.
7. High pressure pump:
Provide enough pressure for reverse osmosis system.
8. Reverse osmosis unit:
The core part of pure water equipment, the production of high-purity water.
9. Pure water tank:
Storage of pure water, can change the size of the water tank, after the above process,The water result is pure
enough for different application.
1000LPH RO Plant Advantage
1. Large amount of water permeable. High desalination rate. Under normal circumstances desalination rate can be above 98%.
2. Has a high rejection of organics, colloids, particles, bacteria, viruses, heat removal effect.
3. Low energy consumption, high water use efficiency, operating cost is lower than other desalination equipments.
4. There is no phase transition in the process of separation, with reliability and stability.
5. Equipment with small size, simple operation, easy maintenance, adaptable, long service life
1000LPH RO Plant Application
Food and Beverages
Electronics industry, Electronic Component manufacturing
Tube and Micro Circuit manufacturing
Medical industry .Pharmaceuticals
Building community public water supply
Hotels & Resorts
Mineral Water Processors
The chemical industry with water
Power Generation
Product Model
| Model | Capability(T/H) | Operation(MPa) | Membrane(Inch) | Membrane(Qty) | Power(KW) |
| AMDRO-125L | 0.125 | 1.0-1.4 | 4021 | 1 | 1.1 |
| AMDRO-250L | 0.25 | 1.0-1.4 | 4040 | 1 | 1.1 |
| AMDRO-500L | 0.5 | 1.0-1.4 | 4040 | 2 | 1.5 |
| AMDRO-750L | 0.75 | 1.0-1.4 | 4040 | 3 | 2.2 |
| AMDRO-1000L | 1 | 1.0-1.4 | 4040 | 4 | 2.2 |
| AMDRO-1500L | 1.5 | 1.0-1.4 | 4040 | 6 | 3 |
AMDRO-2000L | 2 | 1.0-1.4 | 4040 | 8 | 3 |
AMDRO-3000L | 3 | 1.0-1.4 | 4040 | 12 | 4 |
AMDRO-5000L | 5 | 1.0-1.4 | 8040 | 5 | 5.5 |
AMDRO-10000L | 10 | 1.0-1.4 | 8040 | 10 | 11 |
AMDRO-15000L | 15 | 1.0-1.4 | 8040 | 15 | 15 |
AMDRO-20000L
| 20 | 1.0-1.4 | 8040 | 20 | 18.5 |
Principle Graph
RO Water Purification System Operating Process:
Raw water storage tank -- Raw water pump -- Sand filter -- Carbon filter -- Water softener -- Brine Tank -- Security filter -- RO unit -- Pure water tank
