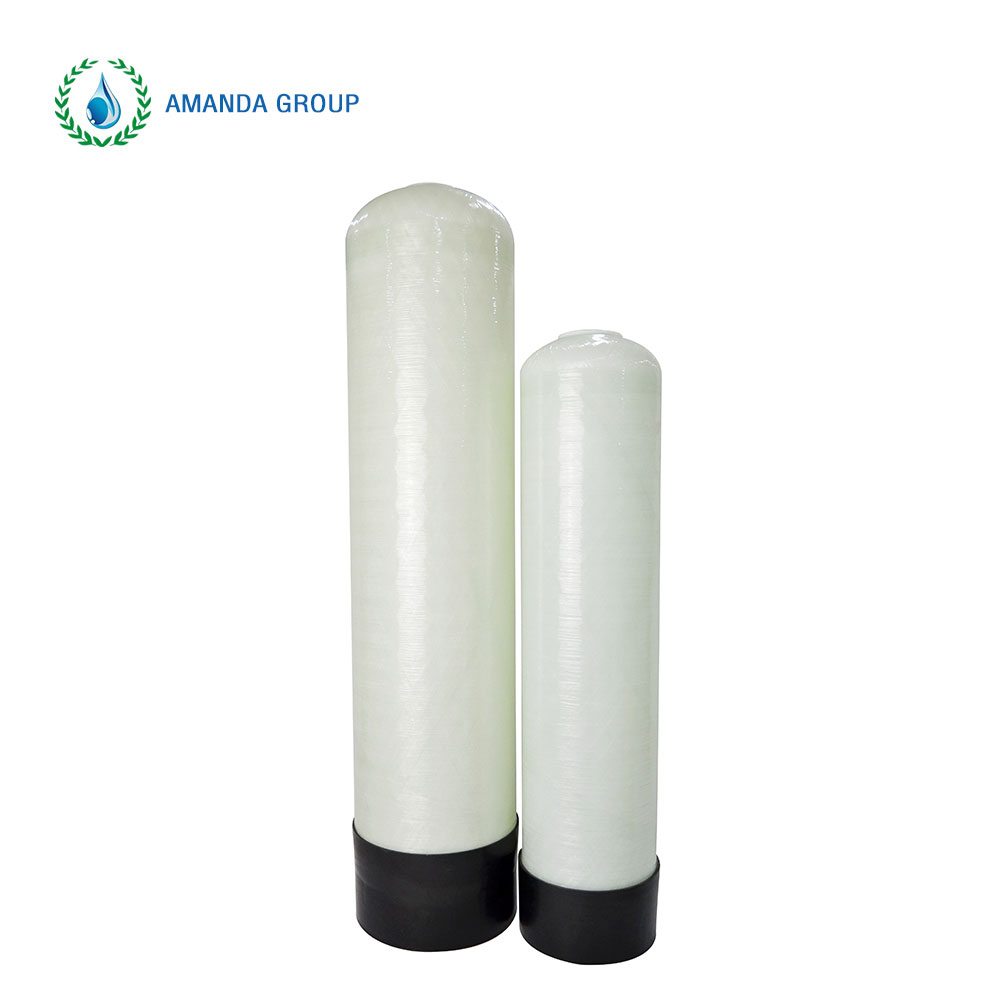

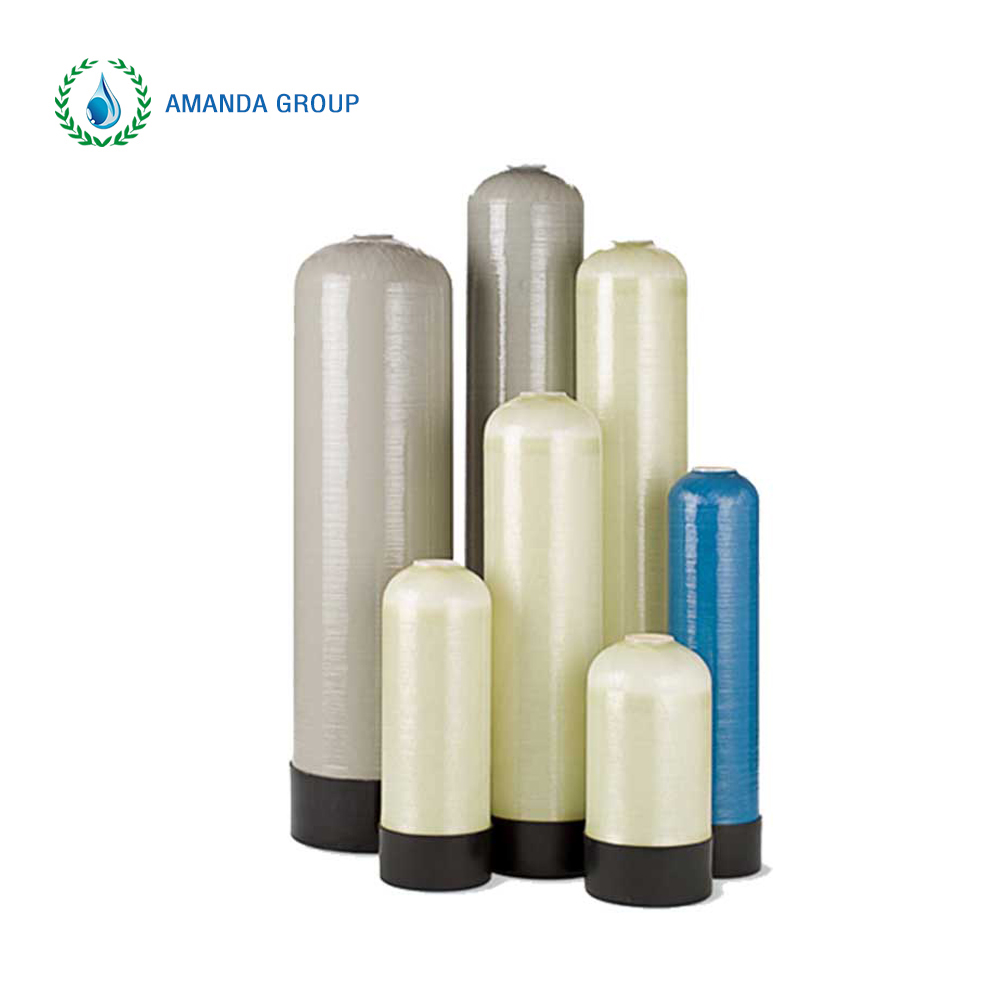

1054 1252 1354 FRP Tank Fiberglass Tank 150psi Pressure Vessel Resin Tank
MAIN TECHNICAL FEATURE
AMANDA-S TANK SPECIFICATION
| Model | Vessel Size | Vol | Opening | Dimension/mm | Base |
| Inch | mm | L | Top | Bot. | LA | LB | LC | D |
0713/2.5T | 7x13 | 181x335 | 6.3 | 2.5"NPSM | / | 335 | 330 | / | 181 | PP
|
| 0717/2.5T | 7x17 | 181x440 | 8.5 | 2.5"NPSM | / | 440 | 435 | / | 181 | PP |
| 0735/2.5T | 7x35 | 181x895 | 19.1 | 2.5"NPSM | / | 895 | 890 | / | 181 | PP |
| 0744-2.5T | 7x44 | 181x1125 | 24.3 | 2.5"NPSM | / | 1125 | 1120 | / | 181 | PP |
| 0813/5T | 8x13 | 205x335 | 7.4 | 2.5"NPSM | / | 335 | 330 | / | 205 | PP |
| 0817/2.5T | 8x17 | 205x440 | 10.5 | 2.5"NPSM | / | 440 | 433 | / | 205 | PP |
| 0835/2.5T | 8x35 | 205x 895 | 23.6 | 2.5"NPSM | / | 895 | 888 | / | 205 | PP |
| 0844/2.5T | 8x44 | 205x1125 | 31.3 | 2.5"NPSM | / | 1125 | 1118 | / | 205 | PP |
| 0917/2.5T | 9x17 | 232x440 | 13.2 | 2.5"NPSM | / | 440 | 890 | / | 232 | PP |
| 0935/2.5 | 9x35 | 232x898 | 31.6 | 2.5"NPSM | / | 898 | 1067 | / | 232 | PP |
| 0942/2.5T | 9x42 | 232x1074 | 38.5 | 2.5"NPSM | / | 1074 | 1221 | / | 232 | PP |
0948/2.5 | 9x48 | 232x1228 | 44.6 | 2.5"NPSM | / | 1228 | 430 | / | 232 | PP |
1017/2.5T | 10x17 | 257x450 | 16.5 | 2.5"NPSM | / | 450 | 890 | / | 257 | PP |
| 1035/2.5T | 10x35 | 257x910 | 38.3 | 2.5"NPSM | / | 910 | 1114 | / | 257 | PP |
| 1044/2.5T | 10x44 | 257x1130 | 49.5 | 2.5"NPSM | / | 1130 | 1370 | / | 257 | PP |
| 1054/2.5T | 10x54 | 257x1388 | 61.9 | 2.5"NPSM | / | 1388 | 1214 | / | 257 | PP |
| 1248/2.5T | 12x48 | 307x1220 | 77.3 | 2.5"NPSM | / | 1220 | 1328 | / | 307 | PP |
| 1252/2.5T | 12x52 | 307x1335 | 84.8 | 2.5"NPSM | / | 1335 | 1640 | / | 307 | PP |
| 1265/2.5T | 12x65 | 307x1650 | 106.3 | 2.5"NPSM | / | 1650 | 1127 | / | 307 | PP |
| 1344/2.5T | 13x44 | 334x1135 | 82.9 | 2.5"NPSM | / | 1135 | 1392 | / | 334 | PP |
| 1354/2.5T | 13x54 | 334x1400 | 103.6 | 2.5"NPSM | / | 1400 | 1780 | / | 334 | PP |
| 1465/2.5T | 14x65 | 360x1662 | 145.6 | 2.5"NPSM | / | 1662 | 1654 | / | 360 | PP |
| 1465/4T | 14x65 | 360x1662 | 145.6 | 4"-8UN | / | 1662 | 1654 | / | 360 | PP |
| 1665/2.5T | 16x65 | 410x1670 | 187.7 | 2.5"NPSM | / | 1670 | 1662 | / | 410 | PP |
| 1665/4T | 16x65 | 410x 1670 | 187.7 | 4"-8UN | / | 1670 | 1662 | / | 410 | PP |
| 1665/4T4B | 16x65 | 410x 1830 | 187.7 | 4"-8UN | 4"-8UN | 1830 | 1650 | 180 | 410 | FRP Tripod |
| 1865/4T | 18x65 | 465x 1675 | 249 | 4"-8UN | / | 1670 | 1660 | / | 465 | FRP Round |
| 1865/4T4B | 18x65 | 465x 1825 | 249 | 4"-8UN | 4"-8UN | 1830 | 1650 | 180 | 465 | FRP Tripod
|
AMANDA-H TANK SPECIFICATION
| Model | Vessel Size | Vol | Opening | Dimension/mm | Base |
| Inch | mm | L | Top | Bot. | LA | LB | LC | D |
| H2162/4T-R | 21x62 | 550x 1650 | 326 | 4"-8UN | / | 1650 | 1600 | / | 550 | FRP Round
|
| H2162/4T | 21x62 | 550x1910 | 326 | 4"-8UN | / | 1910 | 1600 | / | 550 | FRP Tripod |
| H2162/4T4B | 21x62 | 550x1910 | 326 | 4"-8UN | 4"-8UN | 1910 | 1590 | 320
| 550 | FRP Tripod |
| H2472/4T-R | 24x72 | 615x1890 | 471 | 4"-8UN | / | 1890 | 1839 | / | 615 | FRP Round |
| H2472/4T | 24x72 | 615x2150 | 471 | 4"-8UN | / | 2150 | 1839 | / | 615 | FRP Tripod |
| H2472/4T4B | 24x72 | 615x2150 | 471 | 4"-8UN | 4"-8UN
| 2150 | 1830 | 320 | 615 | FRP Tripod |
| H3072/4T-R | 30x72 | 780x 1860 | 758 | 4"-8UN | / | 1860 | 1839 | / | 780 | FRP Round |
| H3072/4T | 30x72 | 780x2150 | 758 | 4"-8UN | / | 2150 | 1830 | / | 780 | FRP Tripod
|
| H3072/4T4B | 30x72 | 780x2150 | 758 | 4"-8UN | 4"-8UN | 2150 | 1830 | 320
| 780 | FRP Tripod
|
| H3672/4T4B | 36x72 | 918x2150 | 1023 | 4"-8UN | 4"-8UN | 2150 | 1830 | 320 | 918 | FRP Tripod |
| H3672/6T6B | 36x72 | 918x2260 | 1023 | 6"-flane | 6"-flange | 2260 | 1940 | 320 | 918 | FRP Tripod |
H4272/6T6B | 42x72 | 1088x2270 | 1389 | 6"-flane | 6"-flange | 2270 | 1950 | 320 | 1088 | FRP Tripod |
H4872/6T6B | 48x72
| 1218x2270 | 1743 | 6"-flane | 6"-flange | 2270 | 1950 | 320 | 1218 | FRP Tripod |
| H6370/6T6B | 63x70 | 1620x1780 | 2580 | 6"-flane | 6"-flange | 2100 | 1780 | 320 | 1620 | FRP Tripod |
| H6383/6T6B | 63x83 | 1620x 2080 | 3150 | 6"-flane | 6"-flange | 2400 | 2080 | 320 | 1620 | FRP Tripod |
AMANDA-D TANK SPECIFICATION
| Model | Vessel Size | Vol | Opening | Dimension/mm | Base |
| Inch | mm | L | Top | Bot. | Dis. | LA | LB | LC | D |
4272/6T6B4D | 42x72 | 1088x1850 | 1100 | 6"-flange | 6"-flange | 4"-flange | 1850 | 1615 | 235 | 1088 | FRP Tripod
|
| 4289/6T6B4D | 42x89 | 1088x2270 | 1389 | 6"-flange | 6"-flange | 4"-flange | 2270 | 1950 | 320 | 1088 | FRP Tripod |
| 4872/6T6B4D | 48x72 | 1218x1850 | 1308 | 6"-flange | 6"-flange | 4"-flange | 1850 | 1565 | 285 | 1218 | FRP Tripod |
| 4889/6T6B4D | 48x89 | 1218x2270 | 1743 | 6"-flange | 6"-flange | 4"-flange | 2270 | 1950 | 320 | 1218 | FRP Tripod |
| 4894/6T6B4D | 48x94 | 1218x2400 | 1909 | 6"-flange | 6"-flange | 4"-flange | 2400 | 2110 | 290 | 1218 | FRP Tripod |
| 48110/6T6B4D | 48x110 | 1218x 2800 | 2360 | 6"-flange | 6"-flange | 4"-flange | 2800 | 2510 | 290 | 1218 | FRP Tripod |
| 6094/6T6B4D | 60x94 | 1530x2400 | 2688 | 6"-flange | 6"-flange | 4"-flange | 2400 | 2110 | 290 | 1530 | FRP Tripod |
| 60110/6T6B4D | 60x110 | 1530x2800 | 3392 | 6"-flange | 6"-flange | 4"-flange | 2800 | 2510 | 290 | 1530 | FRP Tripod |
| 6383/6T6B4D | 63x83 | 1620x2100 | 2580 | 6"-flange | 6"-flange | 4"-flange | 2100 | 1780 | 320 | 1620 | FRP Tripod |
| 6394/6T6B4D | 63x94 | 1620x2400 | 3150 | 6"-flange | 6"-flange | 4"-flange | 2400 | 2080 | 320 | 1620 | FRP Tripod |
★7294/6T6B4D | ★72x94 | 1836x2400 | 3561 | 6"-flange | 6"-flange | 6"-flange | 2400 | 2045 | 355 | 1836 | FRP Tripod |
H4272/6T6B4D | 42x72 | 1088x2270 | 1389 | 6"-flange | 6"-flange | 4"-flange | 2270 | 1950 | 320 | 1088 | FRP Tripod |
| H4872/6T6B4D | 48x72 | 1218x2270 | 1743 | 6"-flange | 6"-flange | 4"-flange | 2270 | 1950 | 320 | 1218 | FRP Tripod |
| H6370/6T6B4D | 63x70 | 1620x1780 | 2580 | 6"-flange | 6"-flange | 4"-flange | 2100 | 1780 | 320 | 1620 | FRP Tripod |
| H6382/6T6B4D | 63x82 | 1620x2080 | 3150 | 6"-flange | 6"-flange | 4"-flange | 2400 | 2080 | 320 | 1620 | FRP Tripod |
*The actual dimmension may have ±1.2% error due to PE materlats contraction coefficient
PRODUCT DISPLAY
Product Overview
Key Features:
Material: High-quality Fiberglass Reinforced Plastic (FRP) for superior durability and corrosion resistance.
Pressure Rating: Designed to handle pressures up to 150psi, ensuring safe and efficient operation.
Dimensions: Available in multiple sizes (1054, 1252, 1354) to meet various storage and operational needs.
Lightweight yet Strong: Fiberglass construction provides a lightweight solution without compromising on strength.
Chemical Resistance: Resistant to a wide range of chemicals, acids, and solvents, making it suitable for harsh environments.
Long Service Life: Engineered for durability, reducing maintenance costs and downtime.
Customizable: Can be tailored to specific requirements, including fittings, nozzles, and additional accessories.
Applications:
Chemical storage and transportation
Resin storage and processing
Water treatment and purification systems
Oil and gas industry
Industrial pressure vessels
Wastewater management
Technical Specifications:
Model Numbers: 1054, 1252, 1354
Material: Fiberglass Reinforced Plastic (FRP)
Pressure Rating: 150psi
Temperature Range: -40°F to 250°F (-40°C to 121°C)
Custom Options: Available upon request
Why Choose This Product?
Reliability: Built to meet industry standards, ensuring consistent performance under high-pressure conditions.
Versatility: Suitable for a wide range of applications across multiple industries.
Cost-Effective: Low maintenance and long service life reduce overall operational costs.
Expert Support: Our team provides technical assistance and customization options to meet your specific needs.
Packaging & Delivery:
Carefully packaged to prevent damage during transport.
Bulk orders available with fast and reliable shipping options.
Contact Us:
For more information or to place an order, please contact our sales team. We're happy to help with all your water treatment needs!
