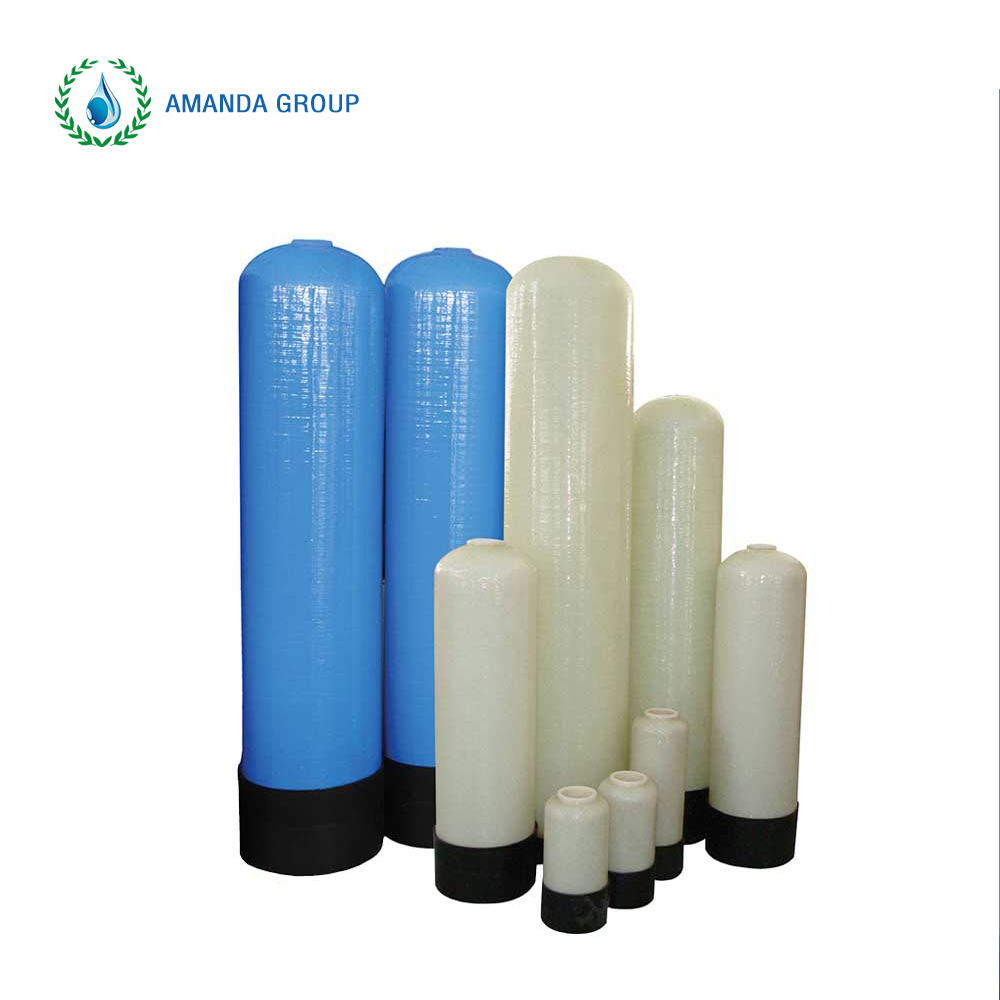

Softener FRP Pressure Tanks for Water Treatment
MAIN TECHNICAL FEATURE
Characters
Fully Rustproof and corrosion resistant
High strength Light weight
Easy transporting and istllation
Nice appearance
Structure & Materials
Liner material: Rotation molding or Blowing One-piece seamless PE inner liner
Outer Winding: Hight Performance resin with Fiber glass threedimensional winding
Opening: 2.5" and 4" reinforced plastic thread,6" alloy flange
Bass Materials: FRP or reinforced PP
Application Conditions
Working Pressure:150psi (10.5bar)
Working Temperature:1-49*C (34-121*F)
Max.Vacuum:127mm Hg
Lowest Environment Temperature: -27*C (-17*F)
Design Parameter
Burst Pressure: 42bar (4 times)
Fatigue Cycle: 100, 000
Color
In UMK fiber reinforced polymer tanks, there are five colors for your choose : Nature,
Blue, Black, Gray, Yellow. ( Other colors are customied )
Specification
AMANDA-S TANK SPECIFICATION
| Model | Vessel Size | Vol | Opening | Dimension/mm | Base |
| Inch | mm | L | Top | Bot. | LA | LB | LC | D |
0713/2.5T | 7x13 | 181x335 | 6.3 | 2.5"NPSM | / | 335 | 330 | / | 181 | PP
|
| 0717/2.5T | 7x17 | 181x440 | 8.5 | 2.5"NPSM | / | 440 | 435 | / | 181 | PP |
| 0735/2.5T | 7x35 | 181x895 | 19.1 | 2.5"NPSM | / | 895 | 890 | / | 181 | PP |
| 0744-2.5T | 7x44 | 181x1125 | 24.3 | 2.5"NPSM | / | 1125 | 1120 | / | 181 | PP |
| 0813/5T | 8x13 | 205x335 | 7.4 | 2.5"NPSM | / | 335 | 330 | / | 205 | PP |
| 0817/2.5T | 8x17 | 205x440 | 10.5 | 2.5"NPSM | / | 440 | 433 | / | 205 | PP |
| 0835/2.5T | 8x35 | 205x 895 | 23.6 | 2.5"NPSM | / | 895 | 888 | / | 205 | PP |
| 0844/2.5T | 8x44 | 205x1125 | 31.3 | 2.5"NPSM | / | 1125 | 1118 | / | 205 | PP |
| 0917/2.5T | 9x17 | 232x440 | 13.2 | 2.5"NPSM | / | 440 | 890 | / | 232 | PP |
| 0935/2.5 | 9x35 | 232x898 | 31.6 | 2.5"NPSM | / | 898 | 1067 | / | 232 | PP |
| 0942/2.5T | 9x42 | 232x1074 | 38.5 | 2.5"NPSM | / | 1074 | 1221 | / | 232 | PP |
0948/2.5 | 9x48 | 232x1228 | 44.6 | 2.5"NPSM | / | 1228 | 430 | / | 232 | PP |
1017/2.5T | 10x17 | 257x450 | 16.5 | 2.5"NPSM | / | 450 | 890 | / | 257 | PP |
| 1035/2.5T | 10x35 | 257x910 | 38.3 | 2.5"NPSM | / | 910 | 1114 | / | 257 | PP |
| 1044/2.5T | 10x44 | 257x1130 | 49.5 | 2.5"NPSM | / | 1130 | 1370 | / | 257 | PP |
| 1054/2.5T | 10x54 | 257x1388 | 61.9 | 2.5"NPSM | / | 1388 | 1214 | / | 257 | PP |
| 1248/2.5T | 12x48 | 307x1220 | 77.3 | 2.5"NPSM | / | 1220 | 1328 | / | 307 | PP |
| 1252/2.5T | 12x52 | 307x1335 | 84.8 | 2.5"NPSM | / | 1335 | 1640 | / | 307 | PP |
| 1265/2.5T | 12x65 | 307x1650 | 106.3 | 2.5"NPSM | / | 1650 | 1127 | / | 307 | PP |
| 1344/2.5T | 13x44 | 334x1135 | 82.9 | 2.5"NPSM | / | 1135 | 1392 | / | 334 | PP |
| 1354/2.5T | 13x54 | 334x1400 | 103.6 | 2.5"NPSM | / | 1400 | 1780 | / | 334 | PP |
| 1465/2.5T | 14x65 | 360x1662 | 145.6 | 2.5"NPSM | / | 1662 | 1654 | / | 360 | PP |
| 1465/4T | 14x65 | 360x1662 | 145.6 | 4"-8UN | / | 1662 | 1654 | / | 360 | PP |
| 1665/2.5T | 16x65 | 410x1670 | 187.7 | 2.5"NPSM | / | 1670 | 1662 | / | 410 | PP |
| 1665/4T | 16x65 | 410x 1670 | 187.7 | 4"-8UN | / | 1670 | 1662 | / | 410 | PP |
| 1665/4T4B | 16x65 | 410x 1830 | 187.7 | 4"-8UN | 4"-8UN | 1830 | 1650 | 180 | 410 | FRP Tripod |
| 1865/4T | 18x65 | 465x 1675 | 249 | 4"-8UN | / | 1670 | 1660 | / | 465 | FRP Round |
| 1865/4T4B | 18x65 | 465x 1825 | 249 | 4"-8UN | 4"-8UN | 1830 | 1650 | 180 | 465 | FRP Tripod
|
AMANDA-H TANK SPECIFICATION
| Model | Vessel Size | Vol | Opening | Dimension/mm | Base |
| Inch | mm | L | Top | Bot. | LA | LB | LC | D |
| H2162/4T-R | 21x62 | 550x 1650 | 326 | 4"-8UN | / | 1650 | 1600 | / | 550 | FRP Round
|
| H2162/4T | 21x62 | 550x1910 | 326 | 4"-8UN | / | 1910 | 1600 | / | 550 | FRP Tripod |
| H2162/4T4B | 21x62 | 550x1910 | 326 | 4"-8UN | 4"-8UN | 1910 | 1590 | 320
| 550 | FRP Tripod |
| H2472/4T-R | 24x72 | 615x1890 | 471 | 4"-8UN | / | 1890 | 1839 | / | 615 | FRP Round |
| H2472/4T | 24x72 | 615x2150 | 471 | 4"-8UN | / | 2150 | 1839 | / | 615 | FRP Tripod |
| H2472/4T4B | 24x72 | 615x2150 | 471 | 4"-8UN | 4"-8UN
| 2150 | 1830 | 320 | 615 | FRP Tripod |
| H3072/4T-R | 30x72 | 780x 1860 | 758 | 4"-8UN | / | 1860 | 1839 | / | 780 | FRP Round |
| H3072/4T | 30x72 | 780x2150 | 758 | 4"-8UN | / | 2150 | 1830 | / | 780 | FRP Tripod
|
| H3072/4T4B | 30x72 | 780x2150 | 758 | 4"-8UN | 4"-8UN | 2150 | 1830 | 320
| 780 | FRP Tripod
|
| H3672/4T4B | 36x72 | 918x2150 | 1023 | 4"-8UN | 4"-8UN | 2150 | 1830 | 320 | 918 | FRP Tripod |
| H3672/6T6B | 36x72 | 918x2260 | 1023 | 6"-flane | 6"-flange | 2260 | 1940 | 320 | 918 | FRP Tripod |
H4272/6T6B | 42x72 | 1088x2270 | 1389 | 6"-flane | 6"-flange | 2270 | 1950 | 320 | 1088 | FRP Tripod |
H4872/6T6B | 48x72
| 1218x2270 | 1743 | 6"-flane | 6"-flange | 2270 | 1950 | 320 | 1218 | FRP Tripod |
| H6370/6T6B | 63x70 | 1620x1780 | 2580 | 6"-flane | 6"-flange | 2100 | 1780 | 320 | 1620 | FRP Tripod |
| H6383/6T6B | 63x83 | 1620x 2080 | 3150 | 6"-flane | 6"-flange | 2400 | 2080 | 320 | 1620 | FRP Tripod |
AMANDA-D TANK SPECIFICATION
| Model | Vessel Size | Vol | Opening | Dimension/mm | Base |
| Inch | mm | L | Top | Bot. | Dis. | LA | LB | LC | D |
4272/6T6B4D | 42x72 | 1088x1850 | 1100 | 6"-flange | 6"-flange | 4"-flange | 1850 | 1615 | 235 | 1088 | FRP Tripod
|
| 4289/6T6B4D | 42x89 | 1088x2270 | 1389 | 6"-flange | 6"-flange | 4"-flange | 2270 | 1950 | 320 | 1088 | FRP Tripod |
| 4872/6T6B4D | 48x72 | 1218x1850 | 1308 | 6"-flange | 6"-flange | 4"-flange | 1850 | 1565 | 285 | 1218 | FRP Tripod |
| 4889/6T6B4D | 48x89 | 1218x2270 | 1743 | 6"-flange | 6"-flange | 4"-flange | 2270 | 1950 | 320 | 1218 | FRP Tripod |
| 4894/6T6B4D | 48x94 | 1218x2400 | 1909 | 6"-flange | 6"-flange | 4"-flange | 2400 | 2110 | 290 | 1218 | FRP Tripod |
| 48110/6T6B4D | 48x110 | 1218x 2800 | 2360 | 6"-flange | 6"-flange | 4"-flange | 2800 | 2510 | 290 | 1218 | FRP Tripod |
| 6094/6T6B4D | 60x94 | 1530x2400 | 2688 | 6"-flange | 6"-flange | 4"-flange | 2400 | 2110 | 290 | 1530 | FRP Tripod |
| 60110/6T6B4D | 60x110 | 1530x2800 | 3392 | 6"-flange | 6"-flange | 4"-flange | 2800 | 2510 | 290 | 1530 | FRP Tripod |
| 6383/6T6B4D | 63x83 | 1620x2100 | 2580 | 6"-flange | 6"-flange | 4"-flange | 2100 | 1780 | 320 | 1620 | FRP Tripod |
| 6394/6T6B4D | 63x94 | 1620x2400 | 3150 | 6"-flange | 6"-flange | 4"-flange | 2400 | 2080 | 320 | 1620 | FRP Tripod |
★7294/6T6B4D | ★72x94 | 1836x2400 | 3561 | 6"-flange | 6"-flange | 6"-flange | 2400 | 2045 | 355 | 1836 | FRP Tripod |
H4272/6T6B4D | 42x72 | 1088x2270 | 1389 | 6"-flange | 6"-flange | 4"-flange | 2270 | 1950 | 320 | 1088 | FRP Tripod |
| H4872/6T6B4D | 48x72 | 1218x2270 | 1743 | 6"-flange | 6"-flange | 4"-flange | 2270 | 1950 | 320 | 1218 | FRP Tripod |
| H6370/6T6B4D | 63x70 | 1620x1780 | 2580 | 6"-flange | 6"-flange | 4"-flange | 2100 | 1780 | 320 | 1620 | FRP Tripod |
| H6382/6T6B4D | 63x82 | 1620x2080 | 3150 | 6"-flange | 6"-flange | 4"-flange | 2400 | 2080 | 320 | 1620 | FRP Tripod |
*The actual dimmension may have ±1.2% error due to PE materlats contraction coefficient
PRODUCT DISPLAY
Product advantage:
FRP tank is made up of resin and glass fiber by microcomputer control winding machine and become a kind of non-metallic
comoosite tanks. it has corrosion resistance. hiah strenath. lona service life. can be flexible desian. workmanshiD, etc
PRODUCING PROCESS
Our FRP tanks are manufactured by modern automated filament winding process in conformity with export standard.
The FRP tank has a high performance epoxy resin coated fiberglass strands outer shell with polyethylene (PE) or ABS seamless one-piece liner.
The tank with two layers of protection is superior corrosion resistant and rustproof.
