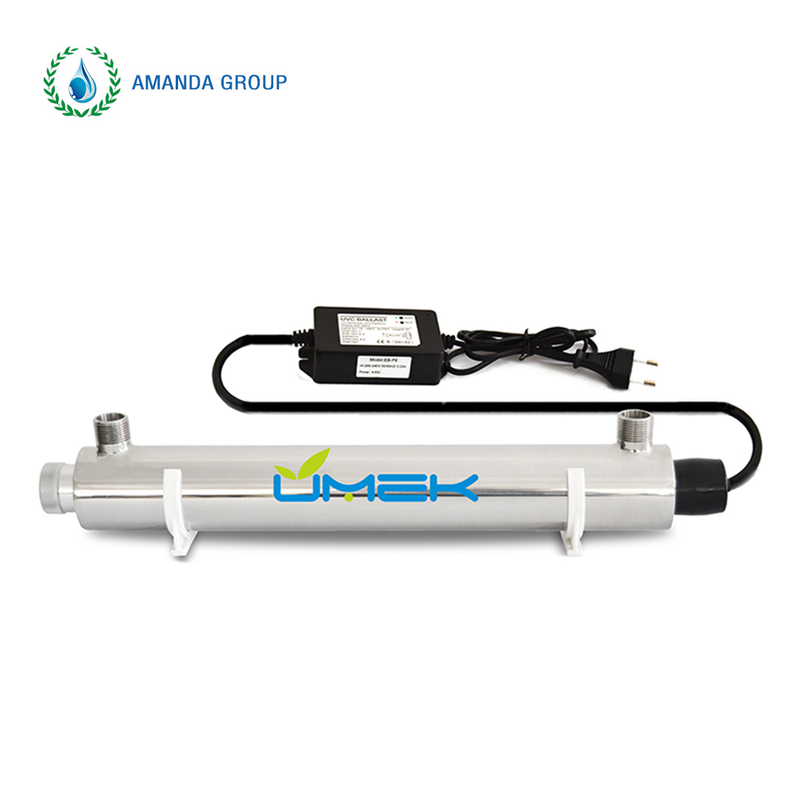

AMD-RUV-25 Ultraviolet Water Sterilizer

China, manufacturers, factory, customized, wholesale, price, cheap, in stock, made in China, UV light water purifier, UV disinfection equipment, Ultraviolet Water Disinfection, ultraviolet disinfection lamp, ultraviolet light sterilizer, UV water disinfection water treatment


Availability:



Inquire

Product Description

Product advantages

1.UV chamber with 304 SUS material(316L is optional), with mechanical polishing and welding.

(Electrolytic polishing is optional)

2.Accessories: UV lamp, quartz tube and ballast with time delay function.

3.The UV lamp will only work when there is water flow. And with the time setting feature, you can set the time to turn off the light. This feature will save your electricity and ensure that the water in the room is clean when you turn off the faucet.

Product Application

Swimming Pool Water

Campus Water Seilization

Amanda-Ultra Violet Water Sterilizer-Freshwater aquaculture

Non-Soil Cltvation

Product Video

Parameter

Model	Flow Rate @ 30mj/cm⊃2;		Lamp Watts	Inlet/outlet Port	Reactor Size(mm)
Model	GPM	TPH	Lamp Watts	Inlet/outlet Port	L	W	H
AMD-RUV-4	0.3	0.07	4	1/4" F Thread	200	51	70
AMD-RUV-6	0.5	0.12	6	1/4" F Thread	260	51	70
AMD-RUV-11	1	0.23	11	1/4" F Thread	260	51	70
AMD-RUV-16	2	0.45	16	1/2" F Thread	375	63	80
AMD-RUV-25	6	1.4	25	1/2" F Thread	518	63	90
AMD-RUV-30	8	1.8	30	3/4" F Thread	975	63	90
AMD-RUV-40	10	2.3	40	3/4" F Thread	890	63	90
AMD-RUV-40	12	2.7	40	1" F Thread	920	63	90
AMD-RUV-55	12	2.7	55	3/4" F Thread	975	63	90
AMD-RUV-80	24	5.5	80	1" F Thread	950	63	90

UV Light Purification Advantage Than Others Way

Methods	UV	Chlorination	Ozone
Destruction	Physical	Chemical	Chemical
Capital Cost	Low	Medium	High
Operating Cost	Low	Medium	High
Maintenance Cost	Low	Medium	High
Maintenance Frequency	Low	Medium	High
Disinfection Performance	Excellent	Very good	Unpredictable
Contact time	1-5 Seconds	25-24 minutes	5-10 Minutes
Persanal Hazards	Low	Medium	High
Toxic Chemicals	No	Yes	Yes
Water Chemistry Change	No	Yes	Yes
Residual Effect	No	Yes	Yes
