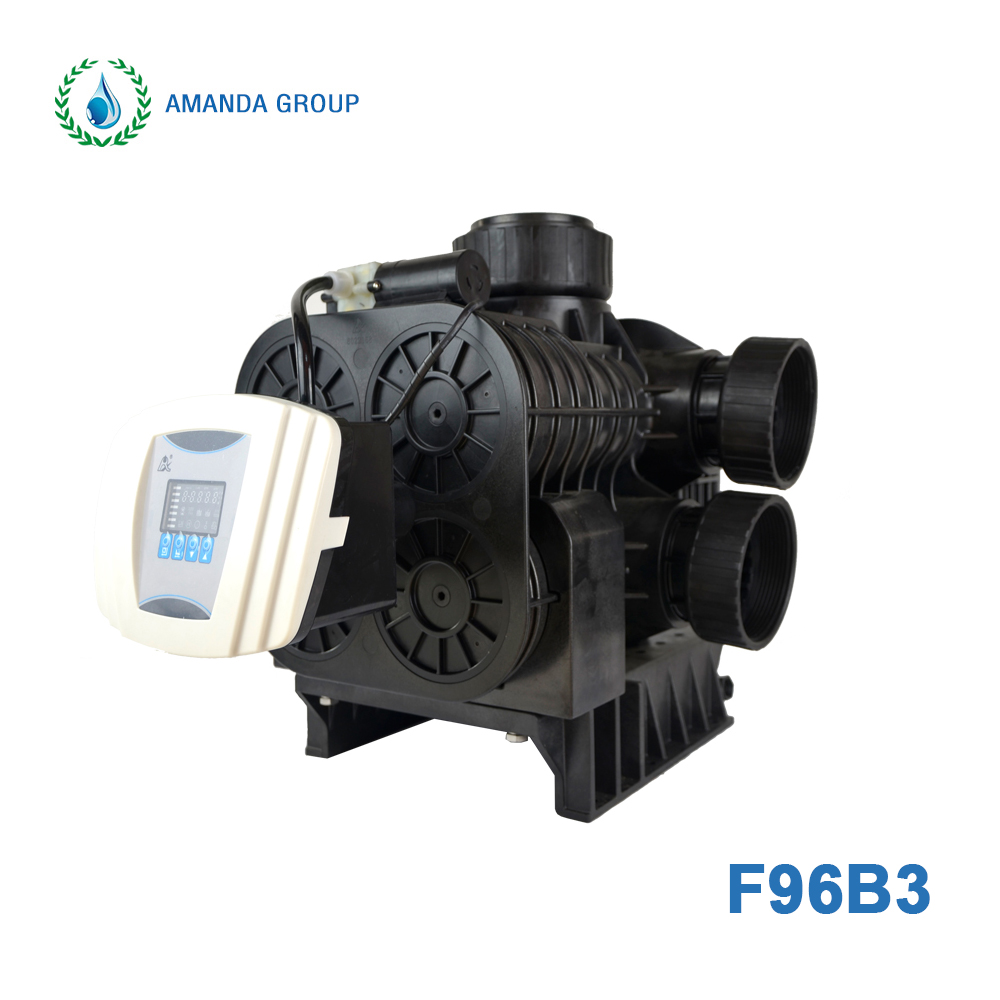

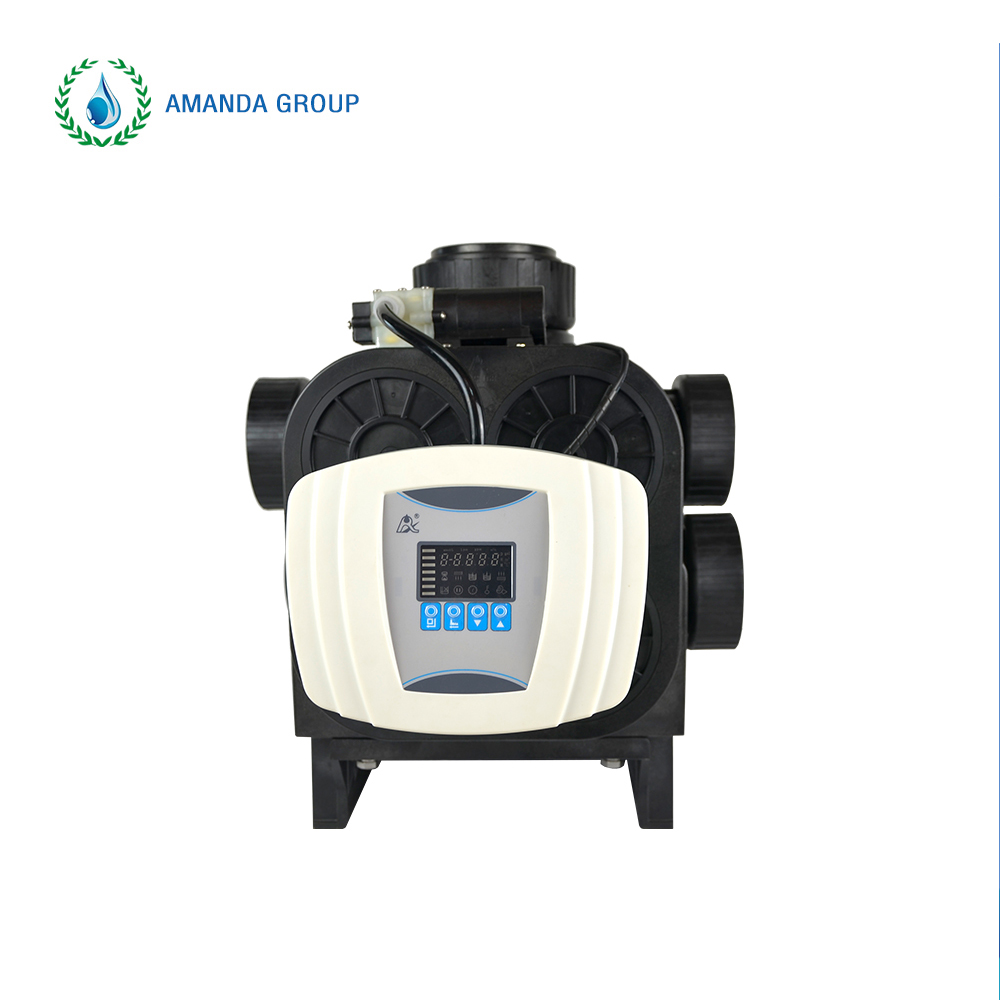

F96B1/B3 Automatic Filter Valves
Runxin F96B1/B3 Automatic Filter Valves
Product model | F96B1/B3（53550/53650） |
Regeneration method | Time clock type / meter type |
Installation method | Side mount |
Inlet/Outlet | DN80 |
drain | DN80 |
Mounting base | Side mount， Top and bottom distributor basketDN100 |
Riser pipe | Side mount， Top and bottom distributor basketDN100 |
Flow rate | 50m³/h |
Suitable for tank | 36"--48" |
work pressure | 0.2-0.6MPa |
Inlet water temperature | 5-50℃ |
Influent Turbidity | ＜20FTU |
Adapter power | InputAC100~240V/50~60HZ OutputDC24V/4A |
Application | Activated carbon filter, sand filter |
Use filter media | Quartz sand, activated carbon... |
Manual Filter Valve |
| Manual Softener Valve |
|
Automatic Filter Valve
|
Automatic Softener Valve |
| One Valve On Duplex Tanks |
| Residential Softener of D Series |
PRODUCT DISPLAY
Features
The F96B1 is a timer clock type and the F96B3 is an meter type.
The F96B1/B3 automatic multi-pass filter valve operates at a flow rate of 50 m³/h and has four T-shaped configuration ports in the valve body. The automatic multi-pass filter valve opens and closes with a flat corrosion resistant gasket. Unfiltered water is introduced through the pump port and sent to different channels for treatment. The different flow paths are easily controlled by pushing or pulling a hydraulically balanced piston in the valve. This means that the valve can be used as a service valve, backwash valve and quick flush valve.
