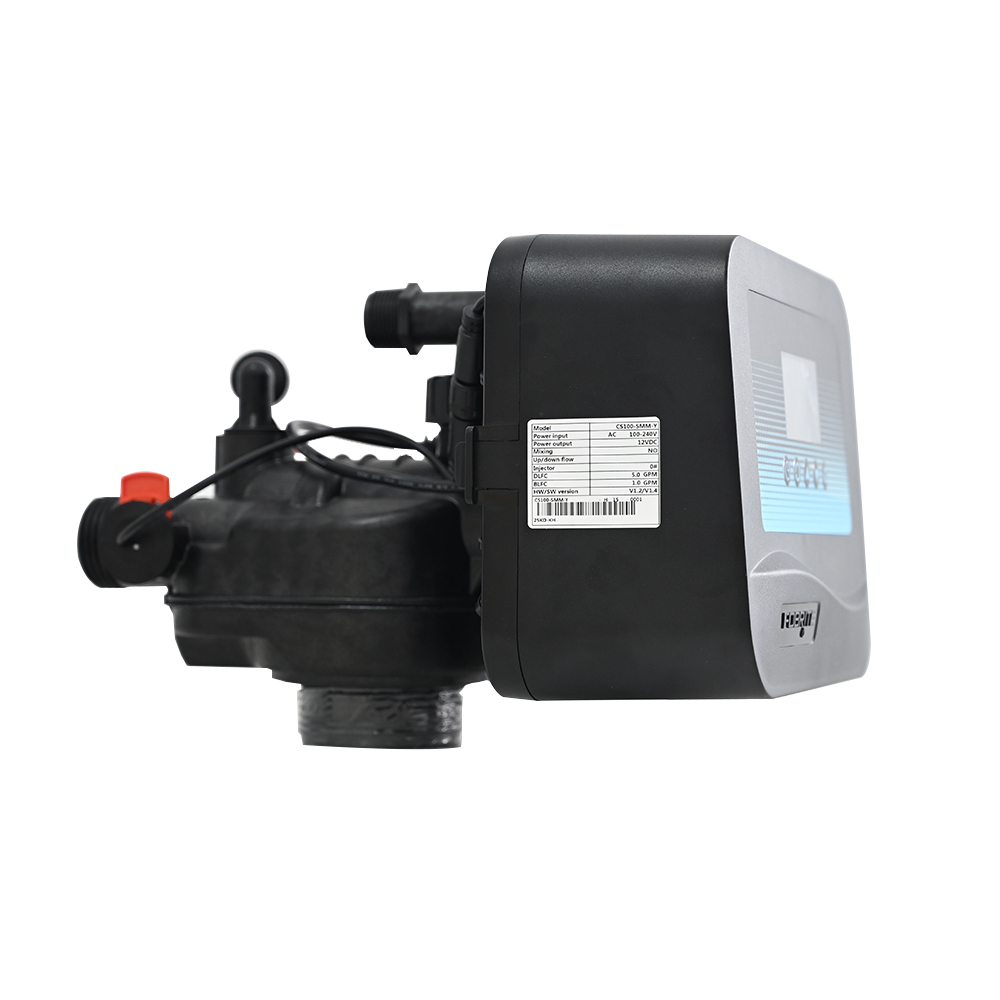

Global Universal Thread FOBRITE CS100 Automatic Water Control Valve NPT BSPT Quick Connector For Export Water Treatment Equipment

DESCRIPTION

回答要求说明

FOBRITE CS100 features fully universal multi-size liquid ports compatible with global mainstream thread standards to simplify cross-border equipment export matching. The inlet and outlet ports support optional 1" or 3/4" NPT and BSPT threads with straight or elbow quick-connect joints; drain lines offer interchangeable 1", 3/4" and 1/2" thread specifications, while the brine suction port adopts 3/8" or 1/2" outer diameter elbow quick connectors. Every liquid pipeline interface adopts plug-and-play QC design to shorten assembly time for OEM water softener and filter machine factories. The standard 2-1/2"-8NPSM base fits nearly all fiberglass resin tanks sold across North America, Europe, Southeast Asia and Australia, removing barriers for global distributors to match local tank accessories without extra conversion fittings.

APPLICATION

Household Water Treatment

Whole-house softening system for villas, apartments and townhouses to remove limescale
Well water/tap water sediment & chlorine filtration with quartz sand / activated carbon tanks

Small Commercial Water Supply

Homestays, hotels, gyms, beauty salons, laundries, car wash shops
Office building daily water pre-filtration and softening treatment

OEM Export & Light Industrial Matching

Anti-scale pre-softener for small boilers; aquaculture pre-filter
RV, yacht dedicated soft water & clean water integrated systems
Universal matching valve for global water softener and filter machine manufacturer

ADVANTAGES

Quick-disassemble core parts + tool-free quick plug pipelines, stable water treatment performance
Integrated injector and flow meter adopt quick-release design; you can take them out for cleaning or replacement without any tools to reduce maintenance time. Brine and drain pipelines are equipped with elbow quick connectors, pipe installation can be finished by hand without wrenches. The built-in brine dissolving structure guarantees full salt dissolution when used as a water softener.
Dual regeneration flow modes + proportional regeneration to save salt & water
Two DF regeneration modes are selectable: DF(NHW) non-hardwater co-current and DF(HW) hardwater co-current. All 5 regeneration stages are fully adjustable, each step running time ranges from 0 to 999 minutes. Proportional regeneration automatically matches salt consumption based on actual water usage, effectively cutting daily salt and water waste for softener operation.
Abundant optional expandable modules for maintenance and intelligent system linkage
Multiple auxiliary accessories are optional to meet diverse demands: independent bypass valve allows tank maintenance without cutting off water supply. It supports relay output, active signal, remote linkage, RS485 central control communication and low salt level alarm interface, realizing remote monitoring and early salt shortage reminder.
Complete intelligent monitoring system with fault alarm, maintenance reminder & data record
The valve will send clear error prompts once abnormal conditions occur, and remind users when maintenance is needed. You can check historical water flow and cycle records at any time. All custom running settings are permanently saved after power cuts, no need to reset parameters after power recovery.
Dual-use design for softener & filter, wide tank matching range, compact installation size
One valve fits two types of water tanks: it serves as a softener head for 10"-24" resin tanks, and as a filter head for 10"-21" sand/carbon tanks. Standard universal 2-1/2"-8NPSM base fits most mainstream fiberglass tanks globally, reducing your stock SKUs. Only 173mm height from tank top, it fits narrow water cabinets perfectly. The corrosion-resistant valve body weighs just 2.1kg for easy shipping and on-site installation.

SERVICE

One-stop Ready To Use Solution
Whole machine integrated pre-assembled, no complicated on-site installation. Unpack and start working directly.
Customization Acceptable
We support customized flow rate, voltage (110V/220V for different countries), plug standard, pipeline interface, logo print.
Global After-sales Support
Complete operation manual, video installation & maintenance guidance, long-term supply of matching consumables (Filter cartridge, filter bottle, RO membrane, membrane housing, etc.).
Stable Bulk Supply For Wholesalers & Distributors
Stable production capacity, support MOQ wholesale, OEM & ODM cooperation for global agents and distributors.

PARAMETER

Category	Parameter Item	Data & Description
Hydraulic Flow (Valve only, inlet pressure 50PSI/3.5bar)	Continuous Flow (15PSI/1bar pressure drop)	5.5M³/H (24.2GPM)
	Peak Service Flow (25PSI/1.7bar pressure drop)	7.0M³/H (31GPM)
	Max Backwash Flow (25PSI/1.7bar pressure drop)	5.7M³/H (25GPM)
	CV Value (1PSI/0.07bar pressure drop)	6.2
Regeneration System	Regeneration Flow Mode (UF)	DF(NHW) non-hardwater co-current / DF(HW) hardwater co-current
	Regeneration Cycles	5 full adjustable stages
	Adjustable Cycles Range	All stages fully customizable
	Single Stage Time Range	0–999 minutes
Standard Built-in Configuration	Core components	Quick-disassemble injector & flow meter, dedicated brine dissolving chamber
	Pipeline connectors	Quick plug elbow joints for brine & drain line
	Regeneration algorithm	Proportional salt-saving regeneration
Optional Expandable Accessories	Auxiliary fittings	Independent bypass valve
Optional Expandable Accessories	Signal & communication interfaces	Relay output, remote control, active signal output, RS485 communication, low salt level alarm port
Intelligent Monitoring Functions	Self-diagnosis & record	Auto fault error reporting, regular maintenance reminder, historical operation data inquiry
Pipeline Port Spec	Inlet & Outlet	1" or 3/4", NPT / BSPT thread; straight or elbow quick connectors
	Drain Line	1" / 3/4" / 1/2", NPT / BSPT thread; straight or elbow quick connectors
	Brine Line	3/8" or 1/2" OD elbow quick connector
Tank Matching Spec	Base Thread Standard	2-1/2"-8NPSM
	Distributor Pilot Compatibility	GB standard: DN25, 32mm OD NPS US standard: 1" Pipe, 33.4mm OD
	Matching Softener Tank Size	10" - 24" (250-600mm diameter)
	Matching Filter Tank Size	10" - 21" (250-530mm diameter)
Dimension & Weight	Height from tank top	6.8" / 173mm
Dimension & Weight	Valve Net Weight	2.1Kg
