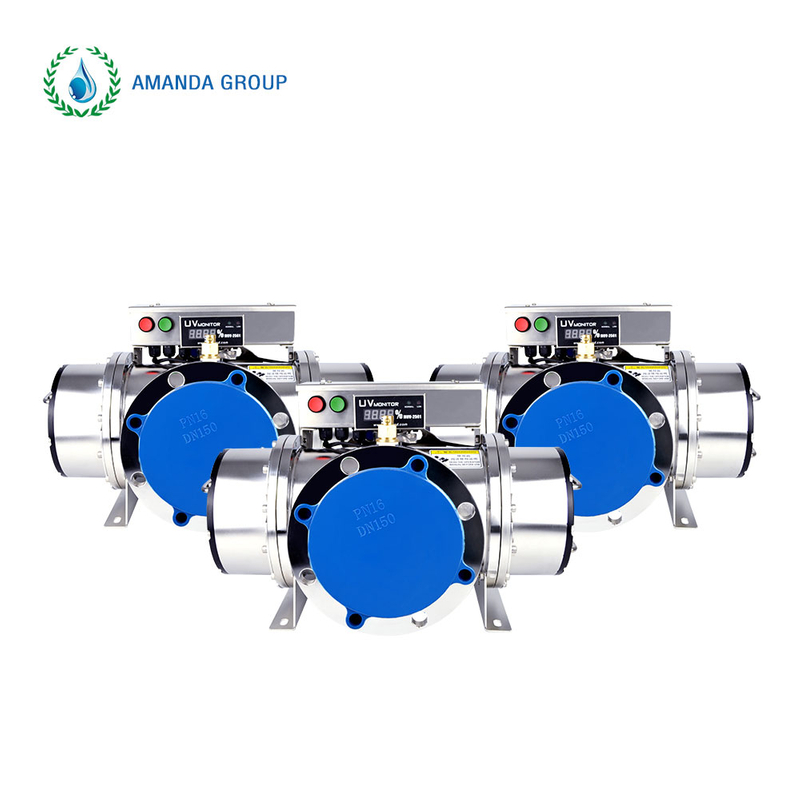

New Design Hot Sales UV Sterilizer
Why choose UVC sterilization?
Germicidal UVC can effectively solve the problem of low water pressure in the pipe network and can meet the needs of high-rise buildings water.
So far, the chemical disinfectants used for water disinfection and purification treatment is not a non-toxic to people, the use of chlorine preparations to treat water quality contains chlorinated byproducts, namely, trihalomethanes and haloacetic acid are represented by volatile and non-volatile chlorinated byproducts, with strong carcinogenicity, the traditional water disinfection using chlorine and chlorine-containing compounds agents, the operation of most of the manual delivery method or chemical disinfection equipment, organic chlorine has a carcinogenic effect on the human body, these have been more and more people are aware of.
Sterilization Principe
Ultraviolet light is an electromagnetic spectrum between visible light and X-rays.
The UV spectrum from 200nm to 400nm has strong germicidal efficacy, with a peak at 265nm.
In this wavelength range of ultraviolet light is mainly through the piercing of the cell membrane, the destruction of intracellular deoxyribonucleic acid and destruction of other molecules within the cell, so that microorganisms can no longer replicate and reproduce, and ultimately achieve disinfection effect.
UVC sterilizer physical photograph according to the wavelength range, can be divided into four wavelengths of ultraviolet radiation.
Vacuum UVC: 40 - 200nm UVC c: 200- 280nm UVC b: 280- 315nm UVC a: 315- 400nm.
Operating Conditions
Environmental conditions:
1. Temperature: 5"C -40C
2. Relative humidity: s90% (at ambient temperature 25*C
3. Power supply: 10V/220V/240W/380V , 50Hz/60Hz
4. Max. operating pressure: s 1.0MPa
Water supply requirements:
Parameter | Standard |
---|---|
Fe | ≤0.3 (mg/) |
Hydrogen sulfide | ≤0.05 (mg/) |
Suspended solid | ≤10 (mg/) |
Mn | ≤0.05 (mg/) |
Hardness | ≤120 (mg/) |
Chroma | ≤15 (degree) |
Turbidity | ≤5 (NTU) |
Water temperature | 5°C ~60C |
Parameter
Model | Flow Rate | Power | |
M3/H | GPM | ||
AMD-M50LT | 50 | 220 | 1.3 |
AMD-M100LT | 100 | 440 | 2.0 |
AMD-M150LT | 150 | 660 | 3.0 |
AMD-M200LT | 200 | 880 | 4.0 |
AMD-M300LT | 300 | 1320 | 6.0 |
AMD-M400LT | 400 | 1760 | 8.0 |
AMD-M450LT | 450 | 1980 | 9.0 |
AMD-M500LT | 500 | 2200 | 10 |
AMD-M600LT | 600 | 2640 | 12 |
AMD-M650LT | 650 | 2860 | 13 |
AMD-M700LT | 700 | 3080 | 14 |
AMD-M750LT | 750 | 3300 | 15 |
AMD-M800LT | 800 | 3500 | 16 |
AMD-M900LT | 900 | 3960 | 18 |
AMD-M1000LT | 1000 | 4400 | 20 |
* The above pictures and parameters are only for reference. We conserve all rights of parameter modification without prior notiiccation.
Product Advantages
The unique advantages of this series of products are: its efficient inactivation of broad-spectrum microorganisms, no change in water physical and chemical indicators and water quality characteristics, no by-products at normal doses, low construction and operating costs, easy management and maintenance, etc.
Its superiority in the field of disinfection of secondary water supply and agricultural water (self-provided water) is incomparable to other disinfection methods.
Product Application
Municipal water, Swimming pool, Seedling breeding, Pharmaceutical industry, Fruit juice beverage industry, etc.
UV Light Purification Advantages
1. High efficient UV Light Purification:
Normally kill 99-99.99% bacteria within 1 to 2 seconds.
2. Broad spectrum:
UV Light Purification has broadest spectrum, can kill almost all bacteria and virus.
3. No secondary pollution:
Do not add any chemical, so can not create secondary pollution to water and ambient environment, and do not change any ingredient in water.
4. Safe and reliable to operate:
Traditional disinfection technologies, such as chloride or ozone, which disinfection agent itself are highly toxic and flammable material while 48 gpm uv light sterilizer has no such potential safety hazard.
5. Low maintenance fee:
UV lamps occupies a small area; structure requirement is simple, so total investment is smaller. Lower in operation, it costs only half than that chlorine disinfection in kiloton water treatment.
UV Light Purification Advantage Than Others Way
Methods | UV | Chlorination | Ozone |
Destruction | Physical | Chemical | Chemical |
Capital Cost | Low | Medium | High |
Operating Cost | Low | Medium | High |
Maintenance Cost | Low | Medium | High |
Maintenance Frequency | Low | Medium | High |
Disinfection Performance | Excellent | Very good | Unpredictable |
Contact time | 1-5 Seconds | 25-24 minutes | 5-10 Minutes |
Persanal Hazards | Low | Medium | High |
Toxic Chemicals | No | Yes | Yes |
Water Chemistry Change | No | Yes | Yes |
Residual Effect | No | Yes | Yes |
Working Theory Of UV Light Purification
UV Light Purification is invisible, exists in the outside of UV spectrum,so it is called UV radiaction. According to a different wavelength range,they are cut into A, B, C three kinds of bands, including the C-band UV wavelength between 240-260nm, which is the most effective sterilizer band, band's strongest point it the wavelength of 253.7nm.
Swimming pool disinfection system
Where Need UV Light Purification?
Pure Water: Drinking Water;Tap Water Factory; Food Process Water; Hospital and Pharmaceutical;
Beer Industry; Hotels; Lab Ultrapure Water;Cosmetics Industry.
Circulating Water: Water Entertainment Facilities&Swimming pool water; Landscape water; Industrial Circulating Cooling Water; Spa; Micro-electronics.
Wastewater: Municipal Sewage; Hospital Sewage; Oilfield Reinjection Water; Urban Sewage;Reclaimed Water; Slaughter-house Wastewater; Sewage from Ships.
Aquaculture: Hydroponic Shellfish; Fish Hatcheries; Farms; Aquarium.
Exhibition
Our Advantage
Our Factory
Adequate product inventory | Rich industry exporience |
