UV Sterilizers for Food And Beverage
You are here: Home » Products » UV Water Sterilizer » UV Sterilizers for Food And Beverage

PRODUCT DETAIL

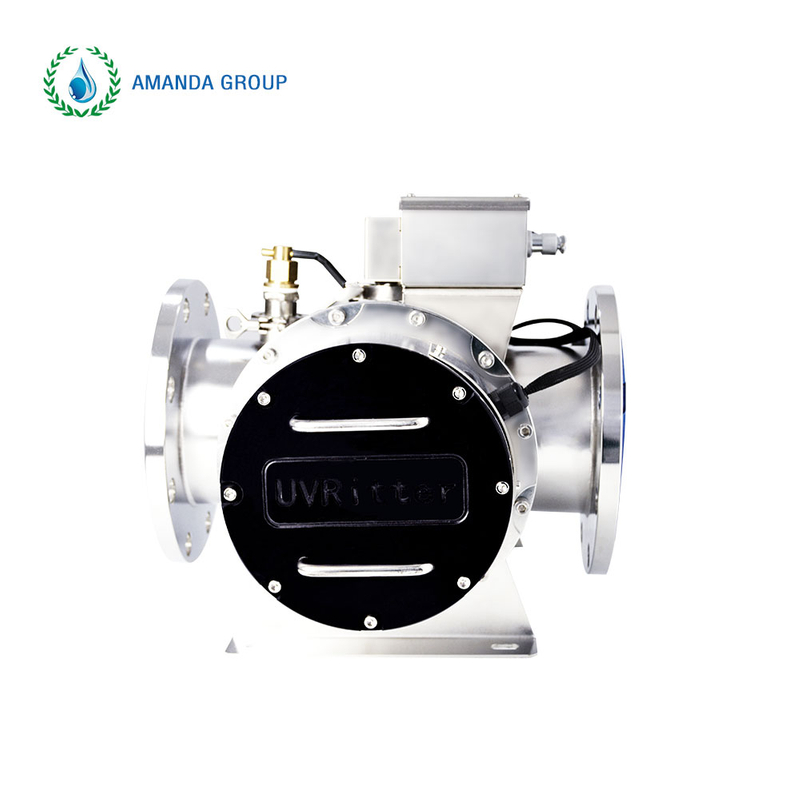

UV Sterilizers for Food And Beverage

Availability:

 UV Sterilizers for Food And Beverage



  Product description


Effective sterilisation treatment is essential in the processing of juice production. UV sterilisation technology is gaining increasing acceptance as a universal sterilisation treatment. UV light kills microorganisms by destroying their DNA structure. UV disinfection avoids the use of chemicals and can be used to disinfect feed water, syrups, clean water, waste water, filtration systems and packaging surfaces. UV systems are also very simple and easy to install and maintain.


The juice and beverage industry must adhere to the strictest quality and hygiene standards. Bacteria that grow from contaminants in water or juice ingredients can lead to discolouration, taste changes and shortened shelf life, as well as increasing the risk of infection to consumers. At the same time, national hygiene standards and related industry standards require manufacturers to reduce the amount of chemical additives and preservatives used in food, further increasing the difficulty of preserving food. This makes effective sterilisation in the production process even more important.


UV sterilisation is a highly effective, non-chemical means of inhibiting spoilage. UV light kills all pathogenic microbial tissues already known to man, including bacteria, viruses, yeasts and moulds (and their spores). It is a low-maintenance, environmentally friendly disinfection technology that avoids the use of chemicals while still ensuring an efficient level of disinfection.


  Sterilization Principe


UV ray is an invisible light, locating at outer side of violet rays in the spectrogram, Therefore it is clled as ultraviolet light, with wave length between 100nm and 400nm, UV ray can be divided intoA, B, C and vacuum ultra violets as per the wave length, Ultraviolet C is shortened to UV-C with wave length between 200nm and 280nm, UV-C with wave length of 253.7nm has the best sterilization effect, which is origin of modern UV-C.


Amanda Ultra Violet Water Sterilizer Sterilization Principle


  Operating Conditions


Environmental conditions:

1. Temperature: 5"C -40C

2.  Relative humidity: s90% (at ambient temperature 25*C

3. Power supply: 10V/220V/240W/380V , 50Hz/60Hz

4. Max. operating pressure: s 1.0MPa


Water supply requirements:


Parameter Standard
Fe ≤0.3 (mg/)
Hydrogen sulfide ≤0.05 (mg/)
Suspended solid ≤10 (mg/)
Mn ≤0.05 (mg/)
Hardness ≤120 (mg/)
Chroma ≤15 (degree)
Turbidity ≤5 (NTU)
Water temperature 5°C ~60C


  Parameter


Model Flow Rate  Power
M3/H GPM
AMD-M50LT 50 220 1.3
AMD-M100LT 100 440 2.0
AMD-M150LT 150 660 3.0
AMD-M200LT 200 880 4.0
AMD-M300LT 300 1320 6.0
AMD-M400LT 400 1760 8.0
AMD-M450LT 450 1980 9.0
AMD-M500LT 500 2200 10
AMD-M600LT 600 2640 12
AMD-M650LT 650 2860 13
AMD-M700LT 700 3080 14
AMD-M750LT 750 3300 15
AMD-M800LT 800 3500 16
AMD-M900LT 900 3960 18
AMD-M1000LT 1000 4400 20

The above pictures and parameters are only for reference. We conserve all rights of parameter modification without prior notiiccation.


  Product Advantages


1. High lamp power, larger capacity and high disinfection efficiency;

2. 200-400nm UV radiation output, high UV intensity, widely application;

3. Small occupation, easy operation;

4. Imported UV lamp and ballast, long working life;

5. Signal UV lamp output power is 10-100 times than low pressure UV lamp, less UV lamp quantity, low continuance cost.


  Product Application


Municipal water, Swimming pool, Seedling breeding, Pharmaceutical industry, Fruit juice beverage industry, etc.



  UV Light Purification Advantages

1. High efficient UV Light Purification:

Normally kill 99-99.99% bacteria within 1 to 2 seconds.


2. Broad spectrum:

UV Light Purification has broadest spectrum, can kill almost all bacteria and virus.


3. No secondary pollution:

Do not add any chemical, so can not create secondary pollution to water and ambient environment, and do not change any ingredient in water.


4. Safe and reliable to operate:

Traditional disinfection technologies, such as chloride or ozone, which disinfection agent itself are highly toxic and flammable material while  48 gpm uv light sterilizer has no such potential safety hazard.


5. Low maintenance fee:

UV lamps occupies a small area; structure requirement is simple, so total investment is smaller. Lower in operation, it costs only half than that chlorine disinfection in kiloton water treatment.



  UV Light Purification Advantage Than Others Way


Methods

UV Chlorination Ozone
Destruction Physical Chemical Chemical
Capital Cost Low Medium High
Operating Cost Low Medium High
Maintenance Cost Low Medium High
Maintenance Frequency Low Medium High
Disinfection Performance Excellent Very good Unpredictable

Contact time

1-5 Seconds 25-24 minutes 5-10 Minutes
Persanal Hazards Low Medium High
Toxic Chemicals No Yes Yes
Water Chemistry Change No Yes Yes
Residual Effect No Yes Yes


  Working Theory Of UV Light Purification


UV Light Purification is invisible, exists in the outside of UV spectrum,so it is called UV radiaction. According to a different wavelength range,they are cut into A, B, C three kinds of bands, including the C-band UV wavelength between 240-260nm, which is the most effective sterilizer band, band's strongest point it the wavelength of 253.7nm.


Working Theory OfUV Light Purification


  Swimming pool disinfection system


Swimming pool disinfection system


  Where Need UV Light Purification?


  • Pure Water: Drinking Water;Tap Water Factory; Food Process Water; Hospital and Pharmaceutical;

  • Beer Industry; Hotels; Lab Ultrapure Water;Cosmetics Industry.

  • Circulating Water: Water Entertainment Facilities&Swimming pool water; Landscape water; Industrial Circulating Cooling Water; Spa; Micro-electronics.

  • Wastewater: Municipal Sewage; Hospital Sewage; Oilfield Reinjection Water; Urban Sewage;Reclaimed Water; Slaughter-house Wastewater; Sewage from Ships.

  • Aquaculture: Hydroponic Shellfish; Fish Hatcheries; Farms; Aquarium.
