Ultraviolet disinfection technology is very expeditious in destroying bacteria.
Comprehensive range of disinfection.
No secondary pollution.
Low Operational costs, simple operation and maintenance and economical prices.
Occupied small space.
UV ray is an invisible light, locating at outer side of violet rays in the spectrogram, Therefore it is clled as ultraviolet light, with wave length between 100nm and 400nm, UV ray can be divided intoA, B, C and vacuum ultra violets as per the wave length, Ultraviolet C is shortened to UV-C with wave length between 200nm and 280nm, UV-C with wave length of 253.7nm has the best sterilization effect, which is origin of modern UV-C.
1. Temperature: 5"C -40C
2. Relative humidity: s90% (at ambient temperature 25*C
3. Power supply: 10V/220V/240W/380V , 50Hz/60Hz
4. Max. operating pressure: s 1.0MPa
Water supply requirements:
|Hydrogen sulfide||≤0.05 (mg/)|
|Suspended solid||≤10 (mg/)|
|Water temperature||5°C ~60C|
1. Ultraviolet disinfection technology is very expeditious in destroying bacteria:
UV energy can destroy bacteria and virus in just about 1-5 seconds.In order to reach the same disinfection effect, it costs about 30 minutes or more contact time by use other chemical methods(Chlorine, Ozone, Chlorine Dioxide).
2. Comprehensive range of disinfection:
Ultraviolet disinfection technology has been widely applied for eficiently destroying pathogenic microorganisms, bacteria and virus.
3. No secondary pollution:
Since no chemical is added, ultraviolet disinfection system will not cause secondary pollution for water and environment.
4. Low operational costs:
Simple operation and maintenance and economical prices.
5. Occupied small space:
Occupied small space and easy assembly enable UV equipment to be installed at the place near water and power source.The ultraviolet equipment starts working after connecting the inlet and outlet of the Ultraviolet equipment and powering up.
Pure Water: Drinking water; Tap water factory; Food process water; Hospital and Pharmaceutical; Beer industry; Hotel; Lab ultrapure water; Cosmetics industry.
Circulating Water: Water entertainment facilities swimming pool water; Landscape water; Industrial circulating cool water;Spa; Micro-electronics.
Wastewater: Municipal sewage; Hospital sewage; Oilfield reinjection water; Urban sewage; Reclaimed water;Slaughter-house wastewater; Sewage from ships.
Aquaculture: Hydroponic shellfish; Fish hatcheries; Farms;Aquarium.Military bases, Field operations, Aircraft, Ships, Submarine water disinfection.
|Swimming Pool Water||Campus Water Seilization||Non-Soil Cltvation|

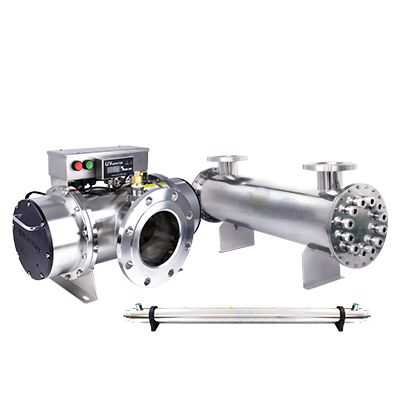

Imported germicidal UV lamp with 9000-12000 hours working life.
UV chamber with 304 SUS material(316L is optional), with mechanical polishing and welding.
(Electrolytic polishing is optional)
The chamber pressure resistance meets 1he standard specification 1.0 Mpa.
High performance ballast with operate LED light, approved by CE and UL certification.
|Model||Flow Rate @ 30mj/cm²||Lamp Watts||Inlet/outlet Port||Reactor Size(mm)|
|AMD-RUV-4||0.3||0.07||4||1/4" F Thread||200||51||70|
|AMD-RUV-6||0.5||0.12||6||1/4" F Thread||260||51||70|
|AMD-RUV-11||1||0.23||11||1/4" F Thread||260||51||70|
|AMD-RUV-16||2||0.45||16||1/2" F Thread||375||63||80|
|AMD-RUV-25||6||1.4||25||1/2" F Thread||518||63||90|
|AMD-RUV-30||8||1.8||30||3/4" F Thread||975||63|| |
|AMD-RUV-40||10||2.3||40||3/4" F Thread||890||63||90|
|AMD-RUV-40||12||2.7||40||1" F Thread||920||63||90|
|AMD-RUV-55||12||2.7||55||3/4" F Thread||975||63||90|
|AMD-RUV-80||24||5.5||80||1" F Thread||950||63||90 |
UV Light Purification Advantages
1. High efficient UV Light Purification:
Normally kill 99-99.99% bacteria within 1 to 2 seconds.
2. Broad spectrum:
UV Light Purification has broadest spectrum, can kill almost all bacteria and virus.
3. No secondary pollution:
Do not add any chemical, so can not create secondary pollution to water and ambient environment, and do not change any ingredient in water.
4. Safe and reliable to operate:
Traditional disinfection technologies, such as chloride or ozone, which disinfection agent itself are highly toxic and flammable material while 48 gpm uv light sterilizer has no such potential safety hazard.
5. Low maintenance fee:
UV lamps occupies a small area; structure requirement is simple, so total investment is smaller. Lower in operation, it costs only half than that chlorine disinfection in kiloton water treatment.
UV Light Purification Advantage Than Others Way
|Disinfection Performance||Excellent||Very good||Unpredictable|
|1-5 Seconds||25-24 minutes||5-10 Minutes|
|Water Chemistry Change||No||Yes||Yes|
Working Theory Of UV Light Purification
UV Light Purification is invisible, exists in the outside of UV spectrum,so it is called UV radiaction. According to a different wavelength range,they are cut into A, B, C three kinds of bands, including the C-band UV wavelength between 240-260nm, which is the most effective sterilizer band, band's strongest point it the wavelength of 253.7nm.
Swimming pool disinfection system
Where Need UV Light Purification?
Pure Water: Drinking Water;Tap Water Factory; Food Process Water; Hospital and Pharmaceutical;
Beer Industry; Hotels; Lab Ultrapure Water;Cosmetics Industry.
Circulating Water: Water Entertainment Facilities&Swimming pool water; Landscape water; Industrial Circulating Cooling Water; Spa; Micro-electronics.
Wastewater: Municipal Sewage; Hospital Sewage; Oilfield Reinjection Water; Urban Sewage;Reclaimed Water; Slaughter-house Wastewater; Sewage from Ships.
Aquaculture: Hydroponic Shellfish; Fish Hatcheries; Farms; Aquarium.
