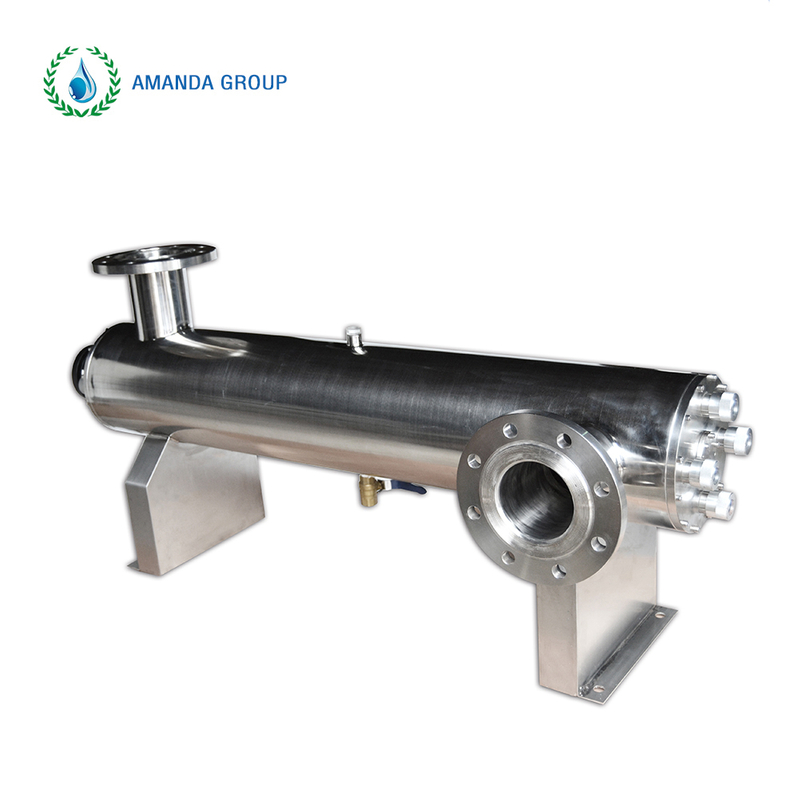

600W UV Sterilizer with Automatic Cleaning Machine Features
Introduction of automatic cleaning ultraviolet sterilizer:
(Electric) (Pneumatic) Self-cleaning ultraviolet sterilizer, the equipment is simple to operate, can be controlled by time and manually, and can be cleaned without bursting. After a conventional ultraviolet sterilizer (without cleaning function) runs for a period of time, the surface of the inner glass sleeve will be covered with dirt, which will affect the transparency of the glass tube, affect the irradiation of ultraviolet light, and affect the sterilization effect. Electric self-cleaning UV sterilizers can make up for the shortcomings of conventional UV rays. Therefore, it is welcomed by the market.
600W UV Sterilizer with Automatic Cleaning Machine Advantages
1. The structure is compact, the irradiation intensity is high, and it conforms to the GMP device.
2. It can be equipped with an external intensity detector in the ultraviolet sensor measurement window.
3. The constant torque output of the servo motor makes the cleaning process stable and reliable
4. The internal design has no dead angle and low pressure loss
5. Enterprises in the pharmaceutical and cosmetic industries need to sterilize the ultrapure water in the production process.
600W UV Sterilizer with Automatic Cleaning Machine Parameter
Product name | 600W UV sterilizer with automatic cleaning machine
| note |
Chamber | SS304/316 |
|
Watts | 120WX5 |
|
lamps | Philips lamp | Word famous brand single-ended four-pin, more convenient for customers to install。 |
Flow rate | 176GPM，40TPH |
|
UV lamp life | 9000-12000 hours |
|
tube | Quartz tube | The penetration rate is 96% higher, the material strength is high, and the transportation is not easy to damage. |
Inlet and outlet | DN100 flage |
|
Electric control box | LPC intelligent control system | More reliable operation and remote monitoring |
Timer ballest | 1. Built-in timer device, the lamp usage hours and days can be displayed and switched. 2. Sound and light alarm function |
|
LED indicator |
|
|
Running lights |
|
|
Automatic cleaning device | Automatic cleaning, automatic sewage discharge, 24-hour all-weather operation can realize unattended |
|
600W UV Sterilizer with Automatic Cleaning Machine Application
Seedling breeding, food processing, hospitals, domestic water, chemical pharmaceuticals, swimming pools and other recreational facilities.
Working Theory Of UV Light Purification
UV Light Purification is invisible, exists in the outside of UV spectrum,so it is called UV radiaction. According to a different wavelength range,they are cut into A, B, C three kinds of bands, including the C-band UV wavelength between 240-260nm, which is the most effective sterilizer band, band's strongest point it the wavelength of 253.7nm.
