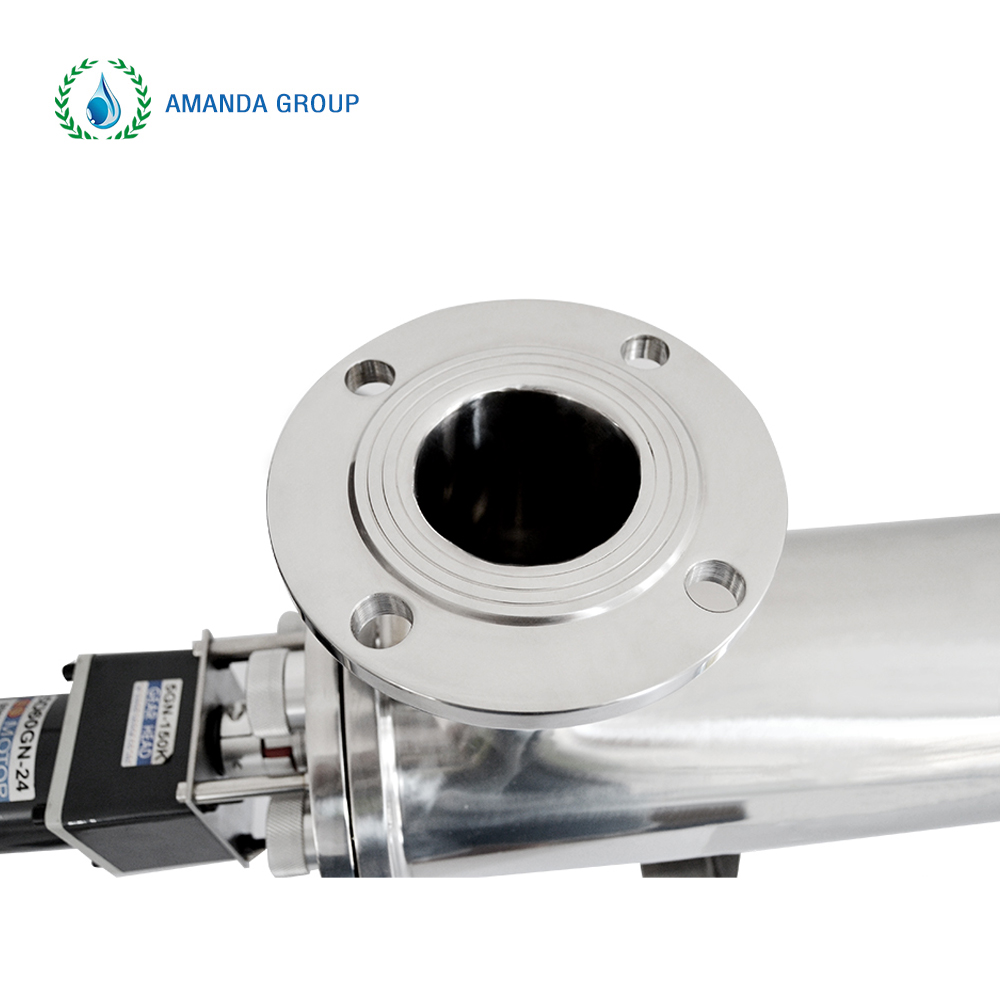

Ultra Violet Water Sterilizer

            Waste water application

  Product description

• Imported germicidal UV lamp with 9000-12000 hours working life.

• UV chamber with 304 SUS material(316L is optional), with mechanical polishing and welding.(Electrolytic polising is optional)

• Lamp working timer, the lamp of the working hours of statistics, simple and effective detection of lamp life.

• Configure the system working status indicator, when the UV lamps working well, the indicators light.

• Manual/Pneumatic/Electrical cleaning system for quartz sleeves are optional, the UV system no need stop working.

• UV monitor and sensor detect the UV output intensity,secure the UV dosage.

• System fault alarm, when UV system work abnormally, the audio and visual alarm will be activated.

• Remote control, Power switch, automatic cleaning monitoring for UV intensity, temperature and system fault are functional with installation of remote control.





  Sterilization Principe

UV ray is an invisible light, locating at outer side of violet rays in the spectrogram, Therefore it is clled as ultraviolet light, with wave length between 100nm and 400nm, UV ray can be divided intoA, B, C and vacuum ultra violets as per the wave length, Ultraviolet C is shortened to UV-C with wave length between 200nm and 280nm, UV-C with wave length of 253.7nm has the best sterilization effect, which is origin of modern UV-C.

  Operating Conditions

Environmental conditions:

1. Temperature: 5"C -40C

2.  Relative humidity: s90% (at ambient temperature 25*C

3. Power supply: 10V/220V/240W/380V , 50Hz/60Hz

4. Max. operating pressure: s 1.0MPa

Water supply requirements:

  Parameter

* The above pictures and parameters are only for reference. We conserve all rights of parameter modification without prior notiiccation.

  Product Advantages

1. Ultraviolet disinfection technology is very expeditious in destroying bacteria:

UV energy can destroy bacteria and virus in just about 1-5 seconds.In order to reach the same disinfection effect, it costs about 30 minutes or more contact time by use other chemical methods(Chlorine, Ozone, Chlorine Dioxide).

2. Comprehensive range of disinfection:

Ultraviolet disinfection technology has been widely applied for eficiently destroying pathogenic microorganisms, bacteria and virus.

3. No secondary pollution:

Since no chemical is added, ultraviolet disinfection system will not cause secondary pollution for water and environment.

4. Low operational costs:

Simple operation and maintenance and economical prices.

5. Occupied small space:

Occupied small space and easy assembly enable UV equipment to be installed at the place near water and power source.The ultraviolet equipment starts working after connecting the inlet and outlet of the Ultraviolet equipment and powering up.

  Product Application

Pure Water: Drinking water; Tap water factory; Food process water; Hospital and Pharmaceutical; Beer industry; Hotel; Lab ultrapure water; Cosmetics industry.

Circulating Water: Water entertainment facilities swimming pool water; Landscape water; Industrial circulating cool water;Spa; Micro-electronics.

Wastewater: Municipal sewage; Hospital sewage; Oilfield reinjection water; Urban sewage; Reclaimed water;Slaughter-house wastewater; Sewage from ships.

Aquaculture: Hydroponic shellfish; Fish hatcheries; Farms;Aquarium.Military bases, Field operations, Aircraft, Ships, Submarine water disinfection.

Swimming Pool Water

Campus Water Seilization

Non-Soil Cltvation

  UV Light Purification Advantages

1. High efficient UV Light Purification:

Normally kill 99-99.99% bacteria within 1 to 2 seconds.

2. Broad spectrum:

UV Light Purification has broadest spectrum, can kill almost all bacteria and virus.

3. No secondary pollution:

Do not add any chemical, so can not create secondary pollution to water and ambient environment, and do not change any ingredient in water.

4. Safe and reliable to operate:

Traditional disinfection technologies, such as chloride or ozone, which disinfection agent itself are highly toxic and flammable material while  48 gpm uv light sterilizer has no such potential safety hazard.

5. Low maintenance fee:

UV lamps occupies a small area; structure requirement is simple, so total investment is smaller. Lower in operation, it costs only half than that chlorine disinfection in kiloton water treatment.

  UV Light Purification Advantage Than Others Way

  Working Theory Of UV Light Purification

UV Light Purification is invisible, exists in the outside of UV spectrum,so it is called UV radiaction. According to a different wavelength range,they are cut into A, B, C three kinds of bands, including the C-band UV wavelength between 240-260nm, which is the most effective sterilizer band, band's strongest point it the wavelength of 253.7nm.

  Swimming pool disinfection system

  Where Need UV Light Purification?

• Pure Water: Drinking Water;Tap Water Factory; Food Process Water; Hospital and Pharmaceutical;

• Beer Industry; Hotels; Lab Ultrapure Water;Cosmetics Industry.

• Circulating Water: Water Entertainment Facilities&Swimming pool water; Landscape water; Industrial Circulating Cooling Water; Spa; Micro-electronics.

• Wastewater: Municipal Sewage; Hospital Sewage; Oilfield Reinjection Water; Urban Sewage;Reclaimed Water; Slaughter-house Wastewater; Sewage from Ships.

• Aquaculture: Hydroponic Shellfish; Fish Hatcheries; Farms; Aquarium.
