Commercial application

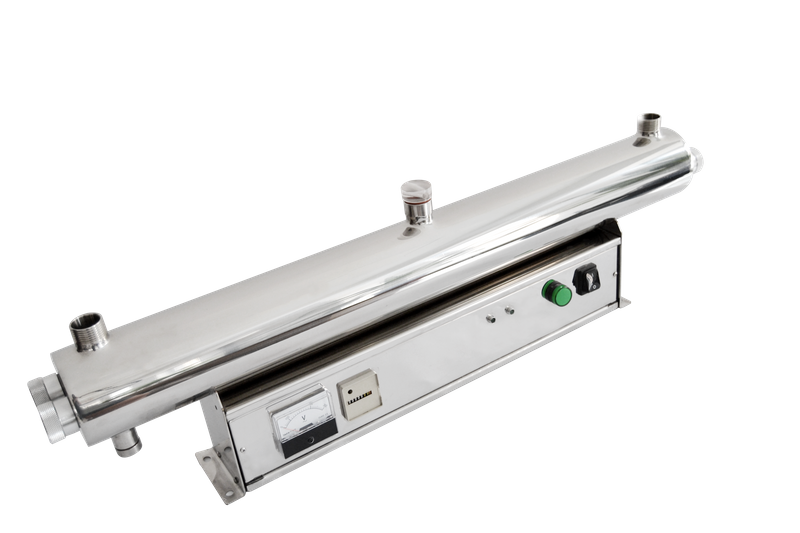

Product description
GPM: 44
TPH: 10
Lamp Watts: 75
Lamp QTY: 2
Inlet/Outlet Port: G 2”M Thread
Sterilization Principe
UV ray is an invisible light, locating at outer side of violet rays in the spectrogram, Therefore it is clled as ultraviolet light, with wave length between 100nm and 400nm, UV ray can be divided intoA, B, C and vacuum ultra violets as per the wave length, Ultraviolet C is shortened to UV-C with wave length between 200nm and 280nm, UV-C with wave length of 253.7nm has the best sterilization effect, which is origin of modern UV-C.
Operating Conditions
Environmental conditions:
1. Temperature: 5"C -40C
2. Relative humidity: s90% (at ambient temperature 25*C
3. Power supply: 10V/220V/240W/380V , 50Hz/60Hz
4. Max. operating pressure: s 1.0MPa
Water supply requirements:
| Parameter | Standard |
| Fe | ≤0.3 (mg/) |
| Hydrogen sulfide | ≤0.05 (mg/) |
| Suspended solid | ≤10 (mg/) |
| Mn | ≤0.05 (mg/) |
| Hardness | ≤120 (mg/) |
| Chroma | ≤15 (degree) |
| Turbidity | ≤5 (NTU) |
| Water temperature | 5°C ~60C |
Parameter
| Model | Flow Rate @ 30mj/cm⊃2; | Lamp Watts | Lamp Qty | Inlet/outlet Port | Reactor Size(mm) |
| GPM | TPH | L | W | H |
| AMD-CUV-80 | 24 | 5.5 | 40 | 2 | G1 1/4" M Thread | 920 | 100 | 233 |
| AMD-CUV-120 | 35 | 8 | 40 | 3 | G1 1/2" M Thread | 920 | 159 | 300 |
| AMD-CUV-160 | 44 | 10 | 40 | 4 | G1 1/2" M Thread | 920 | 159 | 300 |
| AMD-CUV-160 | 53 | 12 | 80 | 2 | DN50 | 920 | 101 | 300 |
| AMD-CUV-240 | 88 | 20 | 80 | 3 | DN65 | 920 | 133 | 320 |
| AMD-CUV-320 | 110 | 25 | 80 | 4 | DN80 | 975 | 159 | 380 |
| AMD-CUV-360 | 132 | 30 | 120 | 3 | DN80 | 1350 | 159 | 380 |
| AMD-CUV-480 | 154 | 35 | 80 | 6 | DN100 | 920 | 219 | 400 |
| AMD-CUV-600 | 176 | 40 | 120 | 5 | DN100 | 1250 | 159 | 580 |
| AMD-CUV-620 | 198 | 45 | 155 | 4 | DN100 | 1660 | 159 | 380
|
| AMD-CUV-720 | 220 | 50 | 120 | 6 | DN100 | 1250 | 168 | 530
|
| AMD-CUV-775 | 242 | 55 | 155 | 5 | DN100 | 1660 | 219 | 550
|
| AMD-CUV-930 | 286 | 65 | 155 | 6 | DN125 | 1660 | 219 | 530
|
| AMD-CUV-1085 | 330 | 75 | 155 | 7 | DN125 | 1660 | 219 | 480
|
| AMD-CUV-1240 | 420 | 95 | 155 | 8 | DN125 | 1600 | 219 | 480
|
| AMD-CUV-1600 | 490 | 110 | 320 | 5 | DN150 | 1600 | 280 | 550
|
| AMD-CUV-1920 | 660 | 150 | 320 | 6 | DN200 | 1600 | 300 | 550
|
* The above pictures and parameters are only for reference. We conserve all rights of parameter modification without prior notiiccation.
Product Advantages
User friendly
This ultraviolet water purifier sterilizer is easy to install and comes with installation instructions in the package, plus we send you an operating video if you need it.
The model comes with its own control box, only one power cord and one button to turn the unit on/off. You can visualize how the fixture is running and the total run time.
Product Application
Pure Water: Drinking water; Tap water factory; Food process water; Hospital and Pharmaceutical; Beer industry; Hotel; Lab ultrapure water; Cosmetics industry.
Circulating Water: Water entertainment facilities swimming pool water; Landscape water; Industrial circulating cool water;Spa; Micro-electronics.
Wastewater: Municipal sewage; Hospital sewage; Oilfield reinjection water; Urban sewage; Reclaimed water;Slaughter-house wastewater; Sewage from ships.
Aquaculture: Hydroponic shellfish; Fish hatcheries; Farms;Aquarium.Military bases, Field operations, Aircraft, Ships, Submarine water disinfection.
| Swimming Pool Water |
| Campus Water Seilization |
| Non-Soil Cltvation |
UV Light Purification Advantages
1. High efficient UV Light Purification:
Normally kill 99-99.99% bacteria within 1 to 2 seconds.
2. Broad spectrum:
UV Light Purification has broadest spectrum, can kill almost all bacteria and virus.
3. No secondary pollution:
Do not add any chemical, so can not create secondary pollution to water and ambient environment, and do not change any ingredient in water.
4. Safe and reliable to operate:
Traditional disinfection technologies, such as chloride or ozone, which disinfection agent itself are highly toxic and flammable material while 48 gpm uv light sterilizer has no such potential safety hazard.
5. Low maintenance fee:
UV lamps occupies a small area; structure requirement is simple, so total investment is smaller. Lower in operation, it costs only half than that chlorine disinfection in kiloton water treatment.
UV Light Purification Advantage Than Others Way
Methods | UV | Chlorination | Ozone |
| Destruction | Physical | Chemical | Chemical |
| Capital Cost | Low | Medium | High |
| Operating Cost | Low | Medium | High |
| Maintenance Cost | Low | Medium | High |
| Maintenance Frequency | Low | Medium | High |
| Disinfection Performance | Excellent | Very good | Unpredictable |
Contact time | 1-5 Seconds | 25-24 minutes | 5-10 Minutes |
| Persanal Hazards | Low | Medium | High |
| Toxic Chemicals | No | Yes | Yes |
| Water Chemistry Change | No | Yes | Yes |
| Residual Effect | No | Yes | Yes |
Working Theory Of UV Light Purification
UV Light Purification is invisible, exists in the outside of UV spectrum,so it is called UV radiaction. According to a different wavelength range,they are cut into A, B, C three kinds of bands, including the C-band UV wavelength between 240-260nm, which is the most effective sterilizer band, band's strongest point it the wavelength of 253.7nm.
Swimming pool disinfection system
Where Need UV Light Purification?
Pure Water: Drinking Water;Tap Water Factory; Food Process Water; Hospital and Pharmaceutical;
Beer Industry; Hotels; Lab Ultrapure Water;Cosmetics Industry.
Circulating Water: Water Entertainment Facilities&Swimming pool water; Landscape water; Industrial Circulating Cooling Water; Spa; Micro-electronics.
Wastewater: Municipal Sewage; Hospital Sewage; Oilfield Reinjection Water; Urban Sewage;Reclaimed Water; Slaughter-house Wastewater; Sewage from Ships.
Aquaculture: Hydroponic Shellfish; Fish Hatcheries; Farms; Aquarium.
