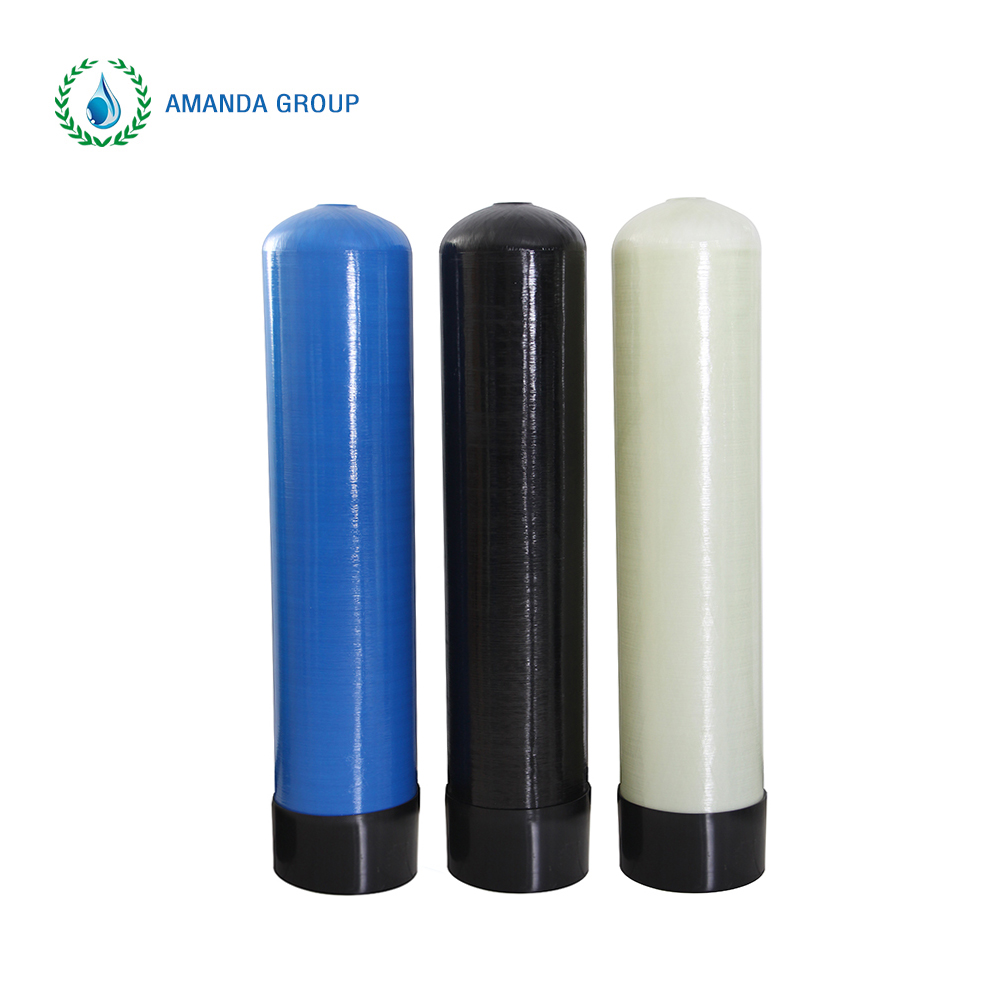

Commercial FRP Water Softening Tank
MAIN TECHNICAL FEATURE
Material of Construction: FRP with polyethylene inner shell.
Color: Blue (default) or natural color (Optional).
Opening: Top opening with 2.5″ Threaded, 2.5"-8NPSM neck.
Total Capacity: 11.5 liter.
Nominal Dimension: 8 inch OD x 17 inch High.
Maximum Operating Pressure: 150 psi (1 MPa).
Burst Pressure: 4 times of design pressure.
Maximum Operating Temperature: 49°C.
AMANDA-H TANK SPECIFICATION
| Model | Vessel Size | Vol | Opening | Dimension/mm | Base |
| Inch | mm | L | Top | Bot. | LA | LB | LC | D |
| H2162/4T-R | 21x62 | 550x 1650 | 326 | 4"-8UN | / | 1650 | 1600 | / | 550 | FRP Round
|
| H2162/4T | 21x62 | 550x1910 | 326 | 4"-8UN | / | 1910 | 1600 | / | 550 | FRP Tripod |
| H2162/4T4B | 21x62 | 550x1910 | 326 | 4"-8UN | 4"-8UN | 1910 | 1590 | 320
| 550 | FRP Tripod |
| H2472/4T-R | 24x72 | 615x1890 | 471 | 4"-8UN | / | 1890 | 1839 | / | 615 | FRP Round |
| H2472/4T | 24x72 | 615x2150 | 471 | 4"-8UN | / | 2150 | 1839 | / | 615 | FRP Tripod |
| H2472/4T4B | 24x72 | 615x2150 | 471 | 4"-8UN | 4"-8UN
| 2150 | 1830 | 320 | 615 | FRP Tripod |
| H3072/4T-R | 30x72 | 780x 1860 | 758 | 4"-8UN | / | 1860 | 1839 | / | 780 | FRP Round |
| H3072/4T | 30x72 | 780x2150 | 758 | 4"-8UN | / | 2150 | 1830 | / | 780 | FRP Tripod
|
| H3072/4T4B | 30x72 | 780x2150 | 758 | 4"-8UN | 4"-8UN | 2150 | 1830 | 320
| 780 | FRP Tripod
|
| H3672/4T4B | 36x72 | 918x2150 | 1023 | 4"-8UN | 4"-8UN | 2150 | 1830 | 320 | 918 | FRP Tripod |
| H3672/6T6B | 36x72 | 918x2260 | 1023 | 6"-flane | 6"-flange | 2260 | 1940 | 320 | 918 | FRP Tripod |
H4272/6T6B | 42x72 | 1088x2270 | 1389 | 6"-flane | 6"-flange | 2270 | 1950 | 320 | 1088 | FRP Tripod |
H4872/6T6B | 48x72
| 1218x2270 | 1743 | 6"-flane | 6"-flange | 2270 | 1950 | 320 | 1218 | FRP Tripod |
| H6370/6T6B | 63x70 | 1620x1780 | 2580 | 6"-flane | 6"-flange | 2100 | 1780 | 320 | 1620 | FRP Tripod |
| H6383/6T6B | 63x83 | 1620x 2080 | 3150 | 6"-flane | 6"-flange | 2400 | 2080 | 320 | 1620 | FRP Tripod |
*The actual dimmension may have ±1.2% error due to PE materlats contraction coefficient

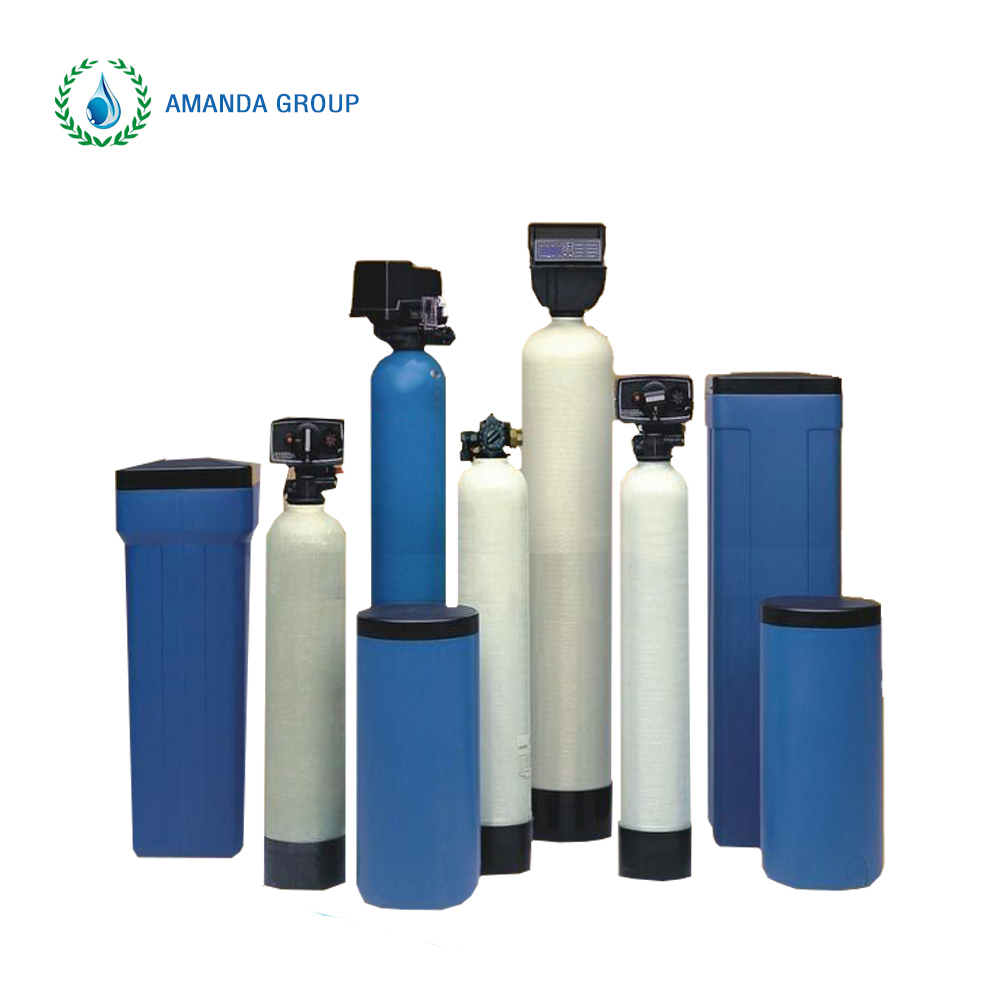

PRODUCT DISPLAY
Product advantage:
The versatile small filter tank can work with a range of specialized filtration media, including activated carbon, calcite, quartz sand, birm, and siliphos, as well as a variety of ion exchange resins like softening, deionisation, and demineralization resin. Its construction features a seamless liner made from food-grade HDPE and high-performance composite material, with FRP filament winding providing 100% corrosion resistance. With its adaptable design, this filter tank delivers reliable and effective filtration solutions for various industrial applications.
PRODUCING PROCESS
Amanda fiber reinforced polymer tanks processes used for manufacturing :
1. 6” to 36" PE liners are made from CNC controlled blow molding machine ,
2. PE liner of industrial tanks are made from CNC controlled rotational molding machine ,
3. Inlet inserts and bases are from CNC controlled injection molding machine,
4. FRP outer shells are made from CNC controlled multi-axis filament winding machine.
PRODUCTION PROCESS
PACKAGE AND SHIPPING
1. Client's Requirements are in the first :
We are gald to customized package as per clients's demands, including logo and colors design , importantly the fiber reinforced polymer tanks also can do client's brand insteading of our manufacturer's .
2. Normally Amanda Company package is by waterproof plastic bag with carton box.
Kindly supply pictures for your reference .
