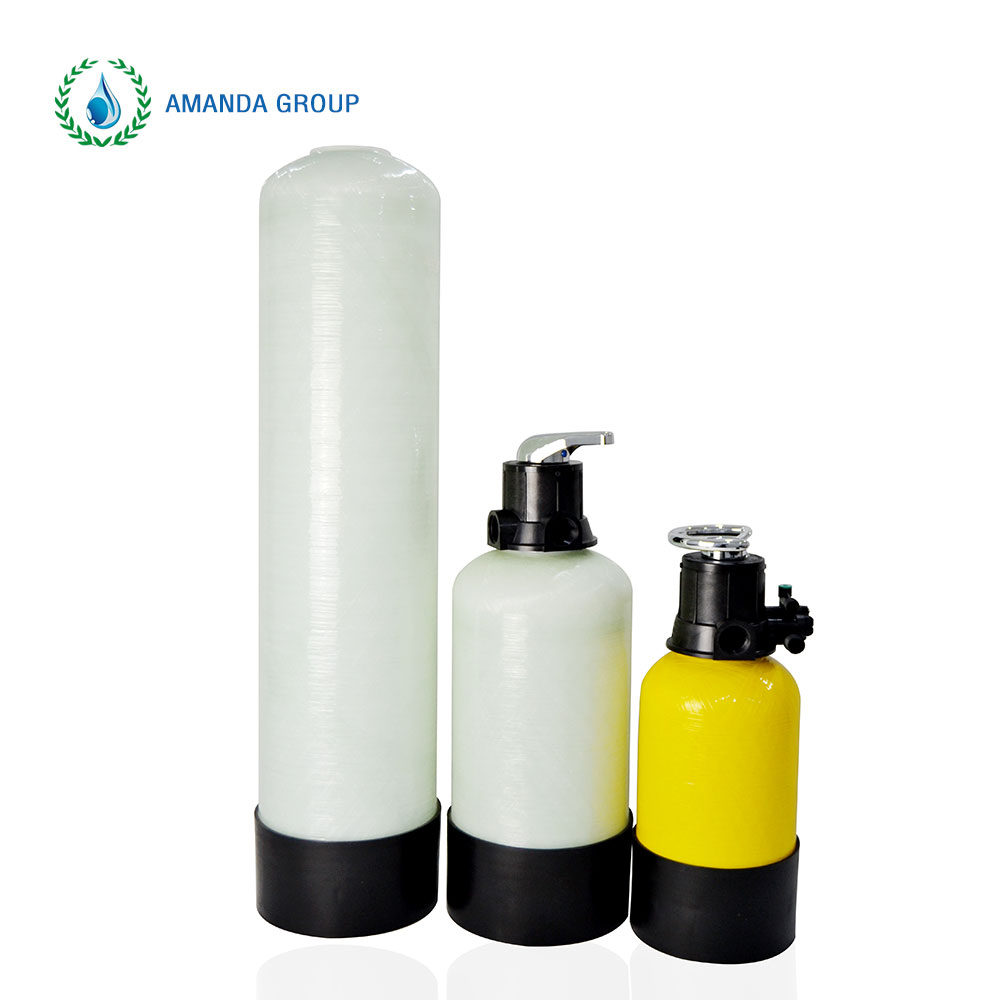

Mixbed Resin DI Tank
MAIN TECHNICAL FEATURE
FRP media pressure tank is used to hold filtration media for many different water treatment applications, FRP filter pressure vessel tank is used in DI vessels (DI Bottles), mixed bed resin deionizers, demineralization systems, small water softeners, small sand filters, multi-media filters, carbon filters, iron filters, and other media filters
AMANDA-H TANK SPECIFICATION
| Model | Vessel Size | Vol | Opening | Dimension/mm | Base |
| Inch | mm | L | Top | Bot. | LA | LB | LC | D |
| H2162/4T-R | 21x62 | 550x 1650 | 326 | 4"-8UN | / | 1650 | 1600 | / | 550 | FRP Round
|
| H2162/4T | 21x62 | 550x1910 | 326 | 4"-8UN | / | 1910 | 1600 | / | 550 | FRP Tripod |
| H2162/4T4B | 21x62 | 550x1910 | 326 | 4"-8UN | 4"-8UN | 1910 | 1590 | 320
| 550 | FRP Tripod |
| H2472/4T-R | 24x72 | 615x1890 | 471 | 4"-8UN | / | 1890 | 1839 | / | 615 | FRP Round |
| H2472/4T | 24x72 | 615x2150 | 471 | 4"-8UN | / | 2150 | 1839 | / | 615 | FRP Tripod |
| H2472/4T4B | 24x72 | 615x2150 | 471 | 4"-8UN | 4"-8UN
| 2150 | 1830 | 320 | 615 | FRP Tripod |
| H3072/4T-R | 30x72 | 780x 1860 | 758 | 4"-8UN | / | 1860 | 1839 | / | 780 | FRP Round |
| H3072/4T | 30x72 | 780x2150 | 758 | 4"-8UN | / | 2150 | 1830 | / | 780 | FRP Tripod
|
| H3072/4T4B | 30x72 | 780x2150 | 758 | 4"-8UN | 4"-8UN | 2150 | 1830 | 320
| 780 | FRP Tripod
|
| H3672/4T4B | 36x72 | 918x2150 | 1023 | 4"-8UN | 4"-8UN | 2150 | 1830 | 320 | 918 | FRP Tripod |
| H3672/6T6B | 36x72 | 918x2260 | 1023 | 6"-flane | 6"-flange | 2260 | 1940 | 320 | 918 | FRP Tripod |
H4272/6T6B | 42x72 | 1088x2270 | 1389 | 6"-flane | 6"-flange | 2270 | 1950 | 320 | 1088 | FRP Tripod |
H4872/6T6B | 48x72
| 1218x2270 | 1743 | 6"-flane | 6"-flange | 2270 | 1950 | 320 | 1218 | FRP Tripod |
| H6370/6T6B | 63x70 | 1620x1780 | 2580 | 6"-flane | 6"-flange | 2100 | 1780 | 320 | 1620 | FRP Tripod |
| H6383/6T6B | 63x83 | 1620x 2080 | 3150 | 6"-flane | 6"-flange | 2400 | 2080 | 320 | 1620 | FRP Tripod |
*The actual dimmension may have ±1.2% error due to PE materlats contraction coefficient
PRODUCT DISPLAY
PRODUCING PROCESS
Amanda fiber reinforced polymer tanks processes used for manufacturing :
1. 6” to 36" PE liners are made from CNC controlled blow molding machine ,
2. PE liner of industrial tanks are made from CNC controlled rotational molding machine ,
3. Inlet inserts and bases are from CNC controlled injection molding machine,
4. FRP outer shells are made from CNC controlled multi-axis filament winding machine.
PRODUCTION PROCESS
PACKAGE AND SHIPPING
1. Client's Requirements are in the first :
We are gald to customized package as per clients's demands, including logo and colors design , importantly the fiber reinforced polymer tanks also can do client's brand insteading of our manufacturer's .
2. Normally Amanda Company package is by waterproof plastic bag with carton box.
Kindly supply pictures for your reference .
