Whole House String Wound Water Filter
You are here: Home » Products » Filter Housing and Cartridge » String Wound Filter Cartridge » Whole House String Wound Water Filter

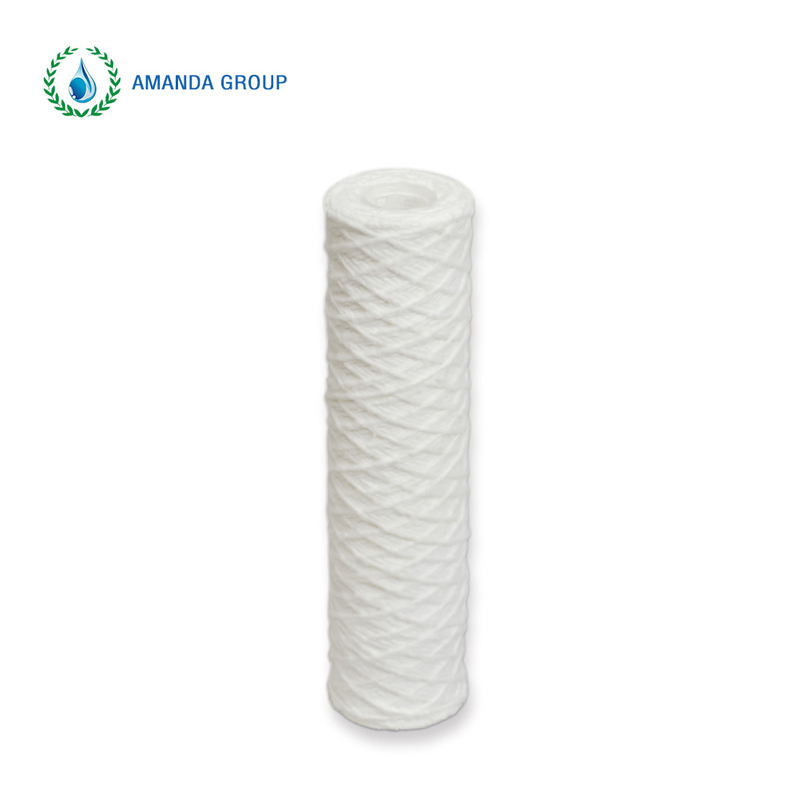

Whole House String Wound Water Filter

String wound filter cartridge consists of multi-hole frames wound closely wrapped with textile fibers. Diverse kinds of filtering precision can be realized by controlling the winding density.
sharethis sharing button

 Whole House String Wound Water Filter Description

Whole House String Wound Water Filter

Whole House String Wound Water Filter Introduction

The Whole House String Wound Water Filter is a kind of deep filter element, which is used for filtration of low viscosity and low impurity quality. It is made of textile fiber thread (polypropylene thread, degreased cotton thread, etc.) which is precisely wound on the porous framework (polypropylene or stainless steel) according to a specific process. It has a honeycomb structure with sparse outside and dense inside, and can effectively remove suspended solids, particles, rust and other impurities in the fluid. It has very excellent filtration characteristics

PP Sediment String Wound Cartridge specification

Micron: 1μm-300μm

Length: 5’’, 10’’, 20’’, 30’’, 40’’, 50’’, 60’’, 70’’, 80’’

OD: 62±1mm

ID: 28mm、30mm

Connector: Plane、222 plug-in、226 plug-in

Max working temp.: Polypropylene fibre, PP core 60℃; Decreasing cotton, SS core 100℃

Max pressure: 0.4MPa

Flow rate: ≥600L/H(10’’)

PH value: 1-13

 PP Sediment String Wound Cartridge Feature

Eliminate effectively the suspended objects and particles in the liquid.

With large flow and small pressure loss.

With high residual load and service life. can resist higher filtering pressure

 PP Sediment String Wound Cartridge Application

1. Filtered water: such as pre filtration treatment of medium and large ultra pure water systems and pre filtration treatment of water for beverage industry;

2. Filtration in food industry: such as the filtration of edible oil and vegetable oil, and the filtration of syrup, chocolate and other types of slurry;

3. Chemical industry filtration: such as the filtration of electroplating solution, paint, oil and coating, mechanical oil, cutting oil, heavy oil and fuel oil, high viscosity resin and grease, and pharmaceutical filtration;
