RO Membrane Housing/Pressure Vessel
You are here: Home » Products » RO Membrane Housing/Pressure Vessel » RO Membrane Housing/Pressure Vessel

PRODUCT DETAIL

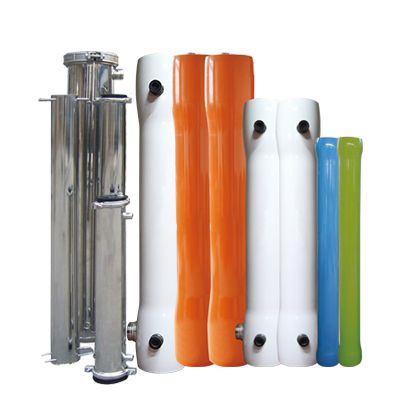

RO Membrane Housing/Pressure Vessel

·Adopt imported material to improve the anti wearable property
·Adopt special proessing technology to make the inside of the products more smooth
·Multi-ports are available according to customer requirements for easy insallation
·UMK series adopt upscale automobile baking varnish craft to ensure the smoothness and brightness of the products
·Outstanding corrosion resistance and anti-aging property;Well heat-insulting property and anti-Oxidation property

  • AMD-ROMH/PV
  • Amanda

 FRP MEMBRANE HOUSING/PRESSURE VESSEL


AMD FRP Membrane Housing Pressure Vessel



 MAIN TECHNICAL FEATURE


Product Name: FRP ro reverse osmosis membrane filter pressure vessel housing
Material: FRP
Pressure: 150/ 300/ 450/ 600/ 1000/ 1200psi
Size: 4040 and longer
Connection: End port or side port

Let's begin to communicate Contact us




Model PS PSI(MPa) Connection Membrane size

Number of elements

UMK-80S150 150(1.0) SIDE 8040 1-8
UMK-80S300

300(2.1)

SIDE 8040 1-8
UMK-80S450 450(3.1) SIDE 8040 1-8
UMK-80S600 600(4.1) SIDE 8040 1-8
UMK-80S1000 1000(6.9) SIDE 8040 1-8

UMK-80S1200

1200(8.4)

SIDE 8040 1-8


Model PS PSI(MPa) Connection Membrane size

Number of elements

UMK-80E150 150(1.0) END 8040 1-8
UMK-80E300

300(2.1)

END 8040 1-8
UMK-80E450 450(3.1) END 8040 1-8
UMK-80E600 600(4.1) END 8040 1-8
UMK-80E1000 1000(6.9) END 8040 1-8

UMK-80E120

1200(8.4)

END 8040 1-8



Model PS PSI(MPa) Connection Membrane size

Number of elements

UMK-40S150 150(1.0) SIDE 8040 1-4
UMK-40S300

300(2.1)

SIDE 8040 1-4
UMK-40S450 450(3.1) SIDE 8040 1-4
UMK-40S600 600(4.1) SIDE 8040 1-4
UMK-40S1000 1000(6.9) SIDE 8040 1-4



Model PS PSI(MPa) Connection Membrane size

Number of elements

UMK-40E150 150(1.0) END 4040 1-4
UMK-40E300

300(2.1)

END 4040 1-4
UMK-40E450 450(3.1) END 4040 1-4
UMK-40E600 600(4.1) END 4040 1-4
UMK-40E1000 1000(6.9) END 4040 1-4



  CHARACTERISTICS



Membrane pressure vessels characteristic

Adopt imported material to improve the anti-wearable property

Adopt special processing technology to make the inside of the products more smooth

Muiti-ports are available according to customer requirements for easy installation

UMK series adopt upscale automobile baking vamish craft to ensure the smoothness and brightness of the products

Outstanding corrosion resistance and anti-aging property,Well heat-insulting property and anti-xidation propety

Spare parts:

End plate adopts aerial processing technique, eficiently improving the intensity and capacity to resist deformation

Seal kit adopts special structure and technique,efcienty enhancing the leak tightness

End-plate made of aluminum alloy.enhance the ability to resist deformation

Seal kit adopts environmental material to assure the leak tightness and high water quality, meanwhile to improve its anti-aging capacity

Inlet and outlet are made of high quality stainless stee 316L materials, which have a strong ability to resistance corrosion, easy to

disassembly, assembly, maintenance

Quality Assurance

Burst test with 6 times of its design pressure

100,000 times cycle test

100% quality assurance test with 1.1 times stage elevation of hydrostatic pressure


  PRODUCT DISPLAY


 Product details

AMD Product details


AMD The product production1_1
AMD Product details_1

The product production

AMD The product production
AMD The product production
AMD The product production


  Product Parameters

ITEM NO. PSI(MPa) Connection Membrane size Number of elements
UMK40E150 150(1.0) END 4040 1-4
UMK40E300 300(2.1) END 4040 1-4
UMK40E450 450(3.1) END 4040 1-4
UMK40E600 600(4.1) END 4040 1-4
UMK40E1000 1000(6.9) END 4040 1-4


  Quality Assurance


·ASME Standard design

·Burst test with 6 times of its design pressure

·100,000 times cycle test

·100% quality assurance test with 1.1 times stage elevation of hydrostatic pressure
