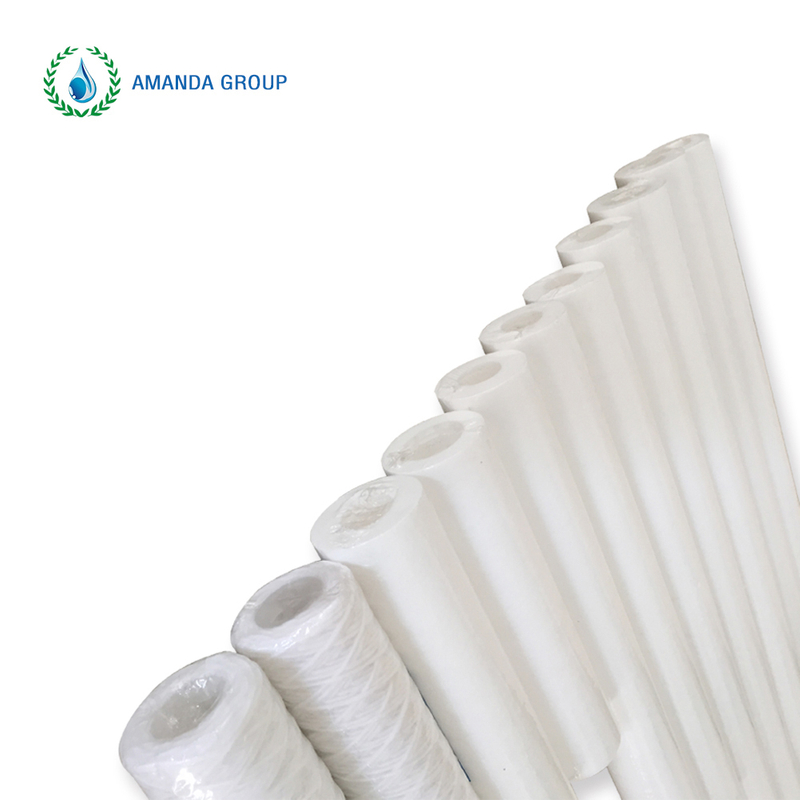

Cotton Wound Filter Cartridge Description
Cotton Wound Filter Cartridge Introduction
The Whole House String Wound Water Filter is a kind of deep filter element, which is used for filtration of low viscosity and low impurity quality. It is made of textile fiber thread (polypropylene thread, degreased cotton thread, etc.) which is precisely wound on the porous framework (polypropylene or stainless steel) according to a specific process. It has a honeycomb structure with sparse outside and dense inside, and can effectively remove suspended solids, particles, rust and other impurities in the fluid. It has very excellent filtration characteristics
Cotton Wound Filter Cartridge specification
Wire wound filter element size specification table |
size | 10’’ | 20’’ | 30’’ | 4’’ |
Outside diameter（±1mm） | 63mm | 63mm | 63mm | 63mm |
inside diameter（±1mm） | 28mm/30mm | 28mm/30mm | 28mm/30mm | 28mm/30mm |
length | 254mm | 508mm | 762mm | 1016mm |
filter material | Absorbed cotton thread, polypropylene thread |
Filter accuracy | 1μm 5μm 10μm 20μm 30μm 50μm 75μm 100gμm |
The skeleton | PP skeleton, Stainless steel skeleton |
working temperature | Polypropylene thread: polypropylene skeleton at 60°C; stainless steel frame: 80°C. Absorbent cotton thread: stainless steel frame 120℃ |
pressure | Pressure resistance: 0.5MPa; maximum pressure drop: 0.2MPa |
Remarks: The center rod of the absorbent cotton fiber filter element is made of stainless steel. It is used for organic solvents, water, oil, alkaline solutions, beverages, medicines, etc. The operating temperature is 120 °C. All sizes can be customized |
Cotton Wound Filter Cartridge Feature
Eliminate effectively the suspended objects and particles in the liquid.
With large flow and small pressure loss.
With high residual load and service life. can resist higher filtering pressure
Cotton Wound Filter Cartridge Application
1. Filtered water: such as pre filtration treatment of medium and large ultra pure water systems and pre filtration treatment of water for beverage industry;
2. Filtration in food industry: such as the filtration of edible oil and vegetable oil, and the filtration of syrup, chocolate and other types of slurry;
3. Chemical industry filtration: such as the filtration of electroplating solution, paint, oil and coating, mechanical oil, cutting oil, heavy oil and fuel oil, high viscosity resin and grease, and pharmaceutical filtration;
