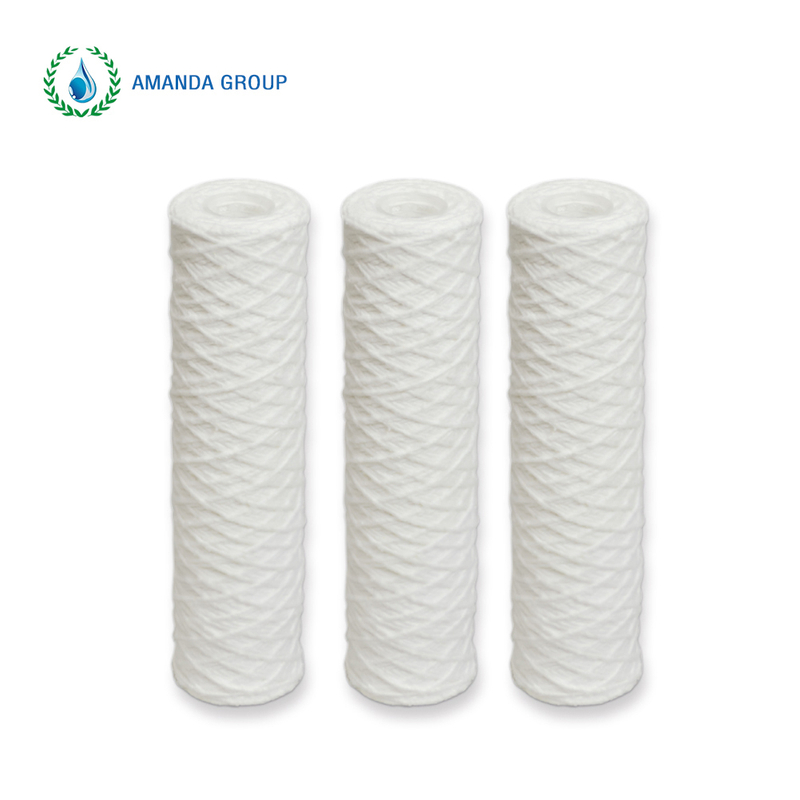

String Wound Polypropylene Filter Cartridge

 String Wound Polypropylene Filter Cartridge Description

String Wound Polypropylene Filter Cartridge Introduction

String wound filter cartridge consists of multi-hole frames wound closely wrapped with textile fibers. Diverse kinds of filtering precision can be realized by controlling the winding density. It can effectively remove the suspended solids, particles, rust and other impurities in the fluid. As the outer bore diameter is larger than the inner one, the filter cartridges have a good deep-level filtering capacity.

String Wound Polypropylene Filter Cartridge specification

Micron: 1μm-300μm

Length: 5’’, 10’’, 20’’, 30’’, 40’’, 50’’, 60’’, 70’’, 80’’

OD: 62±1mm

ID: 28mm、30mm

Connector: Plane、222 plug-in、226 plug-in

Max working temp.: Polypropylene fibre, PP core 60℃; Decreasing cotton, SS core 100℃

Max pressure: 0.4MPa

Flow rate: ≥600L/H(10’’)

PH value: 1-13

 5 Micron String Wound Sediment Filter Feature

Eliminate effectively the suspended objects and particles in the liquid.

With large flow and small pressure loss.

With high residual load and service life. can resist higher filtering pressure

 5 Micron String Wound Sediment Filter Application

Mainly used for the purification of process water and solutions in food and drinks, electronic, pharmaceutical, petroleum and chemical industries.
