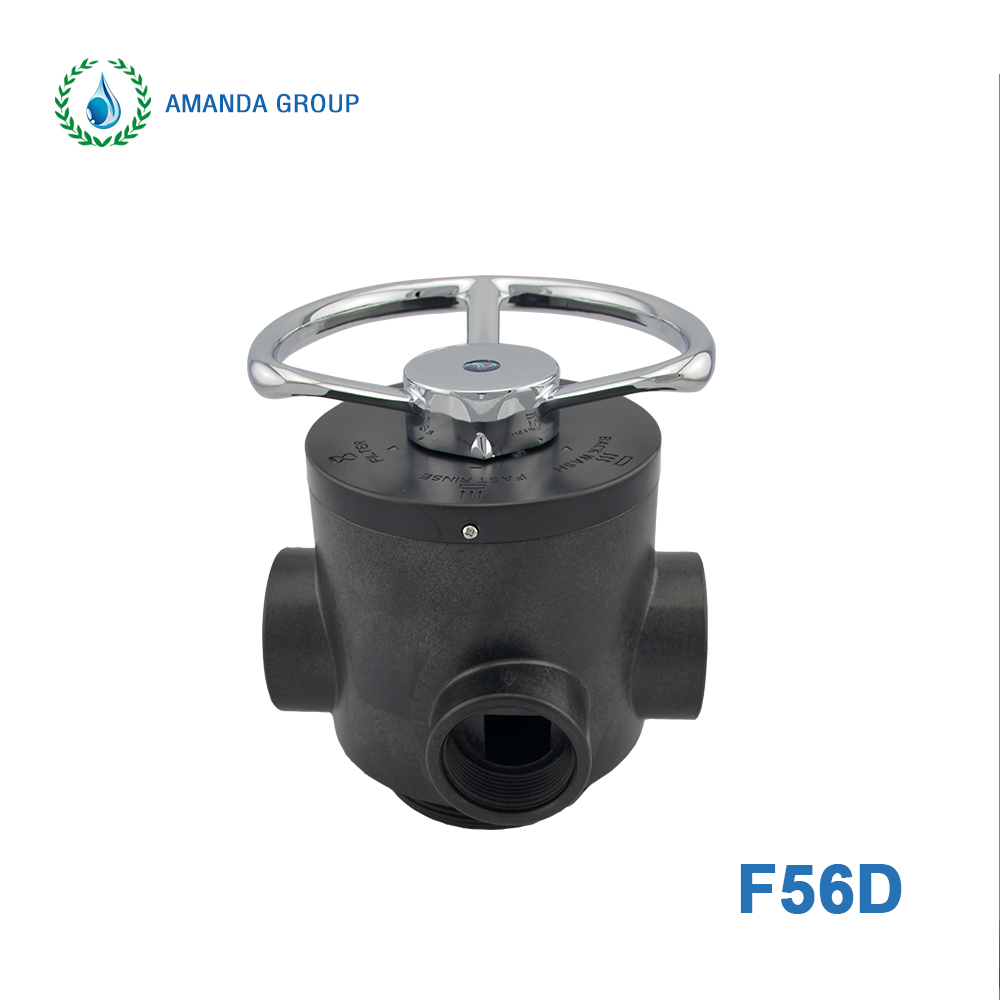

Runxin F56D Manual Filter Valve
Other Types of Runxin Valve
Manual Filter Valve |
| Manual Softener Valve |
|
Automatic Filter Valve
|
Automatic Softener Valve |
| One Valve On Duplex Tanks |
| Residential Softener of D Series |
Parameters
| Inlet/outlet | 2″F |
| Drain | 1.5″F |
| Base | 4″-8UN |
| Riser pipe | 1.5″D-GB |
| Water treatment capacity | 10 m3/h |
| Tank diameter range | 10″～24″ |
| Water pressure | 0.15MPa～0.6MPa |
| Water temperature | 5℃～50℃ |
| Water turbidity | ＜20FTU |
| Environment temperature | 5℃～50℃ |
Water softener |
|
Industrial water filter |
Product Features
- Highly vitrified and corrosion-resistant sealing end faces are used for opening and closing.
- No water passes through the valve during the rinsing process of the single tank type.
- Flow path design is reasonable: service → quick wash → backwash → quick wash → backwash → service.
- Can be converted to a side-loading valve with side-loading connector.
- Can be operated under pressure with no leakage.
Applications
- Residential filtration system
- Swimming pool filtration equipment
- Activated carbon or sand filtration in RO pre-treatment filtration systems
