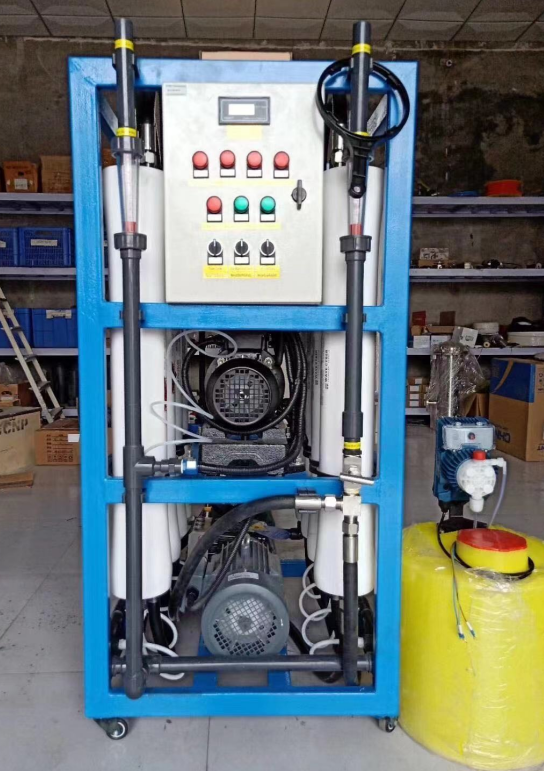

Small Sea Water Desalination System
The reverse osmosis seawater desalination device first extracts the seawater, performs preliminary treatment, reduces the turbidity of seawater, prevents the growth of microorganisms such as bacteria and algae, and then pressurizes the seawater with a special high-pressure pump to make the seawater enter the reverse osmosis membrane.
Therefore, the seawater reverse osmosis membrane must have the characteristics of high desalination rate, corrosion resistance, high pressure resistance, and anti-pollution. /L or so.
The water quality after desalination is even better than tap water, so it can be used by industry, commerce, residents and ships and ships.
Application
Freshwater supply for ships
Freshwater supply for islands, seashores
Freshwater supply for yachts, seaside villas
Advantages
Intelligent design, using PLC automatic control system, can start and stop at preset time.
Small size, light weight, compact and beautiful design.
Low energy consumption and low cost of water production.
Simple operation, convenient use and maintenance; one-key operation of start and stop.
Novel and ingenious design, stable performance, safe and reliable.
System Parameters
Feed water salinity:≤38000mg/1
Desalination rate :≥98%
Feed water temperature: 2 -40C
Product water quality: Compliance wihguide for dinkingwater qullybywho
Compliance wihational sandards for dnkingwater qully
Product water salinity:≤600mg/l
Recovery rate: 10 - 40%
Power supply (available): 380v/50hz; 220v ( 440v ) /60hz
Membrane components: international leading brands
Product Model
Model | Capability(T/H) | Operation(MPa) | Membrane(Inch) | Membrane(Qty) | Power(KW) |
AMDRO-125L | 0.125 | 1.0-1.4 | 4021 | 1 | 1.1 |
AMDRO-250L | 0.25 | 1.0-1.4 | 4040 | 1 | 1.1 |
AMDRO-500L | 0.5 | 1.0-1.4 | 4040 | 2 | 1.5 |
AMDRO-750L | 0.75 | 1.0-1.4 | 4040 | 3 | 2.2 |
AMDRO-1000L | 1 | 1.0-1.4 | 4040 | 4 | 2.2 |
AMDRO-1500L | 1.5 | 1.0-1.4 | 4040 | 6 | 3 |
AMDRO-2000L | 2 | 1.0-1.4 | 4040 | 8 | 3 |
AMDRO-3000L | 3 | 1.0-1.4 | 4040 | 12 | 4 |
AMDRO-5000L | 5 | 1.0-1.4 | 8040 | 5 | 5.5 |
AMDRO-10000L | 10 | 1.0-1.4 | 8040 | 10 | 11 |
AMDRO-15000L | 15 | 1.0-1.4 | 8040 | 15 | 15 |
AMDRO-20000L | 20 | 1.0-1.4 | 8040 | 20 | 18.5 |
Principle Graph
RO Water Purification System Operating Process:
Raw water storage tank -- Raw water pump -- Sand filter -- Carbon filter -- Water softener -- Brine Tank -- Security filter -- RO unit -- Pure water tank
Products Details
Exhibition
Our Advantage
Our Factory
Advanced production equipment | Professional and technical personnel |
Adequate product inventory | Rich industry experience |
