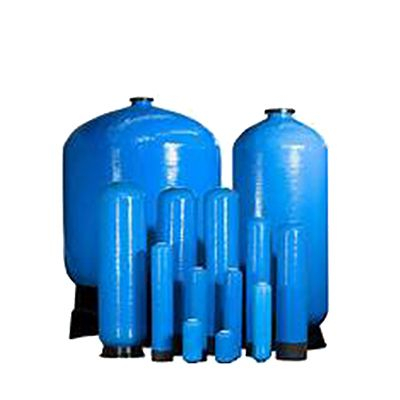

FRP Water Pressure D Tank

All materials of construction in contact with water are food gradematerials .
Inner Shell:polyethylene ( PE ).
Outer shell:premium fiberglass embedded in epoxy resin .
Inlet inserts are made of injection molded glass reinforced thermal plastic .
Flanges:pressure cast aluminum .
Bases of residential tanks are made of injection molded impact resistance thermal plastic.
Bases of industrial tanks are made of FRP laminate material .


Availability:



Inquire

Model:
AMD-FRP
Brand:
Amanda

Product Description

FRP WaTER PRESSURE TANK

AMD FRP WaTER PRESSURE TANK

MAIN TECHNICAL FEATURE

Characters

Fully Rustproof and corrosion resistant

High strength Light weight

Easy transporting and istllation

Nice appearance

Structure & Materials

Liner material: Rotation molding or Blowing One-piece seamless PE inner liner

Outer Winding: Hight Performance resin with Fiber glass threedimensional winding

Opening: 2.5" and 4" reinforced plastic thread,6" alloy flange

Bass Materials: FRP or reinforced PP

Application Conditions

Working Pressure:150psi (10.5bar)

Working Temperature:1-49*C (34-121*F)

Max.Vacuum:127mm Hg

Lowest Environment Temperature: -27*C (-17*F)

Design Parameter

Burst Pressure: 42bar (4 times)

Fatigue Cycle: 100, 000

Color

In UMK fiber reinforced polymer tanks, there are five colors for your choose : Nature,

Blue, Black, Gray, Yellow. ( Other colors are customied )

Specification

AMD MAIN TECHNICAL FEATURE

AMANDA-D TANK SPECIFICATION

Model	Vessel Size		Vol	Opening			Dimension/mm				Base
Model	Inch	mm	L	Top	Bot.	Dis.	LA	LB	LC	D	Base
4272/6T6B4D	42x72	1088x1850	1100	6"-flange	6"-flange	4"-flange	1850	1615	235	1088	FRP Tripod
4289/6T6B4D	42x89	1088x2270	1389	6"-flange	6"-flange	4"-flange	2270	1950	320	1088	FRP Tripod
4872/6T6B4D	48x72	1218x1850	1308	6"-flange	6"-flange	4"-flange	1850	1565	285	1218	FRP Tripod
4889/6T6B4D	48x89	1218x2270	1743	6"-flange	6"-flange	4"-flange	2270	1950	320	1218	FRP Tripod
4894/6T6B4D	48x94	1218x2400	1909	6"-flange	6"-flange	4"-flange	2400	2110	290	1218	FRP Tripod
48110/6T6B4D	48x110	1218x 2800	2360	6"-flange	6"-flange	4"-flange	2800	2510	290	1218	FRP Tripod
6094/6T6B4D	60x94	1530x2400	2688	6"-flange	6"-flange	4"-flange	2400	2110	290	1530	FRP Tripod
60110/6T6B4D	60x110	1530x2800	3392	6"-flange	6"-flange	4"-flange	2800	2510	290	1530	FRP Tripod
6383/6T6B4D	63x83	1620x2100	2580	6"-flange	6"-flange	4"-flange	2100	1780	320	1620	FRP Tripod
6394/6T6B4D	63x94	1620x2400	3150	6"-flange	6"-flange	4"-flange	2400	2080	320	1620	FRP Tripod
★7294/6T6B4D	★72x94	1836x2400	3561	6"-flange	6"-flange	6"-flange	2400	2045	355	1836	FRP Tripod
H4272/6T6B4D	42x72	1088x2270	1389	6"-flange	6"-flange	4"-flange	2270	1950	320	1088	FRP Tripod
H4872/6T6B4D	48x72	1218x2270	1743	6"-flange	6"-flange	4"-flange	2270	1950	320	1218	FRP Tripod
H6370/6T6B4D	63x70	1620x1780	2580	6"-flange	6"-flange	4"-flange	2100	1780	320	1620	FRP Tripod
H6382/6T6B4D	63x82	1620x2080	3150	6"-flange	6"-flange	4"-flange	2400	2080	320	1620	FRP Tripod

*The actual dimmension may have ±1.2% error due to PE materlats contraction coefficient

PRODUCT DISPLAY

Product advantage:

FRP tank is made up of resin and glass fiber by microcomputer control winding machine and become a kind of non-metallic

comoosite tanks. it has corrosion resistance. hiah strenath. lona service life. can be flexible desian. workmanshiD, etc

PRODUCING PROCESS

Amanda fiber reinforced polymer tanks processes used for manufacturing :

1. 6” to 36" PE liners are made from CNC controlled blow molding machine ,

2. PE liner of industrial tanks are made from CNC controlled rotational molding machine ,

3. Inlet inserts and bases are from CNC controlled injection molding machine,

4. FRP outer shells are made from CNC controlled multi-axis filament winding machine.

FRP Water Pressure Tank (7)

PRODUCTION PROCESS

AMD PRODUCTION PROCESS

PACKAGE AND SHIPPING

1. Client's Requirements are in the first :

We are gald to customized package as per clients's demands, including logo and colors design , importantly the fiber reinforced polymer tanks also can do client's brand insteading of our manufacturer's .

2. Normally Amanda Company package is by waterproof plastic bag with carton box.

Kindly supply pictures for your reference .
