PRODUCT IMAGES

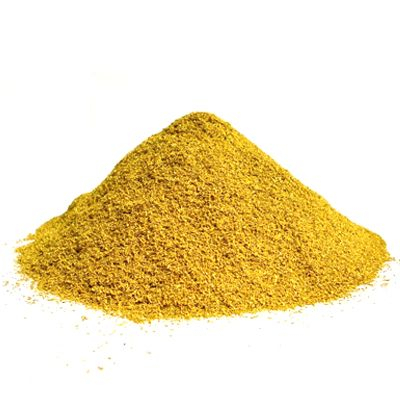

AMANDA PINCHBECK ALLOY FILTER MATERIALS

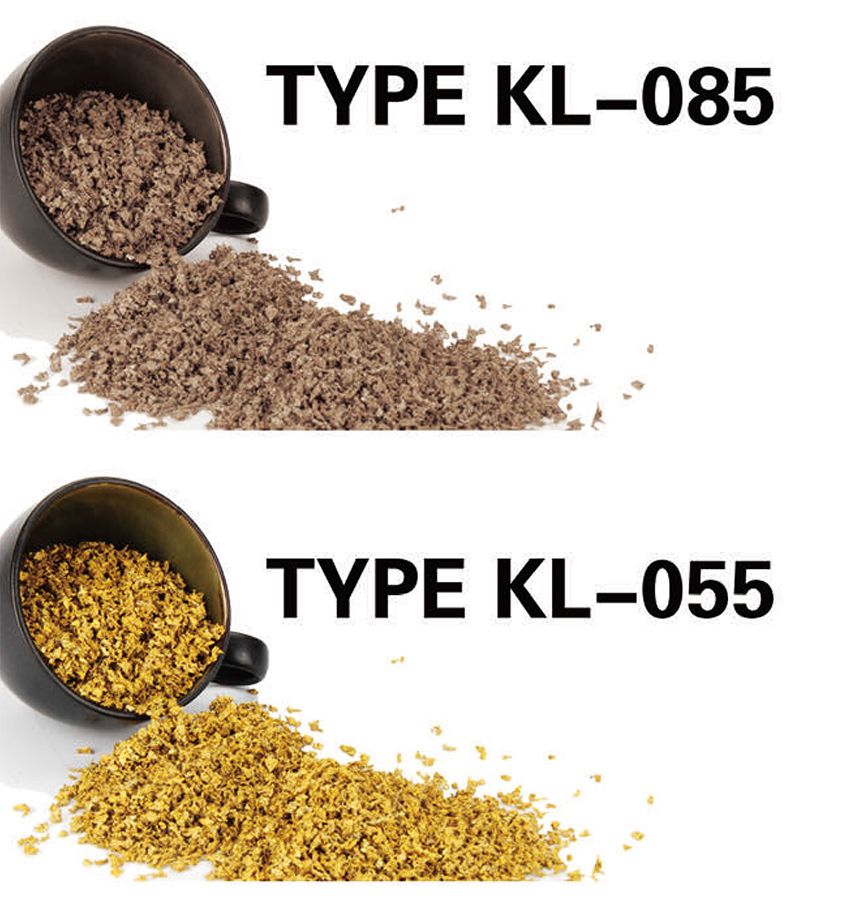

STANDARD OF AMANDA MEDIUM
Amanda filter material (055)
Amanda filter material (085)
Composition of medium- atomized high-purity aly

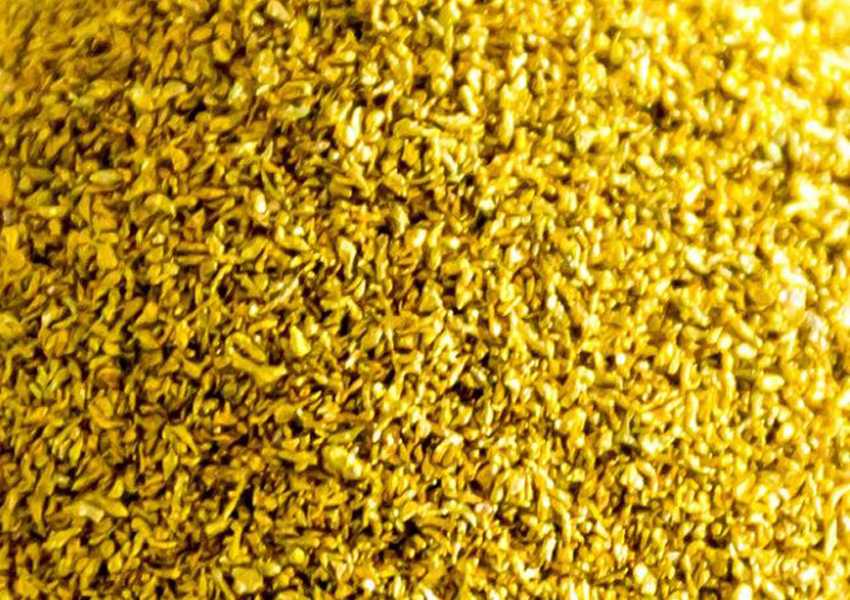

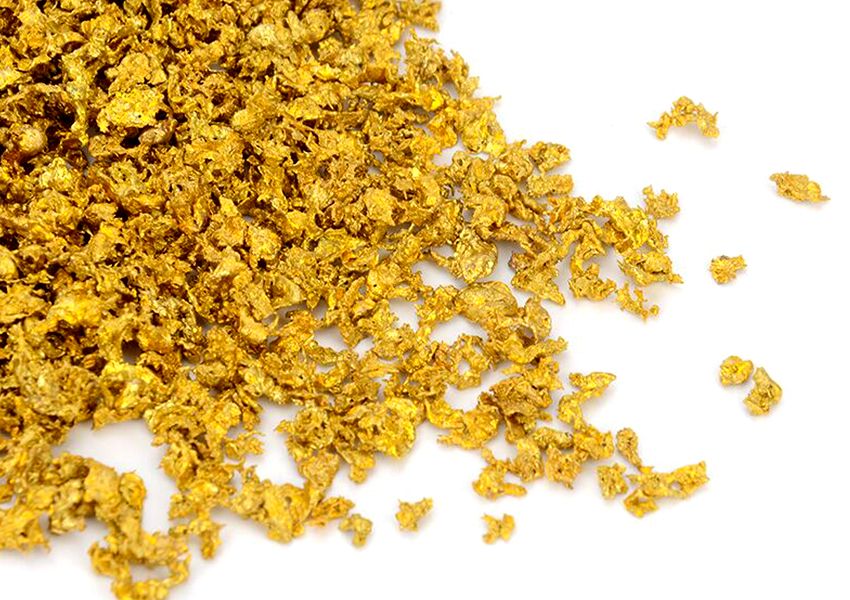

Appearance- golden (brown red) particles
Odor- odorless
Mesh number-10-100meshes
Turbidity≤20NTU
Diameter scope of paricles- 2.00-0.145mm
Temperature of the water intake-0-100
Bulk density- 2.4-2.9g/cm3
Scope of PH value: drinking water-6.5-8.5
Scope of PH value: non-drinking water-5.5-8.5
Comparison between AMANDA and activated carbon
1. Residual chlorine adsorption limitation
●Activated carbon filter can also remove residual chlorine. Nevertheless, activated carbon gets saturated soon (usually 2 to 3 weeks) in water with high concentration of chlorine. So the concentration of chlorine in water must be controlled strictly in operation.When used together with Amanda pinchbeck aloy fiter material, activated carbon removes organic impurities and residual chlorine more powerfully and its service life is lengthened by over 15 times.
2. Susceptible bacteria
●Activated carbon filter bed breeds bacteria easily. Amanda pinchbeck alloy filter material is able to control reproduction of bacteria and algae in the granular activated carbon layer or activated carbon filter element.
3. High cost & poisonousness
●Amanda pinchbeck alloy filter material can also take the place of silver loaded activated carbon. Since silver poisonous metal,
Amanda pinchbeck aloy filter material achieves self-circulation by recycling (circulating) waste metal and its cost is much lower than that of silver loaded activated carbon.

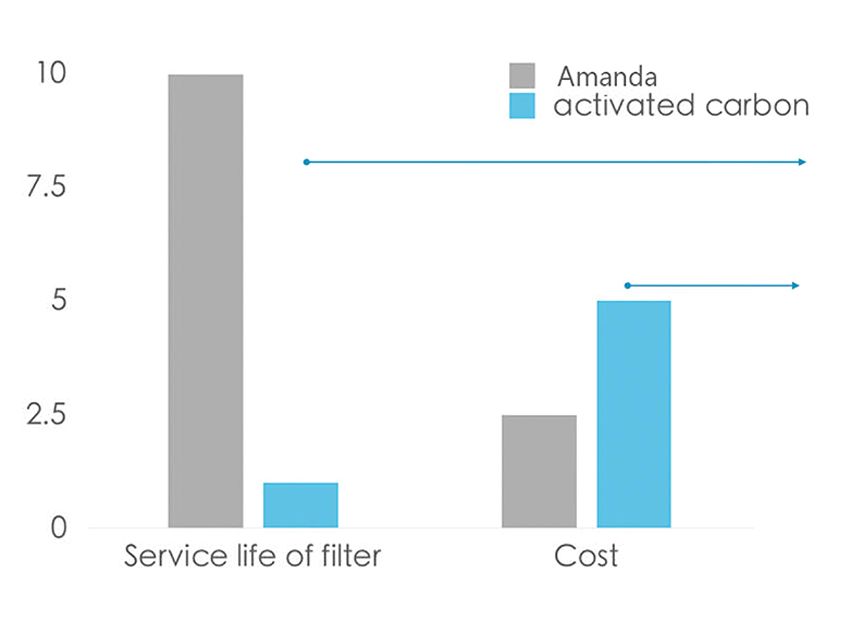

Comparison of AMANDA and activated carbon
1.Amanda pinchbec k alloy filter material's service life is more than 1 0 timesthat of activated carbon.
2.Amanda pinchbeck alloy filter material's cost is less than half of that of activated carbon

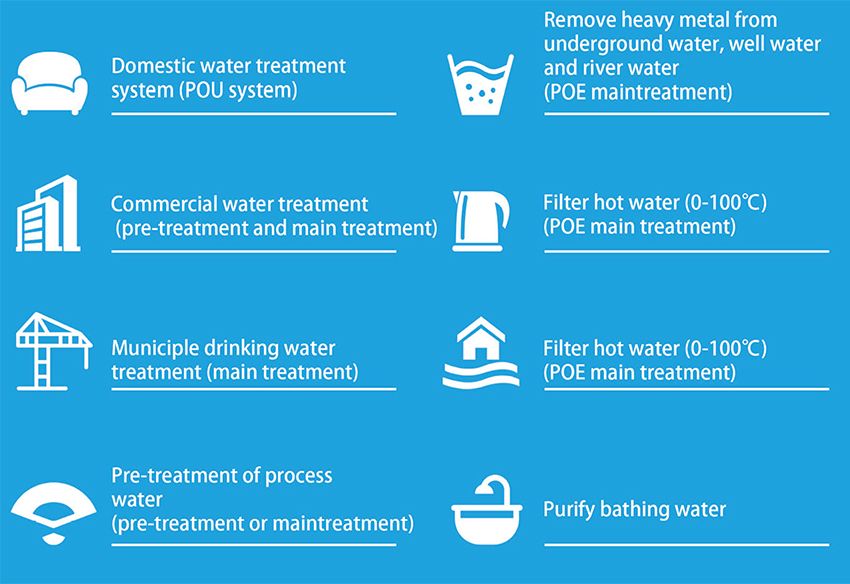

APPLICATION RANGE
When used in treatment of running water inlet points (POE) or end purification (POU), Amanda pinchbeck alloy filter material can remove chlorine and heavy metal in the water effectively while functioning in the fields of scale inhabitation and bacteria killing.
Amd Application Range

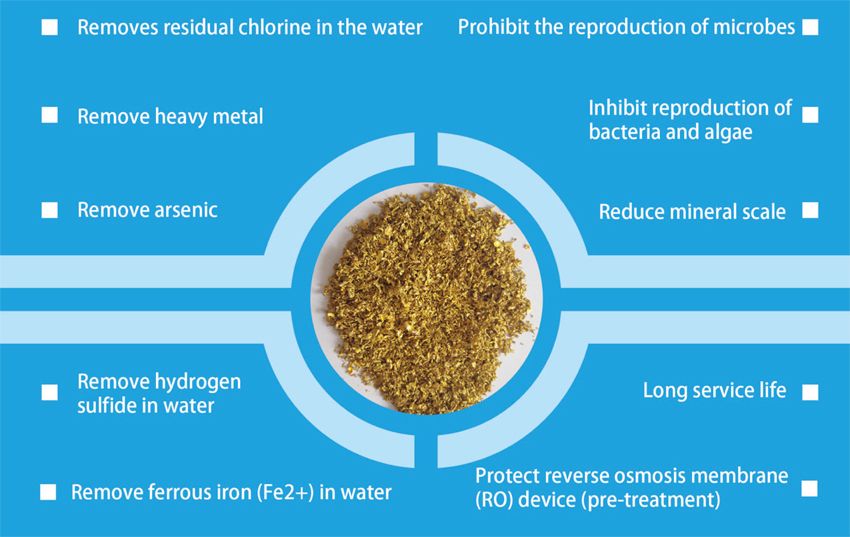

FEATURES AND FUNCTIONS
Remove most harmful impurities in water with a simple Amanda filter
Features And Functions
OUR HISTORY
OPERATING CONDITION AND MODEL SELECTION FOR POE SYSTEM
Size of ftring bucket | Diameter of pipeline | Maximum flow rate | Amanda pinchbeck alloy fiter material | Minimum backwashing quantity |
Depth of bed | Weight | Volume
|
| mm | mm | m3h | mm | kg | m3 | m3/h |
| 150*600 | 15 | 0.5 | 254 | 13 | 0.005 | 1.5 |
| 200*800 | 15 | 1.0 | 280 | 20 | 0.007 | 1.9 |
| 200*1000 | 20 | 1.2 | 310 | 26 | 0.009 | 2.5 |
| 250*1500 | 20 | 1.5 | 330 | 39 | 0.015 | 3.0 |
| 250*1500 | 20 | 2.0 | 360 | 52 | 0.019 | 3.6 |
| 200*1500 | 25 | 2.5 | 400 | 78 | 0.030 | 5 |
| 350*1650 | 25 | 3.5 | 460 | 130 | 0.045 | 7 |
| 400*1650 | 40 | 4.5 | 510 | 181 | 0.066 | 9 |
| 450*1750 | 40 | 5.5 | 560 | 285 | 0.010 | 11 |
| 500*1750 | 50 | 8.0 | 610 | 388 | 0.142 | 16 |
| 600*1850 | 50 | 10 | 610 | 570 | 0.185 | 20 |
| 750*1850 | 65 | 16 | 610 | 800 | 0.290 | 30 |
| 900*1850 | 65 | 24 | 610 | 1160 | 0.418 | 45 |
| 1000*2000 | 80 | 35 | 610 | 1560 | 0.566 | 70 |
| 1200*2000 | 100 | 45 | 610 | 2020 | 0.736 | 90 |
| 1600*2200 | 125 | 75 | 610 | 3500 | 0.279 | 150 |
